PQTDORM16315 MHz Keyfob Transmitter

ALL KEY FOBS MUST BE PRESENT AND REPROGRAMMED WHEN PROGRAMMING NEW FOBS Programming Instructions: 1. Open & unlock driver door. 2. Within 5 seconds, insert and remove the key in the ignition 2 times. (Do not turn on) 3. Close and open driver door 2 times. 4. Insert and remove the key in the ignition. 5. Close and open driver door 2 times. 6. Close the driver door. 7. Turn the key to the on position (without cranking ), and then turn off and remove the key from the ignition. 8. The power door locks will cycle when you have successfully entered programming mode. 9. Press lock & unlock buttons simultaneously for 1 second. Press unlock button for 2 seconds. Door locks will cycle 1 time to confirm successful programming. Repeat this step to program all additional remotes. 10. Open the driver door and test all remotes. If programming has failed, repeat this procedure from the beginning. FCC WARNING Statement 15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Dorman Products Inc. could void the user’s authority to operate the equipment. ALL KEY FOBS MUST BE PRESENT AND REPROGRAMMED WHEN PROGRAMMING NEW FOBS IC WARNING This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. FVIN: 6399137IC MISE EN GARDE IC- Le terme IC avant le numero de dertification/enregistrement signifie seulement que les specifications techniques d’Industrie Canada ont ete rencontrees. Le fonctionnement est sujet aux deux conditions suivantes: (1) cet appareil ne doit pas causer d’interference, et (2) cet appareil doit pouvoir accepter toute intergerence recue, incluant l’interference qui peut engendrer un fonctionnement non desire de l’appareil. ALL KEY FOBS MUST BE PRESENT AND REPROGRAMMED WHEN PROGRAMMING NEW FOBS

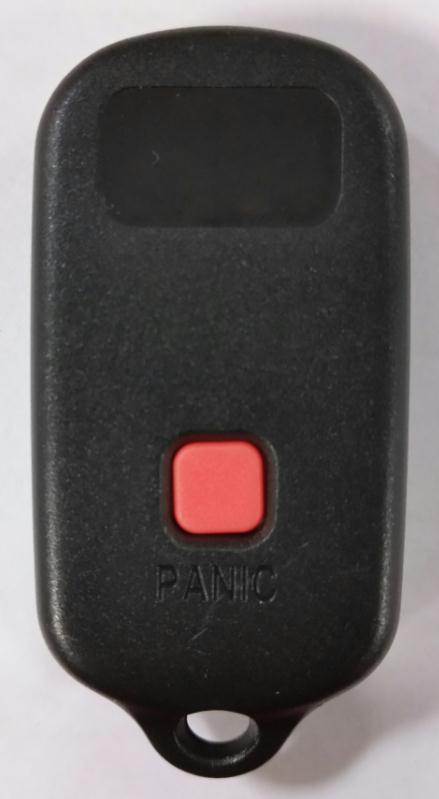

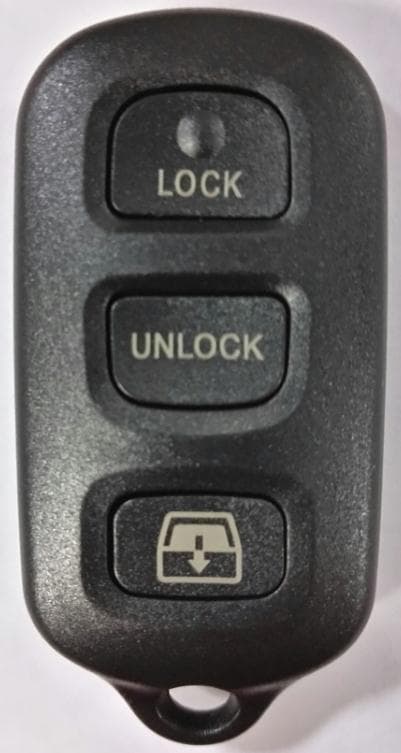

External 99137 Front/Back External 99138 Front/Back

Internal Front w/PCBA 99137 Front/Back Internal Front w/PCBA 99138 Front/Back

Operation Instruction PTQDORM16 The keyfob assembly consists of a plastic case with 3 or 4 button cutouts, a rubber button panel, a PCB and battery. It generates a Manchester encoded signal that is transmitted at 315MHz. The keyfob uses an integrated RF MCU that detects button presses and calculates and transmits an encoded signal to a receiver. This signal is generated by an internal software controlled transmitter inside the MCU. It contains no external resonator. The antenna is integrated into the PCB. MODEL DESCRIPTION Buttons 99137 KEYLESS ENTRY REMOTE 3 99138 KEYLESS ENTRY REMOTE 4

Designator DescriptionFootprint Quantity R1, R2, R4, R5 Resistor6034 C2 Ceramic Chip Capacitor6031 C1 Ceramic Chip Capacitor6031 C5 Ceramic Chip Capacitor6031 C3Ceramic Chip Capacitor12061 L1，L2 Ceramic Chip Capacitor6032 U1 ISM Transmitter IC -SI4010-C2-GTR MSOP-10 1 S1, S2, S34.2*3.2 SMT Tact SwitchSW4 3 S4 5.2 * 5.2 SMD Tact Switch 5.2*5.2*.081 BT1Battery Terminal20321 Value 1.5K(152) 8.2pF 100pF 100nF 2.2uF 100nH

Report No. R-2385P Page 2 of 24 Retlif Testing Laboratories R Technical Information Report Number: R-2385P Customer: Dorman Products, Inc. Address: 3400 East Walnut Street Colmar, PA 18915 Manufacturer: Dorman Products, Inc. Manufacturer Address: 3400 East Walnut Street Colmar, PA 18915 Test Sample: 315 MHz Keyfob Transmitter Model Number: 99137, 99138 FCC ID: PQTDORM16 IC: 10735A-DORM16 Type: Security / Remote Control Transmitter Power Requirements: 3 VDC Derived from a CR2032 Battery Frequency of Operation: 315 MHz Equipment Class: DSC Equipment Use: Portable < 2.5 cm Test Specification: FCC Rules and Regulations Part 15, Subpart C, Section 15.231 Radio Standards Specification, RSS-210, Issue 8, June, 2010 Test Procedure: ANSI C63.4:2014 RSS-GEN, Issue 4, November 2014 Test Site: ANSI C63.4:2009 Test Facility: Retlif Testing Laboratories 3131 Detwiler Road Harleysville, PA 19438 FCC Registered Test Site Number: 98314 Report No. R-2385P Page 3 of 24 Retlif Testing Laboratories R Tests Performed The test methods performed on the 315 MHz Keyfob Transmitter are shown below: FCC Part 15, Subpart C Industry Canada RSS-210 Industry Canada RSS-GEN Test Method 15.231(b) A1.1.2(1) N/A Field Strength of Emissions 15.231(b)(2) A1.1.2(2) 4.5 Duty Cycle Determination 15.231(b)(3) A1.1.2(3) N/A Field Strength of Spurious Emissions 15.231(c) A1.1.3 N/A Bandwidth of Emission General Test Requirements 1. The measurement procedures of ANSI C63.4:2009 were utilized as specified in FCC Part 15, Subpart C, Section 15.31(a)(3) and IC RSS-GEN Section 4.1. 2. All radiated emissions measurements were performed on an Open Area Test Site (OATS), listed with the FCC and IC, in accordance with FCC Section 15.31(d) and IC Section 4.2. 3. The level of the fundamental field strength was recorded with a new battery installed in the EUT, in accordance with FCC Section 15.231(e) and IC Section 4.3(e). 4. All measurements were performed at the specified 3 meter test distance as required by FCC Section 15.31(f) and IC Section 7.25. 5. The EUT was rotated throughout 360 degrees for all radiated emissions measurements as specified in FCC Section 15.31(f)(5) and IC Section 4.3(h). 6. All readily accessible EUT controls were adjusted in such a manner as to maximize the level of emissions in accordance with FCC Section 15.31(g) and IC Section 4.3(h). 7. Appropriate accessories were attached to all EUT ports during the performance of radiated emissions measurements as required by FCC Section 15.31(i) and IC Section 4.3(d). 8. The EUT operated at a discrete frequency of 315 MHz. 9. The frequency spectrum was investigated from the lowest frequency generated in the device up to the 10 th harmonic of the highest fundamental frequency in accordance with FCC Section 15.33(a)(1) and IC Section 4.9. 10. All measurements were taken with a peak detector function as specified in FCC Section 15.35(a) and IC Section 4.4. The duty cycle, calculated in accordance with FCC Section 15.35(c) and IC Section 4.5, was applied to the peak readings in order to obtain the average value of emissions. The peak value of emissions was verified to meet the 20 dB requirement of FCC Section 15.35(b) and IC Section 7.2.1. Report No. R-2385P Page 5 of 24 Retlif Testing Laboratories R Requirements and Test Results Requirement: FCC Section 15.231(a) - Periodic operation in the band 40.66 - 40.7 MHz and above 70 MHz The provisions of this Section are restricted to periodic operation within the band 40.66-40.7 MHz and above 70 MHz. Except as shown in Paragraph (e) of this Section, the intentional radiator is restricted to the transmissions of a control signal such as those used with alarm systems, door openers, remote switches, etc. Continuous transmissions, voice, video and the radio control of toys are not permitted. Data is permitted to be sent with a control signal. IC RSS-210, A1.1 - Momentarily Operated Devices The frequency bands and field strength limits in Tables 4 and 5 are only for the transmission of a control signal such as that used with alarm systems, door openers, remote switches, etc. Radio control of toys or model aircrafts, and continuous transmissions such as voice or video are not permitted except as provided in A1.1.5. Data is permitted to be sent with a control signal.  Results: The device was operated at a frequency of 315 MHz and is for the transmission of a control signal used for remote keyless vehicle entry. Requirement: FCC Sections 15.231(a)(1)-(5) Periodic operation in the band 40.66 - 40.7 MHz and above 70 MHz The following conditions were met in order to comply with the provisions for momentary operation: IC RSS-210, A1.1.1(a)-(d) - Types of Momentary Signals The following conditions were met in order to comply with the provisions for momentary operation: FCC 15.231(a)(1): A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. IC A1.1.1(a): A manually operated transmitter shall employ a push-to-operate switch and be under manual control at all transmission times. When released, the transmitter shall cease transmission (holdover time of up to 5 seconds of operation).  Results: The device is a manually operated, push to operate transmitter under manual control. The device ceased transmission within 5 seconds of deactivation. Report No. R-2385P Page 6 of 24 Retlif Testing Laboratories R Requirements and Test Results (con’t) FCC 15.231(a)(2): A transmitter activated automatically shall cease transmission within 5 seconds after activation. IC A1.1.1(b): A transmitter activated automatically shall cease transmission with 5 seconds after activation, (i.e. maximum 5 seconds of operation).  Results: Transmission is not automatically activated. FCC 15.231(a)(3): Periodic transmissions at regular predetermined intervals are not permitted. However, polling or supervision transmissions, including data, to determine system integrity of transmitt…
