PQTDORM41315 MHz Keyfob Transmitter

PROGRAMMING ADDITIONAL REMOTES REQUIRE AT LEAST ALREADY PROGRAMMED REMOTE Programming Instructions: 1.Get into vehicle with existing key, new keys and programmer. 2.Leave driver’s door open. 3.Press start/stop button to the ON position. 4.Plug programmer into OBD port (located under drivers side kick panel) 5.After 10 seconds programmer will beep indicating you have entered programming mode. 6.Using an existing already programmed remote, touch the back of the remote to the start/stop button. You should hear a beep. Place remote on passenger seat. 7.Using a new remote to be programmed, touch the back of the remote to the start/stop button. You should hear a beep. 8.Press start/stop button to OFF position and remove programmer. 9.Put foot on brake pedal and start vehicle. 10. Turn vehicle OFF and test all buttons on the new remote. 11.If programming fails, repeat the process. FCC WARNING Statement 15.19(a)(3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Dorman Products Inc. could void the user’s authority to operate the equipment. IC WARNING FVIN 6313702IC PROGRAMMING ADDITIONAL REMOTES REQUIRE AT LEAST ALREADY PROGRAMMED REMOTE The term IC before the Certification/Registration number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference including interference that may cause undesired operation of the device.

NEW SINCE 1918 ™ Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: PQTDORM41 Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Operational Description Schematic Part List B lock Diagram File Name PQTDORM41 OpDes.pdf PQTDORM41 Schem.pdf PQTDORM41 PartsLst.pdf PQTDORM41 BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission's public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type None Sincerely, d:;:;:.� Senior Vice President, General Counsel Dorman Products, Inc. Rev 11/20/07 File Name None

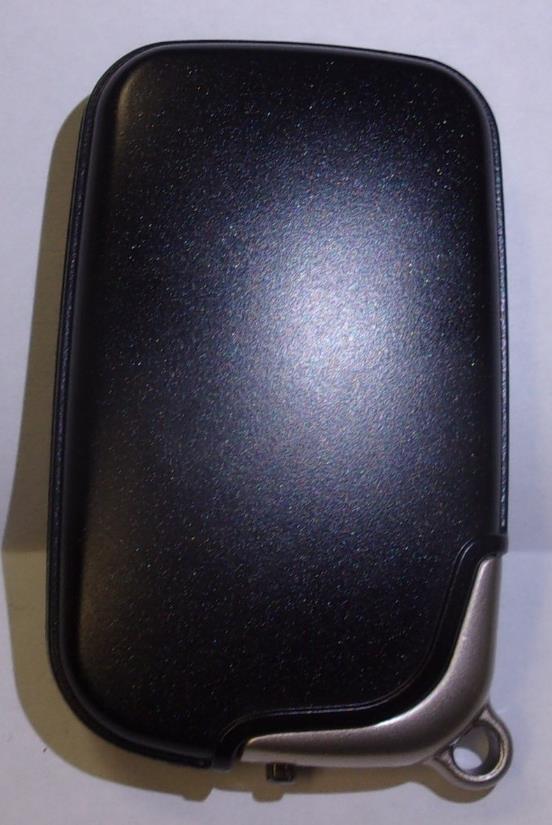

External Photos DORM41 Front Rear Bottom Top Side 1 Side 2

Note: Label Location is identical on all models listed for DORM41 Label text will be laser etched on to key fob. DORMAN PRODUCTS Model: 13702 102817 YYDDD FCC ID: PQTDORM41 IC: 10735A-DORM41 BATT CR1632

DORMAN PRODUCTS Model: 13703 102817 YYDDD FCC ID: PQTDORM41 IC: 10735A-DORM41 BATT CR1632

Internal Photos DORM41 PCB Antenna

FCC Part 15, Subpart C, Section 15.231 Industry Canada, RSS-210 and RSS-GEN Test Report On 315 MHz Keyfob Transmitter FCC ID: PQTDORM41 IC: 10735A-DORM41 Customer Name: Dorman Products, Inc. Customer P.O: 4200007240 Date of Report: January 6, 2020 Test Report No: R-2854P-1 and R-2854P-2 Test Start Date: May 17, 2019 Test Finish Date: May 24, 2019 Test Technician: M. Nowak Test Engineer: A. Warwick Approved By: D. Rybicki Report Prepared By: P. Harris Our letters, procedures and reports are for the exclusive use of the customer to whom they are addressed and their communication or the use of the name of Retlif Testing Laboratories must receive our prior written approval. Our letters, procedures and reports apply only to the sample tested and are not necessarily indicative of the qualities of apparently identical or similar products. The letters, procedures and reports and the name of Retlif Testing Laboratories or insignia are not to be used under any circumstances in advertising to the general public. This test report shall not be reproduced, except in full, without the written approval of Retlif Testing Laboratories. Report No. R-2854P-1/2 Page 2 of 30 Retlif Testing Laboratories R Table of Contents Certification and Signatures .................................................................................................. 3 Revision History .................................................................................................................... 4 Requirements and Test Results ............................................................................................ 8 General Requirements FCC and IC .................................................................................... 13 Open Area Test Site ........................................................................................................... 14 Equipment Lists .................................................................................................................. 15 Test Data, Field Strength of Emissions ........................................................................... 17 Test Data, Duty Cycle Determination .............................................................................. 22 Test Data, Bandwidth of Emission .................................................................................. 26 Test Data, Timing Requirements ..................................................................................... 29 Report No. R-2854P-1/2 Page 3 of 30 Retlif Testing Laboratories R Certification and Signatures We certify that this report is a true representation of the results obtained from the tests of the equipment stated. We further certify that the measurements shown in this report were made in accordance with the procedures indicated and vouch for the qualifications of all Retlif Testing Laboratories personnel taking them. Arik L. Warwick EMC Test Engineer David M. Rybicki Laboratory Supervisor Non-Warranty Provision The testing services have been performed, findings obtained and reports prepared in accordance with generally accepted laboratory principles and practices. This warranty is in lieu of all others, either expressed or implied. Non-Endorsement This test report contains only findings and results arrived at after employing the specific test procedures and standards listed herein. It is not intended to constitute a recommendation, endorsement or certification of the product or material tested. This report must not be used by the client to claim product endorsement by ANSI National Accreditation Board (ANAB). Report No. R-2854P-1/2 Page 4 of 30 Retlif Testing Laboratories R Revision History Revisions to this document are listed below; the latest revised document supersedes all previous issues of this document. Revision Date Pages Affected - January 6, 2020 Original Release Report No. R-2854P-1/2 Page 5 of 30 Retlif Testing Laboratories R Technical Information Report Number: R-2854P-1 and R-2854P-2 Customer: Dorman Products, Inc. Address: 3400 East Walnut Street Colmar, PA 18915 Manufacturer: Dorman Products, Inc. Manufacturer Address: 3400 East Walnut Street Colmar, PA 18915 Test Sample: 315 MHz Keyfob Transmitter Model Numbers: 13702 and 13703 FCC ID: PQTDORM41 IC: 10735A-DORM41 Type: Security / Remote Control Transmitter Power Requirements: 3 VDC Derived from a CR2032 Battery Frequency of Operation: 315 MHz Equipment Class: DSC Equipment Use: Portable < 2.5 cm Test Specification: FCC Rules and Regulations Part 15, Subpart C, Section 15.231 Radio Standards Specification, RSS-210, Issue 9, August, 2016 Test Procedure: ANSI C63.10:2013 RSS-GEN, Issue 5, March 2019, Amendment 1 Test Site: ANSI C63.4:2014 Test Facility: Retlif Testing Laboratories 3131 Detwiler Road Harleysville, PA 19438 FCC Accreditation Designation Number: US2321 ISED Test Site Registration Number: 2047B Report No. R-2854P-1/2 Page 6 of 30 Retlif Testing Laboratories R Tests Performed The test methods performed on the 315 MHz Keyfob Transmitter are shown below: FCC Part 15, Subpart C Industry Canada RSS-210 Industry Canada RSS-GEN Test Method Test Results 15.231(b) A1.1.2(1) N/A Field Strength of Emissions Complied 15.231(b)(2) A1.1.2(2) 4.5 Duty Cycle Determination Complied 15.231(b)(3) A1.1.2(3) N/A Field Strength of Spurious Emissions Complied 15.231(c) A1.1.3 N/A Bandwidth of Emission Complied 15.231(a)(1) A1.1.1(a) N/A Timing Requirements Complied All test methods listed above are included in Retlif Testing Laboratories ANSI National Accreditation Board (ANAB), ISO/IEC 17025 Scope of Accreditation. Report No. R-2854P-1/2 Page 7 of 30 Retlif Testing Laboratories R General Test Requirements 1. The measurement procedures of ANSI C63.10:2013 were utilized as specified in FCC Part 15, Subpart C, Section 15.31(a)(3) and IC RSS-GEN Section 4.1. 2. All radiated emissions measurements were performed on an Open Area Test Site (OATS), listed with the FCC and IC, in accordance with FCC Section 15.31(d) and …

Text truncated - open the document above for the full version.

Page 1 of 13 Dorman Products, Inc. Test Setup Photographs FCC ID: PQTDORM41 IC: 10735A-DORM41 Page 2 of 13 Field Strength of Emissions Test Setup Photographs Test Setup, X Axis, Below 1 GHz Test Setup, X Axis, Above 1 GHz Page 3 of 13 Field Strength of Emissions Test Setup Photographs Test Setup, Y Axis, Below 1 GHz Test Setup, Y Axis, Above 1 GHz Page 4 of 13 Field Strength of Emissions Test Setup Photographs Test Setup, Z Axis, Below 1 GHz Test Setup, Z Axis, Above 1 GHz Page 5 of 13 Field Strength of Emissions Test Setup Photographs Horizontal Antenna Polarization, Below 1 GHz Vertical Antenna Polarization, Below 1 GHz Page 6 of 13 Field Strength of Emissions Test Setup Photographs Horizontal Antenna Polarization, Above 1 GHz Vertical Antenna Polarization, Above 1 GHz Page 7 of 13 Field Strength of Spurious Emissions Test Setup Photographs Test Setup, X Axis, Below 1 GHz Test Setup, X Axis, Above 1 GHz Page 8 of 13 Field Strength of Spurious Emissions Test Setup Photographs Test Setup, Y Axis, Below 1 GHz Test Setup, Y Axis, Above 1 GHz Page 9 of 13 Field Strength of Spurious Emissions Test Setup Photographs Test Setup, Z Axis, Below 1 GHz Test Setup, Z Axis, Above 1 GHz Page 10 of 13 Field Strength of Spurious Emissions Test Setup Photographs Horizontal Antenna Polarization, Below 1 GHz Vertical Antenna Polarization, Below 1 GHz Page 11 of 13 Field Strength of Spurious Emissions Test Setup Photographs Horizontal Antenna Polarization, Above 1 GHz Vertical Antenna Polarization, Above 1 GHz Page 12 of 13 Duty Cycle Determination Test Setup Photograph Test Setup Page 13 of 13 Occupied Bandwidth of Emissions Test Setup Photograph Test Setup
