PQVXUPPowerline Home LAN

Xup XM100-01-U User’s Manual Xeline Co., Ltd. Guide on User’s Manual Copyright 2001 by Xeline Co., Ltd. All Rights Reserved. No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without prior written permission from Xeline Co., Ltd. Please be aware that the product would be upgraded to enhance the features and performance without any prior notice. There could be slight difference on actual installation and operation of product from this User’s manual. Should you have any questions or comments on this User’s manual, please communicate through “Contact us” menu at our web site www.xeline.com. Technical Support Center Address:7F. Chungjin B/D., 475-22, Bangbae 2-dong, Seocho-ku, Seoul, Korea Telephone: 822) 598-0980 Web Site: http://www.xeline.com Trademarks Xup XM100-01-U is a registered trademark of Xeline Co., Ltd. Widows98/Windows N/T is a registered trademark of Microsoft Corporation. MS-Windows is a registered trademark of Microsoft Corporation. General Notice: Other brand and product names used herein are for identification purposes only and may be trademarks of their respective owners. Contents 1. Product Introduction................................................ 4 1.1 Product Characteristics ................................................... 4 1.2 Product Contents ............................................................ 4 1.3 Product Details ............................................................ 5 Product Outfit ............................................. ............... 5 Specifications ......................................................... ............ 6 2. Installation Guide ............................................................ 7 2.1 Installation ............................................................ ......... 7 Set up Xup XM100-01-U .................................... 7 Installation of Xup XM100-01-U Driver ............................................. 8 TCP/IP setting ................................... 11 3. Useful Notes ............................................................... 15 3.1 Useful notes ............................................................... 15 Cautions ............................................................... 15 Troubleshooting ............................................................... 16 Warranty ............................................................... 16 1. Product Introduction 1.1 Product Characteristics Xup XM100-01-U is enabling the data transmission over powerline. As powerline communications technology offers network by utilizing existing power lines at home or small office, therefore no additional cost is incurred for additional wiring. Xup brings networking solution with ease of installation and no special networking configuration work. It adds more convenience for PC with USB Interface as it does not require set up of LAN CARD. 1.2 Product Contents  Xup XM100-01-U  Power Cable  USB Cable  User’s Manual  Driver Installation Diskette 1.3 Product Details  Product Outfit Front  PWR Turned on when power is connected and power switch is on.  ACT Blinks when communication is in normal operation.  STA Turned on when power is connected, and initialization is properly completed.  LNK Turned on when connection to PC is properly done. Rear  Power Inlet Connection point to connect power cable.  Power switch To turn on/off the Xup.  USB Interface Interface between PC and Xup for communication.  Performance Selection DIP Switch DIP Switch Configuration  FEC OFF/ON Mode to stabilize the communications status and increase the reliability though possibly yield lower data rate. (Set as “OFF” when shipped)  Hi-Z OFF/ON Mode to improve the receptive sensitivity of Xup. Set as “OFF” when the power line environment has many noise sources. (Set as “ON” when shipped)  GA(Group Address) To set up the address of Xup Products in communications. All the Xup Products in communications should be configured with the same address. (Set as “0001” when shipped)  Specifications User PC Requirements CPU :Pentium 166MHz or above MEMORY :32Mbyte or above VGA :Resolution 640*480 ~1280*1024 (16Bit color or above) OS :Windows98/ Windows NT USB Port :One or more USB Ports Specifications Specifications Remarks Data Rate Up to 1Mbps Interface USB Connect to PC USB Dimension 186 X 143 X 40 mm (W X D X H) Weight 750 g Power AC120V, 60Hz Power Consumption Max 15W or below 2. Installation Guide 2.1 Installation  Set up Xup XM100-01-U  Turn off the power of PC.  Ensure the PC has USB Port available.  Connect USB Cable to PC.  Connect Power Cable to Xup XM100-01-U.  Connect Xup XM100-01-U and PC with USB Cable.  Ensure all the connections made as figures below.  Installation of Xup XM100-01-U Driver  Turn on your PC and Xup XM100-01-U . Find the new device and display the ”ADMtek 10/100 USB MAC ” window to install the hardware device driver. (Based on Windows98)  Continue and click [Next>].  The Add New Hardware Wizard will search for the driver. Click [Next>].  Select Search for the best driver for your device[Recommended] and click [Next>].  Specify the location to install the control device driver. Select Floppy disk drives and click [Next>].  Find ”ADMtek AN986 USB 10/100 MAC ” from the floppy disk to bring up the above screen. Continue and click [Next>].  When you click the [Next>] button, the software installation for the new ”ADMtek AN986 USB 10/100 MAC ” hardware will be finished.  Click [Finish>] and complete the installation.  Installation of the Xup XM100-01-U driver is now finished. Once the hardware installation has been completed, click Control Panel‡ Device Manager‡ Network Adapters and check if it is set up to display ”ADMtek AN986 USB 10/100 MAC.” If not, the installation process must be done o…

Text truncated - open the document above for the full version.

ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 FCC ID : POAXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U Appendix E. Block Diagram

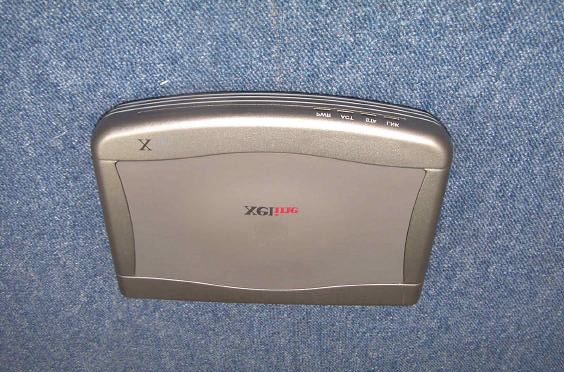

ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 FCC ID : POAXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U Appendix C. External Photographs

ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 FCC ID : PQVXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U Appendix A. FCC ID Label and Location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier(FCC ID : PQVXUP) and compliance statement are marked in the product label. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925)

ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 4 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U FCC ID : POAXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 4 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U FCC ID : POAXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 4 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U FCC ID : POAXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 4 of 4 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U FCC ID : POAXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Appendix D. Internal Photographs

www.ETL.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This powerline communication Home Lan XUP Model XM100-01-U has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : Unintentional Radiators. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Name : Kayoung Kim Title : Chief Engineer & Lab.Manager E-RAE Testing Laboratory Inc. 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea PRODUCT : Powerline Home Lan MODEL/TYPE NO : XM100-01-U FCC ID : PQVXUP APPLICANT : Xeline Co., Ltd. 7F Chungjin Bldg., 475-22 Bangbae2-Dong, Seocho-Gu, Seoul, 137-062, Korea Attn. : Lee, Hong Seok / General Manager FCC CLASSIFICATION : Part 15 Class B Digital Device : Carrier Current System & PC Peripheral Device(JBP) FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : Xeline TEST REPORT No. : E01.0430.FCC.186N DATES OF TEST : May 31, 2001 DATES OF ISSUE : June 13, 2001 TEST LABORATORY ETL Inc ( FCC Registration Number : 95422) 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 19 FCC ID : PQVXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 19 FCC ID : PQVXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : Powerline Home Lan l Model Number : XM100-01-U l FCC Identifier : PQVXUP l S/N : Prototype l Freq. Range : 6.0 MHz – 7.5 MHz l Modulation : FSK l FCC Rule Part(s) : Part 15 Subpart B Unintentional Radiators l Test Procedure : ANSI C63.4-1992 l FCC Classification : Part 15 Class B Digital Device : Carrier Current System & PC Peripheral Device(JBP) l Dates of Tests : May 31, 2001 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E01.0430.FCC.186.N Applicant Name : Xeline Co., Ltd. Address : 7F Chungjin Bldg., 475-22 Bangbae2-Dong, Seocho-Gu, Seoul, 137-062, Korea Attention : Lee, Hong Seok / General Manager ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 4 of 19 FCC ID : PQVXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratiry Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the Xeline Co.,Ltd. Powerline Communication Modem Model : XM100-01-U. ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 5 of 19 FCC ID : PQVXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U 2.1 Equipment Description The Equipment Under Test(EUT) is the Xeline Co., Ltd. XM100-01-U is enabling the data transmission over powerline. As powerline communications technology offers network by utilizing existing power lines at home or small office, therefore no additional cost is incurred for additional wiring. Xup brings networking solution with ease of installation and no special networking configuration work. It adds more convenience for PC with USB Interface as it does not require set up of LAN CARD. 2.2 General Specification - Chassis Type Plastic - List of Each OSC. Or X-Tal. Freq.(>=1MHz) X1: 28.0 MHz, X2 : 48.0 MHz - RF Frequency 6 …

Text truncated - open the document above for the full version.

ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : POAXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U Appendix B. Test Setup Photographs Radiated Emission Test Setup ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : POAXUP Report No:E01.0430.FCC.186.N Date of Test : May 31, 2001 Xelline Co.,Ltd. Powerline home LAN Model : XM100-01-U Appendix B. Test Setup Photographs Conducted Emission Test Setup
