PRDLABTNAMU01BT LASER MOUSE

Bluetooth Tilt Wheel Laser Mouse USER'S GUIDE Ver.:1.00 Please DO NOT direct the laser beam at anyone’s eye. Mouse Buttons 1. Left button 2. Right button 3. Tilt wheel 4. DPI switch + LED indicator DPI Switch The brightness of Green LED indicator on the scrolling wheel indicates the DPI setting in use. There are three different settings: z Bright: 1600 DPI z Dim: 1200 DPI z No light: 800 DPI The default setting is 1600 DPI. You can easily switch between DPI settings. In order to save power, the LED display will only last for 10 seconds. Batteries Installation For Extra usage hours, use two AA batteries instead of two AAA Batteries. Functional Introduction: Power indicator lights: Power saving features: To conserve the battery power, the mouse offers power management functions as below: 1. The mouse goes into “Saving Mode” after 10 seconds of inactivity 2. The mouse powers down to “Sleep Mode” after 5 minutes of inactivity Press one of the mouse buttons to wake it up while in Saving or Sleep Mode. There may be a slight delay while the mouse re-establishes Bluetooth connection from power saving or sleep mode. In Use Saving ModeSleep Mode Power Consumption 14.96mA@3V up on tracking sensitivity 1.78mA@3V 0.27mA@3V Establishing a Bluetooth Connection The Bluetooth mouse can work in any Bluetooth working environment. Before connecting your Bluetooth mouse with your computer, make sure your computer has a working Bluetooth configuration that meets Bluetooth Specification v1.1 or higher with Human Interface Device (HID) profile. If your computer does not support Bluetooth, you need to obtain and install a commercially available Bluetooth adapter which converts your computer to a Bluetooth environment. Paring your Bluetooth mouse with your computer Before paring your Bluetooth mouse with your computer, you should read through the instructions that came with your Bluetooth hardware and software for detail how to pair a device to your specific Bluetooth configuration. Follow below steps to paring your Bluetooth mouse under Windows XP/SP2 system. 1. Attach or turn on the Bluetooth radio adaptor for your Windows XP computer. 2. Turn on the switch on the bottom of the mouse. 3. Click Start menu, click Control Panel and double click “Bluetooth Devices”. 4. On the “Devices” tab, click “Add”. 5. Select the “My device is set up and ready to be found” check box, and then click “Next”. 6. Press the connection button of the mouse and it starts paring with your PC/notebook. The Red LED light will blink when connecting. Click the icon that represents the Bluetooth mouse, and then click “Next”. 7. Click “Don’t use a passkey”, and then click “Next”. Check the documentation for the mouse for any passkey instructions. 8. You can find the Bluetooth mouse in the “Devices” tab when it connected. The Red LED will turn off automatically when the paring is successfully done. Note : Once the Bluetooth mouse is installed, you can either disconnect the wired mouse or leave it connected. (If you leave both mice connected, they will both work.) Disconnecting Bluetooth mouse from your computer If you would like to disconnect your Bluetooth mouse, just open the Bluetooth devices control panel and delete the pairing for the mouse. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

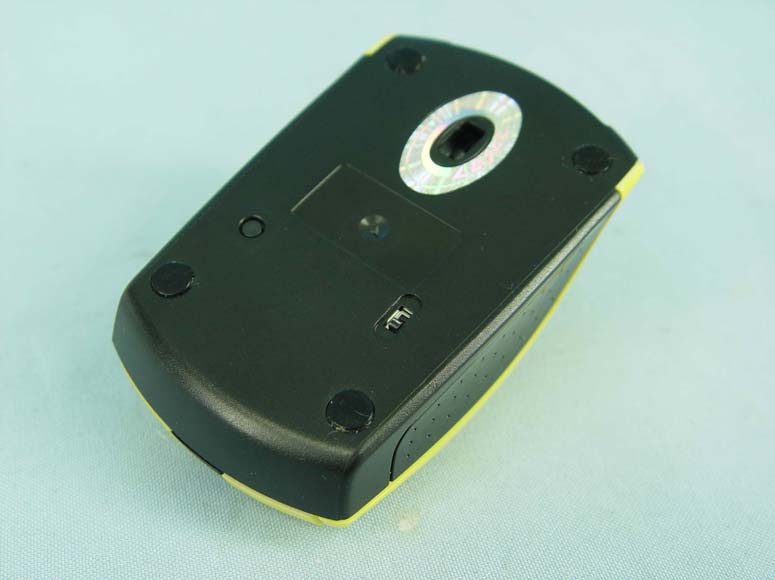

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

MODEL NAME: MBF FCC ID:PRDLABTNAMU01

LABEL LOCATION

Page 3 Page 4 Page 5 Page 6

FCC ID: PRDLABTNAMU01 Report No.: RF970328L09 Operational Description The transmitter of the EUT (BT LASER MOUSE) is powered by battery. The antenna is printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual. This device is a Frequency Hopping device with 79 hopping frequencies.

FCC ID: PRDLABTNAMU01 Report No: SA970328L09 1 RF EXPOSURE REPORT REPORT NO.: SA970328L09 MODEL NO.: MBH; MTF; MTG ;MVX; MC1; MC2; MC3 ; MTJ; MTC; MTO; MBG; MBJ ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Acrox Technologies Co., Ltd ADDRESS: 8F, No. 437, Rui Guang RD., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: PRDLABTNAMU01 Report No: SA970328L09 2 No evaluation required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.580 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power 0.83 1.211 EIRP Power 0.15 1.035 *Note: The antenna is printed antenna with -0.68dBi gain Threshold for no SAR evaluation is 24.580mW Transmitter power is 1.035mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

Report No.: RF970328L09 1 Report Format Version 2.1.0 FCC TEST REPORT REPORT NO.: RF970328L09 MODEL NO.: MBF (refer to item 3.1 for more detail) RECEIVED: Mar. 31, 2008 TESTED: Apr. 09 ~ Apr. 10, 2008 ISSUED: Apr. 14, 2008 APPLICANT: Acrox Technologies Co., Ltd ADDRESS: 8F, No. 437, Rui Guang RD., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 42 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF970328L09 2 Report Format Version 2.1.0 Table of Contents 1. CERTIFICATION.......................................................................................................4 2. SUMMARY OF TEST RESULTS ..............................................................................5 2.1 MEASUREMENT UNCERTAINTY ...........................................................................5 3. GENERAL INFORMATION .......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT.........................................................................6 3.2 DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................... 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ..........................................9 3.4 DESCRIPTION OF SUPPORT UNITS .....................................................................9 4. TEST TYPES AND RESULTS ................................................................................10 4.1 RADIATED EMISSION MEASUREMENT ..............................................................10 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 10 4.1.2 TEST INSTRUMENTS ........................................................................................... 11 4.1.3 TEST PROCEDURES ............................................................................................ 12 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 12 4.1.5 TEST SETUP ......................................................................................................... 13 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 13 4.1.7 TEST RESULTS ..................................................................................................... 14 4.2 NUMBER OF HOPPING FREQUENCY USED ......................................................18 4.2.1 LIMIT OF HOPPING FREQUENCY USED ............................................................ 18 4.2.2 TEST INSTRUMENTS ........................................................................................... 18 4.2.3 TEST PROCEDURES ............................................................................................ 18 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 19 4.2.5 TEST SETUP ......................................................................................................... 19 4.2.6 TEST RESULTS ..................................................................................................... 19 4.3 DWELL TIME ON EACH CHANNEL ......................................................................21 4.3.1 LIMIT OF DWELL TIME USED............................................................................... 21 4.3.2 TEST INSTRUMENTS ........................................................................................... 21 4.3.3 TEST PROCEDURES ............................................................................................ 21 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 21 4.3.5 TEST SETUP ......................................................................................................... 22 4.3.6 TEST RESULTS ..................................................................................................... 22 4.4 CHANNEL BANDWIDTH........................................................................................24 4.4.1 LIMITS OF CHANNEL BANDWIDTH ..................................................................... 24 4.4.2 TEST INSTRUMENTS ........................................................................................... 24 4.4.3 TEST PROCEDURE .............................................................................................. 24 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 24 4.4.5 TEST SETUP ......................................................................................................... 25 4.4.6 EUT OPERATING CONDITION ............................................................................. 25 4.4.7 TEST RESULTS ..................................................................................................... 25 4.5 HOPPING CHANNEL SEPARATION .....................................................................28 4.5.1 LIMIT OF HOPPING CHANNEL SEPARATION ..................................................... 28 4.5.2 TEST INSTRUMENTS ........................................................................................... 28 4.5.3 TEST PROCEDURES .........................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
