2.4G Wireless Mouse GAR USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user's guide before installing. Please DO NOT direct the laser beam at anyone’s eye. Safety Notice 1 This product complies with IEC 60825-1, class 1 laser product. 2 Your product complies with FCC and CE rules. 3 This product has no serviceable parts. Use of controls or adjustments of procedures other than the user guide may result in danger. 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2 Functional Introduction Installing the batteries Step 1: Take the battery cover off. Step 2: Insert the batteries as shown inside the battery compartment. Step 3: Replace the cover. Step 4: Turn on power switch AAA Battery 1’st 2’nd Left button Right button Battery Cover Metallic Wheel Connect Button ON/OFF Switch Nano Receiver LED Indicator 3 **Warning: *Please insert the batteries with the correct position according to the instruction labeled in the mouse. Setup the Connection between the Receiver and the Mouse 1. Plug the Nano receiver into the USB port of your computer. 2. Insert the batteries into the mouse, then follow the steps below. 3. If the mouse is not working, please put it into pairing mode. 4. Pairing: Re-plug the receiver into the USB port of your computer, then press the connect button on the mouse. If the mouse does not work after 10 seconds, pair them again. (The receiver has auto pairing function). 5. The LED indicator on mouse flashes steadily when it is in pairing mode and stops blinking when it is successfully paired with the receiver. The mouse’s LED indicator remains off afterwards. 6. When the batteries of the mouse is low, the Low Power indicator will start to blink. LED Indicator *Mouse Indicator Red LED Blinks for 10 sec. Low Battery Warning Red LED is on for 10 sec. Power ON Red LED Blinking Pairing (LED OFF when paired or failed after 10 sec.)

Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Date:April 27, 2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. James Lee Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ACROX PRDLAWIRTMU02 2.4G Wireless Mouse

Compliance Certification Services Inc. Report No.: T100329203 Date of Issue: April 23, 2010 A1 - 1 Total Page: 7 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100329203 Date of Issue: April 23, 2010 A1 - 2 Rev. 00

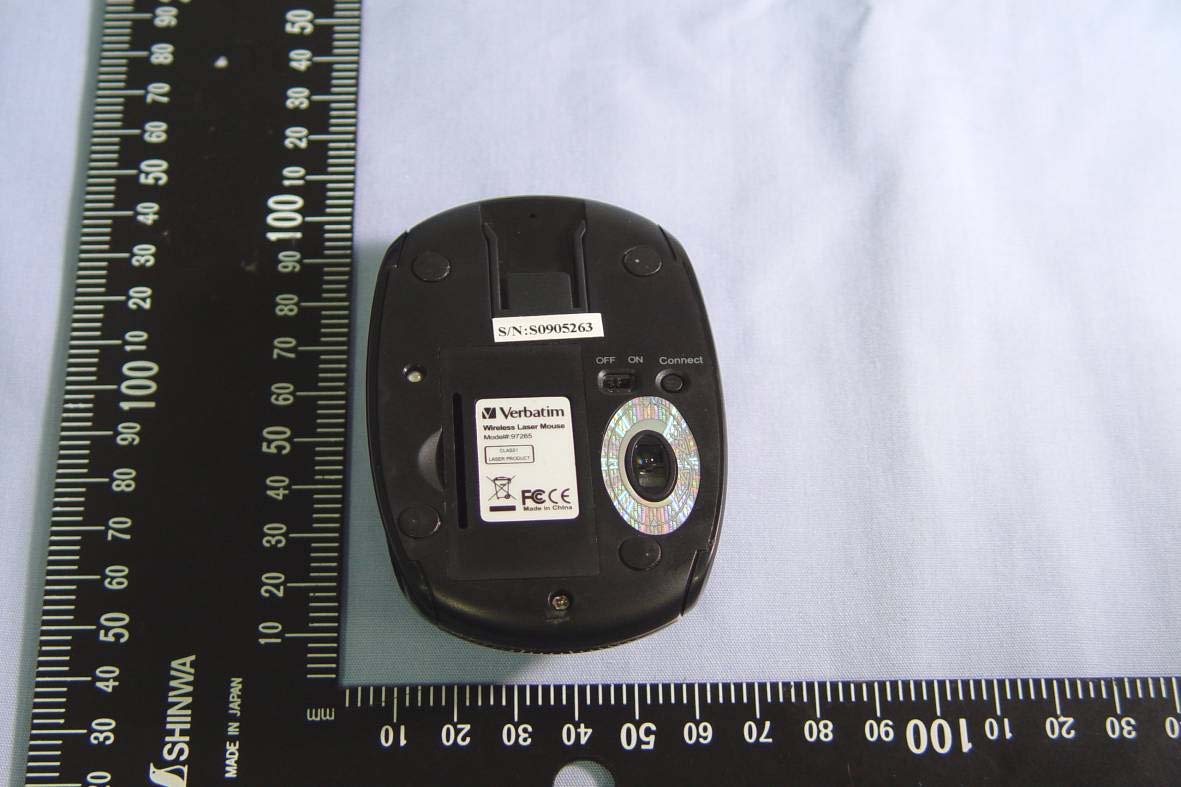

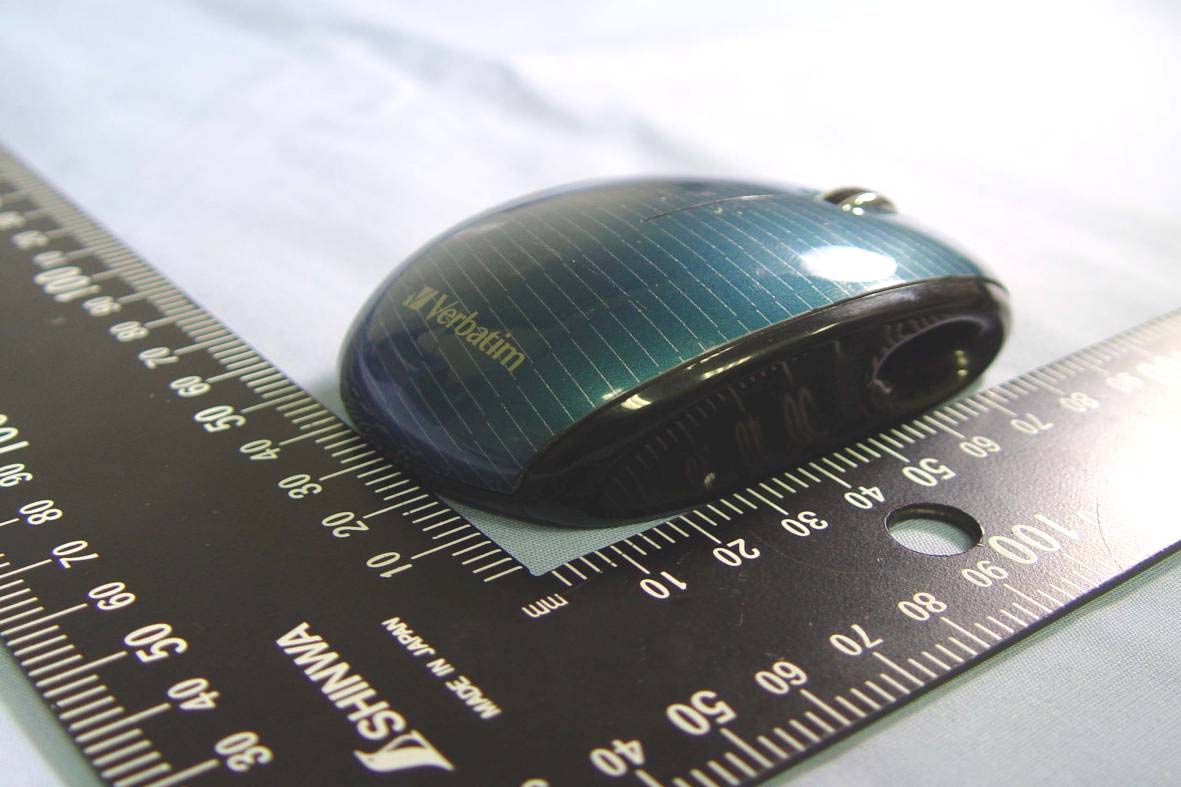

Model:GAR S/N-N09A00001 FCC ID: PRDLAWIRTMU02 2.4G Wireless Mouse

Compliance Certification Services Inc. Report No.: T100329203 Date of Issue: April 23, 2010 A1 - 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100329203 Date of Issue: April 23, 2010 A1 - 4 Rev. 00 PCB Antenna Compliance Certification Services Inc. Report No.: T100329203 Date of Issue: April 23, 2010 A1 - 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100329203 Date of Issue: April 23, 2010 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T100329203 Date of Issue: April 23, 2010 A1 - 7 Rev. 00

Compliance Certification Services Inc. Report No.: T100329203-RP1 FCC ID: PRDLAWIRTMU02 Date of Issue: April 23, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 30 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 2.4G Wireless Mouse Model Number: GAR, GAT, GC5 Trade Name: ACROX Issued to Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100329203-RP1 FCC ID: PRDLAWIRTMU02 Date of Issue: April 23, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 7 4. INSTRUMENT CALIBRATION.................................................................................................... 8 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 8 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 8 4.3 MEASUREMENT UNCERTAINTY ........................................................................................ 9 5. FACILITIES AND ACCREDITATIONS ..................................................................................... 10 5.1 FACILITIES ................................................................................................................................ 10 5.2 EQUIPMENT...............................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................. 11 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 12 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 12 6.2 SUPPORT EQUIPMENT ........................................................................................................ 12 7. FCC PART 15.249 REQUIREMENTS......................................................................................... 13 7.1 20 DB BANDWIDTH.............................................................................................................. 13 7.2 BAND EDGES MEASUREMENT ......................................................................................... 16 7.3 SPURIOUS EMISSION .......................................................................................................... 21 7.4 POWERLINE CONDUCTED EMISSIONS ........................................................................... 29 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 30 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100329203-RP1 FCC ID: PRDLAWIRTMU02 Date of Issue: April 23, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Equipment Under Test: 2.4G Wireless Mouse Trade Name: ACROX Model Number: GAR, GAT, GC5 Date of Test: April 12 ~ 23, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100329203-RP1 FCC ID: PRDLAWIRTMU02 Date of Issue: April 23, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product 2.4G Wireless Mouse Trade Name ACROX Model Number GAR, GAT, GC5 Model Discrepancy All the specification and layout are identical except they come with different model numbers for marketing purposes. Power Supply Powered by AAA batteries × 2 (DC: 3V) Frequency Range 2403 ~ 2480 MHz Frequency Spacing 1MHz Frequency Number 78 Channels Modulation Technique GFSK Antenna Gain -5.91 dBi Antenna Designation PCB Antenna Remark: 1. The sample selected for test was production produ…
