PRDMPK0050708RF Laser Mouse

B RUSSELS H ANNOVER B ARCELONA T OKYO M ILAN A MSTERDAM S INGAPORE L ONDON P ARIS N EW Y ORK L OS A NGELES T ORONTO H ONG K ONG S YDNEY Wireless Rechargeable Notebook Laser Mouse USER’S GUIDE Making Your Mobile Life Easier. ® Making Your Mobile Life Easier. ® Visit our Web site at: www.targus.com Features and specifications are subject to change without notice. © 2005 Targus Group International, Inc. and Targus Inc. AMW15US/400-0285-001A 3 TARGUS WIRELESS RECHARGEABLE NOTEBOOK LASER MOUSE Introduction Congratulations on your purchase of a Targus Wireless Rechargeable Notebook Laser Mouse. This compact mini mouse incorporates new laser tracking technology, offering 20 times more sensitivity than a traditional LED mouse. The images the laser receives are more detailed, with higher contrast. The mouse can track more reliably, even on reflective surfaces, and its small footprint makes it ideal for portable computing. Note: While the mouse is functioning, no laser light is visible to the naked eye. Be careful not to look directly into the emitter hole while the mouse is active. Package Contents Wireless Laser MouseUSB receiver USB charge cableUSB extension cable 2 AAA rechargeable batteriesCarrying pouch AMW15US.fm Page 3 Tuesday, August 16, 2005 1:33 PM 4 Targus Wireless Rechargeable Notebook Laser Mouse System Requirements Hardware •USB port Operating System •Windows ® 98SE/ME/2000/XP or Mac OS X and above Connecting the Mouse Receiver To connect the mouse receiver: 1 Plug the USB receiver into an available USB port on your computer. 2 Your computer’s operating system identifies the receiver and begins installing the default driver. If applicable, follow any on-screen procedures to complete the native driver installation. Installing the Batteries 1 If the mouse is on, slide the on/off switch on the bottom of the mouse to the “off” position. AMW15US.fm Page 4 Tuesday, August 16, 2005 1:33 PM 5 Targus Wireless Rechargeable Notebook Laser Mouse 2 Remove the battery cover from the top of the mouse by pressing the battery cover hinge located on the bottom of the mouse and sliding it off. Mouse Bottom NOTE: The battery cover is also the top cover of the mouse. On/Off switch Connect button Laser Battery cover hinge AMW15US.fm Page 5 Tuesday, August 16, 2005 1:33 PM 6 Targus Wireless Rechargeable Notebook Laser Mouse 3 Insert the supplied batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery housing. WARNING: When replacing the batteries, use only heavy-duty NiMH rechargeable batteries. Never use alkaline batteries. Avoid mixing new and used batteries in a device. 4 Slide the battery cover back into position until it “clicks” firmly into place. 5 Turn on the mouse by sliding the on/off switch on the bottom of the mouse to the “on” position. Note: While the mouse is functioning, no laser light is visible to the naked eye. Be careful not to look directly into the emitter hole while the mouse is active. Charging the Batteries For best results, you should charge the mouse at least 4 hours before using it. You can do this via the supplied USB charge cable. To do this: 1 Connect the cable’s USB connector into an available USB port on your computer 2 Connect the other end to the mouse. NOTE: To continuously charge the mouse via the USB charge cable, your computer must be on and awake. For best results, turn off your computer’s power management feature while charging the mouse. AMW15US.fm Page 6 Tuesday, August 16, 2005 1:33 PM 7 Targus Wireless Rechargeable Notebook Laser Mouse Synchronization After your computer detects the USB receiver you must establish a communications link between the mouse and its receiver BEFORE you can use the mouse. To do this, follow the instructions below: 1 Press and release the connect button located at the bottom of the receiver. Receiver The receiver’s status light blinks when the receiver is activated. 2 Press and release the connect button, located on the bottom of the mouse. You are now ready to use the mouse. Note: Due to the improved tracking speed of the laser engine, users may find the cursor movement is faster than a conventional mouse. Cursor settings can be changed from your computer’s Control Panel. Connect button AMW15US.fm Page 7 Tuesday, August 16, 2005 1:33 PM 8 Targus Wireless Rechargeable Notebook Laser Mouse Mouse Power Management To power the mouse on and off, slide the on/off switch at the bottom of the mouse to the desired position. When power is on, the mouse goes into "sleep mode" after 8 minutes of non-use. To activate the mouse, press any mouse button. Safety Measures • Although this mouse is a Class 1 Laser Product and safe for operation, avoid pointing the laser into the eyes or looking directly into the laser emitter. • Keep the mouse away from young children. • Any attempt to disassemble, adjust or repair the mouse may result in exposure to laser light or other safety hazards. Operating Hints For optimal performance and RF reception: • Place the receiver at least 8 inches (20 cm) away from all electrical devices, such as your monitor, speakers or external storage devices. If necessary, use the supplied extension cable to keep the receiver away from the computer. Plug the receiver into the extension cable, and the extension cable to the computer. AMW15US.fm Page 8 Tuesday, August 16, 2005 1:33 PM 9 Targus Wireless Rechargeable Notebook Laser Mouse • Avoid using the mouse on a metal surface. Metals, such as iron, aluminum or copper, shield the radio frequency transmission and may slow down the mouse’s response time or cause the mouse to fail temporarily. • The mouse will enter a suspend mode at the same time your computer does. To activate the mouse press any mouse button. • If your computer has a metal case that contains aluminum or magnesium, use the mouse to the side. The display panel may interfere with the radio frequency signal if you use the mouse directly in fron…

Text truncated - open the document above for the full version.

Date: September 20, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (Leo Chen / Manager) (Acrox Technologies Co.,Ltd.) REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

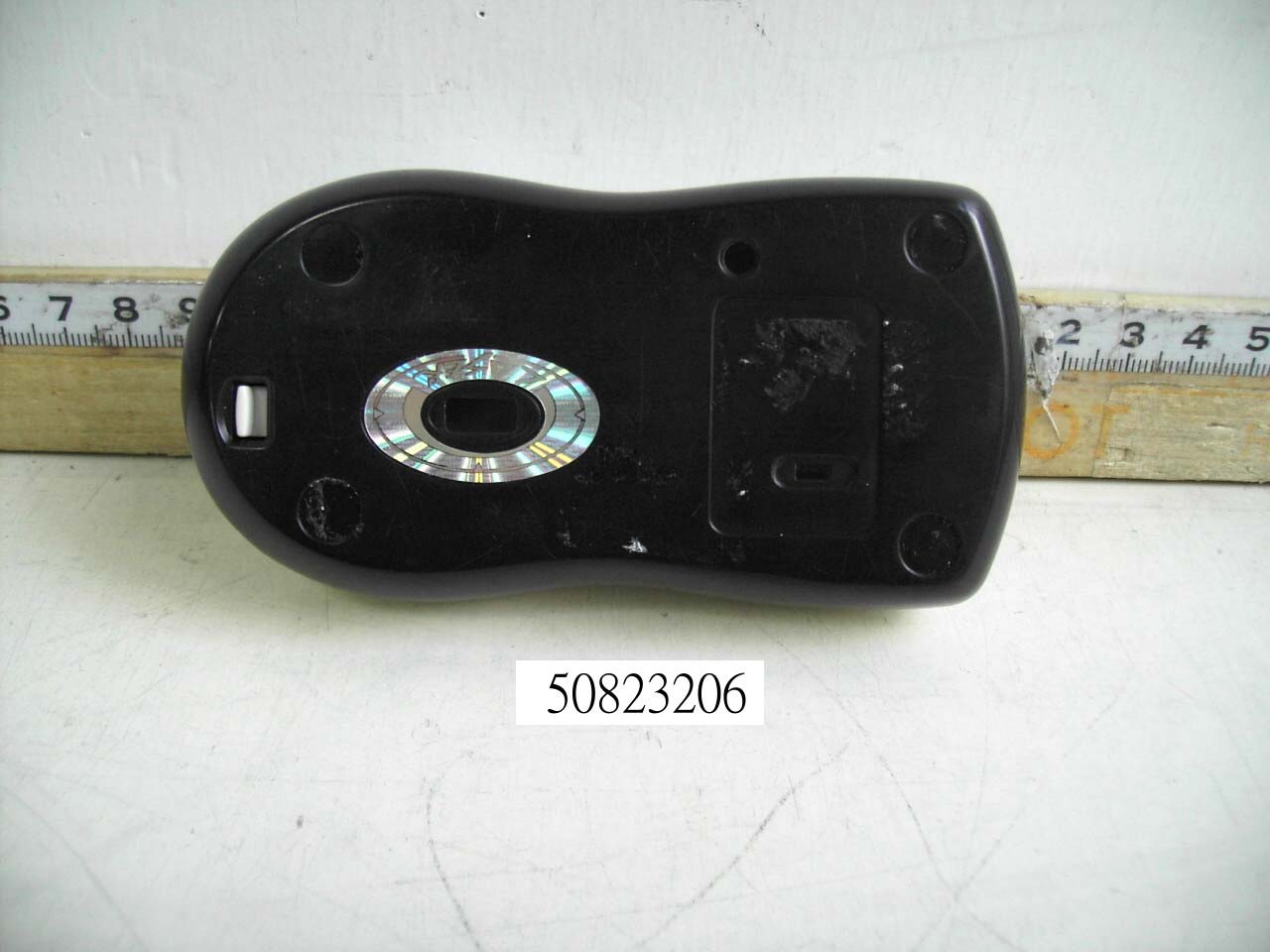

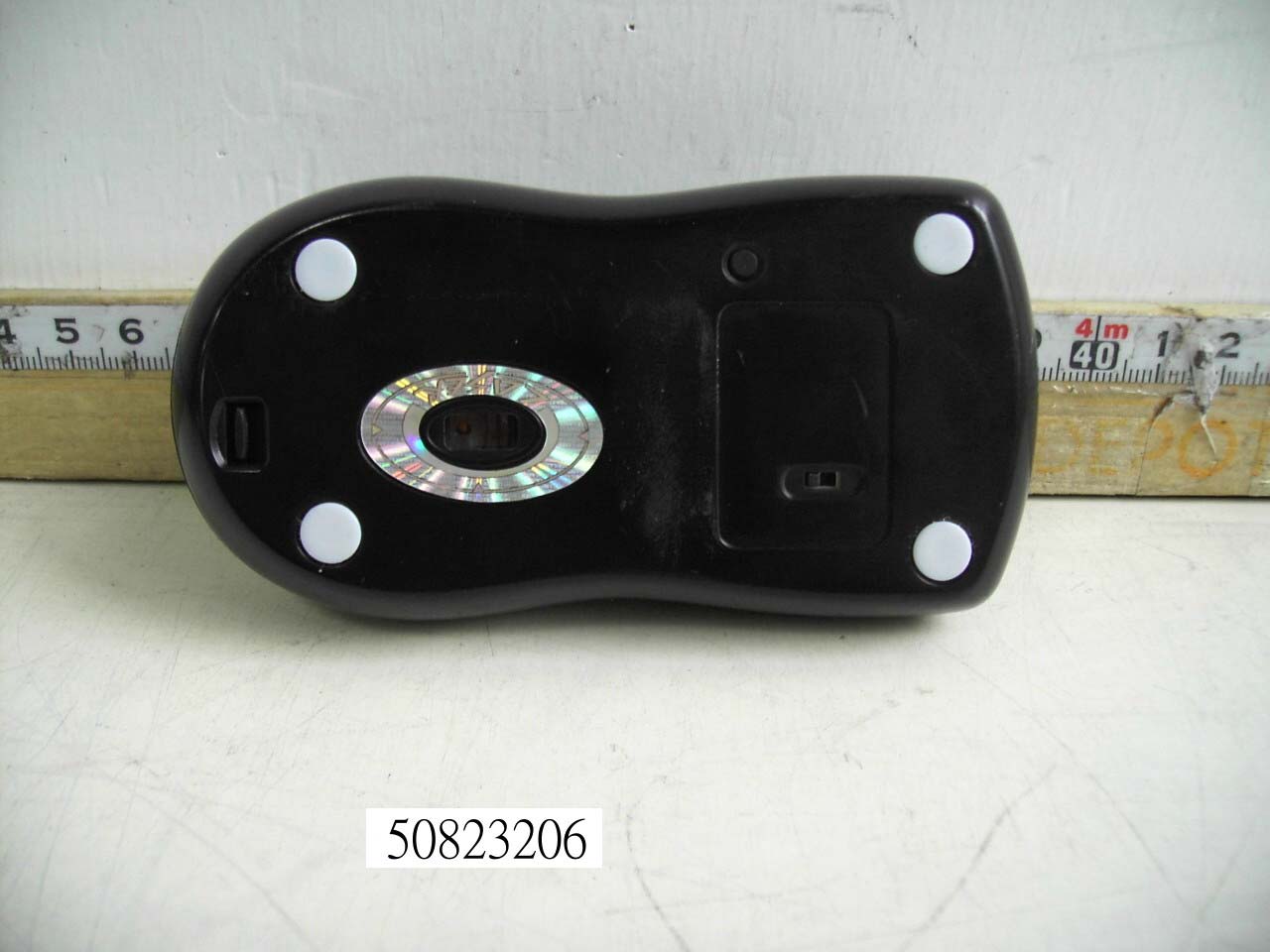

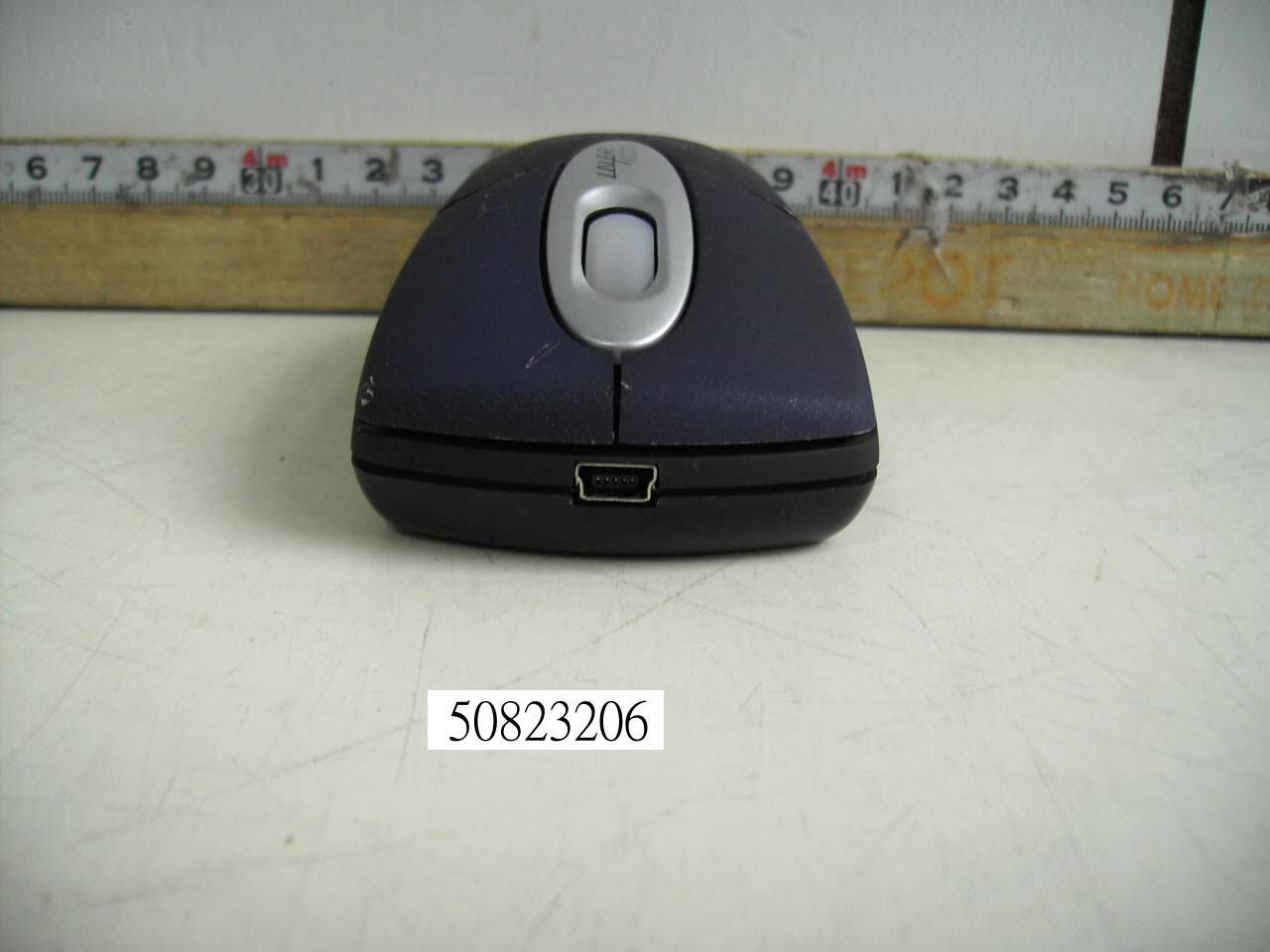

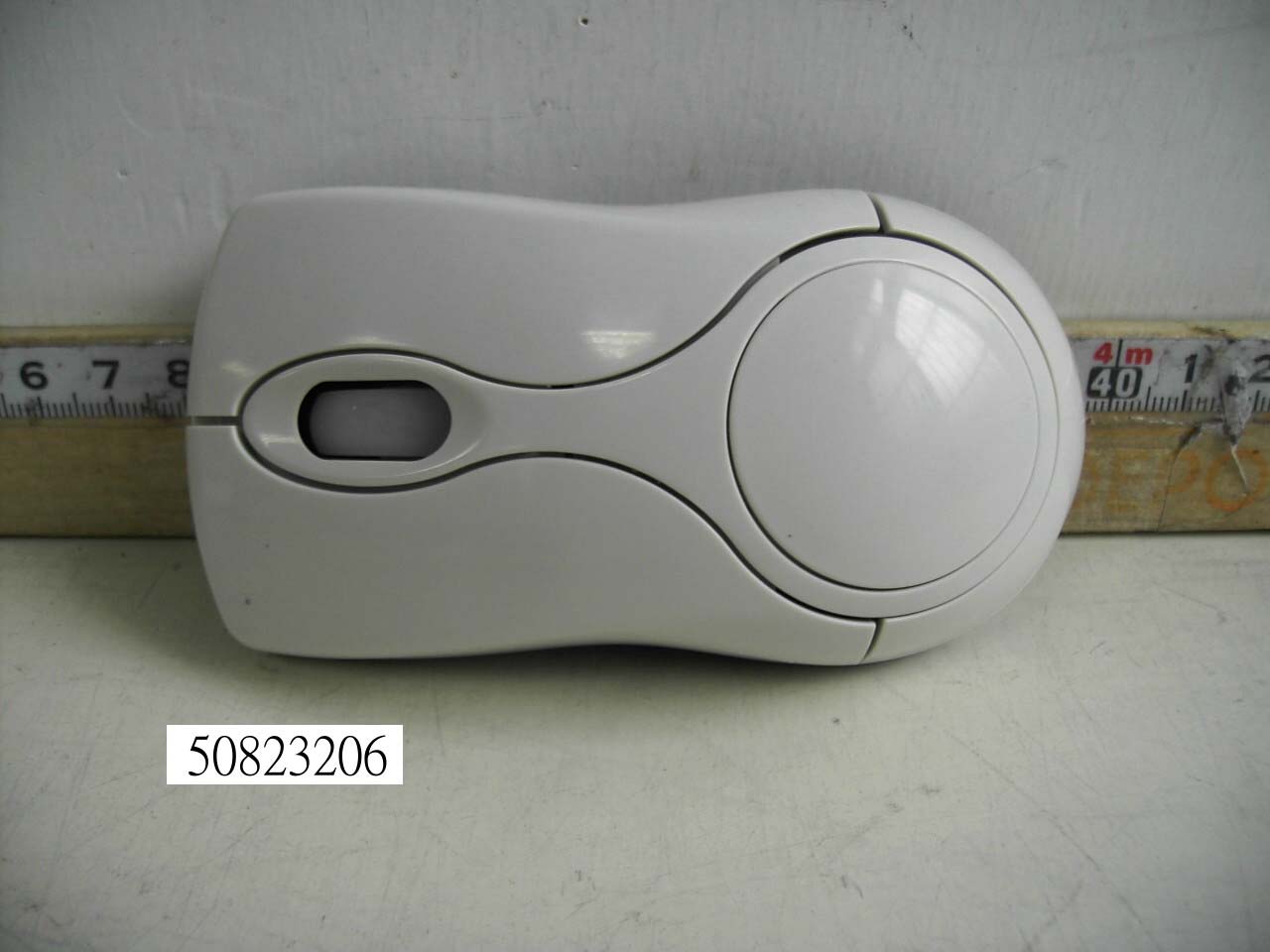

Compliance Certification Services Inc. Report No.: 50823206 Date of Issue: September 21, 2005 PHOTOGRAPHS OF EUT Page 1 Total Page: 5 Rev. 00 Compliance Certification Services Inc. Report No.: 50823206 Date of Issue: September 21, 2005 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 50823206 Date of Issue: September 21, 2005 Page 3 Rev. 00

FCC ID LABEL FORMAT AND LOCATION Applicant: Acrox Technologies Co., Ltd. FCC ID: PRDMPK0050708 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PRDMPK0050708 FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 50823206 Date of Issue: September 21, 2005 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 50823206 Date of Issue: September 21, 2005 Page 5 Rev. 00

MPH Work Basis Mouse (laser): 1. When the mouse was moved, the laser sensor would detect the different between two points, and then sensor will send the signal to the MPH. 2. The MPH will encode the signal and modulate the signal that uses FSK modulation type). 3. Through the 27 MHz RF circuit transmit the modulation signal. Receiver: 1. When the receiver receives the modulation signal will demodulate signal through RF circuit. And responds signal to MPH. 2. The MPH meeting decodes the signal PC acceptable format. ps. FSK: Frequency Shift Key MPH: Micro Control Unit RF: Radio Frequency

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:2-Jul-2005 Sheet of File:D:\\RECEIVER+FLASH.ddb程曉梅Drawn By: R1 10M Y1 76.8K C122pF C222pF C6104pF R M L C1633pF L31.8uH C15 75pF L2 0.82uH C3 22pF C5 200pF C4 OPEN Y2 27.192MHz C18 7pF C17 27pF PD C A B Z1 ENCODER ID1 BT1 UM- 4( X2) R2* VBT XA XB V1.0 PCB No: RF 3D LASER MOUSE YB YA XA XB YB YA C30 104pF VSS_LED 1 LED 2 OSCOUT 3 OSCIN 4 NC 5 VSS 6 VSS 7 VDD 8 VRB 9 VRT 10 YA 11 YB 12 XA 13 XB 14 NC 15 NC 16 NC 17 SCLK 18 SDIO 19 PD 20 U3 PAN301ASI-208 R10 1.2M R11 560K PD VBT MPHC001 V1.0 MPHC001 VDD 1 OF 1 DRAWINGDESIGNAPPROVAL VDD VDD C6+C7=200pF C11 104pF + C26 47uF/10V J2 Swit ch power Y3 27MHz C29 104pF C8 104pF + C22 100uF/10V L1100uH VSS 1 OUT 2 LX 3 U2 RH5RH30 C10 104pF + C28 220uF/10V VDD VDD R9 390K R12OPEN C19 3.3pF R1510 C12 104pF C9 104pF VDD2 C27 1uF/16V LED2 LED C23 * C24 * OSC1 1 VSS 2 OSC2 3 VDD 4 RBUT 5 MBUT 6 LBUT 7 RFOUT 8 ORFIN0 9 ORF0 11 TXD 12 PD 13 WA 14 WB 15 Z1IN 16 Z2IN 17 BATL 21 TXCB 24 BBUT 25 FBUT 26 VL 29 ORFIN1 10 SVDIN 27 DCVR 28 P1.5/SSEL 19 X2IN 18 X1IN 20 Y1IN 22 Y2IN 23 U1 MA6221-Q17K + C25 47uF RP1 100K R430 1W R530 1W R3 91 + C20 220uF/10V R6 1.5K Q4 TL431 + C21 100uF/10V C7104pF R7 11K 1% R8 24K 1% Q12N3906 R16620 1% VCC VCC 1 DATA+ 3 DATA- 2 GND 4 FGND1 5 FGND2 6 J1 USB- B Q3S8050 Q1-C VBT1 R1410 LED1 R13 10 Q2 2N3906 Q1-C D1 1N5817 VDD VDD Q5 2N3906 R17 10 PD C31 104pF R18 1M R19 47K VDD R22*R21*R20* HOUSING

Compliance Certification Services Inc. Report No.: 50823206-RP1 FCC ID: PRDMPK0050708 Date of Issue: September 21, 2005 Page 1 Total Page: 18 Rev. 00 FCC CFR 47 PART 15 SUBPART C TEST REPORT For Acrox Technologies Co., Ltd. RF Laser Mouse Model: MPH; MPG; AMW15 Trade Name: Acrox Issued to Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 50823206-RP1 FCC ID: PRDMPK0050708 Date of Issue: September 21, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ................................................................................ 3 2. EUT DESCRIPTION ........................................................................................................ 4 3. TEST METHODOLOGY ................................................................................................. 5 3.1 EUT CONFIGURATION ........................................................................................... 5 3.2 EUT EXERCISE......................................................................................................... 5 3.3 GENERAL TEST PROCEDURES ............................................................................ 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................. 6 3.5 DESCRIPTION OF TEST MODES........................................................................... 6 4. INSTRUMENT CALIBRATION .................................................................................... 7 5. FACILITIES AND ACCREDITATIONS....................................................................... 7 5.1 FACILITIES ............................................................................................................... 7 5.2 EQUIPMENT ............................................................................................................. 7 5.3 LABORATORY ACCREDITATIONS AND LISTINGS ......................................... 7 5.4 TABLE PF ACCREDITATIONS AND LISTINGS .................................................. 8 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 9 6.1 SETUP CONFIGURATION OF EUT ....................................................................... 9 6.2 SUPPORT EQUIPMENT........................................................................................... 9 7. FCC PART 15.227 REQUIREMENTS ......................................................................... 10 7.1 26 DB BANDWIDTH .............................................................................................. 10 7.2 RADIATED EMISSIONS ........................................................................................ 12 7.3 POWERLINE CONDUCTED EMISSIONS............................................................ 17 APPENDIX 1 - PHOTOGRAPHS OF TEST SETUP ....................................................... 18 Compliance Certification Services Inc. Report No.: 50823206-RP1 FCC ID: PRDMPK0050708 Date of Issue: September 21, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Equipment Under Test: RF Laser Mouse Trade Name: Acrox Model: MPH; MPG; AMW15 Model Difference: N/A Report Number: 50823206-RP1 Date of Test: August 27 2005 ~ September 03, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 50823206-RP1 FCC ID: PRDMPK0050708 Date of Issue: September 21, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product RF Laser Mouse Trade Name Acrox Model MPH; MPG; AMW15 Power Supply 3VDC From Battery AAA size X 2 pcs. Operate Frequency 27.045MHz Transmit Pow er 8 mW Max. Modulation Technique Frequency Shift Keying (FSK) Number of Channels 1 Channel Operating Mode Point-to-Point Antenna Designation Internal loop, which is built in EUT Note: The product is a composite system which includes Transmitter and Receiver. This submittal(s) (test report) is intended for FCC ID: PRDMPK0050708 filing to comply with Section 15.227 of the FCC Part 15 Subpart C Rules. The composite system (digital device) is compliance with Subpart B is authorized under a DoC procedure. MODEL DIFFERENCE Model Number Difference Test (check) Original MPH MPG Additional AMW15 The difference of models is marketing purposes only. Note: Client consigns only one model sample (Model Number is MPH) to test. Compliance Certification Services Inc. Report No.: 50823206-RP1 FCC ID: PRDMPK0050708 Date of Issue: September 21, 2005 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 Part 15 Subpart C. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50823206-RP1 FCC ID: PRDMPK0050708 Date of Issue: September 21, 2005 Page 18 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF TEST SETUP
