Wireless Mouse G33 USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user's guide before installing. 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2 Functional Introduction Installing the batteries Step 1: Take the battery cover off. Step 2: Insert the batteries as shown inside the battery compartment. Step 3: Replace the cover. **Warning: *Please insert the battery with the correct position according to the instruction labeled on the mouse. AAA Battery Left button Right button Battery Cover Scrolling Wheel Connect Button ON/OFF Switch Nano Receiver LED Indicator Pull 1’st 2’nd 3 Setup the Connection between the Receiver and the Mouse 1. Insert the batteries into the mouse, then follow the steps below. 2. In the meantime, to open the mouse under the cover, take the nano receiver out. 3. Plug the Nano receiver into the USB port of your computer. 4. If the mouse is not working, please put it into pairing mode. 5. Pairing: Re-plug the receiver into the USB port of your computer, then press the connect button on the mouse. If the mouse does not work after 10 seconds, pair them again. (The receiver has auto pairing function). 6. The LED indicator on mouse flashes steadily when it is in pairing mode and stops blinking when it is successfully paired with the receiver. 7. When the batteries’ power of the mouse is low, the Low Power indicator will start to blink. 4 LED Indicator *Mouse Indicator LED Blinks for 10 sec. Low Battery Warning LED is on for 10 sec. Power ON LED Blinking Pairing (LED OFF when paired or failed after 10 sec.)

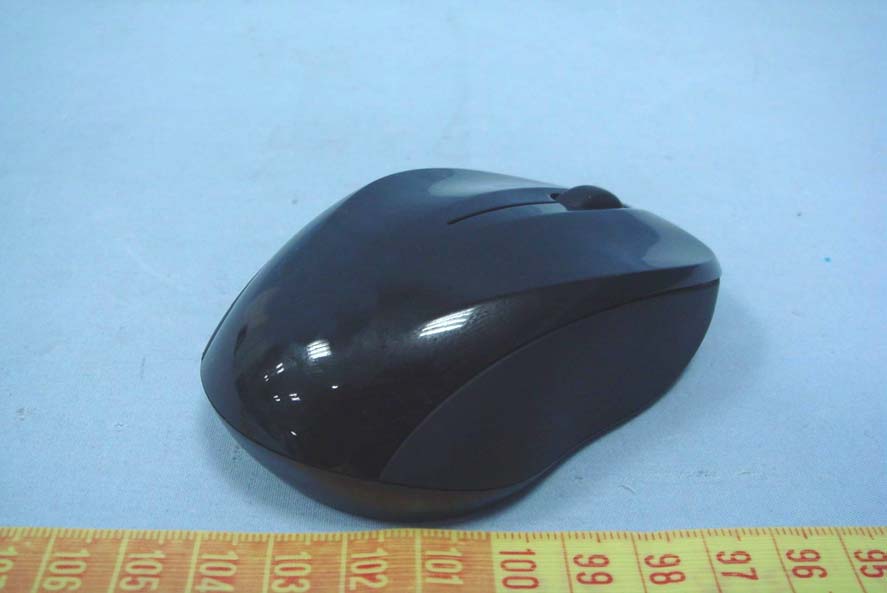

Report No: T110315201 Page 1 / 1 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT

M/N: G33 P/N: 656445-001 Rating: 3VDC 50mA Made in China FCC ID: PRDMU01 IC ID: 6180A-G33 S/N: XX 12345678 ACORX_G33 FCC LABEL Size: 21.6X16.6mm

Report No: T110315201 Page 1 / 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T110315201 Page 2 Rev.00 Report No: T110315201 Page 3 Rev.00 Antenna

Antenna Specification Date: March 30, 2011 Antenna Type: PCB Antenna Antenna Gain: -1.45 dBi

Report No: T110315201-RP1 FCC ID: PRDMU01 Date of Issue: March 28, 2011 Page 1 / 31 Rev/00 FCC 47 CFR PART 15 Subpart C TEST REPORT For Wireless Mouse Model: G33 Trade Name: ACROX Issued to Acrox Technologies Co., Ltd. 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841,Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: T110315201-RP1 FCC ID: PRDMU01 Date of Issue: March 28, 2011 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 28, 2011 Initial Issue All Angel Hu Report No: T110315201-RP1 FCC ID: PRDMU01 Date of Issue: March 28, 2011 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................... 4 2. EUT DESCRIPTION ....................................................................................................... 5 3. TEST METHODOLOGY.................................................................................................. 6 3.1 EUT CONFIGURATION............................................................................................. 6 3.2 EUT EXERCISE......................................................................................................... 6 3.3 GENERAL TEST PROCEDURES.............................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .................................. 7 3.5 DESCRIPTION OF TEST MODES ............................................................................ 7 4. INSTRUMENT CALIBRATION ........................................................................................ 8 4.1 MEASURING INSTRUMENT CALIBRATION ............................................................ 8 4.2 MEASUREMENT EQUIPMENT USED ...................................................................... 8 4.3 MEASUREMENT UNCERTAINTY ............................................................................. 8 5. FACILITIES AND ACCREDITATIONS ............................................................................ 9 5.1 FACILITIES................................................................................................................ 9 5.2 EQUIPMENT ............................................................................................................. 9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS...................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................11 6.1 SETUP CONFIGURATION OF EUT ........................................................................ 11 6.2 SUPPORT EQUIPMENT ......................................................................................... 11 7. FCC PART 15.249 REQUIREMENTS........................................................................... 12 7.1 20 DB BANDWIDTH.................................................................................................. 12 7.2 BAND EDGES MEASUREMENT ............................................................................. 15 7.3 SPURIOUS EMISSION............................................................................................ 20 7.4 POWERLINE CONDUCTED EMISSIONS............................................................... 27 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP........................................................ 29 APPENDIX 1: PHOTOGRAPHS OF EUT............................................................................31 Report No: T110315201-RP1 FCC ID: PRDMU01 Date of Issue: March 28, 2011 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: Acrox Technologies Co., Ltd. 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan, R.O.C. Equipment Under Test: Wireless Mouse Trade Name: ACROX Model: G33 Date of Test: March 18 ~ 21, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Supervisor Chieh Cheng Engineer Report No: T110315201-RP1 FCC ID: PRDMU01 Date of Issue: March 28, 2011 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Wireless Mouse Model G33 Brand ACROX Model Discrepancy N/A EUT Power Rating 3VDC from Battery Operating Frequency Range2400 2403 ~ 2480MHz Output Power 93.53dBuV/m Modulation Technique GFSK Number of Channels 78 Channels Antenna Gain -1.45…

Text truncated - open the document above for the full version.

Report No: T110315201-RP1 FCC ID: PRDMU01 Date of Issue: March 28, 2011 Page 29 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Report No: T110315201-RP1 FCC ID: PRDMU01 Date of Issue: March 28, 2011 Page 30 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz
