PRDMU102.4G Optical Mouse

2.4G Optical Mouse / G3H w/Nano Receiver USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user's guide before installing. 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2 Functional Introduction Installing the batteries Step 1: Take the battery cover off. Step 2: Insert the batteries as shown inside the battery compartment. Step 3: Replace the cover. **Warning: *Please insert the battery with the correct position according to the instruction labeled on the mouse. AAA Battery Left button Right button Battery Cover Scrolling Wheel Connect Button ON/OFF Switch LED Indicator Pull 1st 2nd 3 Setup the Connection between the Receiver and the Mouse 1. Insert the batteries into the mouse, then follow the steps below. 2. In the meantime, to open the mouse under the cover, take the nano receiver out. 3. Plug the Nano receiver into the USB port on your computer. 4. If the mouse does not work, please put it into pairing mode. 5. Pairing: Re-plug the receiver into the USB port on your computer, then press the connect button on the mouse. If the mouse does not work after 10 seconds, pair them again. (The receiver has auto pairing function). 6. The LED indicator on mouse flashes steadily when it is in pairing mode and stops blinking when it is successfully paired with the receiver. 7. When low battery, the battery indicator on the mouse will start to blink. 4 LED Indicator *Mouse Indicator LED Blinks for 10 sec. Low Battery Warning LED is on for 10 sec. Power ON LED Blinking Pairing (LED OFF when paired or failed after 10 sec.)

Acrox Technologies Co., Ltd. 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan, R.O.C. Date：May 2, 2012 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: PRDMU10 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Acrox Technologies Co., Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application.

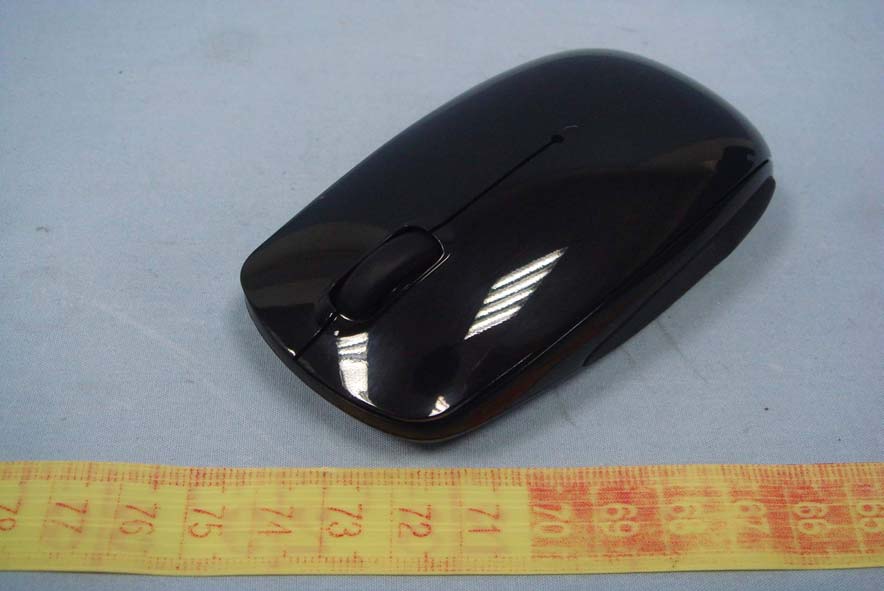

Report No: T120402D02 Page 1 / 4 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT

Label Format & Location

Report No: T120402D02 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T120402D02 Page 3 Rev.00 Antenna Report No: T120402D02 Page 4 Rev.00

Report No: T120402D02-RP1 FCC ID: PRDMU10 Date of Issue: April 25, 2012 Page 1 / 30 Rev.00 FCC 47 CFR PART 15 Subpart C TEST REPORT For Wireless Mouse Model G3H Trade Name: ACROX Issued to Acrox Technologies Co., Ltd. 4F., No. 89, Minshan St., Neihu Dist., Taipei City 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841,Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: T120402D02-RP1 FCC ID: PRDMU10 Date of Issue: April 25, 2012 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 25, 2012 Initial Issue ALL Jill Shiau Report No: T120402D02-RP1 FCC ID: PRDMU10 Date of Issue: April 25, 2012 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ..................................................................................... 4 2. EUT DESCRIPTION ......................................................................................................... 5 3. TEST METHODOLOGY.................................................................................................... 6 3.1 EUT CONFIGURATION .............................................................................................. 6 3.2 EUT EXERCISE .......................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................... 7 3.5 DESCRIPTION OF TEST MODES .............................................................................. 7 4. INSTRUMENT CALIBRATION.......................................................................................... 8 4.1 MEASURING INSTRUMENT CALIBRATION ............................................................. 8 4.2 MEASUREMENT EQUIPMENT USED ....................................................................... 8 4.3 MEASUREMENT UNCERTAINTY .............................................................................. 8 5. FACILITIES AND ACCREDITATIONS.............................................................................. 9 5.1 FACILITIES..................................................................................................................9 5.2 EQUIPMENT ............................................................................................................... 9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS....................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST........................................................................ 11 6.1 SETUP CONFIGURATION OF EUT ......................................................................... 11 6.2 SUPPORT EQUIPMENT ........................................................................................... 11 7. FCC PART 15.249 REQUIREMENTS ............................................................................ 12 7.1 20 DB BANDWIDTH ................................................................................................... 12 7.2 BAND EDGES MEASUREMENT .............................................................................. 15 7.3 SPURIOUS EMISSION ............................................................................................. 20 7.4 POWERLINE CONDUCTED EMISSIONS ................................................................ 27 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ......................................................... 29 Report No: T120402D02-RP1 FCC ID: PRDMU10 Date of Issue: April 25, 2012 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: Acrox Technologies Co., Ltd. 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan, R.O.C. Equipment Under Test: Wireless Mouse Trade Name: ACROX Model: G3H Date of Test: April 18 ~ 20, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Stan Lin Section Manager Jill Shiau Section Manager Report No: T120402D02-RP1 FCC ID: PRDMU10 Date of Issue: April 25, 2012 Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Wireless Mouse Model G3H Brand ACROX Model Discrepancy N/A EUT Power Rating 3VDC from Battery Operating Frequency Range 2403 ~ 2480MHz Output Power 91.94dBuV/m Modulation Technique GFSK Number of Channels 78 Channels Antenna Gain -2.00dBi Antenna Designation PCB Antenna Remark: 1. The sample se…

Text truncated - open the document above for the full version.

Report No: T120402D02-RP1 FCC ID: PRDMU10 Date of Issue: April 25, 2012 Page 29 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8. APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Report No: T120402D02-RP1 FCC ID: PRDMU10 Date of Issue: April 25, 2012 Page 30 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz
