PRDMU112.4GHz Laser Mouse

2.4GHz Laser Mouse Instruction Manual 2 Contents Package • GE Wireless Laser Mouse • Nano Receiver • Instruction Manual • 2 AA Batteries System Requirements • Windows®, XP, Vista, and 7 • Mac 10.1 and above • Available USB Port Special Features • If the mouse is not going to be in use for an extended period of time (i.e.: traveling) you can turn the mouse off to conserve the batteries via the on\off switch located on the bottom of the mouse. • Your GE Wireless Laser Mouse features a DPI shift key which allows the user to operate it at 800/1000/1600 dpi (dots per inch). This means that you now have pinpoint accuracy control at your fingertips! • Navigate easily through web pages, files and documents with navigation Forward / Back buttons Hardware Installation Please keep these directions in a safe place. 1. Insert the enclosed batteries into the battery compartment located on the bottom of your mouse. Make sure the batteries match the polarity markings in the battery compartment. 2. Plug the GE Wireless Laser Mouse nano receiver into an available USB port on your computer or GE USB hub. It is not necessary to reboot your computer. DPI Shift Key 800/1000/1600 dpi Forward / Back buttons 3 3. Move the mouse to ensure there is a good connection. 4. If the mouse does not work, you may need to move the mouse closer to the receiver . See the Trouble Shooting section for instructions. Trouble Shooting • The GE Wir eless Laser Mouse does not work properly ›If your mouse has been idle for a period of time it may be asleep to conserve battery power . T o wake the mouse, move the mouse. ›Change the batteries in your mouse. Two Year Limited Warranty Jasco Products Company warrants this product to be free from manufacturing defects for a period of two years from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit . This warranty is in lieu of all other warranties express or implied. Some states do not allow limitations on how long an implied warranty lasts or permit the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific rights, and you may also have other rights which var y from state to state. If unit should prove defective within the warranty period, return prepaid with dated proof of purchase to: FCC Statement Notice: Federal Communications Commission (FCC) r equirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant 4 to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver . • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the users authority to operate the equipment . This device complies with Par t 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera- tion.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2012/5/18 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, __ Acrox Technologies Co.,Ltd _hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: 2.4G Wireless Mouse model name:MSS We affirm that between SIEMIC and _ Acrox Technologies Co.,Ltd _, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Gavin.Hsieh /Manager Contact information / address: Acrox Technologies Co.,Ltd. 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan, R.O.C.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2012/5/18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PRDMU11 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Gavin.Hsieh /Manager Contact information / address: Acrox Technologies Co.,Ltd. 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan, R.O.C.

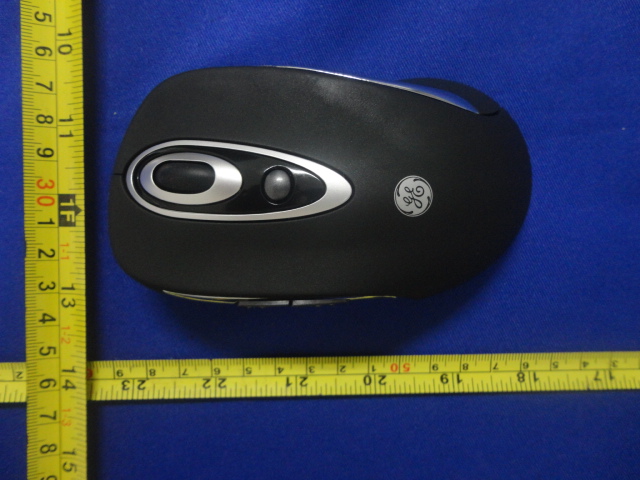

FCC ID: PRDMU11 page EST Technology Co.,Ltd Report No. ESTE-R1205003 8-1 8. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

27.5*13.5mm

FCC ID: PRDMU11 page EST Technology Co.,Ltd Report No. ESTE-R1205003 8-1 8. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT Label Location

Figure 1 Component Side of the PCB Figure 2 Component Side of the PCB Figure 3 Component Side of the PCB Antenna

FCC ID: PRDMU11 EST Technology Co.,Ltd Report No. ESTE-R1205003 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Acrox Technologies Co,.Ltd 2.4GHz Laser Mouse Model Number: MSS FCC ID: PRDMU11 Prepared for : Acrox Technologies Co,.Ltd 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan, R.O.C. Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City,GuangDong, China. Tel: 86-769-83081888-808 Report Number ： ESTE-R1205003 Date of Test ： May.9~May.15, 2012 Date of Report ： May.18, 2012 FCC ID: PRDMU11 EST Technology Co.,Ltd Report No. ESTE-R1205003 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Facilities ....................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-2 2.4. EUT Configuration and operation conditions for test.......................................................... 2-3 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipment .................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4. Operating Condition of EUT................................................................................................ 3-2 3.5. Test Procedure...................................................................................................................... 3-2 3.6. Conducted Disturbance at Mains Terminals Test Results.................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit Standard: FCC 15.209 and 15.249 .............................................. 4-2 4.4. Operating Condition of EUT................................................................................................ 4-3 4.5. Test Procedure...................................................................................................................... 4-3 4.6. Radiated Emission Test Results ........................................................................................... 4-3 5. 20 DB BANDWIDTH TEST ........................................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Results .......................................................................................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-2 6.5. Test Data .............................................................................................................................. 6-1 7. PHOTOGRAPH OF TEST ............................................................................................. 7-1 7.1. Photos of Radiated Emission Test (30-1000MHz) .............................................................. 7-1 8. PHOTOGRAPH OF EUT ............................................................................................... 8-1 FCC ID: PRDMU11 EST Technology Co.,Ltd Report No. ESTE-R1205003 TEST REPORT CERTIFICATION Applicant ：Acrox Technologies Co,.Ltd Manufacturer ：Acrox Technologies Co,.Ltd EUT Description ：2.4GHz Laser Mouse FCC ID ： PRDMU11 (A) MODEL NO. : MSS (C) SERIAL NO. : N/A (D) Trade Name : JASCO; ACROX (D) POWER SUPPLY : DC 3V (E) TEST VOLTAGE : DC 3V Tested for comply with: FCC Rules and Regulations Part 15 Subpart C:2011 Test procedure used: ANSI C63.4:2003 The device described above is tested by EST Technology Co., Ltd. to confirm comply with all the FCC Part 15 Subpart C requirements. The test results are contained in this test report and EST Technology Co., Ltd. is assumed full responsibility for the accuracy and completeness of these tests. Also, this report shows that the Equipment under test (EUT) is to be technically compliant with the FCC requirements. Prepared by: Tested by: Approved by: Ada / Assistant Tony.Tang/ Engineer Iceman Hu / Manage…

Text truncated - open the document above for the full version.

FCC ID: PRDMU11 page EST Technology Co.,Ltd Report No. ESTE-R1205003 7-1 7. PHOTOGRAPH OF TEST 7.1. Photos of Radiated Emission Test (30-1000MHz) (Above 1000MHz)
