PRDMU1202.4GHz Wireless Mobile BlueTrace Mouse

2.4GHz Wireless Mobile BlueTrace Mouse w/Nano Receiver USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user's guide before installing. 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. 2 Functional Introduction Installing the batteries Step 1: Take the battery cover off. Step 2: Insert the battery as shown inside the battery compartment. Step 3: Replace the cover. Step 4: Turn on power switch. **Warning: *Please insert the battery with the correct position according to the instruction labeled on the mouse. AA Battery Left button Right button Battery Cover Metallic Wheel Connect Button ON/OFF Switch Nano Receiver LED Indicator Pull Backward Forward 3 GREEN LED FLASH (0.5 sec. Regularly) GREEN LED FLASH (if any action) GREEN LED ON Se a rc hing the c ha nne l Cha nnel c o nnec te d No a c tio n Connec t to the USB or Mo use p ort of your c omp uter Setup the Connection between the Receiver and the Mouse 1. Insert the battery into the mouse, then follow the steps below. 2. In the meantime, to open the mouse under the cover, take the nano receiver out. 3. Plug the Nano receiver into the USB port on your computer. 4. If the mouse does not work, please put it into pairing mode. 5. Pairing: Re-plug the receiver into the USB port on your computer, then press the connect button on the mouse. If the mouse does not work after 10 seconds, pair them again. (The receiver has auto pairing function). 6. The LED indicator on mouse flashes steadily when it is in pairing mode and stops blinking when it is successfully paired with the receiver. 7. When low battery, the battery indicator on the mouse will start to blink. 4 LED Indicator *Mouse Indicator LED is on for 3 sec. Power ON LED Blinks for 3 times During Pairing (LED OFF when paired or failed after 10 sec.) LED Blinks for 10 sec. Low Battery Warning

DATE : 1/31/2023 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Acrox Technologies Co., Ltd. Address:4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan <Signature> Name：Gavin Hsieh Title：Product Manager Applicant Company：Acrox Technologies Co., Ltd.

DATE : 1/31/2023 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: PRDMU120 Product Name: 2.4GHz Wireless Mobile BlueTrace Mouse Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Gavin Hsieh Title：Product Manager Company：Acrox Technologies Co., Ltd.

Acrox Technologies Co., Ltd. I, the undersigned, Gavin Hsieh: The following models have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction, except the different model name and appearance color. 1) Model No.: 70759 2) Model No.: 70760 3) Model No.: 70761 4) Model No.: GMY FCC ID: PRDMU120 Sincerely, Client’s signature : Client’s name / title : Gavin Hsieh / Product Manager Contact information / address : 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan Telephone: 886-2-2796-5888 Fax No.: 886-2-2793-8999

Acrox Technologies Co., Ltd. Sepcification For Approval Provider: Acrox Technologies Co., Ltd. Model No.: GMY Part name: PCB Antenna Approval: Acrox Technologies Co., Ltd. Date: 2022-9-27 Structure Drawing RF Antenna Assembly Test/Position Gain/Free Space Frequency(MHz) 2408 2440 2474 Ant. Port Input Pwr.(dBm) 0.00 0.00 0.00 Tot.Rad.Pwr.(dBm) -5.4546 -4.3421 -4.2606 Peak EIRP(dBm) 1.5532 2.6739 2.2041 Directivity(dBi) 7.0077 7.0159 6.4648 Efficiency(dB) -5.4546 -4.3567 -4.2606 Effciency(%) 28.48 36.796 37.492 Gain(dBi) -1.55 -2.67 -2.20

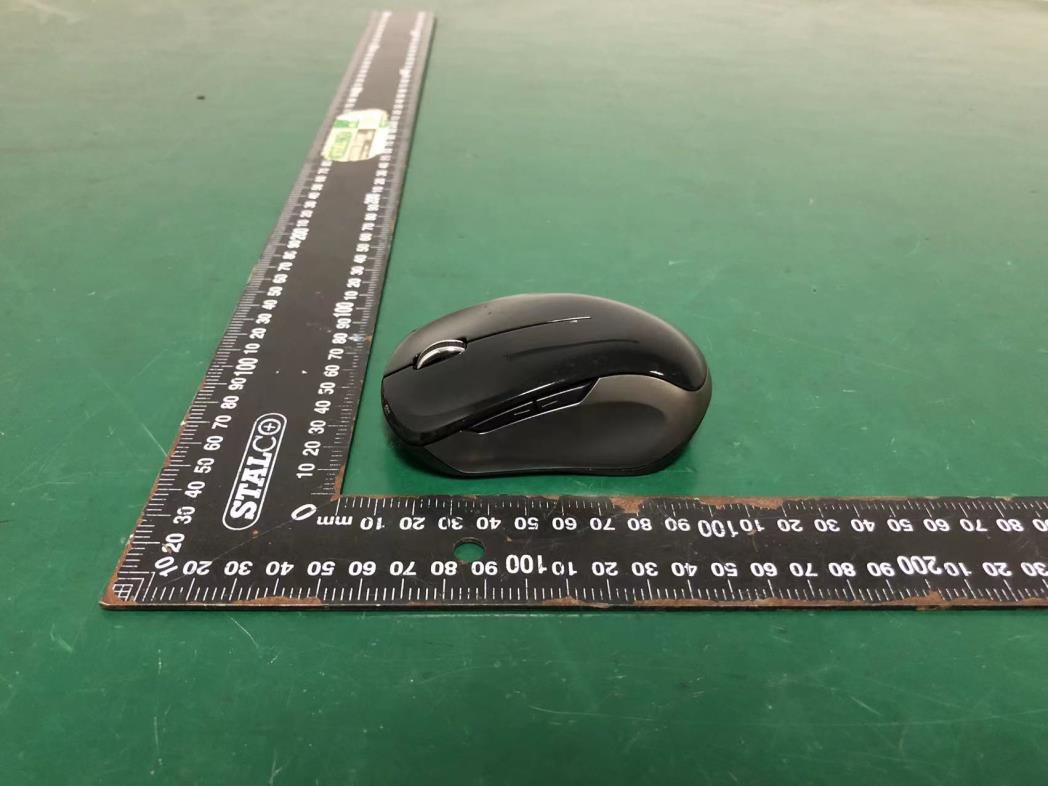

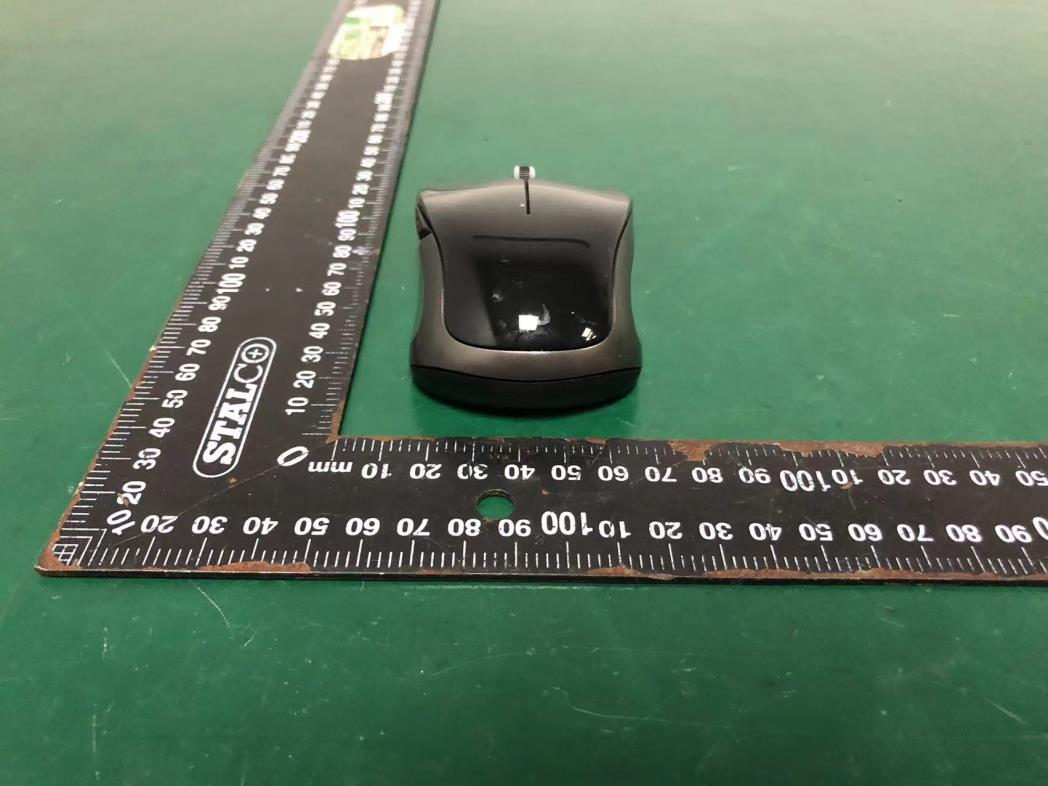

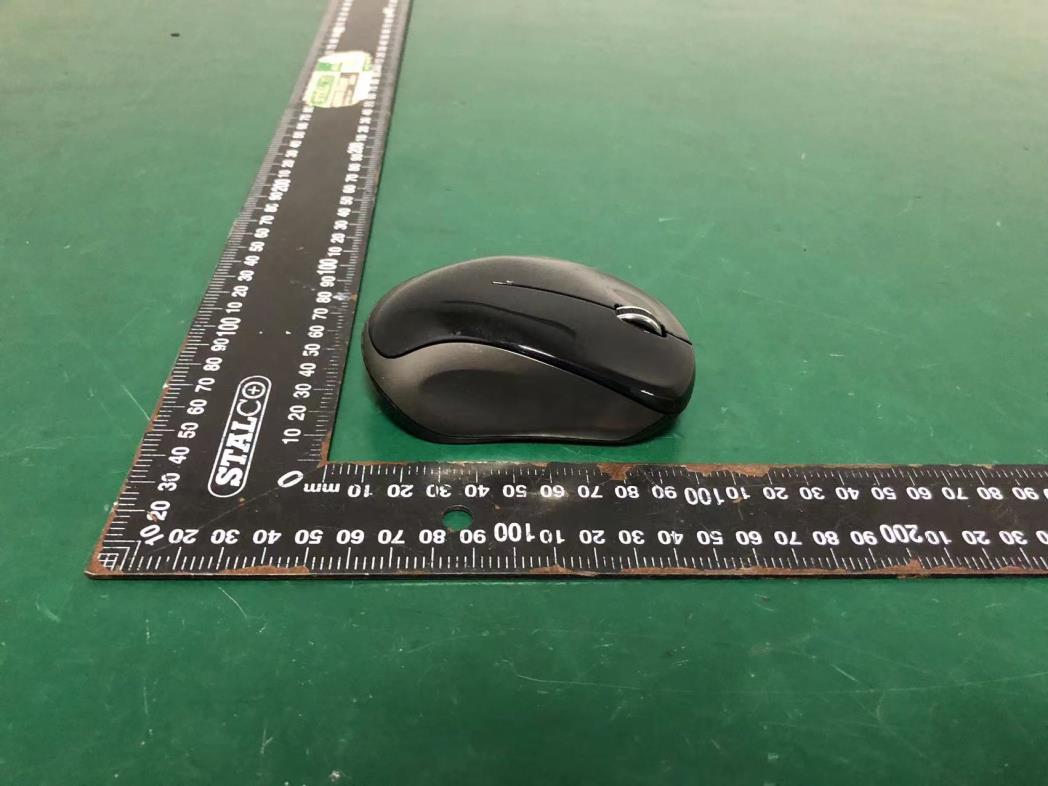

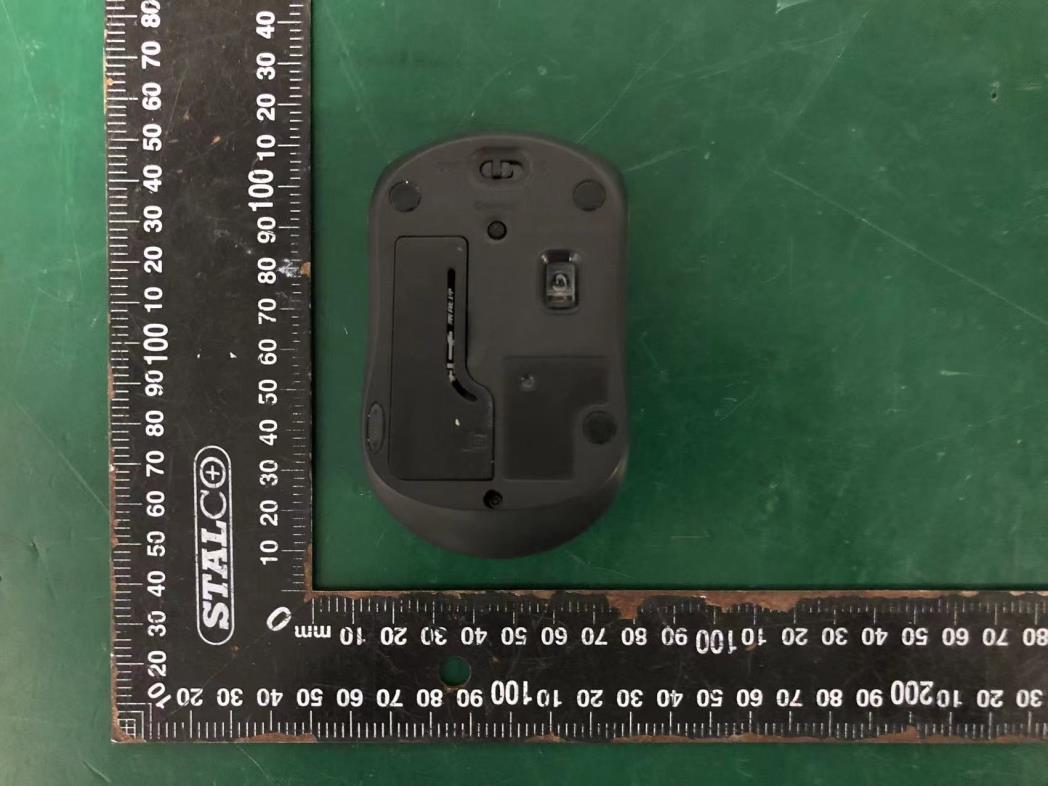

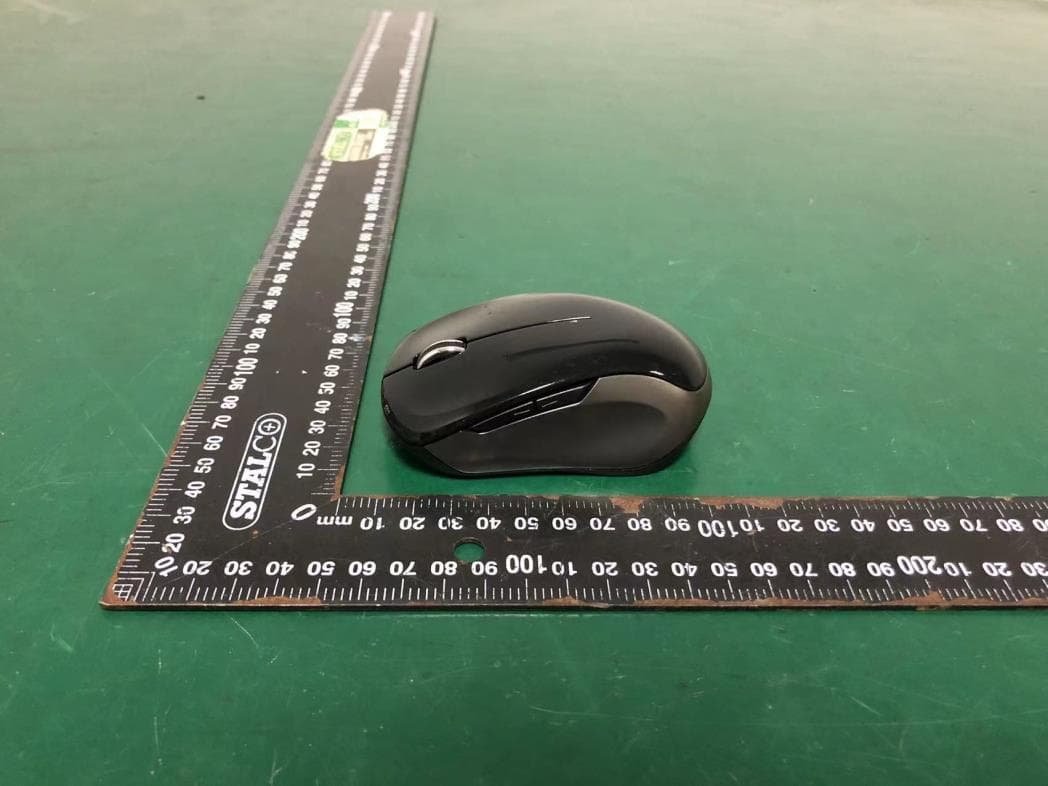

External Photos M/N: 70759 External Photos M/N: 70759 External Photos M/N: 70759

Model: 70759 FCC ID: PRDMU120 1706000001 Model: 70761 FCC ID: PRDMU120 1706000001

Label Location

Internal Photos M/N: 70759 Internal Photos M/N: 70759 Internal Photos M/N: 70759 2.4G SRD Antenna

FCC ID: PRDMU120 EST Technology Co., Ltd Report No. ESTE-R2301062 Page 1 of 3 FCC RF EXPOSURE REPORT Acrox Technologies Co., Ltd. 2.4GHz Wireless Mobile BlueTrace Mouse Model Number: 70759 Additional Model: 70760, 70761, GMY FCC ID: PRDMU120 Applicant: Acrox Technologies Co., Ltd. Address: 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2301062 Date of Test: Dec. 19, 2022~Jan. 07, 2023 Date of Report: Jan. 10, 2023 FCC ID: PRDMU120 EST Technology Co., Ltd Report No. ESTE-R2301062 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: PRDMU120 EST Technology Co., Ltd Report No. ESTE-R2301062 Page 3 of 3 3. Evaluation Results For 2.4G SRD Field strength = 81.96dBuV/m@3m P={ [10 (81.96 /20) /10 6 *3] 2 /30 }*1000mW = 0.047mW< 2.72mW Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.474GHz (Highest frequency operate) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

FCC ID: PRDMU120 EST Technology Co., Ltd Report No.ESTE-R2301061 Page 1 of 46 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Acrox Technologies Co., Ltd. 2.4GHz Wireless Mobile BlueTrace Mouse Model Number: 70759 Additional Model: 70760, 70761, GMY FCC ID: PRDMU120 Applicant Acrox Technologies Co., Ltd. Address: 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2301061 Date of Test: Dec. 19, 2022~Jan. 07, 2023 Date of Report: Jan. 10, 2023 FCC ID: PRDMU120 EST Technology Co., Ltd Report No.ESTE-R2301061 Page 2 of 46 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 4 1.1. Description of Device (EUT) ........................................................................................................... 4 1.2. Antenna Information ........................................................................................................................ 4 1.3. Information of RF Cable .................................................................................................................. 4 2. SUMMARY OF TEST ......................................................................................................................... 5 2.1. Summary of test result ...................................................................................................................... 5 2.2. Test Facilities ................................................................................................................................... 6 2.3. Measurement uncertainty ................................................................................................................. 7 2.4. Assistant equipment used for test ..................................................................................................... 7 2.5. Block Diagram ................................................................................................................................. 7 2.6. Test Mode ......................................................................................................................................... 8 2.7. Power Setting of Test Software ........................................................................................................ 8 2.8. Channel List ..................................................................................................................................... 8 2.9. Test Equipment List ......................................................................................................................... 9 3. FIELD STRENGTH OF FUNDAMENTAL ............................................................................................ 10 3.1. Limit ............................................................................................................................................... 10 3.2. Test Setup ....................................................................................................................................... 10 3.3. Spectrum Analyzer Setting ............................................................................................................. 10 3.4. Test Procedure ................................................................................................................................ 11 3.5. Test Result ...................................................................................................................................... 12 4. RADIATED SPURIOUS EMISSIONS AND BAND EDGE ...................................................................... 19 4.1. Limit ............................................................................................................................................... 19 4.2. Test Setup ....................................................................................................................................... 21 4.3. Spectrum Analyzer Setting ............................................................................................................. 22 4.4. Test Procedure ................................................................................................................................ 23 4.5. Test Result ...................................................................................................................................... 24 5. 20DB BANDWIDTH ........................................................................................................................ 36 5.1. Limit ............................................................................................................................................... 36 5.2. Test Setup ....................................................................................................................................... 36 5.3. Spectrum Analyzer Setting ............................................................................................................. 36 5.4. Test Procedure ................................................................................................................................ 36 5.5. Test Condition ................................................................................................................................ 36 5.6. Test Result ...................................................................................................................................... 37 6. ANTENNA REQUIREMENTS ............................................................................................................ 39 6.1. Limit ..............................................................................…

Text truncated - open the document above for the full version.

Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)
