PRDMU172.4G Mouse

2.4GHz Wireless Windows 8 hot key Deluxe BlueTrace Mouse w/Nano Receiver USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user's guide before installing. 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2 Functional Introduction Installing the batteries Step 1: Take the battery cover off. Step 2: Insert the battery as shown inside the battery compartment. Step 3: Replace the cover. **Warning: *Please insert the battery with the correct position according to the instruction labeled on the mouse. AA Battery Left button Right button Battery Cover Scrolling Wheel Connect Button ON/OFF Switch Nano Receiver LED Indicator Pull Charms Menu Switching APP 3 GREEN LED FLASH (0.5 sec. Regularly) GREEN LED FLASH (if any action) GREEN LED ON Se a rc hing the c ha nne l Cha nnel c o nnec te d No a c tio n Connec t to the USB or Mo use p ort of your c omp uter Setup the Connection between the Receiver and the Mouse 1. Insert the battery into the mouse, then follow the steps below. 2. In the meantime, to open the mouse under the cover, take the nano receiver out. 3. Plug the Nano receiver into the USB port on your computer. 4. If the mouse does not work, please put it into pairing mode. 5. Pairing: Re-plug the receiver into the USB port on your computer, then press the connect button on the mouse. If the mouse does not work after 10 seconds, pair them again. (The receiver has auto pairing function). 6. The LED indicator on mouse flashes steadily when it is in pairing mode and stops blinking when it is successfully paired with the receiver. 7. When low battery, the battery indicator on the mouse will start to blink. 4 LED Indicator *Mouse Indicator LED is on for 3 sec. Power ON LED Blinks for 3 times During Pairing (LED OFF when paired or failed after 10 sec.) LED Blinks for 10 sec. Low Battery Warning

FCC TEST REPORT Report No. : FR312925 APPENDIX B. Photographs of EUT SPORTON International Inc. TEL : 886-3-327-3456 FAX : 886-3-327-0973 Page No. : B1 of B6 Issued Date : Mar. 01, 2013 FCC TEST REPORT Report No. : FR312925 SPORTON International Inc. TEL : 886-3-327-3456 FAX : 886-3-327-0973 Page No. : B2 of B6 Issued Date : Mar. 01, 2013

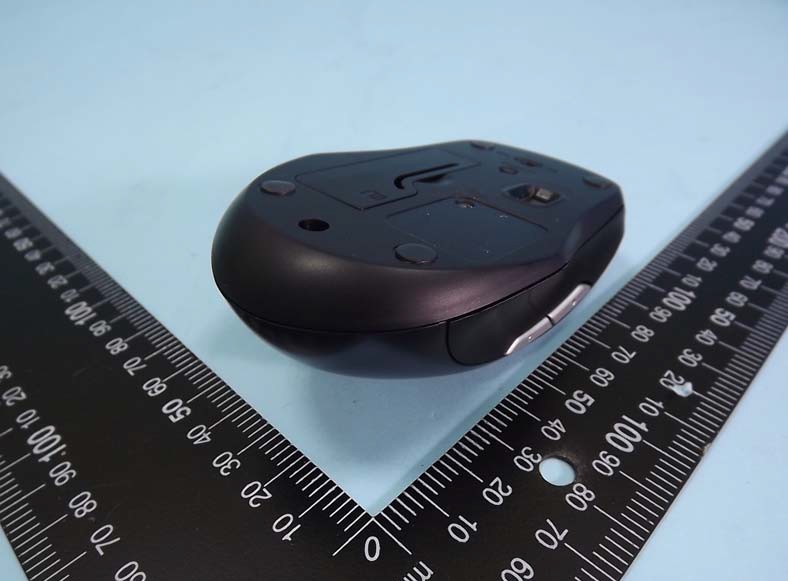

Model : GMW FCC ID:PRDMU17 2.4GHz BlueTrace Mouse GMW FCC LB 23x27mm

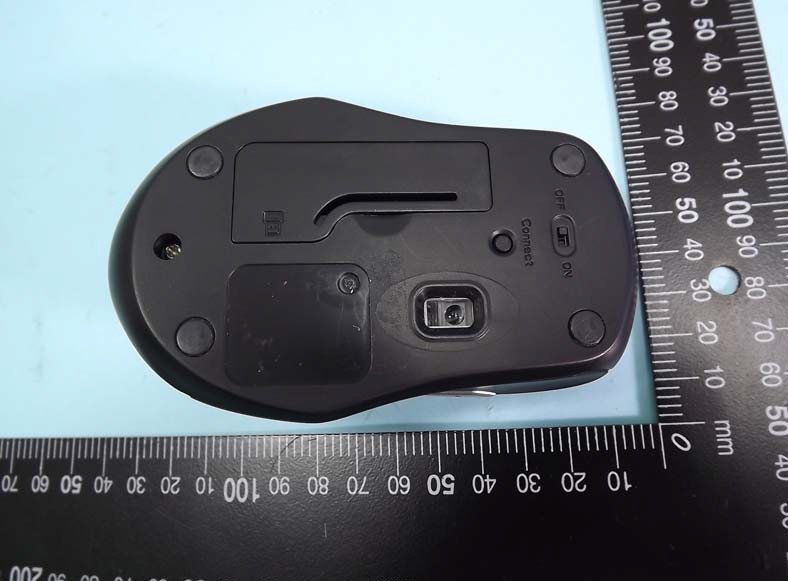

Label Location

FCC TEST REPORT Report No. : FR312925 SPORTON International Inc. TEL : 886-3-327-3456 FAX : 886-3-327-0973 Page No. : B3 of B6 Issued Date : Mar. 01, 2013 FCC TEST REPORT Report No. : FR312925 SPORTON International Inc. TEL : 886-3-327-3456 FAX : 886-3-327-0973 Page No. : B4 of B6 Issued Date : Mar. 01, 2013 FCC TEST REPORT Report No. : FR312925 SPORTON International Inc. TEL : 886-3-327-3456 FAX : 886-3-327-0973 Page No. : B5 of B6 Issued Date : Mar. 01, 2013 FCC TEST REPORT Report No. : FR312925 SPORTON International Inc. TEL : 886-3-327-3456 FAX : 886-3-327-0973 Page No. : B6 of B6 Issued Date : Mar. 01, 2013 FCC TEST REPORT Report No. : FR312925 SPORTON International Inc. TEL : 886-3-327-3456 FAX : 886-3-327-0973 Page No. : B7 of B6 Issued Date : Mar. 01, 2013

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR312925 FCC RADIO TEST REPORT According to 47 CFR FCC Part 15 Subpart C § 15.249 Equipment : 2.4G Mouse Brand Name : ACROX Model No. : GMW/GOA Filing Type : New Application Applicant Manufacturer : ACROX Technologies Co., Ltd. 4F., No.89, Minshan St., Neihu Dist., Taipei City 114 FCC ID : PRDMU17 Received Date : Jan. 29, 2013 Final Test Date : Feb. 22, 2013 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Mar. 01, 2013 FAX : 886-3-327-0973 FCC ID : PRDMU17 FCC TEST REPORT Report No. : FR312925 Table of Contents 1. SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2. GENERAL INFORMATION ...................................................................................................................................... 3 2.1. Product Details ..............................................................................................................................................................................................3 2.2. Table for Test Modes ....................................................................................................................................................................................3 2.3. Table for Testing Locations ..........................................................................................................................................................................3 2.4. Table for Supporting Units ............................................................................................................................................................................3 2.5. EUT Operation during Test ...........................................................................................................................................................................3 2.6. Test Configurations .......................................................................................................................................................................................4 3. TEST RESULT ......................................................................................................................................................... 5 3.1. AC Power Line Conducted Emissions Measurement ..................................................................................................................................5 3.2. Field Strength of Fundamental Emissions Measurement............................................................................................................................7 3.3. 20dB Spectrum Bandwidth Measurement ................................................................................................................................................ 10 3.4. Radiated Emissions Measurement............................................................................................................................................................ 14 3.5. Band Edge Emissions Measurement ........................................................................................................................................................ 26 3.6. Antenna Requirements .............................................................................................................................................................................. 28 4. LIST OF MEASURING EQUIPMENTS .................................................................................................................. 29 5. TEST LOCATION ................................................................................................................................................... 31 6. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 32 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A2 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... B1 ~ B6 SPORTON International Inc. Page No. : ii of ii TEL : 886-3-327-3456 Issued Date : Mar. 01, 2013 FAX : 886-3-327-0973 FCC ID : PRDMU17 FCC TEST REPORT Report No. : FR312925 History of This Test Report Original Issue Date: Mar. 01, 2013 Report No.: FR312925 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 15.205(a) 15.209(a) Further, this requirement does not apply to intentional radiators that must be professionally installed. SPORTON International Inc. Page No. : 2 of 32 TEL : 886-3-327-3456 Issued Date : Mar. 01, 2013 FAX : 886-3-327-0973 FCC ID : PRDMU17 FCC TEST REPORT Report No. : FR312925 1. SUMMARY OF THE TEST RESULT Applied Standard: 47 CFR FCC Part 15 Subpart C Part Rule Section Description of Test Result Under Limit 3.1 15.207 AC Power Line Conducted Emissions N/A - 3.2 15.249(a) Field Strength of Fundamental Emissions Complies 30.63 dB 3.3 15.215(c) 20dB Spectrum Bandwidth Complies - 3.4 15.249(a)/(d) Radiated Emissions Complies 5.60 dB 3.5 15.249(d) Band Edge Emissions Complies 11.74 dB 3.6 15.203 Antenna Requir…

Text truncated - open the document above for the full version.

Test Photos Report No. : FR312925 SPORTON INTERNATIONAL INC. Page No. : A1 of A2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Radiated Emissions Test Configuration For radiated emission below 1GHz FRONT VIEW REAR VIEW Test Photos Report No. : FR312925 SPORTON INTERNATIONAL INC. Page No. : A2 of A2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emission above 1GHz FRONT VIEW REAR VIEW
