PRDMU22Wireless Mouse

System requirements • Windows® 8, Windows® 7, Windows Vista®, Windows® XP, or Mac OS [REVIEWERS: What is the system requirement for Mac OS? (e.g. Mac OS 10.0 or higher)?] • One available USB port Features To p Bottom Installing the batteries 1 Take the battery cover off. 2 Insert the battery inside the battery compartment. Note: Insert the battery with the correct orientation, according to the instruction label on the mouse. 3 Replace the cover. Removing the nano receiver 1 Remove the battery cover. 2 Pull the nano receiver out of its slot in the battery compartment. 3 Replace the cover. Connect button ON/OFF switch Battery cover Pull and AA battery Quick Setup Guide NS-WLM1451-SV | Five-Button Wireless Mouse Before using your new product, please read these instructions to prevent any damage. Congratulations on your purchase of a high-quality Insignia product. Your NS-WLM1451-SV represents the state of the art in wireless mouse design to ensure for reliable and trouble-free performance. Package contents • Five-button wireless mouse • Nano receiver • Quick Setup Guide Left button Right button Scroll wheel LED indicator Backward Forward Nano receiver Setting up the connection between the receiver and the mouse 1 Plug the nano receiver into a USB port on your computer. Note: The drivers automatically install onto your computer and you can start using your mouse. 2 If the mouse does not work, put it into pairing mode by pressing the connect button on the bottom of your mouse. Note: If the mouse does not work after 10 seconds, unplug and re-plug the nano receiver then press the connect button on the mouse again. 3 The LED indicator on the mouse flashes steadily when it is in pairing mode and turns off when it is successfully paired with the nano receiver. 4 When the battery power gets low, the battery indicator on the mouse starts to blink. Removing the nano receiver from your computer Windows: 1 To remove the nano receiver from your PC, right-click the USB device icon in your system tray, located on the right side of your task bar. 2 Click Eject [device name]. A message appears that you are now “Safe to Remove Hardware.” 3 Remove the receiver from your computer. Mac OS: 1 Click the Finder icon on your dock. The Finder window opens. 2 In the left panel, select [device name] under the “DEVICES” heading, then click (eject). “[device name]” disappears and the USB device can be safely removed from your computer. [REVIEWERS: What will show up as the device name in the finder window or systems tray?] Mouse indicator Specifications Rating: 3V C.C. - 10mA Cleaning your mouse • Wipe the mouse with a damp, lint-free cloth. Troubleshooting • Make sure that your computer meets the system requirements. • Only use the mouse on a clean, flat, non-slippery surface to ensure smooth and accurate cursor action. • If your mouse stops working: • Make sure that your mouse and nano receiver are paired by pressing the connect button on the mouse. • Replace the mouse battery. • Avoid using your mouse on reflective, transparent, or metallic surfaces. Legal notices FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that V1 ENGLISH 13-0855 interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-Gen and RSS-210 statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RSS-102 statement This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. One-year limited warranty For complete warranty, visit www.insigniaproducts.com. Contact Insignia For customer service, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a registered trademark of BBY Solutions, Inc. Registered in some countries. Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2013 BBY Solu…

Text truncated - open the document above for the full version.

ATTACHMENT Photo Documentation Page 1 of 1 FCC ID:PRDMU22 Product: 2.4GHz mouse Type Designation: NS-WLM1451

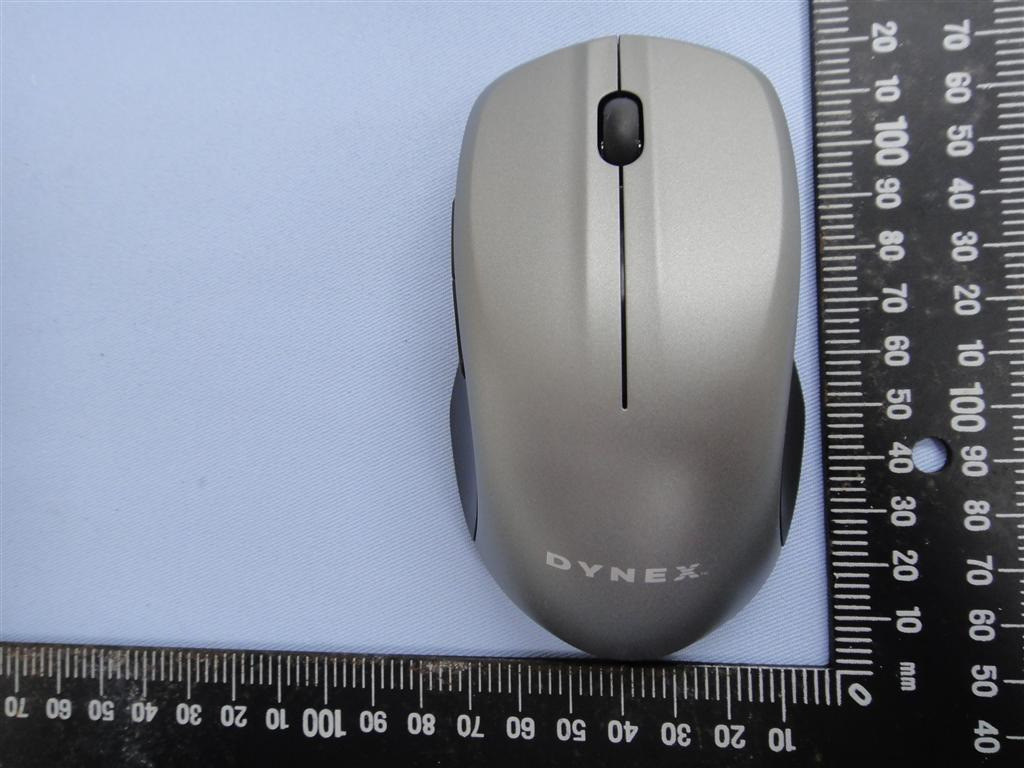

ATTACHMENT Photo Documentation Page 1 of 3 FCC ID:PRDMU22 Product: 2.4GHz mouse Type Designation: NS-WLM1451 ATTACHMENT Photo Documentation Page 2 of 3 FCC ID:PRDMU22 Product: 2.4GHz mouse Type Designation: NS-WLM1451 ATTACHMENT Photo Documentation Page 3 of 3 FCC ID:PRDMU22 Product: 2.4GHz mouse Type Designation: NS-WLM1451

Test Report No.10044048 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10044048AppendixD) Contents Spurious Emissions, Fundamental and Band Edges ................................................................................... 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 12 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 18 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 24 Spurious Emissions, Fundamental and Band Edges 2 Spurious Emissions, Fundamental and Band Edges Service No.: NS-WLM1451-SV 20131015 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/10/15 10:18:12 Applicant: Acrox Test Rating: Battery 1.5V Product: 2.4GHz mouse Temp.( °C °C°C °C)/Hum.(%): 22(°C °C°C °C)/57% Model No.: NS-WLM1451-SV Test Engineer: Webber Chung Test Mode: Low CH 2408MHz Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2408.288 -8.18 99.18 91.00 114.00 -23.00 peak 125 360 2 2408.288 -8.18 99.04 90.86 94.00 -3.14 AVG 125 360 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 3 Service No.: NS-WLM1451-SV 20131015 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/10/15 10:24:17 Applicant: Acrox Test Rating: Battery 1.5V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 22(°C °C°C °C)/57% Model No.: NS-WLM1451-SV Test Engineer: Webber Chung Test Mode: Low CH 2408MHz Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2408.095 -8.18 91.07 82.89 114.00 -31.11 peak 356 36 2 2408.095 -8.18 90.00 81.82 94.00 -12.18 AVG 356 36 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 4 Service No.: NS-WLM1451-SV 20131015 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/10/15 09:39:06 Applicant: Acrox Test Rating: Battery 1.5V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 22(°C °C°C °C)/57% Model No.: NS-WLM1451-SV Test Engineer: Webber Chung Test Mode: Mid CH 2440MHz Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2439.520 -8.15 100.48 92.33 114.00 -21.67 peak 121 360 2 2439.520 -8.15 100.25 92.10 94.00 -1.90 AVG 121 360 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 5 Service No.: NS-WLM1451-SV 20131015 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/10/15 09:52:53 Applicant: Acrox Test Rating: Battery 1.5V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 22(°C °C°C °C)/57% Model No.: NS-WLM1451-SV Test Engineer: Webber Chung Test Mode: Mid CH 2440MHz Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2440.401 -8.15 94.86 86.71 114.00 -27.29 peak 192 38 2 2440.401 -8.15 93.91 85.76 94.00 -8.24 AVG 192 38 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 6 Service No.: NS-WLM1451-SV 20131015 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/10/15 10:09:46 Applicant: Acrox Test Rating: Battery 1.5V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 22(°C °C°C °C)/57% Model No.: NS-WLM1451-SV Test Engineer: Webber Chung Test Mode: Hi CH 2474MHz Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2475.346 -8.11 100.76 92.65 114.00 -21.35 peak 124 121 2 2475.346 -8.11 99.17 91.06 94.00 -2.94 AVG 124 121 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 7 Service No.: NS-WLM1451-SV 20131015 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/10/15 10:01:56 Applicant: Acrox Test Rating: Battery 1.5V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 22(°C °C°C °C)/57% Model No.: NS-WLM1451-SV Test Engineer: Webber Chung Test Mode: Hi CH 2474MHz Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2474.625 -8.12 96.67 88.55 114.00 -25.45 peak 232 72 2 2474.625 -8.12 95.49 87.37 94.00 -6.63 AVG 232 72 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 8 Radiated Bandedge Low Channel (Hor) Spurious Emissions, Fundamental and Band Edges 9 Low Channel (Ver) Spurious Emissions, Fundamental and Band Edges 10 High Channel (Hor) Spurious Emissions, Fundamental and Band Edges 11 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 12 Spurious Emissions, TX Mode, 1-18G Service No.: NS-WLM1451-SV 20131015 Test Distance: 3m Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/10/15 11:37:06 Applicant: Acrox Test Rating: Battery 1.5V Pr…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10044048 001 Seite 18 von 20 Page 18 of 20 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10044048 001 Seite 19 von 20 Page 19 of 20 Photograph 2: Set-up for Spurious Emissions (Back View 1 TX) Photograph 3: Set-up for Spurious Emissions (Back View 2 TX)
