PRDMU23Wireless Mouse

Installing the batteries and removing the nano receiver 1 Take the battery cover off. 2 Remove the nano receiver. 3 Insert the included AA battery into the battery compartment. Make sure that the + and - signs match the symbols in the compartment. 4 Replace the battery cover. Tip: Store the nano receiver in the mouse when it is not in use. Connecting your mouse to your computer 1 Plug the nano receiver into a USB port on your computer. 2 Slide the ON/OFF switch on your mouse to ON. The computer automatically detects the mouse and you can immediately begin using it. If the mouse does not work: • Move your mouse closer to your computer. • Re-plug the nano receiver into the USB port on your computer, then press the connect button on the mouse. The LED indicator on the mouse flashes steadily while in pairing mode (10 seconds). After pairing successfully, the LED indicator lights solid for 10 seconds, then turns off. • Check the battery in your mouse. The LED indicator blinks for 10 seconds when the battery is low. Quick Setup Guide Wireless Optical Mouse | NS-PNM5003-BK / NS-PNM5003-BU / NS-PNM5003-SV Package contents • Wired USB mouse • Nano receiver • AA battery (1) • Quick Setup Guide Before using your new product, please read these instructions to prevent any damage. System requirements • Windows® 8, Windows® 7, Windows Vista®, Windows® XP, or Mac OS 10.X or higher • One available USB port Features Nano receiver Connect button ON/OFF switch Battery cover Pull AA battery Left button Right button Scroll wheel LED indicator NS-PNM5003-BK_NS-PNM5003-BU_NS-PNM5003-SV_13-1099_QSG_V1.ai 1 1/3/2014 9:44:39 AMNS-PNM5003-BK_NS-PNM5003-BU_NS-PNM5003-SV_13-1099_QSG_V1.ai 1 1/3/2014 9:44:39 AM Specifications Mouse: • Dimension (L×W×H): 3.89 × 2.44 × 1.44 in. (9.9 × 6.2 × 3.67 cm) • Weight: 1.86 oz. (.05 kg) • Battery: 1 AA alkaline battery • Battery life: 6 months (based on average usage) • Radio frequency: 2.4Ghz • Operating distance: 33 feet (10 meters) • Rating: 3V C.C. - 10mA Nano receiver: • Dimension (L×W×H): .7 × .6 × .2 in. (1.8 × 1.4 × .6 cm) • Weight: 1.2 g ± 0.5g • Interface: USB 1.1, 2.0 , 3.0 Troubleshooting My mouse is not working. • Move your mouse and computer closer together. • Make sure that your computer meets the system requirements. • Only use the mouse on a clean, flat, non-slippery surface to ensure smooth and accurate cursor action. • If your mouse stops working: • Make sure that your mouse and nano receiver are paired by pressing the connect button on the mouse. • Replace the mouse battery. • Try connecting your nano receiver into a different USB port on your computer. • Avoid using your mouse on reflective, transparent, or metallic surfaces. V1 ENGLISH 13-1099 Legal notices FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-Gen and RSS-210 statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RSS-102 statement This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. One-year limited warranty For complete warranty, visit www.insigniaproducts.com. Contact Insignia 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a registered trademark of BBY Solutions, Inc. Registered in some countries. Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2014 BBY Solutions, Inc. All Rights Reserved. LED indicator Cleaning your mouse • Wipe the mouse with a damp, lint-free cloth. Function Power ON Low battery warning Pairing Pairing failed Paired successfully Description LED is on for 10 seconds, then turns off. LED blinks for 10 seconds. LED blinks for 10 seconds after pressing the Connect button. After pressing the Connect button, the LED blinks for 10 second…

Text truncated - open the document above for the full version.

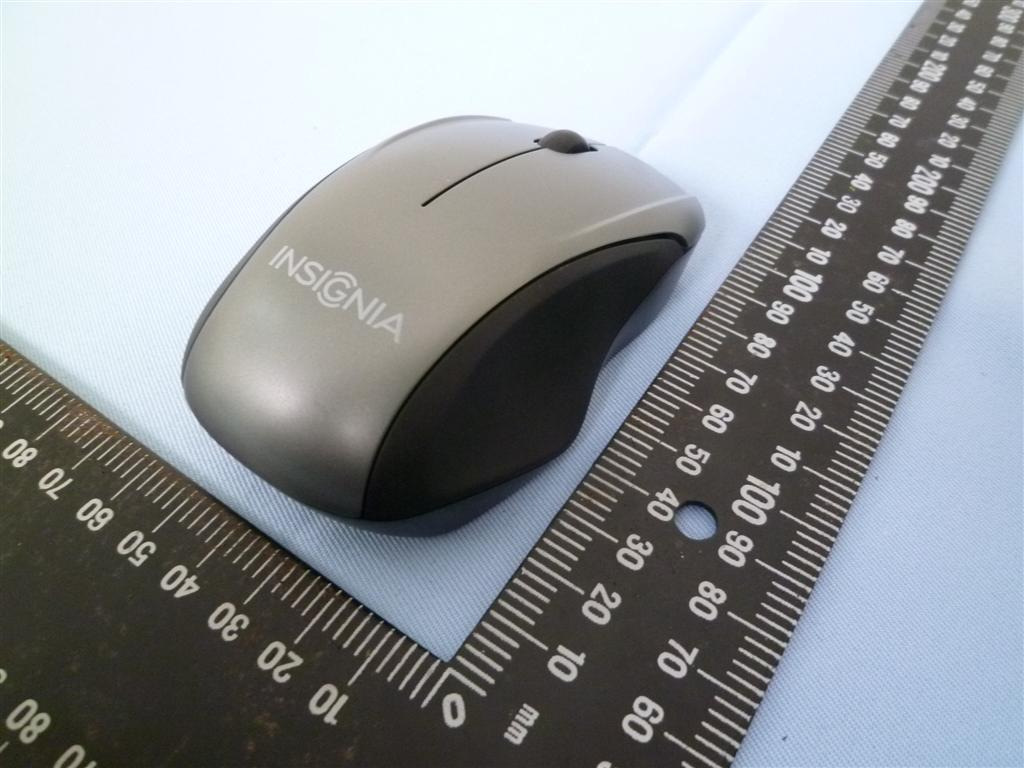

ATTACHMENT Photo Documentation Page 1 of 1 FCC ID: PRDMU23 Product: 2.4GHz mouse Type Designation: NS-PNM5003-SV

Label Location

ATTACHMENT Photo Documentation Page 1 of 2 FCC ID: PRDMU23 Product: 2.4GHz mouse Type Designation: NS-PNM5003-SV ATTACHMENT Photo Documentation Page 2 of 2 FCC ID: PRDMU23 Product: 2.4GHz mouse Type Designation: NS-PNM5003-SV

Test Report No.10045003 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10045003AppendixD) Contents Radiated Emissions, Fundamental and Band Edges ................................................................................... 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 12 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 18 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 24 Radiated Emissions, Fundamental and Band Edges 2 Radiated Emissions, Fundamental and Band Edges Service No.: 114017241-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/12/27 11:48:33 Applicant: Acrox Test Rating: DC 1.5V Product: 2.4GHz Mouse Temp.( °C °C°C °C)/Hum.(%): 18(°C °C°C °C)/61% Model No.: NS-PNM5003-SV Test Engineer: Hugo Chang Test Mode: CH2408 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2408.462 -7.96 105.15 97.19 114.00 -16.81 peak 100 0 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 3 Service No.: 114017241-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/12/30 15:57:13 Applicant: Acrox Test Rating: DC 1.5V Product: 2.4GHz Mouse Temp.(°C °C°C °C)/Hum.(%): 18(°C °C°C °C)/61% Model No.: NS-PNM5003-SV Test Engineer: Hugo Chang Test Mode: CH2408 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2408.410 -7.96 95.07 87.11 114.00 -26.89 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 4 Service No.: 114017241-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/12/30 15:43:50 Applicant: Acrox Test Rating: DC 1.5V Product: 2.4GHz Mouse Temp.(°C °C°C °C)/Hum.(%): 18(°C °C°C °C)/61% Model No.: NS-PNM5003-SV Test Engineer: Hugo Chang Test Mode: CH2440 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2440.462 -7.92 106.11 98.19 114.00 -15.81 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 5 Service No.: 114017241-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/12/30 15:47:06 Applicant: Acrox Test Rating: DC 1.5V Product: 2.4GHz Mouse Temp.(°C °C°C °C)/Hum.(%): 18(°C °C°C °C)/61% Model No.: NS-PNM5003-SV Test Engineer: Hugo Chang Test Mode: CH2440 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2440.487 -7.92 97.45 89.53 114.00 -24.47 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 6 Service No.: 114017241-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/12/30 15:53:10 Applicant: Acrox Test Rating: DC 1.5V Product: 2.4GHz Mouse Temp.(°C °C°C °C)/Hum.(%): 18(°C °C°C °C)/61% Model No.: NS-PNM5003-SV Test Engineer: Hugo Chang Test Mode: CH2474 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2474.513 -7.90 106.10 98.20 114.00 -15.80 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 7 Service No.: 114017241-RF Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/12/30 15:54:50 Applicant: Acrox Test Rating: DC 1.5V Product: 2.4GHz Mouse Temp.(°C °C°C °C)/Hum.(%): 18(°C °C°C °C)/61% Model No.: NS-PNM5003-SV Test Engineer: Hugo Chang Test Mode: CH2474 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2474.487 -7.90 97.66 89.76 114.00 -24.24 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 8 Radiated Bandedge Low Channel (Hor) Radiated Emissions, Fundamental and Band Edges 9 Low Channel (Ver) Radiated Emissions, Fundamental and Band Edges 10 High Channel (Hor) Radiated Emissions, Fundamental and Band Edges 11 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 12 Spurious Emissions, TX Mode, 1-18G Service No.: 114017241-RF Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/12/30 18:20:55 Applicant: Acrox Test Rating: DC 1.5V Product: 2.4GHz Mouse Temp.( °C °C°C °C)/Hum.(%): 18(°C °C°C °C)/61% Model No.: NS-PNM5003-SV Test Engineer: Hugo Chang Test Mode: CH2408 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4814.102 -2.56 68.15 65.59 74.00 -8.41 peak 100 349 2 4814.102 -2.56 60.05 57.49 54.00 3.49 AVG 100 349 3 7211.538 5.46 57.61 63.07 74.00 -10.93 peak 100 171 4 7211.538 5.46 48.33 53.79 54.00 -0.21 AVG 100 171 5 8682.692 6.60 43.91 50.51 74…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10045003 001 Seite 2 von 23 Page 2 of 23 TEST SUMMARY 5.1.1 FIELD STRENGTH OF FUNDAMENTAL RESULT: Passed 5.1.2 99% BANDWIDTH RESULT: Passed 5.1.3 SPURIOUS EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10045003 001 Seite 3 von 23 Page 3 of 23 Contents 1. GENERAL REMARKS ............................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ................................................................................. 4 2. TEST SITES ............................................................................................................ 5 2.1 TEST FACILITIES ..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 6 2.4 CALIBRATION ......................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 RATINGS AND SYSTEM DETAILS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS .............................................. 9 3.5 SUBMITTED DOCUMENTS ......................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ................................................................... 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 10 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 11 4.5 TEST SETUP DIAGRAM .......................................................................................... 11 5. TEST RESULTS ..................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 13 5.1.1 Field strength of fundamental..................................................................................................... 13 5.1.2 99% Bandwidth .......................................................................................................................... 15 5.1.3 Spurious Emission ..................................................................................................................... 18 6. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 20 7. LIST OF TABLES ................................................................................................... 23 8. LIST OF PHOTOGRAPHS......................................................................................... 23 Produkte Products Prüfbericht - Nr.: Test Report No. 10045003 001 Seite 4 von 23 Page 4 of 23 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation (File Name: 10045003APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10045003APPENDIX D) Test Specifications The following standards were applied: Table 1: Applied Standard and Test Levels Radio FCC 47CFR Part 15: Subpart C Section 15.249 RSS-210 issue 8 (12-2010) Annex 2.9 ANSI C63.4:2009 Produkte Products Prüfbericht - Nr.: Test Report No. 10045003 001 Seite 5 von 23 Page 5 of 23 2. Test Sites 2.1 Test Facilities TUV Rheinland Taiwan Ltd. 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) FCC Registration No.: 365730 TAF Accredited NCC Test Lab. No.:0759 TAF ISO17025 Certification effective periods: 2013-Jul-1st to 2016-Jun-30th Produkte Products Prüfbericht - Nr.: Test Report No. 10045003 001 Seite 6 von 23 Page 6 of 23 2.2 List of Test and Measurement Instruments Table 2: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until EMI Test Receiver R&S ESCI 7 101062 1-Sep-14 Bilog Antenna TESEQ CBL6111D 29802 29-Jun-14 Spectrum Analyzer R&S FSV 40 100921 10-Dec-14 Horn Antenna ETS-Lindgren 3117 138160 10-Jan-14 Horn Antenna (18GHz~40GHz) COM- POWER AH840 101031 29-Oct-15 Preamplifier (30MHz -1GHz) HP 8447F 2805A03335 2-Sep-14 Preamplifier (18 GHz -40 GHz) COM- POWER PAM-840 461257 2-Sep-14 Pre-Amplifier (1GHz~18GHz) EM Electronics EM30180 60558 23-Oct-14 Loop Antenna Schwarzbeck FMZB 1513 1513-076 28-Sep-14 EMI Test Receiver R&S ESCI 101094 29-Aug-14 LISN (1 phase) R&S ENV216 101243 5-Jun-14 LISN Rolf Heine NNB-2/16Z 99080 30-Aug-14 2.3 Traceability All measurement equipment calibrations are traceable to NML(Taiwan)/NIST(USA) or where calibration is performed outside Taiwan, to equivalent nationally recognized standards organizations. Produkte Products Prüfbericht - Nr.: Test Report No. 10045003 001 Seite 7 von 23 Page 7 of 23 2.4 Calibration Equipment requiring calibration is calibrated periodically in a suitably accredited Calibration Lab. Additionally all equipment is verified for proper performance on a regular basis using in house standards or comparisons. 2.5 Measurement Uncertainty The estimated combined standard uncertainty for radiate…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10045003 001 Seite 20 von 23 Page 20 of 23 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10045003 001 Seite 21 von 23 Page 21 of 23 Photograph 2: Set-up for Exercising Mouse in Normal Operation Mode Produkte Products Prüfbericht - Nr.: Test Report No. 10045003 001 Seite 22 von 23 Page 22 of 23 Photograph 3: Set-up for Spurious Emissions (Back View 1 TX) Photograph 4: Set-up for Spurious Emissions (Back View 2 TX)
