PRDMU37Wireless Mouse

PT-PNM6506-BK-C WIRELESS LASER MOUSE QUICK SETUP GUIDE Before using your new product, please read these instructions to prevent any damage. PACKAGE CONTENTS • Wireless laser mouse • AA batteries (2) • Nano receiver • Quick Setup Guide SYSTEM REQUIREMENTS • Windows® 10, Windows® 8.1, Windows® 8, Windows® 7, Windows Vista®, or Mac OS 10.X or higher • One available USB port FEATURES • Track-on-Glass Laser Sensor for enhanced tracking DPI SWITCH The Power/DPI LED indicator behind the tilt wheel lights up when you plug the mouse into the USB port. The brightness of the LED indicates the DPI setting in use. There are three different settings: • Bright: 2400 DPI • Dim: 1600 DPI • No light: 800 DPI The default setting is 800 DPI. You can switch between DPI settings by pressing the swtich and cycling through the DPI settings. In order to save power, the LED only stays on for 10 seconds. Forward • Press this button to view the next page in your Internet browser. Backward • Press this button to view the previous page in your Internet browser. Zoom Key (Zoom in /out) • Press the Zoom key and turn the scroll wheel at the same time to zoom in and out. Win Key • Press this button to access the Start screen. Final flat size: 371.48 × 148.08 mm Final fold size: 123.82 × 148.08 mm Nano receiver Connect buttonON/OFF switch Battery cover Left button Right button Scroll wheel DPI switch key DPI LED Battery status LED indicator Backward Forward Zoom key Start menu SETTING UP YOUR MOUSE 1 Remove the battery cover. 2 Replace the battery cover. 3 Remove the nano receiver. 4 Insert two AA batteries (included) into the battery compartment. Make sure that the + and – signs match the symbols in the compartment. 5 Turn on the power switch. DPI switch key DPI LED ForwardZoom key Backward Pull up AA batteries PT-PNM6506-BK-C_15-0678_QSG_V1_EN.ai 1 8/14/2015 6:55:13 PMPT-PNM6506-BK-C_15-0678_QSG_V1_EN.ai 1 8/14/2015 6:55:13 PM 6 Plug the nano receiver into the USB port on your computer. 7 Test your mouse to make sure that it works with your computer. 8 If the mouse does not work, put it into pairing mode by unplugging and replugging the nano receiver into the USB port on your computer, then pressing the Connect button on the mouse. Warning: If you need to travel with your wireless mouse, make sure that you slide the power switch to off. LED INDICATORS DPI switch key DPI LED V1 ENGLISH 15-0678 FUNCTION Power ON Pairing Low battery When DPI switched DESCRIPTION LED is on for 10 seconds LED blinks. (LED OFF when paired or failed after 10 seconds) LED blinks for 10 seconds DPI indicated STATUS 3 LED 2 LED 1 LED DESCRIPTION (status will show for five seconds at power on, or blink status for five seconds after waking from sleep mode) 80~100% of maximum battery 50~70% of maximum battery 20~40% of maximum battery Battery status LED indicator CLEANING YOUR MOUSE • Wipe the mouse with a damp, lint-free cloth. SPECIFICATIONS Mouse: • Dimensions (L×W×H): 4.96 ×3.24 × 1.76 in. (12.59 × 8.23 × 4.48 cm) • Weight: 3.17 oz. (.09 kg) • Batteries: 2 AA alkaline batteries • Battery life: 12 months (based on average usage) • Radio frequency: 2.4 Ghz • Operating distance: 32.8 feet (10 meters) • Rating: 3V D.C. - 10 mA IMPORTANT SAFETY INFORMATION • This product has no serviceable parts. Use of controls or adjustments of procedures other than this guide may result in danger. • DO NOT direct the laser beam at anyone’s eye. CAUTION: To use this product properly, please read this guide before installing. DPI switch key DPI LED Battery status LED indicator TROUBLESHOOTING My mouse is not working. • Move your mouse and computer closer together. • Make sure that your computer meets the system requirements. • Only use the mouse on a clean, flat, non-slippery surface to ensure smooth and accurate cursor action. Avoid using your mouse on reflective, transparent, or metallic surfaces. • If your mouse stops working: • Make sure that your mouse and nano receiver are paired by pressing the connect button on the mouse. • Try connecting your nano receiver into a different USB port on your computer. • Replace the mouse batteries. LEGAL NOTICES • This product complies with IEC 60825-1, class 1 laser product. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far …

Text truncated - open the document above for the full version.

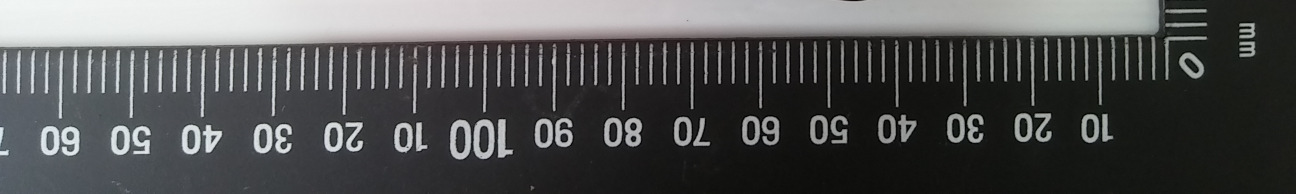

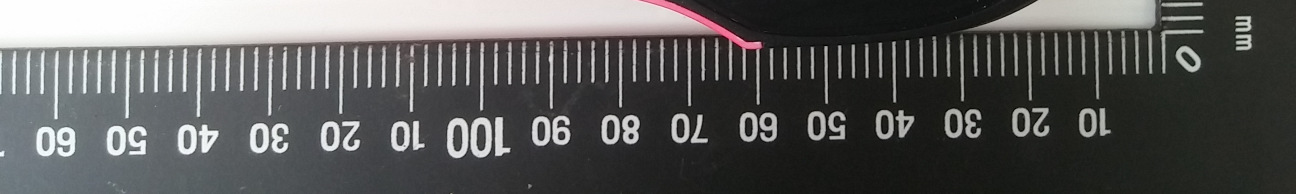

Appendix P Photo Documentation Page 1 of 3 10052655 001 Product: 2.4GHz mouse Type Identification: PT-PNM6506-BK,PT-PNM6506-RD,PT-PNM6506-BK-C,PT-PNM6506- RD-C Appendix P Photo Documentation Page 2 of 3 10052655 001 Product: 2.4GHz mouse Type Identification: PT-PNM6506-BK,PT-PNM6506-RD,PT-PNM6506-BK-C,PT-PNM6506- RD-C Appendix P Photo Documentation Page 3 of 3 10052655 001 Product: 2.4GHz mouse Type Identification: PT-PNM6506-BK,PT-PNM6506-RD,PT-PNM6506-BK-C,PT-PNM6506- RD-C

Appendix P Photo Documentation Page 1 of 3 10052655 001 Product: 2.4GHz mouse Type Identification: PT-PNM6506-BK,PT-PNM6506-RD,PT-PNM6506-BK-C,PT-PNM6506- RD-C Appendix P Photo Documentation Page 2 of 3 10052655 001 Product: 2.4GHz mouse Type Identification: PT-PNM6506-BK,PT-PNM6506-RD,PT-PNM6506-BK-C,PT-PNM6506- RD-C Appendix P Photo Documentation Page 3 of 3 10052655 001 Product: 2.4GHz mouse Type Identification: PT-PNM6506-BK,PT-PNM6506-RD,PT-PNM6506-BK-C,PT-PNM6506- RD-C

Produkte Products Exposure information for Test report No.: FCC ID PRDMU37 Seite 1 von 1 Page 1 of 1 1. Safety Human exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is < 1mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01 v05: Mobile Portable RF Exposure.

Test Report No.10052655 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10052655AppendixD) Contents Radiated Emissions, Fundamental and Band Edges ................................................................................... 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 12 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 18 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 24 Radiated Emissions, Fundamental and Band Edges 2 Radiated Emissions, Fundamental and Band Edges Service No.: 114039211-FCC Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/8/22 10:57:58 Applicant: Acrox Test Rating: DC 3V Product: 2.4GHz mouse Temp.( °C °C°C °C)/Hum.(%): 21.3(°C °C°C °C)/60% Model No.: PT-PNM6506-BK Test Engineer: George Yang Test Mode: 2408-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2408.465 -7.66 107.82 100.16 114.00 -13.84 peak 100 203 2 2408.465 -7.66 105.54 97.88 94.00 3.88 AVG 100 203 Remark:Duty Factor=40.73,thus ,the average result would be 59.43dBuV/m. Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 3 Service No.: 114039211-FCC Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/8/22 11:06:48 Applicant: Acrox Test Rating: DC 3V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 21.3(°C °C°C °C)/60% Model No.: PT-PNM6506-BK Test Engineer: George Yang Test Mode: 2408-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2408.498 -7.66 100.68 93.02 114.00 -20.98 peak 100 141 2 2408.498 -7.66 98.10 90.44 94.00 -3.56 AVG 100 141 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 4 Service No.: 114039211-FCC Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/8/22 11:15:58 Applicant: Acrox Test Rating: DC 3V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 21.3(°C °C°C °C)/60% Model No.: PT-PNM6506-BK Test Engineer: George Yang Test Mode: 2440-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2440.474 -7.62 107.54 99.92 114.00 -14.08 peak 100 88 2 2440.474 -7.62 105.25 97.63 94.00 3.63 AVG 100 88 Remark:Duty Factor=40.73,thus ,the average result would be 59.19dBuV/m. Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 5 Service No.: 114039211-FCC Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/8/22 11:12:23 Applicant: Acrox Test Rating: DC 3V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 21.3(°C °C°C °C)/60% Model No.: PT-PNM6506-BK Test Engineer: George Yang Test Mode: 2440-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2440.483 -7.62 101.76 94.14 114.00 -19.86 peak 100 232 2 2440.483 -7.62 99.37 91.75 94.00 -2.25 AVG 100 232 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 6 Service No.: 114039211-FCC Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/8/22 11:25:26 Applicant: Acrox Test Rating: DC 3V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 21.3(°C °C°C °C)/60% Model No.: PT-PNM6506-BK Test Engineer: George Yang Test Mode: 2474-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2474.459 -7.60 108.14 100.54 114.00 -13.46 peak 2 2474.459 -7.60 105.77 98.17 94.00 4.17 AVG Remark:Duty Factor=40.73,thus ,the average result would be 59.81dBuV/m. Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 7 Service No.: 114039211-FCC Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/8/22 11:27:24 Applicant: Acrox Test Rating: DC 3V Product: 2.4GHz mouse Temp.(°C °C°C °C)/Hum.(%): 21.3(°C °C°C °C)/60% Model No.: PT-PNM6506-BK Test Engineer: George Yang Test Mode: 2474-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2474.438 -7.60 101.08 93.48 114.00 -20.52 peak 2 2474.438 -7.60 98.74 91.14 94.00 -2.86 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Radiated Emissions, Fundamental and Band Edges 8 Radiated Bandedge (GFSK) Low Channel (Hor) Radiated Emissions, Fundamental and Band Edges 9 Low Channel (Ver) Radiated Emissions, Fundamental and Band Edges 10 Radiated Bandedge (GFSK) High Channel (Hor) Remark: Duty Factor =40.73 ,the average value of Bandedge is 70.6-40.73=29.87dBuV/m,thus,Average result is comply with limit. Radiated Emissions, Fundamental and Band Edges 11 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 12 Spurious Emissions, TX Mode, 1-18G Service N…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10052655 001 Seite 2 von 26 Page 2 of 26 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 FIELD STRENGTH OF FUNDAMENTAL RESULT: Passed 5.1.3 99% BANDWIDTH AND 20DB BANDWIDTH RESULT: Passed 5.1.4 SPURIOUS EMISSION RESULT: Passed 5.2.1 SPURIOUS EMISSION RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10052655 001 Seite 3 von 26 Page 3 of 26 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST LABORATORY ................................................................................................ 6 2.2 TEST FACILITY ........................................................................................................ 6 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 7 2.4 TRACEABILITY ........................................................................................................ 8 2.5 CALIBRATION ......................................................................................................... 8 2.6 MEASUREMENT UNCERTAINTY ................................................................................. 8 3. GENERAL PRODUCT INFORMATION ........................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 9 3.2 RATINGS AND SYSTEM DETAILS ............................................................................... 9 3.3 INDEPENDENT OPERATION MODES ......................................................................... 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 10 3.5 SUBMITTED DOCUMENTS ....................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................... 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 11 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 12 4.5 TEST SETUP DIAGRAM .......................................................................................... 12 5. TEST RESULTS ..................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 14 5.1.1 Antenna Requirement ................................................................................................................ 14 5.1.2 Field strength of fundamental..................................................................................................... 15 5.1.3 99% Bandwidth and 20dB Bandwidth ........................................................................................ 18 5.1.4 Spurious Emission ..................................................................................................................... 22 5.2 RECEIVER REQUIREMENT ...................................................................................... 23 5.2.1 Spurious Emission ..................................................................................................................... 23 6. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 24 7. LIST OF TABLES ................................................................................................... 26 Produkte Products Prüfbericht - Nr.: Test Report No. 10052655 001 Seite 4 von 26 Page 4 of 26 8. LIST OF PHOTOGRAPHS......................................................................................... 26 Produkte Products Prüfbericht - Nr.: Test Report No. 10052655 001 Seite 5 von 26 Page 5 of 26 1. General Remarks 1.1 Complementary Materials These attachments are integral parts of this test report. : Appendix P: Photo Documentation (File Name: 10052655APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10052655APPENDIX D) Test Specifications The following standards were applied Table 1: Applied Standard and Test Levels Radio FCC 47CFR Part 15: Subpart C Section 15.249 RSS-210 Issue 8, December 2010 RSS-Gen, Issue 4, November 2014 ANSI C63.10:2013 Produkte Products Prüfbericht - Nr.: Test Report No. 10052655 001 Seite 6 von 26 Page 6 of 26 2. Test Sites 2.1 Test Laboratory TUV Rheinland Taiwan Ltd. Taichung Branch Office No.9, Lane 36, Minsheng Rd., Sec. 3, Daya District, Taichung City 428 Taiwan (R.O.C.) 2.2 Test Facility TUV Rheinland Taiwan Ltd. Taipei Office 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) FCC RegistrationNo.: 365730 IC Canada Registration No.: 9465A-1 TAF Accredited NCC Test Lab. No.:0759 TAF ISO17025 Certification effective periods: 2013-Jul-1st to 2016-Jun-30th Produkte Products Prüfbericht - Nr.: Test Report No. 10052655 001 Seite 7 von 26 Page 7 of 26 2.3 List of Test and Measurement Instruments Table 2: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Last Calibration Next Calibration EMI Test Receiver R&S ESR7 101062 31-Aug-14 30-Aug-15 Bilog Antenna TESEQ CBL6111D 29802 4-Jul-14 3-Jul-16 Spectrum Analyzer R&S FSV 40 100921 17-Dec-14 16-Dec-15 Spectrum Analyzer Agilent N9010A MY53470241 1-Apr-15 30-Mar-16 Horn Antenna ETS-Lindgren 3117 138160 12-Jan-15 11-Jan-17 Horn Antenna (18GHz~40GHz) COM-POWER AH840 101031 30-Oct…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10052655 001 Seite 24 von 26 Page 24 of 26 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10052655 001 Seite 25 von 26 Page 25 of 26 Photograph 2: Set-up for Spurious Emissions (Back View 1 TX) Photograph 3: Set-up for Spurious Emissions (Back View 2 TX)
