PRDMU86Acer Wireless Optical Mouse

2.4GHz Wireless Silent Optical Mouse w/Nano Receiver USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user's guide before installing. 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Functional Introduction Installing the batteries Step 1: Take the battery cover off. Step 2: Insert the battey as shown inside the battery compartment. Step 3: Replace the cover. Step 4: Turn on power switch AA Battery Pull Left button Right button Battery Cover Scrolling Wheel ON/OFF Switch Nano Receiver LED Indicator 2 **Warning: *Please insert the battery with the correct position according to the instruction labeled on the mouse. Step 5: If you need to travel with your wireless mouse, made sure you turn off the POWER SWITCH. Setup the Connection between the Receiver and the Mouse 1. Insert the battery into the mouse, then follow the step below. 2. In the meantime, to open the battery cover, take the Nano receiver out. 3. Plug the Nano receiver into the USB port on your computer. 4. When low battery, the battery indicator on the mouse will start to blink. *Mouse Indicator LED Blinks for 10 sec. Low Battery Warning LED is on for 10 sec. Power ON LED Indicator

Acrox Technologies Co., Ltd. I, the signer, Gavin Hsieh The difference between the following two products just lies in the model , the other is the same. Item Name ：Acer Wireless Optical Mouse FCC ID: PRDMU86 Model Number: AMR020 Additional Model: G6W Signature: Name:Gavin Hsieh Title: Product Manager Company: Acrox Technologies Co., Ltd.

DATE : 2020.7.29 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: PRDMU86 Product Name: Acer Wireless Optical Mouse Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name:Gavin Hsieh Title: Product Manager Company: Acrox Technologies Co., Ltd.

DATE : 2020.7.29 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address: Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Acrox Technologies Co., Ltd. Address: 4F., No.89, Minshan St., Neihu Dist., Taipei City,114, Taiwan(Applicant Name and address) <Signature> Name:Gavin Hsieh Title: Product Manager Company: Acrox Technologies Co., Ltd.

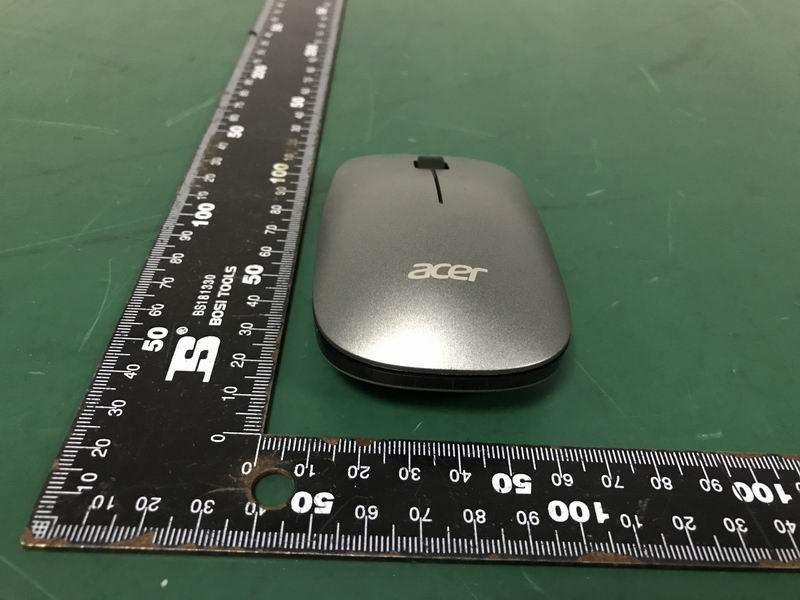

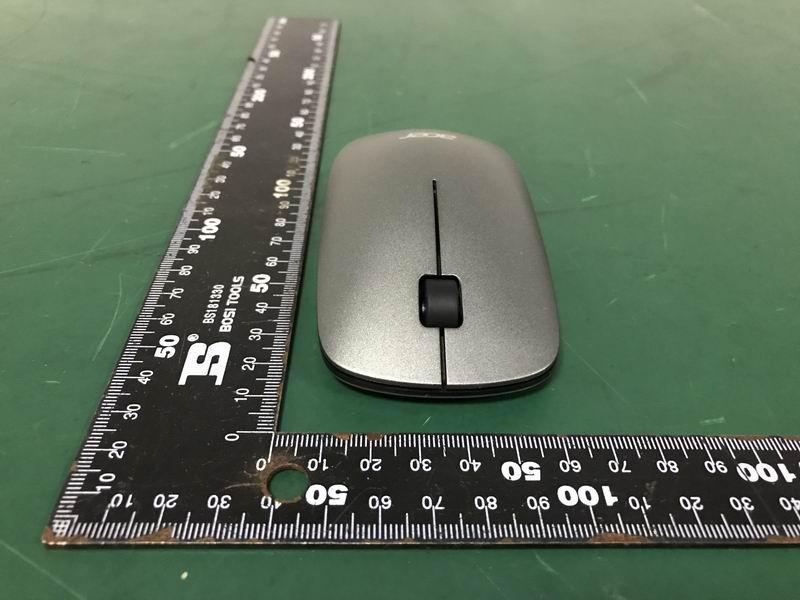

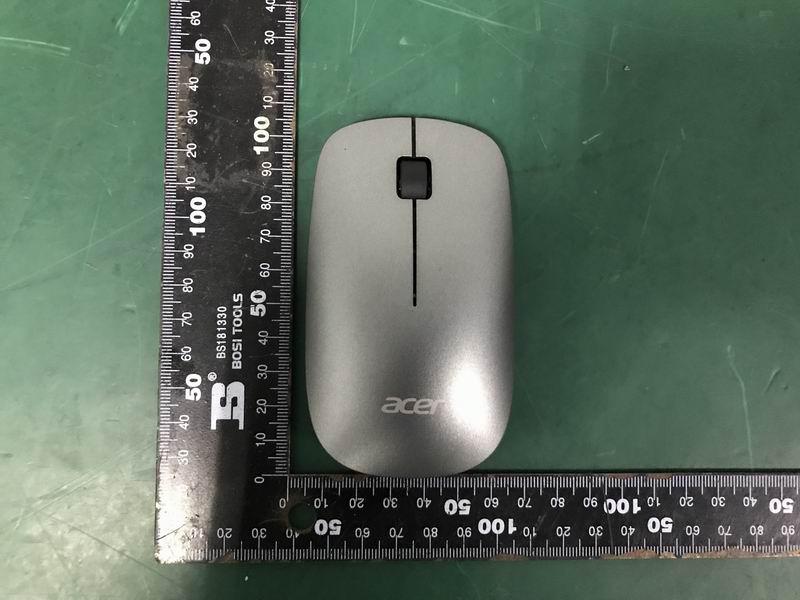

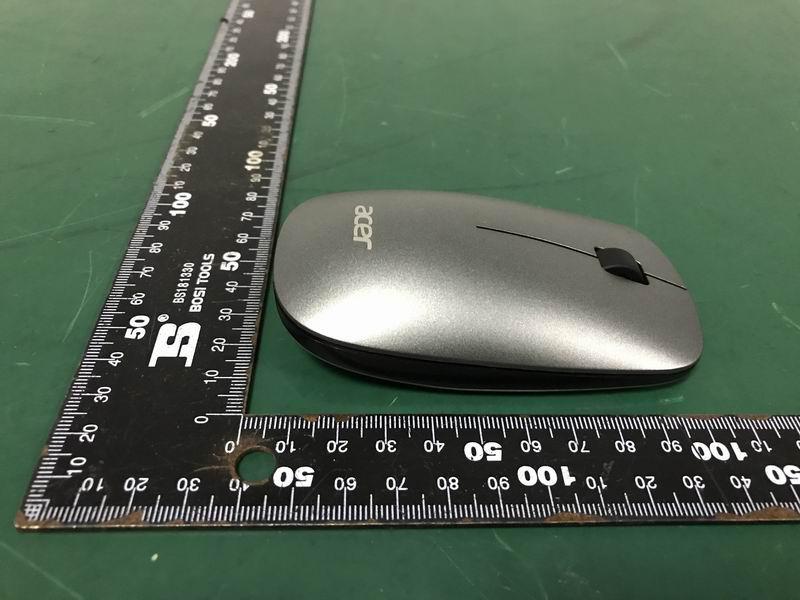

ExternalPhotos M/N:AMR020 ExternalPhotos M/N:AMR020 ExternalPhotos M/N:AMR020 ExternalPhotos M/N:AMR020 ExternalPhotos M/N:AMR020 ExternalPhotos M/N:AMR020

G6W (AMR020) Bundle FCC Label 35mm x 18mm Acer Wireless Optical Mouse (/) M/N(/): AMR020 FCC ID: PRDMU86 Rating(/): 1.5V DC 100mA S/N: NC20711013030000010Z01 Made in China// EU Importer: Acer Italy s.r.l Viale delle Industrie 1/A, 20020 Arese (MI), Italy SN: NC20711013030000010Z01, NC20711013030000020Z01... NC20711013PN,PN,PN 20200 , 00001(), 16 (: 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F, 10, 11, 12, ...,) 0Z01

InternalPhotos M/N:AMR020 InternalPhotos M/N:AMR020

FCC ID: PRDMU86 EST Technology Co., Ltd Report No. ESTE-R2007153 Page 1 of 3 FCC RF EXPOSURE REPORT Acrox Technologies Co., Ltd. Acer Wireless Optical Mouse Model Number: AMR020 Additional Model: G6W FCC ID: PRDMU86 Prepared for: Acrox Technologies Co., Ltd. 4F, No. 89, Minshan St., NeiHu Dist.Taipei114Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2007153 Date of Test: Jul. 15~21, 2020 Date of Report: Jul. 28, 2020 FCC ID: PRDMU86 EST Technology Co., Ltd Report No. ESTE-R2007153 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KD B447498 D01 General RF Exposure Guidance v06 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: PRDMU86 EST Technology Co., Ltd Report No. ESTE-R2007153 Page 3 of 3 3. Evaluation Results For 2.4G SRD Ant gain=1.5 dBi Ant numeric gain= 1.413 Field strength =82.46 dBuV/m@3m P={ [10 (82.46 /20) /10 6 *3] 2 / (30*1.413) }*1000mW =0.0374mW So ( 0.0374 mW/5mm)x √2.405 GHz =0.0116 < 3 Note: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

FCC ID: PRDMU86 EST Technology Co., Ltd Report No.ESTE-R2007152 Page 1 of 45 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Acrox Technologies Co., Ltd. Acer Wireless Optical Mouse Model Number: AMR020 Additional Model: G6W FCC ID: PRDMU86 Prepared for: Acrox Technologies Co., Ltd. 4F, No. 89, Minshan St., NeiHu Dist.Taipei114Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2007152 Date of Test: Jul. 15~21, 2020 Date of Report: Jul. 28, 2020 FCC ID: PRDMU86 EST Technology Co., Ltd Report No.ESTE-R2007152 Page 2 of 45 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION ........................................................................................................................ 3 1. GENERAL INFORMATION ................................................................................................................. 4 1.1. Description of Device (EUT) ........................................................................................................... 4 1.2. Antenna Information ........................................................................................................................ 4 2. SUMMARY OF TEST ......................................................................................................................... 5 2.1. Summary of test result ...................................................................................................................... 5 2.2. Test Facilities .................................................................................................................................... 6 2.3. Measurement uncertainty ................................................................................................................. 7 2.4. Assistant equipment used for test ..................................................................................................... 7 2.5. Block Diagram .................................................................................................................................. 7 2.6. Test Mode ......................................................................................................................................... 8 2.7. Power Setting of Test Software ........................................................................................................ 8 2.8. Channel List ...................................................................................................................................... 8 2.9. Test Equipment List ......................................................................................................................... 9 3. FIELD STRENGTH OF FUNDAMENTAL ............................................................................................ 10 3.1. Limit ............................................................................................................................................... 10 3.2. Test Setup ....................................................................................................................................... 10 3.3. Spectrum Analyzer Setting ............................................................................................................. 10 3.4. Test Procedure ................................................................................................................................ 11 3.5. Test Result ...................................................................................................................................... 12 4. RADIATED SPURIOUS EMISSIONS AND BAND EDGE ...................................................................... 19 4.1. Limit ............................................................................................................................................... 19 4.2. Test Setup ....................................................................................................................................... 21 4.3. Spectrum Analyzer Setting ............................................................................................................. 22 4.4. Test Procedure ................................................................................................................................ 23 4.5. Test Result ...................................................................................................................................... 24 5. 20DB BANDWIDTH ....................................................................................................................... 36 5.1. Limit ............................................................................................................................................... 36 5.2. Test Setup ....................................................................................................................................... 36 5.3. Spectrum Analyzer Setting ............................................................................................................. 36 5.4. Test Procedure ................................................................................................................................ 36 5.5. Test Condition ................................................................................................................................ 37 5.6. Test Result ...................................................................................................................................... 37 6. ANTENNA REQUIREMENTS ............................................................................................................ 39 6.1. Limit ............................................................................................................................................... 39 6.2. Test Result ...............................................................................................................…

Text truncated - open the document above for the full version.

RadiatedTest(Below1GHz) RadiatedTest(Above1GHz)
