PRDMU91WIRELESS GAMING MOUSE

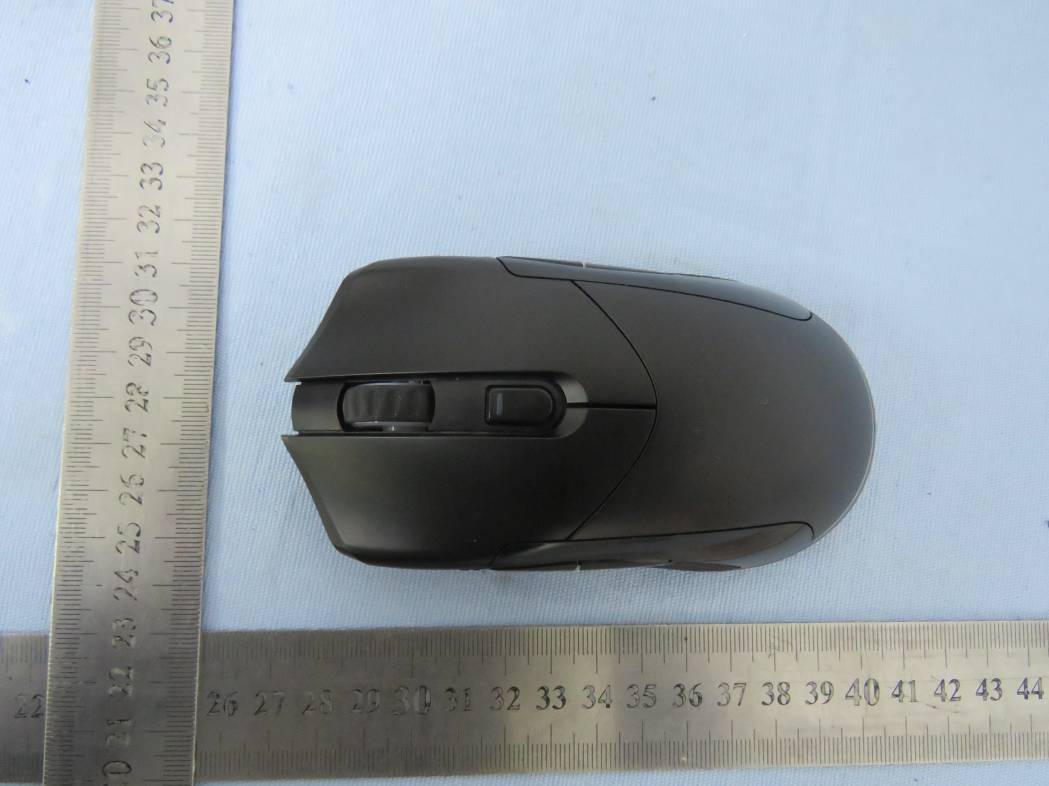

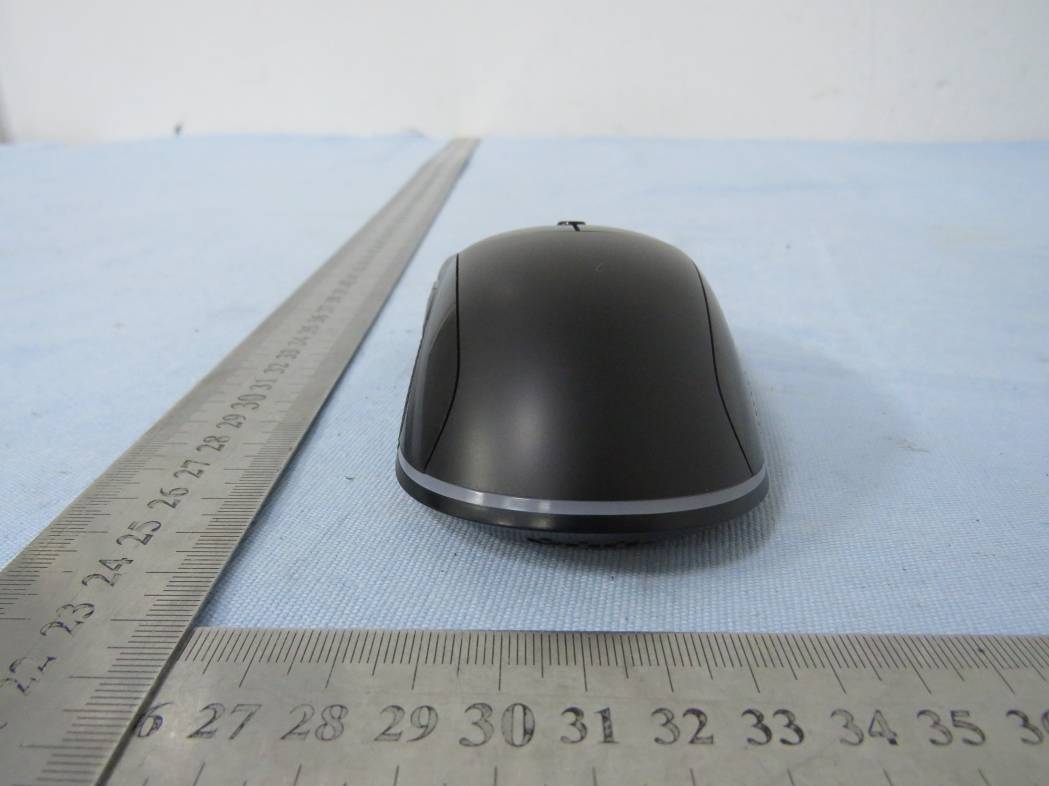

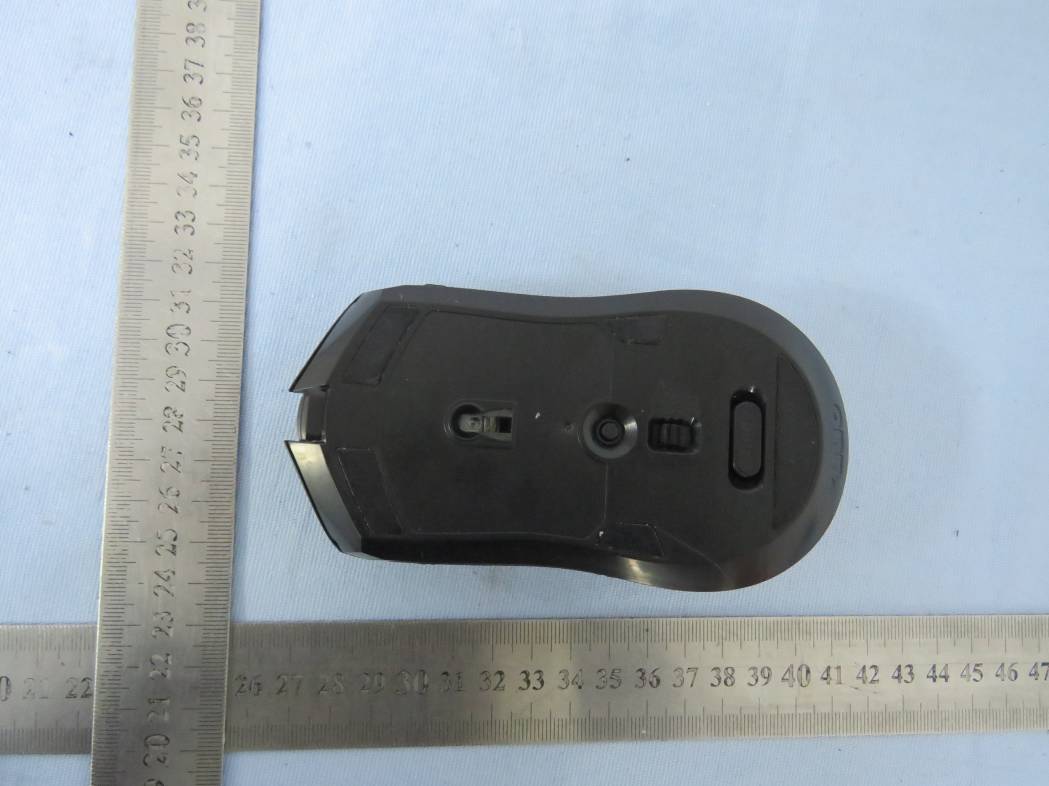

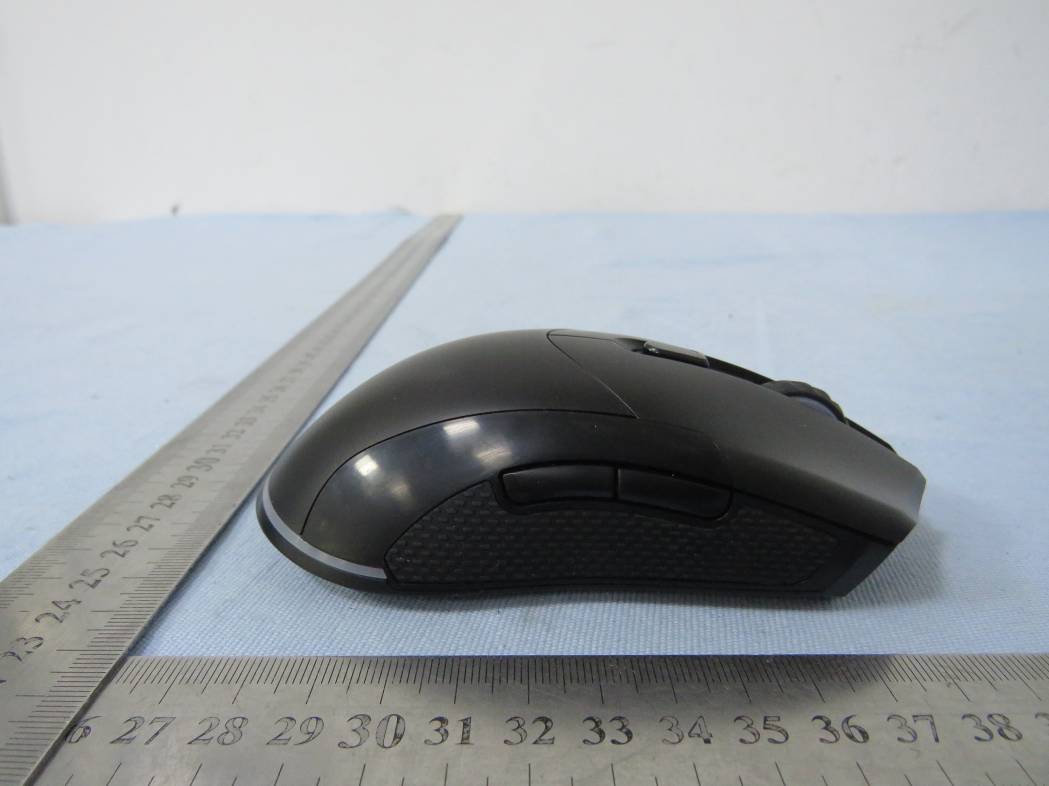

Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 3 of 10 External photos Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 4 of 10 Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 5 of 10 Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 6 of 10

Label Location

Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 7 of 10 Internal photos Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 8 of 10 RF Chip Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 9 of 10 RF Antenna Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 10 of 10

Acrox Technologies Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: AZH, 100025011 FCC ID: PRDMU91 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Integral antenna type(s) described below: Model No. of antenna: 2.4G antenna Type of antenna: PCB antenna Gain of the antenna: 1.98 dBi Frequency range: 2402-2480MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Acrox Technologies Co., Ltd. Address: 4F., No.89, Minshan St., Neihu Dist., City: Taipei City ZIP / Postal code: 114 Country: Taiwan Place: China Date: 2020-12-29 Signature Gavin Hsieh

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2012055F-1 FCC ID: PRDMU91 RF EXPOSURE EVALUATION EUT Specification EUT WIRELESS GAMING MOUSE Model Name AZH, 100025011 Frequency band (Operating) 2.402GHz ~ 2.480GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(2402-2480MHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 100.15dBuV/m (4.89dBm)(3.08mW) Antenna gain 1.98dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2012055F-1 FCC ID: PRDMU91 Measurement Result Channel Frequency (MHz) Max Output power (dBuV/m) Max Output power (dBm) Max Output power (mW) Calculation Value (Note 1) Threshold Value 2402 99.42 4.16 2.61 0.809 3.0 2440 100.15 4.89 3.08 0.962 3.0 2480 97.32 2.06 1.61 0.507 3.0 EIRP=E-104.8+20logD=100.15-104.8+20log3=4.89dBm Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 3.08 /5*√2.440=0.962 ≤ 3.0 According to KDB447498 D01 V05, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no SAR measurement is required. The SAR measurement is not necessary.

Report No.: NTC2012055FV00 Page 2 of 28 Table of Contents 1. Summary of Test Result ...................................................................................................................................... 4 2. General Description of EUT ................................................................................................................................ 5 3. Test Channels and Modes Detail ........................................................................................................................ 7 4. Configuration of EUT ........................................................................................................................................... 7 5. Modification of EUT ............................................................................................................................................. 7 6. Description of Support Device ............................................................................................................................. 8 7. Test Facility and Location ................................................................................................................................... 9 8. Applicable Standards and References ................................................................................................................ 9 9. Deviations and Abnormalities from Standard Conditions ................................................................................. 10 10. Test Conditions ............................................................................................................................................... 10 11. Measurement Uncertainty ............................................................................................................................... 11 12. Sample Calculations ....................................................................................................................................... 12 13. Test Items and Results ................................................................................................................................... 13 13.1 Conducted Emissions Measurement ............................................................................................................ 13 13.2 Radiated Spurious Emissions and Restricted Bands Measurement ............................................................ 17 13.3 20dB Bandwidth Measurement ..................................................................................................................... 25 13.4 Antenna Requirement ................................................................................................................................... 27 14. Test Equipment List......................................................................................................................................... 28 Report No.: NTC2012055FV00 Page 3 of 28 Revision History Report Number Description Issued Date NTC2012055FV00 Initial Issue 2020-12-14 Report No.: NTC2012055FV00 Page 4 of 28 1. Summary of Test Result FCC Rules Description of Test Result Remarks §15.207 (a) AC Power Conducted Emission PASS --- §15.249(a)/ 15.209 Radiated Emissions PASS --- §15.249(d)/ 15.205 Band Edge PASS --- §15.215(c) 20dB Bandwidth PASS --- §15.203 Antenna Requirement PASS --- Report No.: NTC2012055FV00 Page 5 of 28 2. General Description of EUT Product Information Product name: WIRELESS GAMING MOUSE Main Model Name: AZH Additional Model Name: 100025011 Model Difference: Both of models have the same circuit schematic, PCB layout and construction. Their difference in model name and input line length are only for trading purpose. S/N: 2001A0001 Brand Name: , ACROX Hardware version: V1.0 Software version: V1.0 Rating: 5V come from USB port 3.7V come from internal battery Typical arrangement: Table-top I/O Port: N/A Accessories Information Adapter: N/A Cable: 1.80m shielded. Other: N/A Additional information Note: According to the model difference, all tests were performed on model AZH. Remark: 1. All the information above are provided by the manufacturer. More detailed feature of the EUT please refers to the user manual. 2. The product comes with two USB cables, a 4-core cable with data transmission and a 2-core cable without data transmission, both of which are considered for testing. Report No.: NTC2012055FV00 Page 6 of 28 Technical Specification (2.4G Function ) Frequency Range: 2402-2480MHz Modulation Type: GFSK Number of Channel: 40 (refer to following channel list for details) Channel Space: 2MHz Antenna Type: PCB antenna Antenna Gain: 1.98 dBi (Declared by manufacturer) Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2402 15 2430 29 2458 2 2404 16 2432 30 2460 3 2406 17 2434 31 2462 4 2408 18 2436 32 2464 5 2410 19 2438 33 2466 6 2412 20 2440 34 2468 7 2414 21 2442 35 2470 8 2416 22 2444 36 2472 9 2418 23 2446 37 2474 10 2420 24 2448 38 2476 11 2422 25 2450 39 2478 12 2424 26 2452 40 2480 13 2426 27 2454 - - 14 2428 28 2456 - - Report No.: NTC2012055FV00 Page 7 of 28 3. Test Channels and Modes Detail Mode Channel Frequency (MHz) Modulation Data Rate (Mbps) 1 TX Low 1 2402 GFSK 1 2 TX Mid 20 2440 GFSK 1 3 TX High 40 2480 GFSK 1 4. Normal Mode --- --- --- --- --- Note: TX mode means that the EUT was programmed to be in continuously transmitting mode. 4. Configuration of EUT TX Mode Normal Mode 5. Modification of EUT No modifications are made to the EUT during all test items. EUT Test Fixture Notebook EUT Notebook Report No.: NTC2012055FV00 Page 8 of 28 6. Description of Support Device The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. No. Equipment Brand M/N S/N Cable Specification Remarks 1. Notebook Lenovo 02213DC 0A33012 Power cord, 1.8m, unshielded --- 2. Power …

Text truncated - open the document above for the full version.

Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 1 of 10 Test Photo Radiated emission (Below 30MHz) Radiated emission (30-1000MHz) Report No.: NTC2012055FV00 FCC ID: PRDMU91 Page 2 of 10 Radiated emission (Above 1000MHz) AC Power Conducted Emission
