PRDMUWIRTRE03Wireless dongle

User Guide 2 Introduction The USB receiver conveniently attaches to the mouse for ease of use while traveling or on the go. This is a plug and play device so no additional software is required. System Requirements Hardware t
64#
QPSU Operating System t
.JDSPTPGU
8JOEPXT ® 2000 t
.JDSPTPGU
8JOEPXT ® XP t
.JDSPTPGU
8JOEPXT
7JTUB ® t
.JDSPTPGU
8JOEPXT ® 7 t
.BD
04 ® X 10.4 or later Contents t
.JOJ
64#
3FDFJWFS t
6TFS
(VJEF 4 (A) Remove the USB receiver from the bottom of the mouse. 5 (C) This mouse is a plug and play device. It will automatically operate when the USB receiver is connected to the computer. (B) Plug the USB receiver into an available USB port on your computer. 7 Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Technical Support For technical questions, please visit: Product Registration Targus recommends that you register your Targus accessory shortly after purchasing it. Go to: http://www.targus.com/registration.asp You will need to provide your full name, email address, country of residence and product information. Warranty Targus warrants this product to be free from defects in materials and workmanship for one year. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to devices; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights. US Internet: www.targus.com/support.asp Australia Internet: www.targus.com/au Email: [email protected] Telephone: 1800-641-645 New ZealandTelephone: 0800-633-222 Targus Wireless Optical Mouse 8 FCC Statement Tested to Comply Declaration of Conformity Hereby, Targus, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All trademarks and registered trademarks are the property of their respective owners. All rights reserved. Features and specifications are subject to change without notice. © 2009. Targus Group International, Inc. and Targus, Inc., Anaheim, CA 92806 USA 410-1688-001A / AMW50US N2953 1 YEAR LIMITED WARRANTY: We pride ourselves on the quality of our products. For complete war- ranty details and a list of our worldwide offices, please visit www.targus.com. Features and specifications are subject to change without notice. Microsoft, Win- dows and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. Logitech is a registered trademark of Logitech Inter- national in the United States and other countries. All trademarks and registered trademarks are the property of their respective owners. ©2009 Targus Group Inter- national, Inc.

Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Date:May 19, 2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. James Lee Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Model Name: AMW50R / MRZ Brand Name: TARGUS / Acrox FCC ID: PRDMUWIRTRE03 Product Name: Wireless dongle

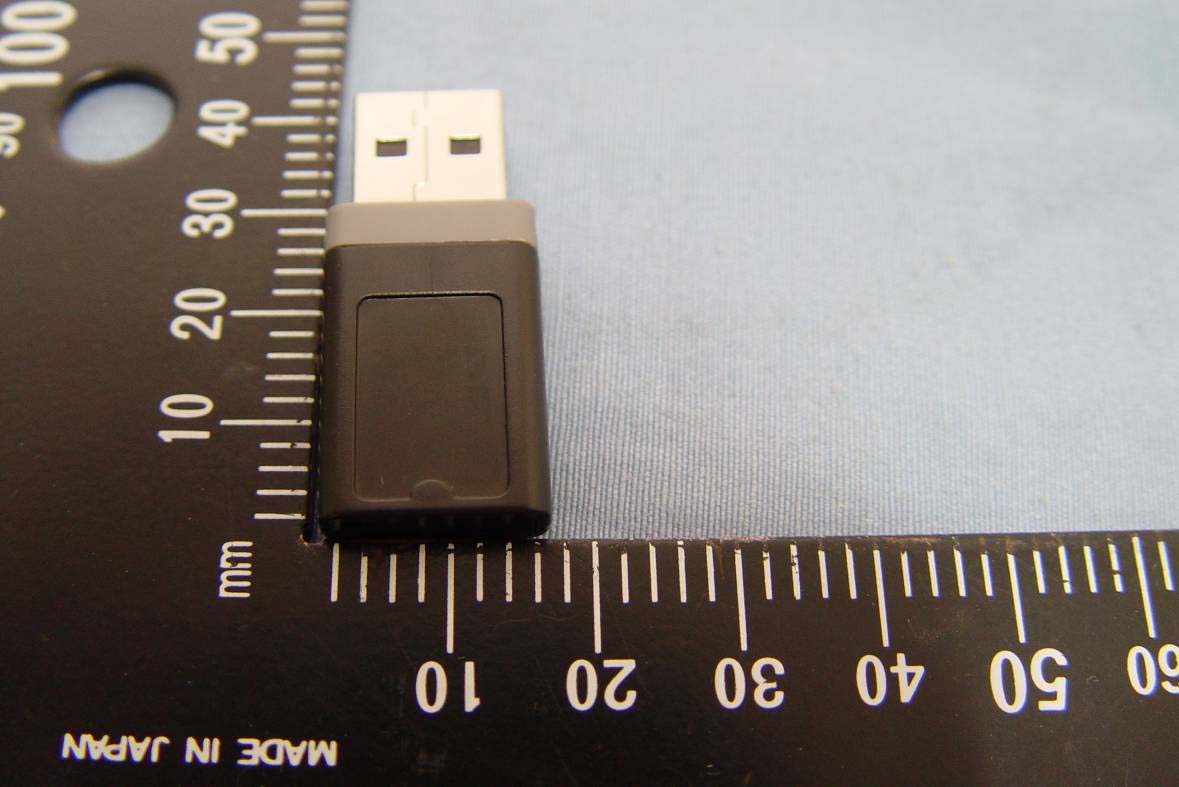

Compliance Certification Services Inc. Report No.: T100331202 Date of Issue: May 24, 2010 A1 - 1 Total Page: 5 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100331202 Date of Issue: May 24, 2010 A1 - 2 Total Page: 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100331202 Date of Issue: May 24, 2010 A1 - 3 Total Page: 5 Rev. 00

FCC ID: PRDMUWIRTRE03 MODEL: AMW50R Made in China www.targus.com S/N:YYMMXXXXXX Reg: AMW50R ITEM: 52 S/N:YYMMXXXXXX FCC ID: PRDMUWIRTRE03 MODEL: AMW50R Made in China www.targus.com Reg: AMW50R ITEM: 52

Compliance Certification Services Inc. Report No.: T100331202 Date of Issue: May 24, 2010 A1 - 4 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100331202 Date of Issue: May 24, 2010 A1 - 5 Rev. 00

Compliance Certification Services Inc. Report No.: T100331202-RP FCC ID: PRDMUWIRTRE03 Date of Issue: May 20, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 32 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless dongle Model Number / Trade Name: AMW50R / TARGUS, MRZ / ACROX Issued to Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100331202-RP FCC ID: PRDMUWIRTRE03 Date of Issue: May 20, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION.................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 7 4.3 MEASUREMENT UNCERTAINTY ........................................................................................ 8 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 9 5.1 FACILITIES .................................................................................................................................. 9 5.2 EQUIPMENT................................................................................................................................. 9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................. 10 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 11 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 11 6.2 SUPPORT EQUIPMENT ........................................................................................................ 11 7. FCC PART 15.249 REQUIREMENTS......................................................................................... 12 7.1 20 DB BANDWIDTH.............................................................................................................. 12 7.2 BAND EDGES MEASUREMENT ......................................................................................... 15 7.3 SPURIOUS EMISSION .......................................................................................................... 20 7.4 POWERLINE CONDUCTED EMISSIONS ........................................................................... 28 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 31 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100331202-RP FCC ID: PRDMUWIRTRE03 Date of Issue: May 20, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Equipment Under Test: Wireless dongle Model Number / Trade Name: AMW50R / TARGUS, MRZ / ACROX Date of Test: April 29 ~ May 20, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100331202-RP FCC ID: PRDMUWIRTRE03 Date of Issue: May 20, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless dongle Model / Brand: AMW50R / TARGUS, MRZ / ACROX Model Discrepancy All the specification and layout are identical except they come with different model numbers for marketing purposes. Power Supply Power form host device. Frequency Range 2403~2471 MHz Frequency Number 69 Channels Modulation Technique GFSK Antenna Gain -5.91 dBi Antenna Designation PCB Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100331202-RP FCC ID: PRDMUWIRTRE03 Date of Issue: May 20, 2010 Page 31 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION SET UP PHOTOS Compliance Certification Services Inc. Report No.: T100331202-RP FCC ID: PRDMUWIRTRE03 Date of Issue: May 20, 2010 Page 32 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
