PRDOPWIRWMU02Wireless mouse

User Guide 410-1747-003A / AMW54EU ©2009 Manufactured or imported by Targus Europe Ltd., Hounslow, Middlesex, TW4 5DZ, UK. All rights reserved. Targus is either a registered trademark or trademark of Targus Group International, Inc. in the United States and/or other countries. Features and specifications are subject to change without notice. All trademarks and registered trademarks are the property of their respective owners. N2953 WIRELESS STOW-N-GO TM OPTICAL MOUSE Targus Wireless Stow-N-Go TM Optical Mouse 2 Targus Wireless Stow-N-Go TM Optical Mouse 3 Table of Contents GB – English Targus Wireless Stow-N-Go TM Optical Mouse .................................................3 AR – العربية Targus ماوس ليزر لاسلكية مريحة من......................................................................11 GB – Introduction Congratulations on your purchase of the Targus Wireless Stow-N- Go TM Optical Mouse. The receiver clips onto the mouse for ease of use while traveling or on the go. This is a plug and play device so no additional software is required. System Requirements Hardware • USB port Operating System • Microsoft Windows ® 2000 • Microsoft Windows ® XP • Microsoft Windows Vista ® • Microsoft Windows ® 7 • Mac OS ® X 10.4 or later Contents • Targus Wireless Stow-N-Go TM Optical Mouse • 2 x AAA Batteries • Micro USB Receiver • User Guide Targus Wireless Stow-N-Go TM Optical Mouse 4 Targus Wireless Stow-N-Go TM Optical Mouse 5 1. Remove the battery cover from the back of the mouse by sliding off the cover of the mouse. Hold the mouse in your hands and with the back of the mouse away from you. Press down on the corners of the battery cover and slide towards the back of the mouse. Lift the cover off from the back of the mouse. Installing the Batteries 2. Insert two AAA-size batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery compartment. To replace the battery cover, place the cover on top of the mouse and slide forward until it clicks into place. Establishing the Connection (A) Remove the USB receiver from the bottom of the mouse. (B) Plug the USB receiver into an available USB port on your computer. This mouse is a plug and play device. It should automatically operate when the USB receiver is connected to the computer. Targus Wireless Stow-N-Go TM Optical Mouse 6 Targus Wireless Stow-N-Go TM Optical Mouse 7 If you experience interference during use or if the mouse doesn’t respond, follow the below steps to change the connection channel. (1) Press the connection button on the mouse. (2) If there’s still no response from the mouse, switch the mouse off, then switch the mouse back on again. Technical Support For technical questions, please visit: www.targus.com/support.asp English French German Spanish Italian Internet Austria Belgium Denmark Finland France Germany Italy Netherlands Telephone http://www.targus.com/uk/support.asp http://www.targus.com/fr/support.asp http://www.targus.com/de/support.asp http://www.targus.com/sp/support.asp http://www.targus.com/it/support.asp +43 1-795-676-42 +32 (0)2-717-2451 +45 35-25-87-51 +358 (0)922948016 +33 (0)1-6453-9151 +49 (0)211-6579-1151 +39 02-4827-1151 +31 (0)20-504671 Norway Portugal Spain Sweden Switzerland United Kingdom Eastern Europe & others +47 022577729 +351 21-415-4123 +34 91-745-6221 +46 (0)8-751-4058 +41 44-212-0007 +44 (0)20-7744-0330 +44 (0)20-7744-0330 Targus Wireless Stow-N-Go TM Optical Mouse 8 Targus Wireless Stow-N-Go TM Optical Mouse 9 Product Registration Targus recommends that you register your Targus accessory shortly after purchasing it. To register your Targus accessory, go to: http://www.targus.com/registration.asp You will need to provide your full name, email address, country of residence and product information. Warranty Targus warrants this product to be free from defects in materials and workmanship for two years. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to, a computer or other device(s); nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights. Regulatory Compliance (applicable to products with electronic circuitry/parts only) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement Tested to Comply This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna; • Increase the separation between the equipment and receiver; • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected; • Consult the dealer or an experienced radio/TV technician for help Changes or modifications not authorized by the party responsible for compliance could void the use…

Text truncated - open the document above for the full version.

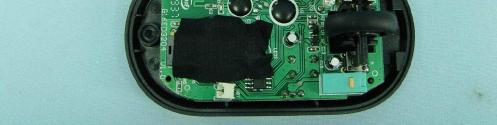

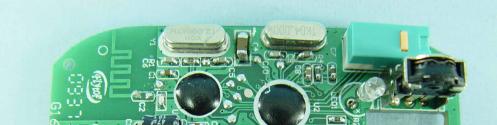

Page 1 CONSTRUCTION PHOTOS OF EUT

MODEL NAME: G16 FCC ID: PRDOPWIRWMU02 G16 Size: 20 x10mm

FCC ID .: PRDOPWIRWMU02 Label Location

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: PRDOPWIRWMU02 Report No.: RF981208L16 Operational Description The transmitter of the EUT (Wireless mouse) is powered by batteries. The antenna is printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: RF981208L16 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO. :RF981208L16 MODEL NO. :G16 (refer to item 3.1 for more details) RECEIVED :Dec. 08, 2009 TESTED :Dec. 14, 2009 ISSUED :Dec. 17, 2009 APPLICANT : Acrox Technologies Co., Ltd ADDRESS : 8F, No. 437, Rui Guang RD., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981208L16 2 Report Format Version 3.0.0 Table of Contents 1. CERTIFICATION ........................................................................................................ 3 2. SUMMARY OF TEST RESULTS ................................................................................ 4 2.1 MEASUREMENT UNCERTAINTY.............................................................................. 4 3. GENERAL INFORMATION......................................................................................... 5 3.1 GENERAL DESCRIPTION OF EUT ........................................................................... 5 3.2 DESCRIPTION OF TEST MODES ............................................................................. 6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 6 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 8 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 8 4. TEST TYPES AND RESULTS .................................................................................... 9 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 9 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 9 4.1.2 TEST INSTRUMENTS.............................................................................................. 10 4.1.3 TEST PROCEDURES .............................................................................................. 11 4.1.4 DEVIATION FROM TEST STANDARD .................................................................... 11 4.1.5 TEST SETUP............................................................................................................ 12 4.1.6 EUT OPERATING CONDITIONS ............................................................................. 12 4.1.7 TEST RESULTS ....................................................................................................... 13 4.2 BAND EDGES MEASUREMENT ............................................................................. 19 4.2.1 LIMITS OF BAND EDGES MEASUREMENT........................................................... 19 4.2.2 TEST INSTRUMENTS.............................................................................................. 19 4.2.3 TEST PROCEDURE................................................................................................. 19 4.2.4 DEVIATION FROM TEST STANDARD .................................................................... 19 4.2.5 EUT OPERATING CONDITION ............................................................................... 19 4.2.6 TEST RESULTS ....................................................................................................... 20 5. PHOTOGRAPHS OF THE TEST CONFIGURATION............................................... 22 6. INFORMATION ON THE TESTING LABORATORIES ............................................. 23 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ....................................................................................... 24 Report No.: RF981208L16 3 Report Format Version 3.0.0 1. CERTIFICATION PRODUCT: Wireless mouse MODEL NO.: G16 (refer to item 3.1 for more details) BRAND: ACROX (refer to item 3.1 for more details) APPLICANT: Acrox Technologies Co., Ltd TESTED: Dec. 14, 2009 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment (model: G16) have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Dec. 17, 2009 Joanna Wang / Senior Specialist TECHNICAL ACCEPTANCE : , DATE :Dec. 17, 2009 Responsible for RF Long Chen / Senior Engineer APPROVED BY : , DATE :Dec. 17, 2009 Gary Chang / Assistant Manager Report No.: RF981208L16 4 Report Format Version 3.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULTREMARK 15.207 Conducted Emission Test NA Power supply is 3Vdc from batteries. 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 15.209 PASS Meet the requirement of limit. Minimum passing margin is -9.1dB at 4960.00MHz. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
