Wireless Mouse / MDG USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user's guide before installation Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation ON/OFF Switch Functional Introduction Forward Press this button to view the next page of the Internet browser. Backward Press this button to view the pervious page of the Internet browser. DPI Switch The brightness of LED indicator on the DPI switch indicates the DPI setting in use. There are three different settings: z Bright: 1600 DPI z Dim: 1200 DPI z No light: 800 DPI The default setting is 1600 DPI. You can easily switch between DPI settings. In order to save power, the LED display will only last for 10 Right button Left button Backward Forward LED Indicator RF Receiver Connect Button DPI switch / LED Indicator Tilt Wheel seconds. Installing the batteries Step 1: Take the battery cover off. Step 2: Insert the batteries as shown inside the battery compartment. Step 3: Replace the cover. Setup the Connection between the Receiver and the Mouse 1. Plug the RF receiver into the USB port of your computer. 2. Insert the batteries into the mouse, then follow the steps below. 3. If the mouse is not working, please put it into pairing mode. AA Battery 4. Pairing: Re-plug the receiver into the USB port of your computer, then press the connect button on the mouse. If the mouse does not work after 10 seconds, pair them again. (The receiver has auto pairing function). 5.The LED indicator on the receiver flashes when the mouse is moving. 6. When the batteries of the mouse is low, the Low Power indicator will start to blink. 7. Please see the readme for details. LED indicator LED Indicator *Mouse Indicator Red LED Blinks for 10 sec. Low Battery Warning Red LED is on for 10 sec. Power ON Green LED Blinking Pairing (LED OFF when paired or failed after 10 sec.) Power ON *Receiver Indicator Green LED is on for 3 sec. Green LED Blinking (If any action)

Antenna Specification Date:March 8, 2010 Antenna Type: PCB Antenna Antenna Gain: -5.91 dBi

Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Date:March 8, 2010 Federal Communications Commission Authorization and Evaluation Division FCC IDPRDOPWIRWMU03 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application

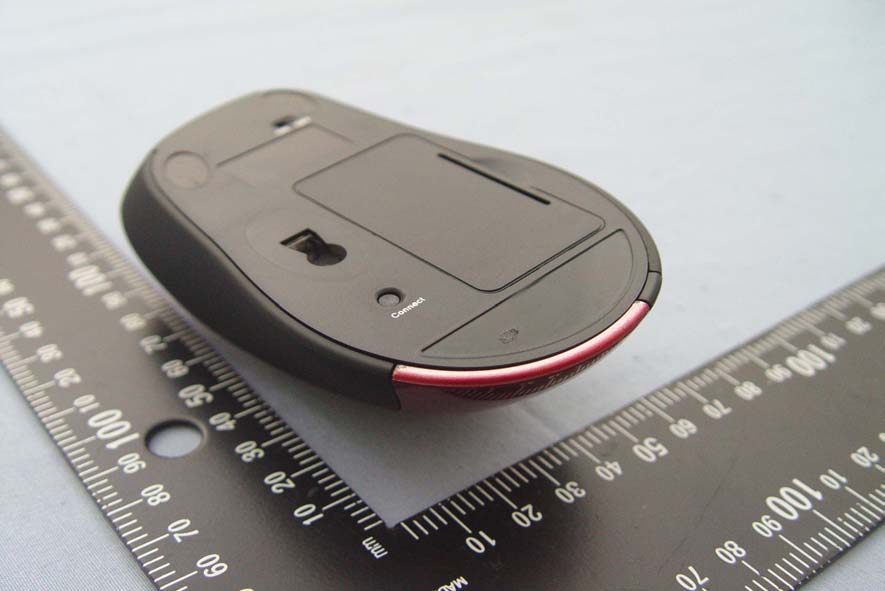

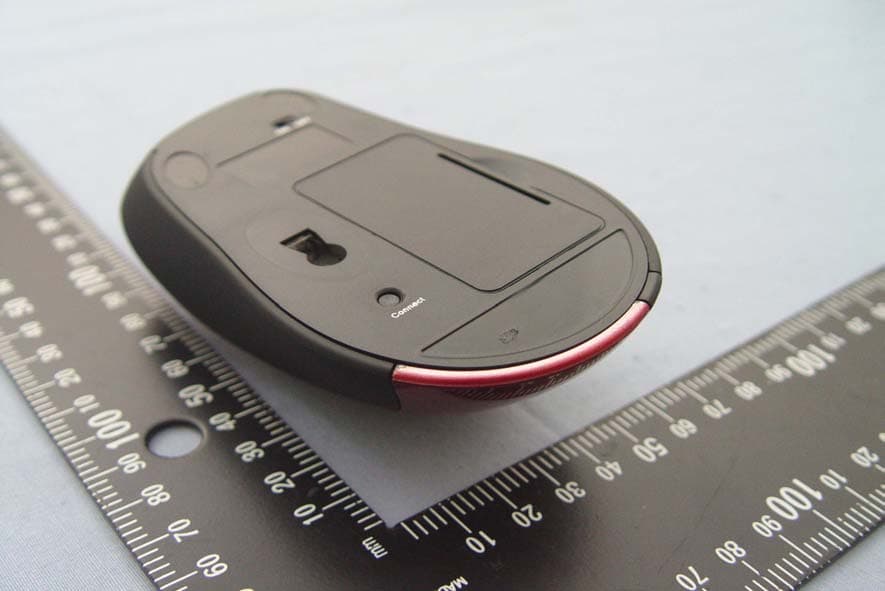

Compliance Certification Services Inc. Report No.: T100202211 Date of Issue: April 6, 2010 Page 1 Total Page: 6 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

FCC ID: PRDOPWIRWMU03 MODLE : MDG 10mmX20mm

Compliance Certification Services Inc. Report No.: T100202211 Date of Issue: April 6, 2010 Page 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100202211 Date of Issue: April 6, 2010 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100202211 Date of Issue: April 6, 2010 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: T100202211 Date of Issue: April 6, 2010 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100202211 Date of Issue: April 6, 2010 Page 6 Rev. 00

Compliance Certification Services Inc. Report No.: T100202211-RP1 FCC ID: PRDOPWIRWMU03 Date of Issue: April 6, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 31 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Mouse Model Number: MDG Trade Name: Acrox Issued to Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100202211-RP1 FCC ID: PRDOPWIRWMU03 Date of Issue: April 6, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 7 4. INSTRUMENT CALIBRATION.................................................................................................... 8 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 8 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 8 4.3 MEASUREMENT UNCERTAINTY ........................................................................................ 9 5. FACILITIES AND ACCREDITATIONS ..................................................................................... 10 5.1 FACILITIES ................................................................................................................................ 10 5.2 EQUIPMENT...............................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................. 11 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 12 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 12 6.2 SUPPORT EQUIPMENT ........................................................................................................ 12 7. FCC PART 15.249 REQUIREMENTS ......................................................................................... 13 7.1 20 DB BANDWIDTH.............................................................................................................. 13 7.2 BAND EDGES MEASUREMENT ......................................................................................... 16 7.3 SPURIOUS EMISSION .......................................................................................................... 21 7.4 POWERLINE CONDUCTED EMISSIONS ........................................................................... 29 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 30 Compliance Certification Services Inc. Report No.: T100202211-RP1 FCC ID: PRDOPWIRWMU03 Date of Issue: April 6, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Acrox Technologies Co., Ltd. 8F, No. 437, Rui Guang Rd., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. Equipment Under Test: Wireless Mouse Tr a d e N a m e : Acrox Model Number: MDG Date of Test: March 2, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100202211-RP1 FCC ID: PRDOPWIRWMU03 Date of Issue: April 6, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless Mouse Trade Name Acrox Model Number MDG Model Discrepancy N/A Power Supply Powered by AA batteries × 2 (DC: 3V) Frequency Range 2403 ~ 2480 MHz Frequency Spacing 1 MHz Frequency Number 78 Channels Modulation Technique GFSK Antenna Gain -5.91 dBi Antenna Designation PCB Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: PRDOPWIRWMU03 filing to comply with Section 15.107, 15.109, 15.207, 15.209, 15.249 (FCC Part 15,…
