2.4GHz Wireless Hi-Low Blue Trace Mouse w/Nano Receiver USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user's guide before installation Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Functional Introduction Installing the batteries Step 1: Take the battery cover off. Step 2: Insert the batteries as shown inside the battery compartment. Step 3: Replace the cover. **Warning: *Please insert the batteries with the correct position according to the instruction labeled in the mouse. Connect Button Left button Right button ON/OFF Switch LED Indicator Pull AAA Battery 1’st 2’nd Hi-Low Button Metallic Wheel Nano Receiver Hi-Low Introduction The perfect design for notebook users. This ultra slim, super small mouse is ideal for on-the-go users, and can be used comfortably anywhere, any time Hi position Low position Setup the Connection between the Receiver and the Mouse 1. Insert the batteries into the mouse, then follow the steps below. 2. Push the trigger on the bottom of the mouse to reveal the hidden layer Nano Receiver Push 3. Push out the Nano Receiver in the back of mouse then plug into your PC/Laptop. 4. If the mouse is not working, please put it into pairing mode. 5. Pairing: Re-plug the receiver into the USB port of your computer, then press the connect button on the mouse. If the mouse does not work after 10 seconds, pair them again. (The receiver has auto pairing function). 6.The LED indicator on mouse flashes steadily when it is in pairing mode and stops blinking when it is successfully paired with the receiver. The mouse’s LED indicator remains off afterwards. 7. When the batteries of the mouse is low, the Low Power indicator will start to blink. LED Indicator *Mouse Indicator Red LED Blinks 3 times During Pairing Red LED is on 3 sec. Power ON Low Battery Warning will blink 10 times when turn on.

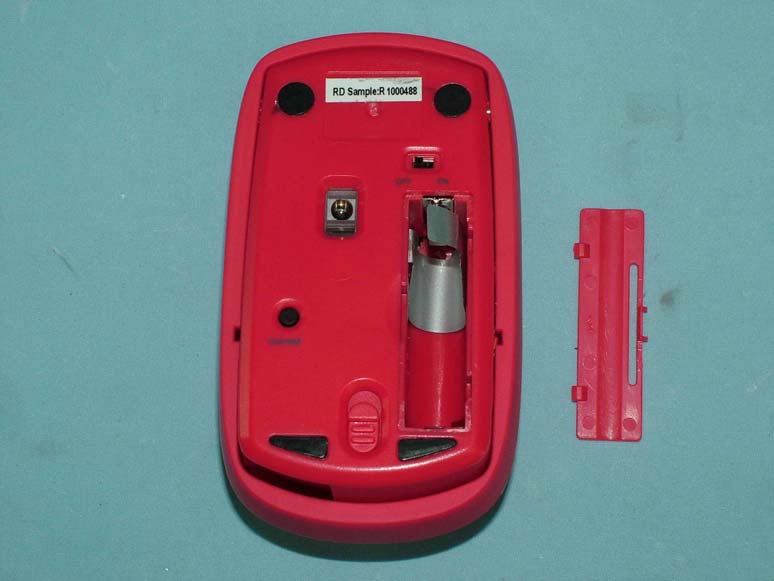

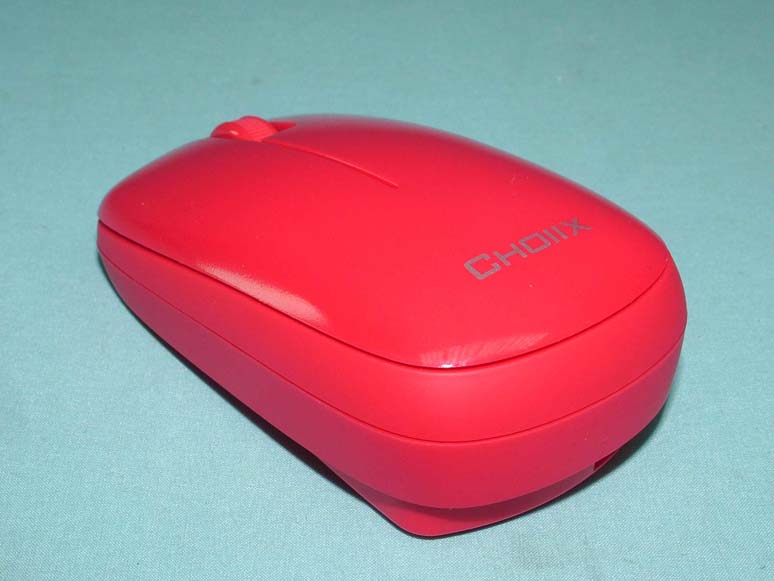

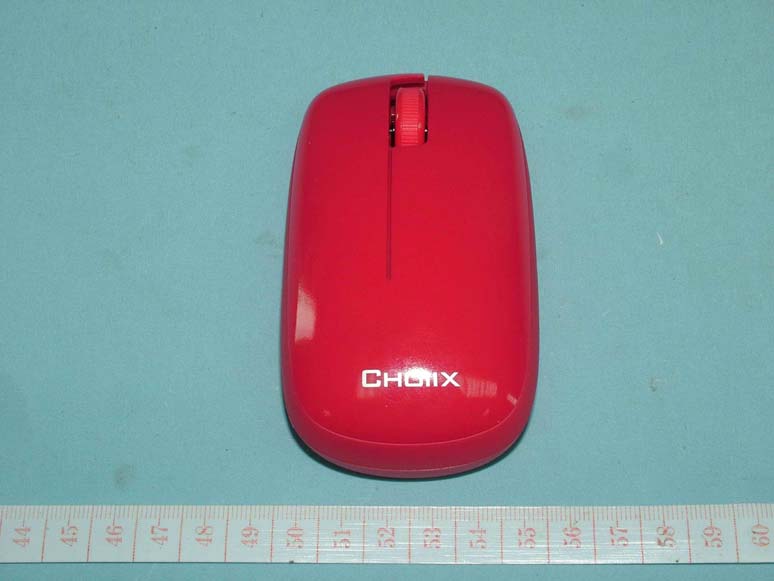

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Label Location

Page 3 Page 4 Page 5 Page 6

FCC ID: PRDOPWIRWMU08 Report No.: RF990519C19 Operational Description This device is a Wireless Mouse. The transmitter of the EUT is powered by 3Vdc from 1.5Vdc battery *2. The antenna is printed antenna. The other instruction, please have a look at the users manual.

Report No.: RF990519C19 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO. :RF990519C19 MODEL NO. :GK6 (refer to item 3.1 for more details) RECEIVED :May 19, 2010 TESTED :May 25, 2010 ISSUED :Jun. 01, 2010 APPLICANT : Acrox Technologies Co., Ltd ADDRESS : 8F, No. 437, Rui Guang RD., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990519C19 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION ........................................................................................................ 3 2. SUMMARY OF TEST RESULTS ................................................................................ 4 2.1 MEASUREMENT UNCERTAINTY.............................................................................. 4 3. GENERAL INFORMATION......................................................................................... 5 3.1 GENERAL DESCRIPTION OF EUT ........................................................................... 5 3.2 DESCRIPTION OF TEST MODES ............................................................................. 6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 6 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 8 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 8 4. TEST TYPES AND RESULTS .................................................................................... 9 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 9 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 9 4.1.2 TEST INSTRUMENTS.............................................................................................. 10 4.1.3 TEST PROCEDURES .............................................................................................. 11 4.1.4 DEVIATION FROM TEST STANDARD .................................................................... 11 4.1.5 TEST SETUP............................................................................................................ 12 4.1.6 EUT OPERATING CONDITIONS ............................................................................. 12 4.1.7 TEST RESULTS ....................................................................................................... 13 4.2 BAND EDGES MEASUREMENT ............................................................................. 19 4.2.1 LIMITS OF BAND EDGES MEASUREMENT........................................................... 19 4.2.2 TEST INSTRUMENTS.............................................................................................. 19 4.2.3 TEST PROCEDURE................................................................................................. 19 4.2.4 DEVIATION FROM TEST STANDARD .................................................................... 19 4.2.5 EUT OPERATING CONDITION ............................................................................... 19 4.2.6 TEST RESULTS ....................................................................................................... 20 5. PHOTOGRAPHS OF THE TEST CONFIGURATION............................................... 22 6. INFORMATION ON THE TESTING LABORATORIES ............................................. 23 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ....................................................................................... 24 Report No.: RF990519C19 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: Wireless Mouse MODEL NO.: GK6 (refer to item 3.1 for more details) BRAND: ACROX APPLICANT: Acrox Technologies Co., Ltd TESTED: May 25, 2010 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment (model: GK6) have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Jun. 01, 2010 Polly Chien / Specialist TECHNICAL ACCEPTANCE : , DATE :Jun. 01, 2010 Responsible for RF Long Chen / Senior Engineer APPROVED BY : , DATE :Jun. 01, 2010 Gary Chang / Assistant Manager Report No.: RF990519C19 4 Report Format Version 3.0.1 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULTREMARK 15.207 Conducted Emission Test NA Power supply is 3Vdc from batteries. 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 15.209 PASS Meet the requirement of limit. Minimum passing margin is -6.7dB at 4880.00MHz & 4960.00MHz. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on …
