PRDOPWIRWMU26Wireless Mouse

2.4GHz Wireless New Triple Wheel BlueTrace™ Mouse w/Nano Receiver USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user's guide before installing. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Functional Introduction Left button Right button Triple Wheel Wheel Left Capacitor Pad (Area B) Right Capacitor Pad (Area C) Front Capacitor Pad (Area A) Nano Receiver Battery Cover ON/OFF Switch Connect Button LED Indicator Triple Wheel By simply touching one of the capacitor pad and scroll the wheel at the same time, the wheel can perform special function. Therefore, with three different capacitor pads it can perform up to three different functions. ● Increase The Operation Efficiency ● The Potential Expansion of Functions in The Future ● Less Opportunity of Suffering Repetitive Strain Injury There are three capacitor pads (A, B and C) around the wheel Directions on default functions: Left Capacitor Pad (B area) Right Capacitor Pad (C area) Front Capacitor Pad (A area) Application switch Fast scroll up and down Zoom in and out Fast scrolling ( ( ( (Front Capacitor Pad) Fast scrolling down Lightly touch area A with the tip of your finger then scroll down the wheel with the same finger. (7 times faster than regular scrolling) Fast scrolling up Scroll up the wheel then land the tip of your finger onto area A (9 times faster then a regular scroll) Note: Scrolling down is 7 times rather than 9 times because scrolling down is more ergonomic than scrolling up. Application switch (Left Capacitor Pad) Application switch Touch and do not release area B and at the same time scroll down/up the wheel. The application switch window will pop up. Keep holding on to area B and scroll the wheel up or down to choose your desire application. Release area B to jump into the chosen application and close application switch window. Zoom in and out (Right Capacitor Pad) Zoom in Touch and do not release area C and at the same time scroll up the wheel. Zoom out Touch and do not release area C and at the same time scroll down the wheel. Installing the batteries Step 1: Take the battery cover off. Step 2: Insert the batteries as shown inside the battery compartment. Step 3: Replace the cover. **Warning: *Please insert the battery with the correct position according to the instruction labeled on the mouse. Pull AAA Battery 2’nd 1’st Setup the Connection between the Receiver and the Mouse 1. Insert the batteries into the mouse, then follow the steps below. 2. In the meantime, to open the mouse under the cover, take the nano receiver out. 3. Plug the Nano receiver into the USB port of your computer. 4. If the mouse is not working, please put it into pairing mode. 5. Pairing: Re-plug the receiver into the USB port of your computer, then press the connect button on the mouse. If the mouse does not work after 10 seconds, pair them again. (The receiver has auto pairing function). 6. The LED indicator on mouse flashes steadily when it is in pairing mode and stops blinking when it is successfully paired with the receiver. 7. When the batteries’ power of the mouse is low, the Low Power indicator will start to blink. LED Indicator *Mouse Indicator LED Blinks 3 times During Pairing LED is on 3 sec. Power ON Low Battery Warning will blink 10 times when turn on.

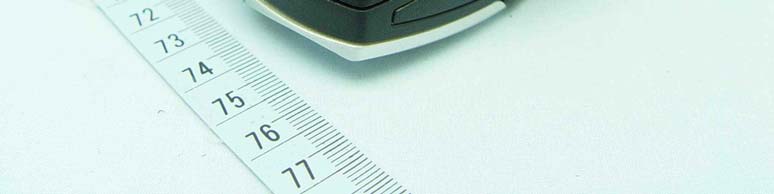

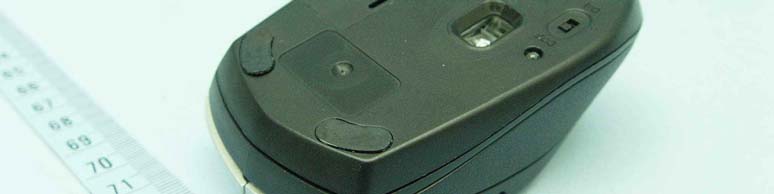

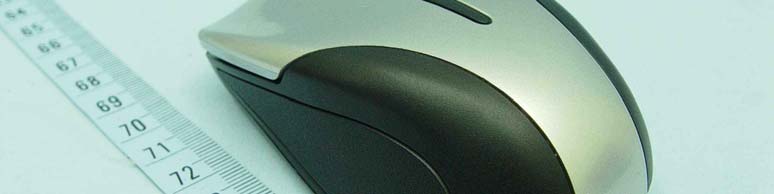

Page 1 CONSTRUCTION PHOTOS OF EUT

Label Location

Page 2 Page 3 Page 4 Page 5

FCC ID: PRDOPWIRWMU26 Report No.: RF991125C03 Operational Description This device is a Wireless Mouse. The transmitter of the EUT is powered by 3Vdc from batteries. The antenna is printed antenna without antenna connectors. The other instruction, please have a look at the users manual.

Report No.: RF991125C03 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO. :RF991125C03 MODEL NO. :GKN FCC ID:PRDOPWIRWMU26 RECEIVED :Nov. 25, 2010 TESTED :Jan. 10, 2011 ISSUED :Jan. 14, 2011 APPLICANT : Acrox Technologies Co., Ltd ADDRESS : 4F., No. 89, Minshan St., Neihu Dist., Taipei City 114, Taiwan, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 25 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: RF991125C03 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD...............................................................................................3 1. CERTIFICATION ...........................................................................................................4 2. SUMMARY OF TEST RESULTS ...................................................................................5 2.1 MEASUREMENT UNCERTAINTY ................................................................................5 3. GENERAL INFORMATION............................................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................................6 3.2 DESCRIPTION OF TEST MODES................................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...............................................9 3.4 DESCRIPTION OF SUPPORT UNITS ..........................................................................9 4. TEST TYPES AND RESULTS .....................................................................................10 4.1 RADIATED EMISSION MEASUREMENT ...................................................................10 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................10 4.1.2 TEST INSTRUMENTS ................................................................................................ 11 4.1.3 TEST PROCEDURES .................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD .......................................................................12 4.1.5 TEST SETUP ..............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ................................................................................13 4.1.7 TEST RESULTS ..........................................................................................................14 4.2 BAND EDGES MEASUREMENT ................................................................................20 4.2.1 LIMITS OF BAND EDGES MEASUREMENT .............................................................20 4.2.2 TEST INSTRUMENTS ................................................................................................20 4.2.3 TEST PROCEDURE ...................................................................................................20 4.2.4 DEVIATION FROM TEST STANDARD .......................................................................20 4.2.5 EUT OPERATING CONDITION ..................................................................................20 4.2.6 TEST RESULTS ..........................................................................................................21 5. PHOTOGRAPHS OF THE TEST CONFIGURATION..................................................23 6. INFORMATION ON THE TESTING LABORATORIES ................................................24 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.........................................................................................25 Report No.: RF991125C03 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Jan. 14, 2011 Report No.: RF991125C03 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: Wireless Mouse MODEL NO.: GKN BRAND: ACROX APPLICANT: Acrox Technologies Co., Ltd TESTED: Jan. 10, 2011 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment (model: GKN) have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Jan. 14, 2011 Ivy Lin / Specialist APPROVED BY : , DATE: Jan. 14, 2011 Gary Chang / Assistant Manager Report No.: RF991125C03 5 Report Format Version 4.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULTREMARK 15.207 Conducted Emission Test NA Power supply is 3Vdc from batteries. 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
