PRDPRESENT003Wireless Presenter

2.4GHz Cordless Presenter with Laser Pointer USER'S GUIDE Ver.:1.00 CAUTION: To use this product properly, please read the user’s manual before installation Please DO NOT direct the laser beam at anyone’s eye. 1 Regulatory Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Certification This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ̇Reorient or relocate the receiving antenna. ̇Increase the separation between the equipment and receiver. ̇Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ̇Consult the dealer or an experienced radio/TV technician for help. Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Extension cables are not recommended, if used, they must be shielded in order to comply with the emission limits. 2 Installing the Batteries (Supplied) ̇Take off the screw. ̇Open the battery cover in the button of the Presenter and sliding the door off the presenter. ̇Insert the two supplied AAA batteries (included in the package) to the battery slots. Make sure the positive (+) and negative (-) ends of the batteries match the polarity markings inside the battery compartment. ̇Close the battery cover back into position. ̇Lock up the screw. ̇Turn on power switch. *Sliding the battery cover off *Insert batteries to the correct polarities Push AAA battery X 2 3 Connecting the Presenter to the Computer ̇Plug the USB receiver dongle into an available USB port on your computer. Wait for the computer to go through its default process of recognizing the new hardware and installing the built-in native driver. You don’t need to do anything while your computer is going through the installation of a new device. ̇The radio frequency (RF) codes are factory preset for your convenience; the presenter should be functional at this point. ̇If for any reason the presenter does not work correctly, i.e. the presentation slides do not advance to the next page. If the presenter is not working, please put it into pairing mode. USB Receiver Connect Button Power ON/OFF Switch 4 ̇Pairing: Re-plug the RF receiver into the USB port of your computer. Turn on power switch. Then press the connect buttons on the presenter. If the presenter does not work after 30 seconds, Re-pairing again. (RF receiver has auto pairing function). ̇The LED indicator on receiver remains off afterwards when it is successfully paired with the presenter. ̇This will make the presenter and the receiver to connecting. This step can be repeated when needed. Using the Presenter Click (Mouse Left) Previous Page Laser Bean Dark Screen Track Ball Next Page Application Switch Laser Bean Switch Connect Button Power ON/OFF Switch LED Indicator *Receiver Indicator Green LED ON 3 Sec. Power ON When presenter action Green LED Blinking 5 Track Ball Track ball is functional like a mouse cursor. Next Page key to advance to the next slide. Previous Page key to return to the previous slide. Application Switch (Alt-Tab) key displays all the open windows and switches to the desired window by pausing over the selected window icon for 3 seconds. Dark Screen toggle key blackens the screen and resumes the presentation. Laser Pointer key triggers the laser beam. The laser beam emits for the duration that you press the key. Click (Mouse left key function)

Page 1 CONSTRUCTION PHOTOS OF EUT

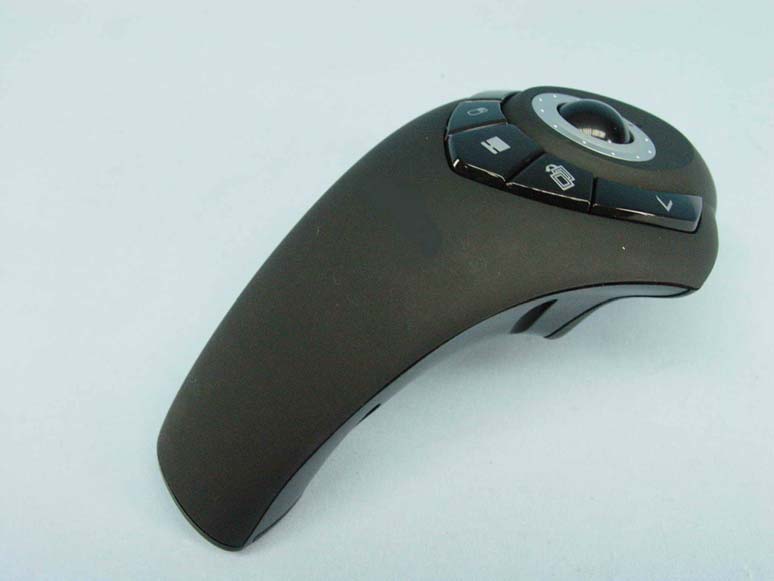

MODEL NAME: PR5 FCC ID: PRDPRESENT003 PR5 Size: 20 x10mm

FCC ID .: PRDPRESENT003 Label Location

Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: PRDPRESENT003 Report No.: RF981124L07 Operational Description The transmitter of the EUT (Wireless Presenter) is powered by batteries. The antenna is printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: RF981124L07 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO. :RF981124L07 MODEL NO. :PR5 RECEIVED :Nov. 26, 2009 TESTED :Nov. 30, 2009 ISSUED :Dec. 11, 2009 APPLICANT : Acrox Technologies Co., Ltd ADDRESS : 8F, No. 437, Rui Guang RD., Nei Hu Dist., Taipei 114, Taiwan, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981124L07 2 Report Format Version 3.0.0 Table of Contents 1. CERTIFICATION ........................................................................................................ 3 2. SUMMARY OF TEST RESULTS ................................................................................ 4 2.1 MEASUREMENT UNCERTAINTY.............................................................................. 4 3. GENERAL INFORMATION......................................................................................... 5 3.1 GENERAL DESCRIPTION OF EUT ........................................................................... 5 3.2 DESCRIPTION OF TEST MODES ............................................................................. 6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 6 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 8 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 8 4. TEST TYPES AND RESULTS .................................................................................... 9 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 9 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 9 4.1.2 TEST INSTRUMENTS.............................................................................................. 10 4.1.3 TEST PROCEDURES .............................................................................................. 11 4.1.4 DEVIATION FROM TEST STANDARD .................................................................... 11 4.1.5 TEST SETUP............................................................................................................ 12 4.1.6 EUT OPERATING CONDITIONS ............................................................................. 12 4.1.7 TEST RESULTS ....................................................................................................... 13 4.2 BAND EDGES MEASUREMENT ............................................................................. 19 4.2.1 LIMITS OF BAND EDGES MEASUREMENT........................................................... 19 4.2.2 TEST INSTRUMENTS.............................................................................................. 19 4.2.3 TEST PROCEDURE................................................................................................. 19 4.2.4 DEVIATION FROM TEST STANDARD .................................................................... 19 4.2.5 EUT OPERATING CONDITION ............................................................................... 19 4.2.6 TEST RESULTS ....................................................................................................... 20 5. PHOTOGRAPHS OF THE TEST CONFIGURATION............................................... 22 6. INFORMATION ON THE TESTING LABORATORIES ............................................. 23 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ....................................................................................... 24 Report No.: RF981124L07 3 Report Format Version 3.0.0 1. CERTIFICATION PRODUCT: Wireless Presenter MODEL NO.: PR5 BRAND: ACROX APPLICANT: Acrox Technologies Co., Ltd TESTED: Nov. 30, 2009 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment (model: PR5) have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Dec. 11, 2009 Ivy Lin / Specialist TECHNICAL ACCEPTANCE : , DATE:Dec. 11, 2009 Responsible for RF Long Chen / Senior Engineer APPROVED BY : , DATE:Dec. 11, 2009 Gary Chang / Assistant Manager Report No.: RF981124L07 4 Report Format Version 3.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULTREMARK 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 15.209 PASS Meet the requirement of limit. Minimum passing margin is -6.1dB at 4808.10MHz. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: MEASUREMENT FREQUENCY UNCERTAINTY 30MHz ~ 1GHz 3.21 dB Radiated emissions Above 1GHz 2.26 dB This uncertainty represents…
