PRDRX08Dongle for Wireless Mouse

System requirements • Windows® 8, Windows® 7, Windows Vista®, Windows® XP, or Mac OS [REVIEWERS: What is the system requirement for Mac OS? (e.g. Mac OS 10.0 or higher)?] • One available USB port Features To p Bottom Installing the batteries 1 Take the battery cover off. 2 Insert the battery inside the battery compartment. Note: Insert the battery with the correct orientation, according to the instruction label on the mouse. 3 Replace the cover. Removing the nano receiver 1 Remove the battery cover. 2 Pull the nano receiver out of its slot in the battery compartment. 3 Replace the cover. Connect button ON/OFF switch Battery cover Pull and AA battery Quick Setup Guide NS-WLM1451-SV | Five-Button Wireless Mouse Before using your new product, please read these instructions to prevent any damage. Congratulations on your purchase of a high-quality Insignia product. Your NS-WLM1451-SV represents the state of the art in wireless mouse design to ensure for reliable and trouble-free performance. Package contents • Five-button wireless mouse • Nano receiver • Quick Setup Guide Left button Right button Scroll wheel LED indicator Backward Forward Nano receiver Setting up the connection between the receiver and the mouse 1 Plug the nano receiver into a USB port on your computer. Note: The drivers automatically install onto your computer and you can start using your mouse. 2 If the mouse does not work, put it into pairing mode by pressing the connect button on the bottom of your mouse. Note: If the mouse does not work after 10 seconds, unplug and re-plug the nano receiver then press the connect button on the mouse again. 3 The LED indicator on the mouse flashes steadily when it is in pairing mode and turns off when it is successfully paired with the nano receiver. 4 When the battery power gets low, the battery indicator on the mouse starts to blink. Removing the nano receiver from your computer Windows: 1 To remove the nano receiver from your PC, right-click the USB device icon in your system tray, located on the right side of your task bar. 2 Click Eject [device name]. A message appears that you are now “Safe to Remove Hardware.” 3 Remove the receiver from your computer. Mac OS: 1 Click the Finder icon on your dock. The Finder window opens. 2 In the left panel, select [device name] under the “DEVICES” heading, then click (eject). “[device name]” disappears and the USB device can be safely removed from your computer. [REVIEWERS: What will show up as the device name in the finder window or systems tray?] Mouse indicator Specifications Rating: 3V C.C. - 10mA Cleaning your mouse • Wipe the mouse with a damp, lint-free cloth. Troubleshooting • Make sure that your computer meets the system requirements. • Only use the mouse on a clean, flat, non-slippery surface to ensure smooth and accurate cursor action. • If your mouse stops working: • Make sure that your mouse and nano receiver are paired by pressing the connect button on the mouse. • Replace the mouse battery. • Avoid using your mouse on reflective, transparent, or metallic surfaces. Legal notices FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that V1 ENGLISH 13-0855 interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-Gen and RSS-210 statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RSS-102 statement This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. One-year limited warranty For complete warranty, visit www.insigniaproducts.com. Contact Insignia For customer service, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a registered trademark of BBY Solutions, Inc. Registered in some countries. Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2013 BBY Solu…

Text truncated - open the document above for the full version.

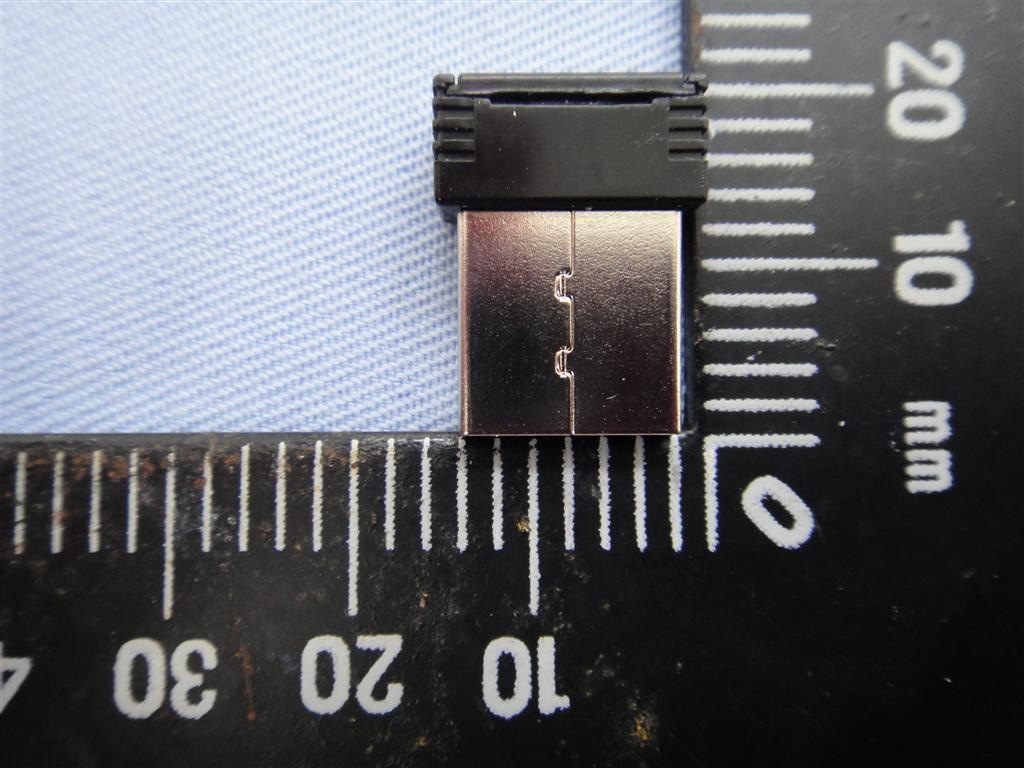

ATTACHMENT Photo Documentation Page 1 of 1 FCC ID:PRDRX08 Product: 2.4GHz dongle Type Designation: RX8

ATTACHMENT Photo Documentation Page 1 of 1 FCC ID:PRDRX08 Product: 2.4GHz dongle Type Designation: RX8

Produkte Products Prüfbericht - Nr.: Test Report No. 10044047 001 Seite 2 von 22 Page 2 of 22 TEST SUMMARY 5.1.1 FIELD STRENGTH OF FUNDAMENTAL RESULT: Passed 5.1.2 99% BANDWIDTH RESULT: Passed 5.1.3 SPURIOUS EMISSION RESULT: Passed 5.2.1 CONDUCTED EMISSIONS LINE AND NEUTRAL RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10044047 001 Seite 3 von 22 Page 3 of 22 Contents 1. GENERAL REMARKS ............................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ................................................................................. 4 2. TEST SITES ............................................................................................................ 5 2.1 TEST FACILITIES ..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 6 2.4 CALIBRATION ......................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 RATINGS AND SYSTEM DETAILS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS .............................................. 9 3.5 SUBMITTED DOCUMENTS ......................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ................................................................... 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 10 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 11 4.5 TEST SETUP DIAGRAM .......................................................................................... 11 5. TEST RESULTS ..................................................................................................... 13 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 13 5.1.1 Field strength of fundamental..................................................................................................... 13 5.1.2 99% Bandwidth .......................................................................................................................... 15 5.1.3 Spurious Emission ..................................................................................................................... 17 5.2 MAINS CONDUCTED EMISSIONS ............................................................................. 18 5.2.1 Conducted Emissions Line and Neutral ..................................................................................... 18 6. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 19 7. LIST OF TABLES ................................................................................................... 22 8. LIST OF PHOTOGRAPHS......................................................................................... 22 Produkte Products Prüfbericht - Nr.: Test Report No. 10044047 001 Seite 4 von 22 Page 4 of 22 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Photo Documentation (File Name: 10044047APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10044047APPENDIX D) Test Specifications The following standards were applied (in bold: product standards, otherwise: basic standards). Table 1: Applied Standard and Test Levels Radio FCC 47CFR Part 15: Subpart C Section 15.249 RSS-210 issue 8 (12-2010) Annex 2.9 ANSI C63.4:2009 Produkte Products Prüfbericht - Nr.: Test Report No. 10044047 001 Seite 5 von 22 Page 5 of 22 2. Test Sites 2.1 Test Facilities TUV Rheinland Taiwan Ltd. 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) FCC Registration No.: 365730 TAF Accredited NCC Test Lab. No.:0759 TAF ISO17025 Certification effective periods: 2013-Jul-1st to 2016-Jun-30th Produkte Products Prüfbericht - Nr.: Test Report No. 10044047 001 Seite 6 von 22 Page 6 of 22 2.2 List of Test and Measurement Instruments Table 2: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until Used for test items EMI Test Receiver R&S ESCI 7 100797 20-Dec-13 Spurious Emission and Frequency Band Edge Bilog Antenna TESEQ CBL6111D 29802 29-Jun-14 Spurious Emission and Frequency Band Edge Spectrum Analyzer R&S FSV 40 100921 13-Dec-13 6dB Bandwidth, Output Power, Power Density, Cond. Spurious Emissions, Rad. Spurious Emission Horn Antenna ETS-Lindgren 3117 138160 10-Jan-14 Spurious Emission and Frequency Band Edge Horn Antenna (18GHz~40GHz) COM- POWER AH840 101031 2-Nov-13 Spurious Emission and Frequency Band Edge Preamplifier (30MHz -1GHz) HP 8447F 2805A03335 2-Sep-14 Spurious Emission and Frequency Band Edge Preamplifier (18 GHz -40 GHz) COM- POWER PAM-840 461257 2-Sep-14 Spurious Emission and Frequency Band Edge Pre-Amplifier (1GHz~18GHz) EM Electronics EM30180 60558 12-Nov-13 Spurious Emission and Frequency Band Edge Loop Antenna Schwarzbeck FMZB 1513 1513…

Text truncated - open the document above for the full version.

Test Report No.10044047 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10044047AppendixD) Contents Spurious Emissions, Fundamental and Band Edges ................................................................................... 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 12 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 18 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 24 Spurious Emissions, Mains, 150kHz - 30MHz ......................................................................................... 27 Spurious Emissions, Fundamental and Band Edges 2 Spurious Emissions, Fundamental and Band Edges Service No.: RX8 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/10/3 16:59:20 Applicant: Acrox Test Rating: USB DC 5V Product: 2.4GHz dongle Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/51% Model No.: RX8 Test Engineer: Webber Chung Test Mode: Low CH 2408 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2408.495 -8.18 96.60 88.42 114.00 -25.58 peak 2 2408.495 -8.18 95.55 87.37 94.00 -6.63 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 3 Service No.: RX8 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/10/3 17:06:25 Applicant: Acrox Test Rating: USB DC 5V Product: 2.4GHz dongle Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/51% Model No.: RX8 Test Engineer: Webber Chung Test Mode: Low CH 2408 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2407.527 -8.18 95.44 87.26 114.00 -26.74 peak 2 2407.527 -8.18 94.59 86.41 94.00 -7.59 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 4 Service No.: RX8 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/10/3 17:17:14 Applicant: Acrox Test Rating: USB DC 5V Product: 2.4GHz dongle Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/51% Model No.: RX8 Test Engineer: Webber Chung Test Mode: Mid CH 2440 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2439.519 -8.15 95.11 86.96 114.00 -27.04 peak 2 2439.519 -8.15 94.17 86.02 94.00 -7.98 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 5 Service No.: RX8 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/10/3 17:13:34 Applicant: Acrox Test Rating: USB DC 5V Product: 2.4GHz dongle Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/51% Model No.: RX8 Test Engineer: Webber Chung Test Mode: Mid CH 2440 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2440.513 -8.15 84.90 76.75 114.00 -37.25 peak 2 2440.513 -8.15 84.04 75.89 94.00 -18.11 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 6 Service No.: RX8 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/10/3 17:19:05 Applicant: Acrox Test Rating: USB DC 5V Product: 2.4GHz dongle Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/51% Model No.: RX8 Test Engineer: Webber Chung Test Mode: Hi CH 2474 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2473.519 -8.12 93.83 85.71 114.00 -28.29 peak 2 2473.519 -8.12 92.85 84.73 94.00 -9.27 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 7 Service No.: RX8 Test Distance: 3m Test Standard: FCC 15.249_2.4-2.5G_3m PK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/10/3 17:24:02 Applicant: Acrox Test Rating: USB DC 5V Product: 2.4GHz dongle Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/51% Model No.: RX8 Test Engineer: Webber Chung Test Mode: Hi CH 2474 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2473.487 -8.12 88.92 80.80 114.00 -33.20 peak 2 2473.487 -8.12 87.89 79.77 94.00 -14.23 AVG Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, Fundamental and Band Edges 8 Radiated Bandedge Low Channel (Hor) Spurious Emissions, Fundamental and Band Edges 9 Low Channel (Ver) Spurious Emissions, Fundamental and Band Edges 10 High Channel (Hor) Spurious Emissions, Fundamental and Band Edges 11 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 12 Spurious Emissions, TX Mode, 1-18G Service No.: RX8 Test Distance: 3m Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/10/3 11:43:55 Applicant: Acrox Test Rating: USB DC 5V Product: 2.4GHz dongle Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/51% Model No.: RX8 Test Engineer: Webber Chung Test Mode: Low CH 2408MHz Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10044047 001 Seite 19 von 22 Page 19 of 22 6. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10044047 001 Seite 20 von 22 Page 20 of 22 Photograph 2: Set-up for Spurious Emissions (Back View 1 TX) Photograph 3: Set-up for Spurious Emissions (Back View 2 TX) Produkte Products Prüfbericht - Nr.: Test Report No. 10044047 001 Seite 21 von 22 Page 21 of 22 Photograph 4: Set-up for for Mains Conducted testing Back Photograph 5: Set-up for for Mains Conducted testing Front
