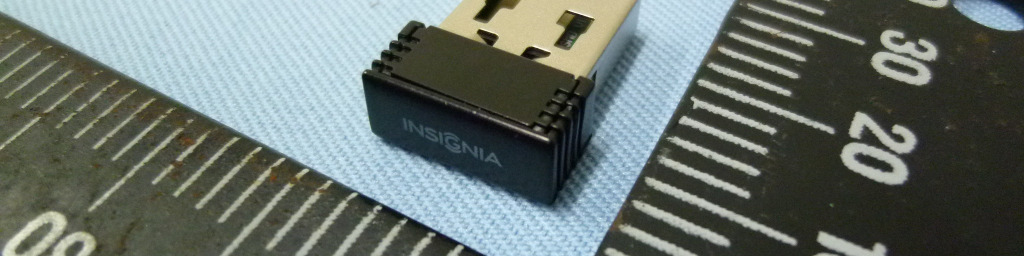

PRDRX09Dongle for Wireless Mouse

Installing the batteries and removing the nano receiver 1 Take the battery cover off. 2 Remove the nano receiver. 3 Insert the included AA battery into the battery compartment. Make sure that the + and - signs match the symbols in the compartment. 4 Replace the battery cover. Tip: Store the nano receiver in the mouse when it is not in use. Connecting your mouse to your computer 1 Plug the nano receiver into a USB port on your computer. 2 Slide the ON/OFF switch on your mouse to ON. The computer automatically detects the mouse and you can immediately begin using it. If the mouse does not work: • Move your mouse closer to your computer. • Re-plug the nano receiver into the USB port on your computer, then press the connect button on the mouse. The LED indicator on the mouse flashes steadily while in pairing mode (10 seconds). After pairing successfully, the LED indicator lights solid for 10 seconds, then turns off. • Check the battery in your mouse. The LED indicator blinks for 10 seconds when the battery is low. Quick Setup Guide Wireless Optical Mouse | NS-PNM5003-BK / NS-PNM5003-BU / NS-PNM5003-SV Package contents • Wired USB mouse • Nano receiver • AA battery (1) • Quick Setup Guide Before using your new product, please read these instructions to prevent any damage. System requirements • Windows® 8, Windows® 7, Windows Vista®, Windows® XP, or Mac OS 10.X or higher • One available USB port Features Nano receiver Connect button ON/OFF switch Battery cover Pull AA battery Left button Right button Scroll wheel LED indicator NS-PNM5003-BK_NS-PNM5003-BU_NS-PNM5003-SV_13-1099_QSG_V1.ai 1 1/3/2014 9:44:39 AMNS-PNM5003-BK_NS-PNM5003-BU_NS-PNM5003-SV_13-1099_QSG_V1.ai 1 1/3/2014 9:44:39 AM Specifications Mouse: • Dimension (L×W×H): 3.89 × 2.44 × 1.44 in. (9.9 × 6.2 × 3.67 cm) • Weight: 1.86 oz. (.05 kg) • Battery: 1 AA alkaline battery • Battery life: 6 months (based on average usage) • Radio frequency: 2.4Ghz • Operating distance: 33 feet (10 meters) • Rating: 3V C.C. - 10mA Nano receiver: • Dimension (L×W×H): .7 × .6 × .2 in. (1.8 × 1.4 × .6 cm) • Weight: 1.2 g ± 0.5g • Interface: USB 1.1, 2.0 , 3.0 Troubleshooting My mouse is not working. • Move your mouse and computer closer together. • Make sure that your computer meets the system requirements. • Only use the mouse on a clean, flat, non-slippery surface to ensure smooth and accurate cursor action. • If your mouse stops working: • Make sure that your mouse and nano receiver are paired by pressing the connect button on the mouse. • Replace the mouse battery. • Try connecting your nano receiver into a different USB port on your computer. • Avoid using your mouse on reflective, transparent, or metallic surfaces. V1 ENGLISH 13-1099 Legal notices FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-Gen and RSS-210 statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RSS-102 statement This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. One-year limited warranty For complete warranty, visit www.insigniaproducts.com. Contact Insignia 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a registered trademark of BBY Solutions, Inc. Registered in some countries. Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2014 BBY Solutions, Inc. All Rights Reserved. LED indicator Cleaning your mouse • Wipe the mouse with a damp, lint-free cloth. Function Power ON Low battery warning Pairing Pairing failed Paired successfully Description LED is on for 10 seconds, then turns off. LED blinks for 10 seconds. LED blinks for 10 seconds after pressing the Connect button. After pressing the Connect button, the LED blinks for 10 second…

Text truncated - open the document above for the full version.

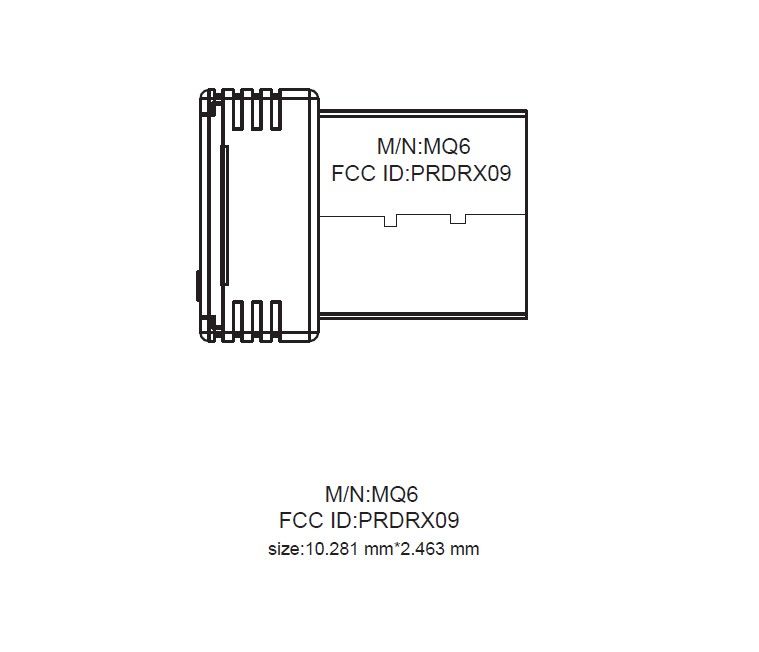

ATTACHMENT Photo Documentation Page 1 of 1 Report No.:FCC ID:PRDRX09 Product: 2.4GHz Dongle Type Designation: MQ6

ATTACHMENT Photo Documentation Page 1 of 2 Report No.:FCC ID:PRDRX09 Product: 2.4GHz Dongle Type Designation: MQ6 ATTACHMENT Photo Documentation Page 2 of 2 Report No.:FCC ID:PRDRX09 Product: 2.4GHz Dongle Type Designation: MQ6

Produkte Products Prüfbericht - Nr.: Test Report No. 10044961 001 Seite 2 von 18 Page 2 of 18 TEST SUMMARY 5.1 CONDUCTED EMISSION PER SECTION 15.107, FCC 47 CFR PART 15 SUBPART B RESULT: Pass 5.2 RADIATED EMISSION PER SECTION 15.109, FCC 47 CFR PART 15 SUBPART B RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 10044961 001 Seite 3 von 18 Page 3 of 18 Contents 1 GENERAL REMARKS ........................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ......................................................................................... 4 2 TEST SITES .......................................................................................................................... 4 2.1 TEST FACILITIES ................................................................................................................. 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................ 5 2.3 CALIBRATION ...................................................................................................................... 5 2.4 ABBREVIATIONS .................................................................................................................. 6 2.5 MEASUREMENT UNCERTAINTY .......................................................................................... 6 3 GENERAL PRODUCT INFORMATION ................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE .......................................................................... 7 3.2 RATING AND PHYSICAL CHARACTERISTICS ...................................................................... 7 3.3 NOISE GENERATING OR SOURCES OF INTERFERENCE ...................................................... 7 3.4 NOISE SUPPRESSING PARTS ................................................................................................ 7 3.5 SUBMITTED DOCUMENTS.................................................................................................... 7 4 TEST SET-UP AND OPERATION MODES .............................................................................. 8 4.1 TEST METHODOLOGY ......................................................................................................... 8 4.2 INDEPENDENT AND TEST OPERATION MODES ................................................................... 8 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ....................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ..................................................... 9 4.5 TEST SETUP ......................................................................................................................... 9 5 TEST RESULTS E M I S S I O N ...................................................................................... 10 5.1 CONDUCTED EMISSION PER SECTION 15.107, 47 CFR PART 15 SUBPART B ................... 10 5.2 RADIATED EMISSION PER SECTION 15.109, 47 CFR PART 15 SUBPART B ...................... 13 6 PHOTOGRAPHS OF TEST SETUP ........................................................................................ 16 7 LIST OF TABLES ................................................................................................................ 18 8 LIST OF FIGURES ............................................................................................................... 18 9 LIST OF PICTURES ............................................................................................................. 18 Produkte Products Prüfbericht - Nr.: Test Report No. 10044961 001 Seite 4 von 18 Page 4 of 18 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. 2 Test Sites 2.1 Test Facilities TÜV Rheinland Taiwan Ltd. 11F., No.758, Sec. 4, Bade Rd., Songshan Dist., Taipei City 105, Taiwan, R.O.C. The Federal Communications Commission has reviewed the technical characteristics of the radiated and conducted emission facilities and has found these test sites to be in compliance with the requirements under 47 CFR section 2.948. The registration number: 365730. The Industry Canada has reviewed the technical characteristics of the radiated and conducted emission facilities and has found these test sites to be in compliance with the Canadian requirements. The filing number: 9465A. The test facility is accredited by TAF (member of ILAC), under number 0759 according to ISO/IEC 17025:2005. TÜV Rheinland Taiwan Ltd. is accredited by the Federal Communications Commission as a Conformity Assessment Body under Designation Number TW1065 and Test Firm Registration#: 799772. Produkte Products Prüfbericht - Nr.: Test Report No. 10044961 001 Seite 5 von 18 Page 5 of 18 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment For EMI/ Conduction Measurement (Taipei: Shield Room) Item Kind of Equipment Manufacturer Type No. Serial No. Calibration Due Date 1 Test Receiver Rohde & Schwarz ESCI7 100797 2014/12/23 2 LISN (1 phase) Rohde & Schwarz ENV216 101243 2014/06/05 3 LISN Rolf Heine NNB-2/16Z 99080 2014/08/30 4 Telecom ISN 2 Line FCC FCC-TLISN-T2- 02-09 101169 2014/08/29 5 Telecom ISN 8 Line FCC FCC-TLISN-T8- 02-09 101167 2014/08/29 6 4 balance telecom pair ISN FCC F-070306-1057- 1 101166 2014/08/29 For EMI/Radiation Measurement (Taipei: Semi-Anechoic Chamber) Item Kind of Equipment Manufacturer Type No. Serial No. Calibration Due Date 1 Test Receiver Rohde & Schwarz ESR7 101062 2014/09/01 2 Spectrum Analyzer Rohde & Schwarz FSV-40 1000921 2014/12/09 3 Pre-Amplifier HP 8447F 2805A03335 2014/09/02 4 Pre-Amplifier Com-Power PAM-840 461257 2014/09/02 5 Pre-Amplifier EM Electronics EM01G18G 060558 2014/10/24 6 Bilog Antenna TESEQ CBL6111D 29802 2014/06/29 7 Horn Antenna ETS-Lindgren 3117 00138160 2014/01/10 8 Horn Antenna Com-Power AH-840 101029 2014/09/19 9 Loop Antenna Schwarzbe…
