PRDRX1HWireless Receiver

included Wireless mouse (connect via wireless USB receiver) USB receiver 2 x AAA batteries • • • left click wireless mouse battery cover top right click scroll wheel middle click bottom ON / OFF switch connect detailed setup This mouse is plug and play with wireless USB receiver insert batteries according to the orientation marked in the battery compartment, turn on power, plug in USB receiver into available USB A port on device and you are ready to go • open from here wireless USB receiver 2 x AAA batteries need some help? Can’t get it to pair? Just have a question? safety Do not use near any water source Do not modify or repair this device Do not use in high temperatures or extreme weather Do not use chemical detergents to clean your device, use a soft dry cloth call us at: 1-833-TGT-Tech. • • • • FCC ID: PRDMU135 Input: 3V 50mA Made in VIETNAM This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. TargetCorp. Mpls. MN, 55403 Phone: 1-612-304-6073 Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Battery life may vary depending on user and computing conditions. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TargetCorp. is under license. Other trademarks and trade names are those of their respective owners. Model: G76-BL DPCI: 056-00-4701 Turn off your mouse and re-plug in USB receiver, turn on power Press “Connect” button (keep mouse close to receiver) If it does not work after 10 seconds, repeat step 1 to 3 • Trouble shooting If it is not working, try below steps to re-pair mouse and USB receiver 1. 2. 3. back covercover 5.6in = 142.24mm 4in = 101.6mm Size: 4 in x 5.6 in = 101.6 x 142.24mm G76+MQJ(2.4G wireless mouse) for dealworthy Instructions Manual 印刷順序：印單色，*雙面印刷，上下折(請參考右圖) 紙 質：雙交紙，70磅 尺 寸： 未折合前-4 in x 5.6 in = 101.6 x 142.24mm 折合後-4 in x 2.8 in = 101.6 x 71.12mm 製作者：Megan簽 核： REV. A DATE: 2024.04.19 Project Name: G76(2.4G wireless mouse) for dealworthy Instructions Manual (Made in VIETNAM) _A版_Outline_20240419.ai 比例1:1 裁切線 折線 折線折線 1 封面朝前上下對折 封面 說明書折合完成 2 封面局部示意 封面

Acrox Technologies Co., Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 5/11/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: PRDRX1H FRN of applicant: 0018333633 Per section 2.911(d)(7) of the FCC rules, Acrox Technologies Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: 1PerfectChoice, Inc. FCC Registration Number (FRN): 0033429309 Physical U.S. Company Address: 21908 Valley Blvd., Walnut, CA 91789 Contact Person: Choon Kek Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different from Applicant): Signed: Signed: Printed name: Gavin Hsieh Printed name: Choon Kek Title: Product Manager Title: Chief Operating Officer Company Name: Acrox Technologies Co., Ltd. Company Name: 1PerfectChoice, Inc. Date: 5/11/2024 Date: 5/11/2024

Acrox Technologies Co., Ltd. Covered Equipment Certification Attestation Letter 5/11/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: PRDRX1H Acrox Technologies Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Gavin Hsieh Title: Product Manager Company Name: Acrox Technologies Co., Ltd. Date: 5/11/2024

Acrox Technologies Co., Ltd. Covered Equipment Certification Attestation Letter 5/11/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: PRDRX1H Acrox Technologies Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Signed: Printed name: Gavin Hsieh Title: Product Manager Company Name: Acrox Technologies Co., Ltd. Date: 5/11/2024

DATE : 5/11/2024 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name：Gavin Hsieh Title：Product Manager Company：Acrox Technologies Co., Ltd.

DATE : 5/11/2024 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Acrox Technologies Co., Ltd. Address:4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan <Signature> Name：Gavin Hsieh Title：Product Manager Applicant Company：Acrox Technologies Co., Ltd.

DATE : 5/11/2024 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: PRDRX1H Product Name: Wireless Receiver Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Gavin Hsieh Title：Product Manager Company：Acrox Technologies Co., Ltd.

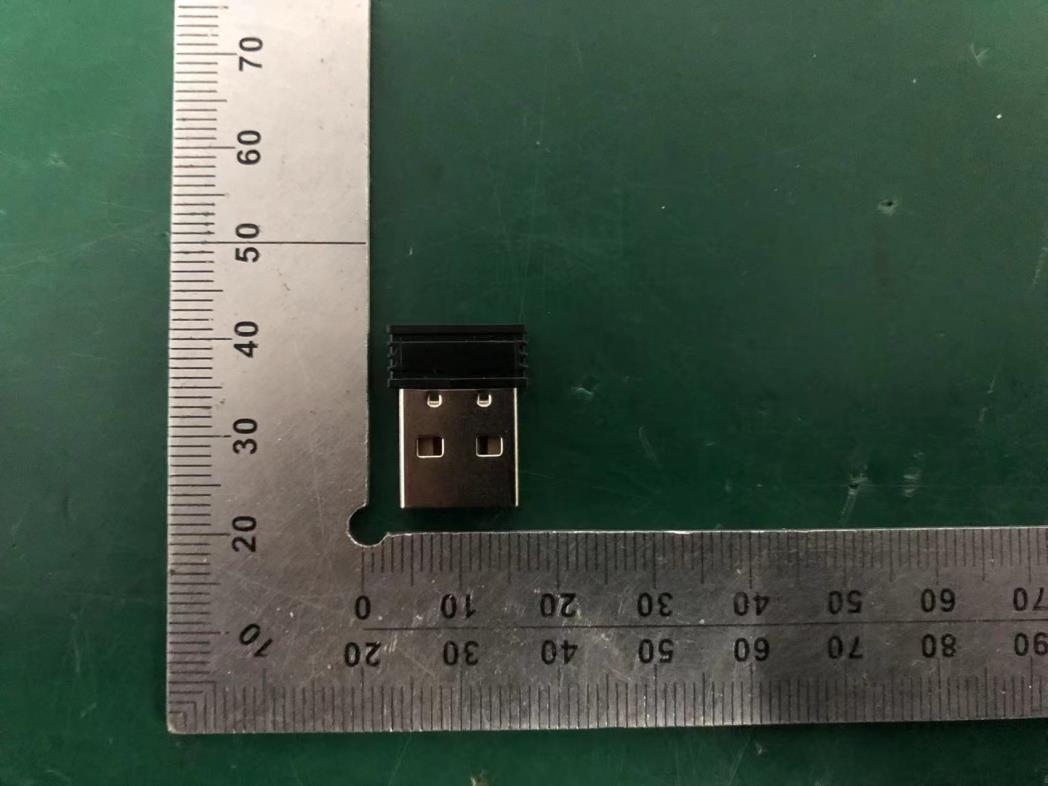

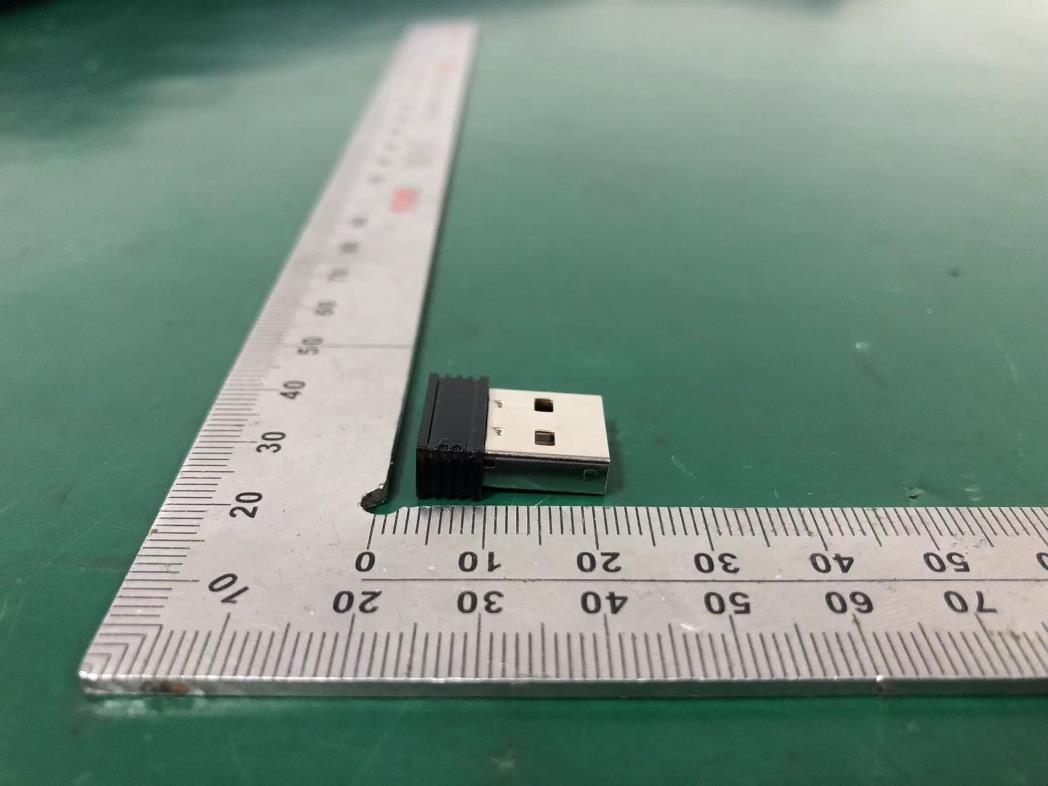

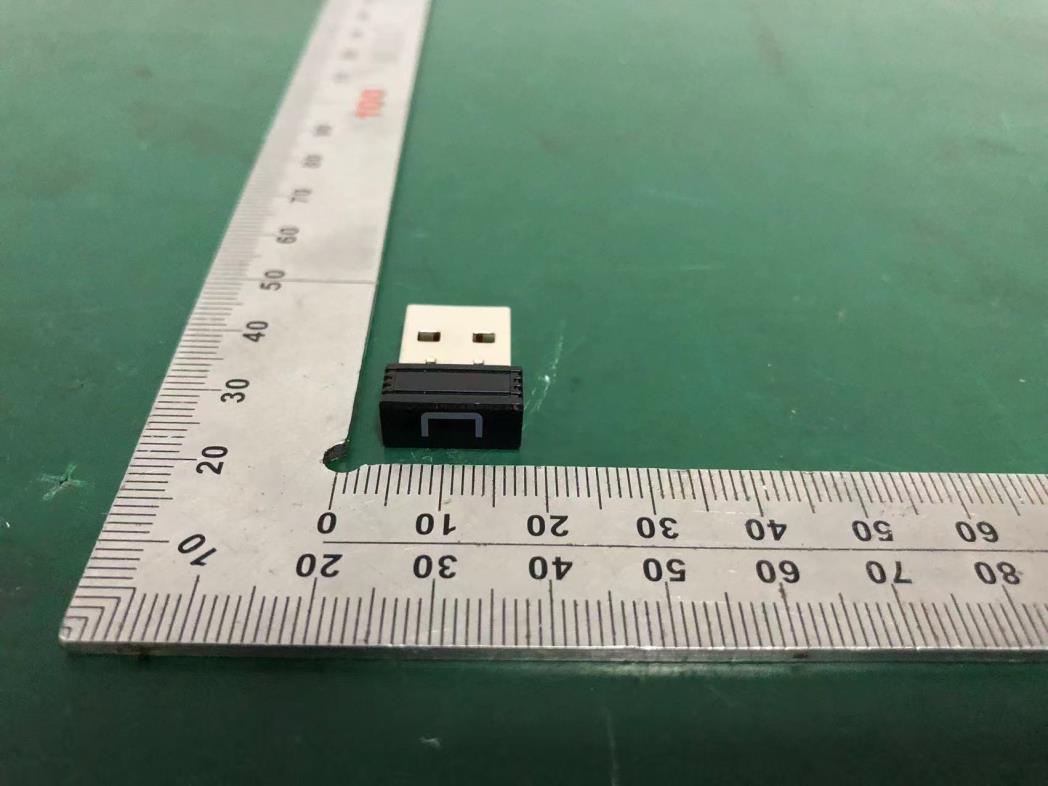

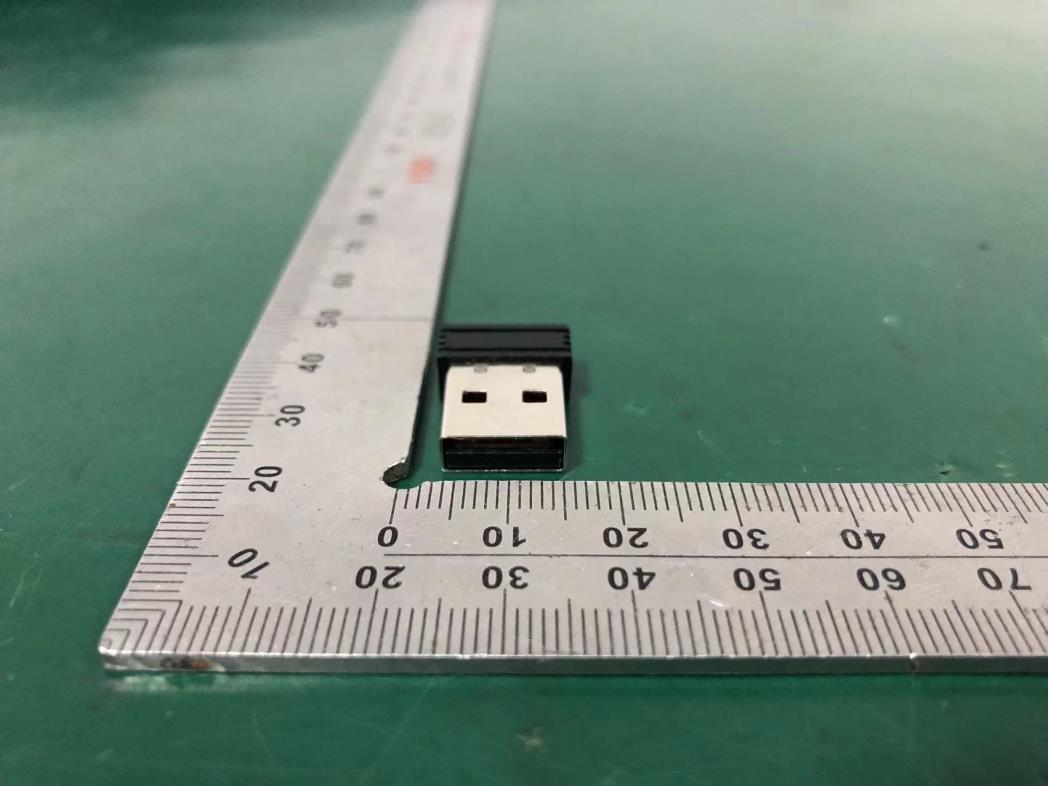

External Photos M/N: MQJ External Photos M/N: MQJ External Photos M/N: MQJ

Internal Photos M/N: MQJ Internal Photos M/N: MQJ Antenna

Page 1 of 3 Report No. ESTE-R2403076 FCC RF EXPOSURE REPORT Acrox Technologies Co., Ltd. Wireless Receiver Model Number: MQJ FCC ID: PRDRX1H Applicant: Acrox Technologies Co., Ltd. Address: 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2403076 Date of Test: Mar. 07, 2024~ Mar. 12, 2024 Date of Report: Mar. 14, 2024 Page 2 of 3 Report No. ESTE-R2403076 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 3 of 3 Report No. ESTE-R2403076 3. Evaluation Results For 2.4G SRD Field strength =75.53dBuV/m@3m P={ [10 (75.53/20) /10 6 *3] 2 /30 }*1000mW = 0.011mW< 2.72mW Note: 1. Limited= 3060*(0.5/20)^(- (where f is in GHz); 2. We choose 2.478GHz to calculate limit as lower frequency will have higher limits. End of Test Report

Page 1 of 52 Report No.ESTE-R2403075 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Acrox Technologies Co., Ltd. Wireless Receiver Model Number: MQJ FCC ID: PRDRX1H Applicant Acrox Technologies Co., Ltd. Address: 4F., No.89, Minshan St., Neihu Dist., Taipei City 114, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2403075 Date of Test: Mar. 07, 2024~ Mar. 12, 2024 Date of Report: Mar. 14, 2024 Page 2 of 52 Report No.ESTE-R2403075 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................ 5 1.1. Description of Device (EUT) ......................................................................................................... 5 1.2. Antenna Information ...................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................ 5 2. SUMMARY OF TEST ........................................................................................................................ 6 2.1. Summary of test result .................................................................................................................. 6 2.2. Test Facilities .................................................................................................................................. 7 2.3. Measurement uncertainty ............................................................................................................. 8 2.4. Assistant equipment used for test ............................................................................................... 8 2.5. Block Diagram ................................................................................................................................ 8 2.6. Test Mode ....................................................................................................................................... 9 2.7. Power Setting of Test Software ................................................................................................... 9 2.8. Channel List .................................................................................................................................. 10 2.9. Test Equipment List ..................................................................................................................... 11 3. FIELD STRENGTH OF FUNDAMENTAL .......................................................................................... 13 3.1. Limit ................................................................................................................................................ 13 3.2. Test Setup ..................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ......................................................................................................... 13 3.4. Test Procedure ............................................................................................................................. 14 3.5. Test Result .................................................................................................................................... 15 4. RADIATED SPURIOUS EMISSIONS AND BAND EDGE ................................................................... 22 4.1. Limit ................................................................................................................................................ 22 4.2. Test Setup ..................................................................................................................................... 24 4.3. Spectrum Analyzer Setting ......................................................................................................... 25 4.4. Test Procedure ............................................................................................................................. 26 4.5. Test Result .................................................................................................................................... 27 5. 20DB BANDWIDTH ....................................................................................................................... 39 5.1. Limit ................................................................................................................................................ 39 5.2. Test Setup ..................................................................................................................................... 39 5.3. Spectrum Analyzer Setting ......................................................................................................... 39 5.4. Test Procedure ............................................................................................................................. 39 5.5. Test Condition .............................................................................................................................. 40 5.6. Test Result .................................................................................................................................... 40 6. AC POWER LINE CONDUCTED EMISSIONS ................................................................................. 42 6.1. Limit ................................................................................................................................................ 42 6.2. Test Setup ..................................................................................................................................... 42 6.3. Spectrum Analyz…

Text truncated - open the document above for the full version.

DongleAntennaSpecification Antennaoverview 1.AntennaTypeandModel: Type:PCBAntenna Model:PIFAAntenna 2．Gain:about3.36dBi(peak) 3.AntennaDirectivityCoefficient:about-1@2450MHz 4.AntennaPolarizationcharacteristic:ellipticalpolarization 5.Insideoroutside:Inside 6.NameofManufacturer:ShenzhenBailiheTechnologyCo.,LTD(深圳市百里和科技有限公司) 7.NameofLaboratory:ShenzhenBailiheTechnologyCo.,LTD(深圳市百里和科技有限公司) DonglePIFAAntenna TheDongleantennaadoptstheultra-smallPIFAantenna,andbecauseofthelimited areaofPCB,thegainofantennawillbesmallerthanthatoftheotherantennas.The communicationdistancecanreachabout15~20meters.ThesizeoftheDongleModule PCBantennais9.9*2.5mm,andthethicknessofPCBis1mm.Thespecificsizeofthe antennaisshowninfigure1,thephysicalobjectisshowninfigure2. Figure1:DongleAntenna Figure2:DongleAntenna Theantenna'sS11testdataisshowninfigure3,coveringtheentire2.4Gfrequencyband. Figure3DongleAntennaS11 Figure4DongleAntennaS11 Thegainsimulationdataoftheantennaisshowninfigure4 NumberBrandValue R2Yageo0.5pF C3NC C4NC ChannelList-2.4G(MHz) 2402240424062408241024122414241624182420 2422242424262428243024322434243624382440 2442244424462448245024522454245624582460 2462246424662468247024722474247624782480 ANNEXATESTRESULTS A.1GainandEfficiency FrequencyGain(dBi)Efficiency(%) 2400MHz3.2257 2410MHz3.1458 2420MHz3.0857 2430MHz3.2756 2440MHz3.2956 2450MHz3.3656 2460MHz3.1054 2470MHz2.8753 2480MHz2.9654 2490MHz2.8953 2500MHz2.4552 1DRadiationPattern PHI=0 PHI=90 THETA=90 ANNEXBRADIATIONPATTERN B.1 3DPattern B1.13DPatternfor2400MHz B1.23DPatternfor2450MHz B1.33DPatternfor2500MHz
