PRKBLUE-MBluetooth PDA adapter

Getting started - page 1 1.0 Getting started .......................................................................................................................2 1.1 Package includes ........................................................................................................................................2 1.2 Setting up the hardware ...............................................................................................................................2 2.0 Installing the software ..............................................................................................................2 2.1 Check the installation ..................................................................................................................................2 3.0 Bluetooth preference screen ......................................................................................................2 3.1 Pairing basics .............................................................................................................................................2 3.2.1 Connecting to your phone ................................................................................................................3 3.2.2 Connecting to a computer ................................................................................................................3 3.2.3 Connecting to another Palm...............................................................................................................3 3.2.4 Settings........................................................................................................................................4 4.0 Palm Preferences ....................................................................................................................4 4.1 Network ...................................................................................................................................................4 5.0 Palm features .........................................................................................................................4 5.1 HotSync over Bluetooth ................................................................................................................................4 6.0 Troubleshooting ......................................................................................................................5 6.1 The Button ................................................................................................................................................5 6.2 Pairing problems .........................................................................................................................................5 6.3 HotSync problems .......................................................................................................................................5 6.4 Discoverable mode ......................................................................................................................................5 7.0 Limitations.............................................................................................................................6 8.0 BlueM regulatory information......................................................................................................6 8.1 FCC approval .............................................................................................................................................6 8.2 Canadian RFI Statment..................................................................................................................................7 8.3 European Union (EU) and EFTA........................................................................................................................7 8.4 Bluetooth..................................................................................................................................................7 9.0 Technical data.........................................................................................................................7 Getting started - page 2 1.0 Getting started 1.1 Package includes You should have in your possession a BlueM and a CD containing all the software you will need to take full advantage of this Bluetooth device.This manual should be sufcient help to get you up and running with your new BlueM. 1.2 Setting up the hardware The BlueM is to be connected to the base of the Palm.You will hear a clicking sound when it snaps on successfully.It uses power from the Palm, so you do not need an external cable of any kind. 2.0 Installing the software Make sure you have the Palm desktop installed and working on your computer. Then place your Palm in the cradle.The software needed for the BlueM is located on the CD labelled Installation Disk.Put it in your CD-player and the Installation program will start automatically (if not, press the Start-menu and choose Run.Type the letter of your drive e.g d:and click on Autostart). Follow the installation instructions,and the installation should proceed without any problems. 2.1 Check the installation After the installation you will nd a new menu choice, on your Palm,in Prefs called Bluetooth preference screen. To nd it, click the Application button followed by the Prefs icon.This application (as described in 3.0) is the main one you need for using the Bluetooth link. Tap on it and proceed to the next step in this manual. 3.0 Bluetooth preference screen The Bluetooth preference screen is the link to hook up your Palm with other Bluetooth devices.It is a user-friendly way to nd, add and keep track of your Bluetooth devices. The process of linking up other Bluetooth devices is called Pairing, and will be referred to as that from now on. Continue to 3.1 Pairing basics for the pairing basics. 3.1 Pairing basics From here your can connect your Palm to a Bluetooth device of your choice:To do this you must have your Bluetooth plug connected on your Palm.Fo…

Text truncated - open the document above for the full version.

September 10, 2001 CONFIDENTIALITY REQUEST CKC Certification Services, 4933 Sierra Pines Dr., Mariposa, CA 95338, Re: Tactel AB application for Hybrid Spread Spectrum System, FCC ID:PRKBLUE-M Gentlemen: Tactel AB Norra Vallgatan 64, Malmo Lomma, Sweden SE-21122, requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application such that the identified material will be withheld from public inspection following the grant of this authorization. This material, as indicated by request for confidentiality of the item during the electronic submission process and further identified below, includes: Circuit diagrams , block diagram, bill of material and all schematics Regards, Gerald Schmidt, Cetecom ICT Services GmbH, Germany Untertuerkheimer Strasse 6-10 D-66117 Saarbruecken

Product Equality Declaration We, Tactel AB Ulf Estberg Norra Vallgatan 64 SE-211 22 Malmö Sweden declare on our sole responsibility that the product Blue m is in all relevant parts identical to the product BlueT Only the denomination has changed. ( Company (Address), Point of contact (Name, Tel, Fax, Email) Place, Date, Signature and Company stamp .

BlueT Differences from Blue5 Tactel AB Norra Vallgatan 64 SE-211 22 Malmö Sweden Tel: +46 (0)40 250 600 BlueT Differences from Blue5Page 1 of 4 Date: 11/8/2001 Table Of Contents Table Of Contents......................................................................................... 1 1. Scope....................................................................................................... 2 2. General Description............................................................................... 2 3. Component differences.......................................................................... 3 BlueT Differences from Blue5Page 2 of 4 Date: 11/8/2001 1. Scope The scope of this document is to describe the differences between the Tactel Blue5 and the BlueT from a safety point of view. 2. General Description The BlueT is build o n the Blue5 and all essential parts is the same. The software is exactly the same. The hardware is the same except for the components o n the Blue5 that handles the replicated port. These components has been taken away from the BlueT, for a more detailed description see Chapter3. There is a new design o n the plastic cover compared with the Blue5, but it is the same plastic material and the same label (except for the name difference). The BlueT also has a different connector compared with the Blue5. This is in order to fit the Palm m500/m505. BlueT Differences from Blue5Page 3 of 4 Date: 11/8/2001 3. Component differences The differences in the hardware is that there are some compo nents that appears on the Blue5, that do not appears on the BlueT. These components are listed in table 3.1. These components exists on the Blue5, but not on the BlueT Reference ValueQty Manufacturer DescriptionCOMMENT C16100n1SMD Capacitor C18100n1SMD Capacitor C19100n1SMD Capacitor C20100n1SMD Capacitor C21100n1SMD Capacitor C33100n1SMD Capacitor C34100n1SMD Capacitor C35100n1SMD Capacitor C38100n1SMD Capacitorhot-sync circuit C41100n1SMD Capacitor J110-pin1TactelCon. pads on PCB D3BAS 161PhilipsSMD switch diodehot-sync circuit U4Sipex SP3223ECY1MaximRs-232 Transceiver U14NC7SB3157P6X1Fairchild2:1 Multiplex/Demult Bus Switch Little wider footprint U15NC7SB3157P6X1Fairchild2:1 Multiplex/Demult Bus Switch Little wider footprint U16NC7SB3157P6X1Fairchild2:1 Multiplex/Demult Bus Switch Little wider footprint U17NC7SB3157P6X1Fairchild2:1 Multiplex/Demult Bus Switch Little wider footprint U19NC7SZ32P51FairchildSingle gate OR U10NC7S00P51FairchildSingle gate NANDAlt: Philips 74AHC1G00 U6NC7SZ04P51FairchildSingle gate INV R133R1SMD resistor 0402 1%hot-sync circuit R2100k1SMD resistor 0402 1%hot-sync circuit R1433R1SMD resistor 0402 1%hot-sync circuit Table 3.1 Components that appears on the Blue5, but not on the BlueT.

Made in Sweden 534015/1 R1A FOR HOME OR OFFICE USE 0107 0682 FCC ID:PRKBLUE-M Tested to comply with FCC Standards M

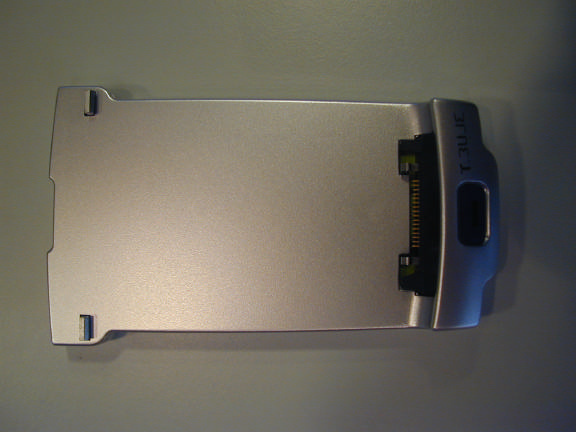

BlueT TCF Page 3 of 42 Date: 8/7/2001 1 Introduction The BlueT is an add-on device for the Palm500/505 that enables your PDA to communicate over Bluetooth with other Bluetooth devices. The BlueT uses pre-qualified components to implement lower layers of the Bluetooth stack, that is the radio, baseband, link manager, HCI, L2CAP, SDP and RFCOMM. It supports the Bluetooth profiles GAP, SDAP, SPP and DUN. These profiles are implemented by Tactel as software running on the BlueT unit. Tactel also presents software running on the Palm, which enables the Palm to control mobile phone functions over the Bluetooth link. 2 Architecture Application Program Interface (TTConnectLib API) VDRV, Dialup Networking Profile, incoming VDRV, Dialup Networking Profile, outgoing Radio (RF) Baseband (BB) Link Manager (LM) L2CAP RFCOMM SDP Tactel application implementing (DUN, SPP) Tactel protocol Inside Blue5 Inside Palm Bluetooth preferences screen VDRV, Serial Port Profile out AT-commands PPP TCP/IP Web-/WAP- browser Terminal programs/Games and other applications Prequalified Implemented by tactel Implemented in PalmOS VDRV, Serial Port Profile in Figure 2-1 The architecture of the BlueT BlueT-TCF, version 1.0 Page 4 of 42 Date: 8/21/2001 2.1 Radio The BlueT radio is implemented by the “Ericsson Bluetooth Radio ROK 101 002/1”. This component is a Bluetooth pre-qualified component. 2.2 Baseband and Link Manager The BlueT baseband and Link Manager are implemented by the Bluetooth pre- qualified Ericsson component “IrmaB HCI R1A” (BB Controller: ROP 101 1112/C P5A and LM FW: P11A). This component is unchanged and the functionality of the BlueT for those layers is the same as for the Bluetooth pre-qualified component. 2.3 L2CAP, SDP and RFCOMM The L2CAP, SDP and RFCOMM layers are implemented by the Bluetooth pre- qualified Ericsson component “Bluetooth HOST Stack CNX 901 184” compiled for the ARM7TDMI processor that is used inside the BlueT. The BlueT functionality of these layers is the same as for the Bluetooth pre-qualified component. 2.4 GAP, SDAP, SPP and DUN As seen in figure 2-1 (page 4) there is a Tactel application inside the BlueT. This application implements the supported profiles GAP, SDAP, SPP and DUN. It also handles the communication protocol with the software inside the Palm. This protocol is a packet-based protocol developed at Tactel to be optimized for the special environment. The protocol supports multiplexing of data flowing from other Bluetooth devices and simultaneous control of Bluetooth links. This enables several RFCOMM Bluetooth connections between two devices and in future versions easy support for multipoint connections. The protocol is designed so that most critical Bluetooth functions are implemented inside the BlueT. The electrical interface is RS232 with ESD protected drivers (±15KV Human Body model, ±15KV IEC1000-4- 2 Air Discharge, ±8KV IEC1000-4-2 Contact Discharge). 2.5 The applications inside the Palm The software written by Tactel inside the Palm consists of three layers. The lowest layer is the TTConnectLib, which is a Palm OS library (see appendix-API reference for TTConnectLib section 2.6). This library allows other applications to take advantage of Bluetooth. The library implements the Tactel protocol and also handles multiplexing with several applications. The next layer is “virtual drivers”. The following “virtual drivers” are implemented: Dialup networking, outgoing: This is used to establish a normal dial-up networking connection to a dial-up networking gateway. BlueT-TCF, version 1.0 Page 5 of 42 Date: 8/21/2001 Dialup networking, incoming: This is used to establish a dial-up networking connection to a dial-up networking gateway, when an incoming call is expected. Serial Port Profile Out: This is used to establish a Serial port profile connection when (Role Device A). Serial Port Profile In: This is used to wait for an incoming Serial Port Profile connection (Role Device B). These “virtual drivers” uses the TTConnectLib to establish connections with other Bluetooth devices. The “virtual drivers” is a Palm OS 3.3 and later concept that enables existing applications, like dialup networking, to work with Bluetooth without modifications. The third layer is the “Bluetooth preferences screen” which uses the TTConnectLib directly to search for other Bluetooth devices and configure the behavior (passkey mode, Bluetooth device address) of the virtual drivers. BlueT-TCF, version 1.0 Page 6 of 42 Date: 8/21/2001 3 Hardware Description 3.1 General Hardware Description The hardware is based on Ericsson Bluetooth chipset. The main components are the Bluetooth Radio (U2, see section 3.5 Component Placement-Top and section 3.7 Bill of Material), the Baseband processor (U1) and flash memory (U3). A reset component (U12) is used for reset the Bluetooth components when needed. The RS-232 Transceiver (U4) handles the connection to the Palm, i.e. translates the signal to meet the RS-232 standard. The power supply to the device is taken from the Palm and is regulated to 2.8 and 3.0V, this is done by the Dual LDO (U11). The 2.8V is used to power the Bluetooth components (U1, U2 and U3) and the switch regulator (U9) which provides the necessary voltage for the Blue LED (D2). All other components are supplied with the 3.0V voltage. The voltage is shut of when no RS232 signals are detected on the Palm connector (J1). The antenna is integrated with the PCB (U8).

RF exposure compliance issues: This device is only used with a handheld computer such as a palm pilot with no provision to connect to any other type of device. However, the maximum rf EIRP power output from the module is less than 1 milliwatt. If the entire rf power output were absorbed by 1 gram of tissue (not possible considering typical rf circuits), the SAR limit would still not be exceeded. Further, with a separation distance of 20 cm or greater, the MPE limits are well above the potential a 1 milliwatt device is capable of producing.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of 61 PagesPage 1 (61) Test report no.: 5_3020_4-A/00 FCC Part 15.247 / CANADA RSS-210 BlueT Accredited Testing Laboratory DAR-Registration number: TTI-P-G 166/98-20 CETECOM ICT Services GmbH Test report nr.:5_3020_4-A/00Issue date:05.03.01Page 2 (61) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G 166/98-20 CETECOM ICT Services GmbH Test report nr.:5_3020_4-A/00Issue date:05.03.01Page 3 (61) 1.3Details of applicant Name :Tactel AB Street :Norra Vallgatan 64 City :SE-21122 Malmö Lomma Country :Sweden Telephone:+46 (0)40 250 600 Telefax :+46 (0)40 250 601 Contact :Mr. Ulf Estberg Telephone:+46 (0)40 250 640 1.4Application details Date of receipt of application : 12.06.01 Date of receipt of test item : 04.07.01 Date of test : 04.07.01 1.5Test item Type of equipment :Radio LAN Type designation:BlueT Manufacturer:applicant Street: City: Country: Serial number:HW/SW: PBA 313 01/23 R2A , ROK 101 002/1 P9A Additional informations:: Frequency:2400 – 2483.5 MHz Type of modulation:1M00FXD / 79M8FXD (FHSS) Number of channels :79 Antenna:integral antenna Power supply:3,6 V DC from PalmTop Output power:EIRP: 0,71 mW Type of equipment:Temperature range : 0°C - +40°C 1.6Test standards: FCC Part 15 §15.247 CANADA RSS-210 CETECOM ICT Services GmbH Test report nr.:5_3020_4-A/00Issue date:05.03.01Page 4 (61) 2 Technical test 2.1Summary of test results The radiated measurements were performed verticalyand horizontal The antenna gain measurement was performed by the difference between conducted and radiated output measurement. All measurement settings are according to FCC 15.35, 15.205, 15.209, 15.247 and the „Measurement guidelines for FHSS systems“. The product fullfills also the requirements for CANACA RSS-210 No deviations from the technical specification(s) were ascertained in the course of the tests performed. Final verdict : PASS Technical responsibility for area of testing : 05.07.01RSC 8411Berg M. DateSectionNameSignature Technical responsibility for area of testing : 05.07.01RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report nr.:5_3020_4-A/00Issue date:05.03.01Page 5 (61) 2.2Testreport TEST REPORT Testreport no. : 5_3020_4-A/00 CETECOM ICT Services GmbH Test report nr.:5_3020_4-A/00Issue date:05.03.01Page 6 (61) TEST REPORT REFERENCE LIST OF MEASUREMENTS ParagraphPARAMETER TO BE MEASUREDPAGE Transmitter parameters § 15.204Antenna gain 7 § 15.247 (a) Carrier frequency separation8 § 15.247 (a)Number of hopping channels9 § 15.247 (a)Time of occupancy (dwell time)13 § 15.247 (d) Power spectral density (Inquiry/Page mode)18 § 15.247 (a)(1)Spectrum bandwidth of a FHSS System19 § 15.247 (b)(2)Maximum peak output power23 §15.247Band edge compliance28 § 15.247 (c)(1)Emission limitations 36 Receiver parameters § 15.209Spurious radiations - Radiated49 Test equipment listing54 Photographs of the equipment56 CETECOM ICT Services GmbH Test report nr..: 5_3020_4-A/00Issue Date: 05.03.01Page 7 (61) Equipment under test : BlueT Ambient temperature: 23°C Relative humidity : 41% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) - Antenna GainSUBCLAUSE § 15.204 The gain is –1,2 dBi (measured effectiv radiated power over dipol– measured conducted power with a temporary RF- connector) CETECOM ICT Services GmbH Test report nr..: 5_3020_4-A/00Issue Date: 05.03.01Page 8 (61) Equipment under test : BlueT Ambient temperature: 23°C Relative humidity : 41% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 Carrier frequency separation §15.247(a) A UnitdBm Ref Lvl 5 dBm Ref Lvl 5 dBm RF Att 30 dB 1MAX1MA 300 kHz/Center2.441 GHzSpan3 MHz RBW 10 kHz VBW 10 kHz SWT 76 ms -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 1 2 Marker 1 [T1] -9.01 dBm 2.43999900 GHz 1 [T1] -9.01 dBm 2.43999900 GHz 1 [T1] 0.10 dB 1.00400802 MHz 2 [T1] 0.01 dB 2.00200401 MHz Date: 4.JUL.2001 11:38:14 CETECOM ICT Services GmbH Test report nr..: 5_3020_4-A/00Issue Date: 05.03.01Page 9 (61) Equipment under test : BlueT Ambient temperature: 23°C Relative humidity : 41% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 Number of hopping channels§15.247(a) Channel 1 - 21 A UnitdBm Ref Lvl 5 dBm Ref Lvl 5 dBm RF Att 30 dB 1MAX1MA 2.7 MHz/Center2.409 GHzSpan27 MHz RBW 300 kHz VBW 300 kHz SWT 5 ms -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 1 Delta 1 [T1] 0.30 dB 20.00801603 MHz 1 [T1] -0.66 dBm 2.40195090 GHz 1 [T1] 0.30 dB 20.00801603 MHz Date: 4.JUL.2001 11:40:47 The number of hopping channels is 79. CETECOM ICT Services GmbH Test report nr..: 5_3020_4-A/00Issue Date: 05.03.01Page 10 (61) Equipment under test : BlueT Ambient temperature: 23°C Relative humidity : 41% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listi…

Text truncated - open the document above for the full version.

REPORT1 (11) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. EMN/ERH/TA Frank Hooijschuur, ECS/UT/UV Leif Wilhelmsson EMN/ERH/TA-00:2502 Dokansv/Godk - Doc respons/ApprovedKontr – CheckedDatum - Date RevFile ECS/UM/VC Anders Svensson2000-06-21R1procgainresults.doc EN/FAD 109 251 R1B PROCESSING GAIN MEASUREMENT RESULTS OF ERICSSON’S BLUETOOTH RECEIVER USING THE CW- JAMMING MARGIN METHOD Abstract This paper presents results concerning the processing gain (PG) for Ericsson’s Bluetooth receiver when measured according to FCC’s CW- jamming margin method. The PG from the direct sequence spreading caused by the access code in page and inquiry mode is found to be about 4 dB for three different access codes, with considerably different properties. Therefore, since Bluetooth in page and inquiry is considered as a hybrid system which is required to have a total PG of 17 dB, and the PG from the frequency hopping part is 15 dB, it is concluded that Ericsson’s receiver passes the test with a margin of about 2 dB. REPORT2 (11) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. EMN/ERH/TA Frank Hooijschuur, ECS/UT/UV Leif Wilhelmsson EMN/ERH/TA-00:2502 Dokansv/Godk - Doc respons/ApprovedKontr – CheckedDatum - Date RevFile ECS/UM/VC Anders Svensson2000-06-21R1procgainresults.doc EN/FAD 109 251 R1B Contents 1 Introduction 2 Description of the Method 3 Measurement results 4 Conclusions REPORT3 (11) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. EMN/ERH/TA Frank Hooijschuur, ECS/UT/UV Leif Wilhelmsson EMN/ERH/TA-00:2502 Dokansv/Godk - Doc respons/ApprovedKontr – CheckedDatum - Date RevFile ECS/UM/VC Anders Svensson2000-06-21R1procgainresults.doc EN/FAD 109 251 R1B 1 INTRODUCTION FCC has expressed that they preferably would like the processing gain obtained from the DS part to be measured by a (possibly modified) CW jamming margin method. Ericsson has performed such a measurement, and in this paper it is described how this measurement is performed together with the result showing that the PG from the DS part is about 4 dB. Consequently, it is concluded that Ericsson’s receiver has a PG from the DS part which exceeds the required 2 dB, and thus a total PG exceeding 17 dB, so that it indeed fulfils the by FCC imposed requirements. The remaining part of the paper is organized as follows. In Section 2, the CW- jamming method is recapitulated, and all parameter values that have to be determined for an measurement are given. Measurement method and results are given in Section 3. Finally, in Section 4, conclusions are drawn. 2 DESCRIPTION OF THE METHOD Referring to FCC §15.247 (e)(2), the processing gain may be determined as measured using the CW jamming margin method, which, for the sake of completeness, is repeated here: A signal generator is stepped in 50 kHz increments across the passband of the system, recording at each point the generator level required to produce the recommended Bit Error Rate (BER). This level is the jammer level. The output power of the intentional radiator is measured at the same point. The jammer to signal ratio (J/S) is then calculated, discarding the worst 20 % of the J/S data points. The lowest remaining J/S ratio is used to calculate the processing gain, as follows: Gp = S/N + Mj + Lsys, where Gp = the processing gain of the system, S/N = signal to noise ratio required for the chosen BER, Mj =J/S ratio, and Lsys = system losses. Note that total losses in a system, including intentional radiator and receiver, should be assumed to be no more than 2 dB. In Bluetooth, the despreading is accomplished by correlating the received bit stream with the bit pattern of the access code. Then the value of this correlation determines whether or not the access code should be considered as present. For Bluetooth, a “bit error” corresponds to that either the access code is present, but falsely rejected, or that the access code is absent but falsely accepted. The probability of the latter is negligible when compared to the former for any reasonable user scenario, and thus the false rejection ratio (FRR) is the figure of merit when evaluating the PG of the system. To reflect this, the CW jamming margin method, when applied to the Bluetooth system is interpreted as follows: REPORT4 (11) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other)Nr - No. EMN/ERH/TA Frank Hooijschuur, ECS/UT/UV Leif Wilhelmsson EMN/ERH/TA-00:2502 Dokansv/Godk - Doc respons/ApprovedKontr – CheckedDatum - Date RevFile ECS/UM/VC Anders Svensson2000-06-21R1procgainresults.doc EN/FAD 109 251 R1B A signal generator is stepped in 50 kHz increments across the passband of the system, recording at each point the generator level required to produce the recommended false rejection ratio (FRR). This level is the jammer level. The output power of the intentional radiator is measured at the same point. The jammer to signal ratio (J/S) is then calculated, discarding the worst 20\% of the J/S data points. The lowest remaining J/S ratio is used to calculate the processing gain, as follows: Gp = S/N + Mj + Lsys, where Gp = the processing gain of the system, S/N = signal to noise ratio required for the chosen FRR, Mj =J/S ratio, and Lsys = system losses. Note that total losses in a system, including intentional radiator and receiver, should be assumed to be no more than 2 dB. It should here be noted that in order for the above test to be meaningful, the correct sampling time must have been found. If this is not the case, the BER would of course not be at an interesting level. For Bluetooth, the access code, whether in page, inquiry, or connection mode, is used to actually find the a suitable sampling point. 2.1 SYSTEM LOSSES In the calculation of Gp, it is stated that one may include a term to account for the system losses. For Bluetooth, the two major causes for system loss are by E…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report nr..: 5_3020_4-A/0001Issue Date:05.03.01Page 56 (61) Test site
