PRLTA-6950Deskpoint 2 (DP2)

Interepoch Technology, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 21, 2011
Application Purpose: Original Equipment
Date of Application: Jul 21, 2011
Equipment Note: Deskpoint 2 (DP2)
Frequency Range: 2422.00000000 - 2452.00000000
Company: Interepoch Technology, Inc.
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Test Report

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

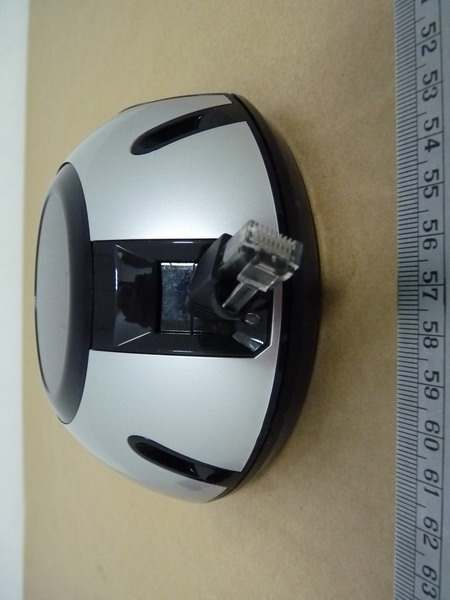

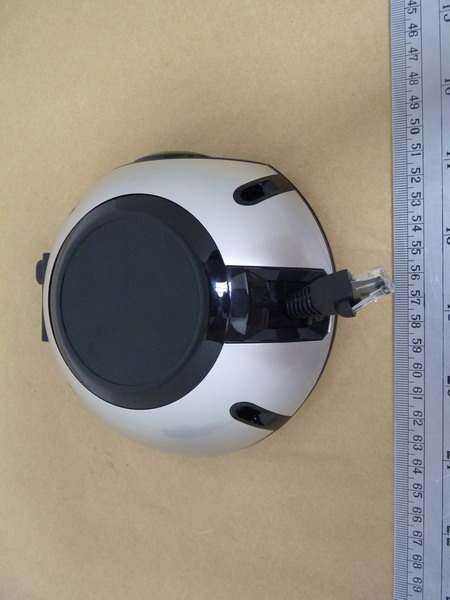

External Photos

Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 30 External Photos Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 30 Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 30 Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 5 of 30 Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 6 of 30 Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 7 of 30 Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 8 of 30 Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 9 of 30

Internal Photos

Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 10 of 30 Internal Photos Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 11 of 30 Registration number: W6M21106-11625-FCC FCC ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 12 of 30

RF Exposure Info

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 13.61 (dBm) Maximum peak output power at antenna input terminal: 22.96 (mW) Antenna gain(maximal): 0.5 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2437 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.005 (mW/cm²)

Test Setup Photos

Registration number: W6M21106-11625-FCC FC C ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 27 of 30 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21106-11625-FCC FC C ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 28 of 30 Above 1GHz Registration number: W6M21106-11625-FCC FC C ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 29 of 30 RF Registration number: W6M21106-11625-FCC FC C ID: PRLTA-6950 Worldwide Testing Services(Taiwan) Co., Ltd. Page 30 of 30 Set Up Photo of Conducted Emission

Contact Information

Applicant

Eddie Wang(Department Manager)

[email protected]+886 2 8665 0305Fax: +886 2 8665 0306

Technical Contact

Worldwide Testing Services (Taiwan) Co., Ltd.Tse-Ming Chang

[email protected]+886-2-6606-8877

6F., No. 58, Lane 188, Ruey Kuand Rd., Neihu · Taipei · Taiwan

Test Firm

Worldwide Testing Services (Taiwan) Co. Ltd.Chang Tse-Ming

[email protected]886266068877Fax: 886266068879

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	12.16 mW

Confidentiality

Long Term

Grant Notes

Power output listed is the maximum combined conducted power. The device is operating in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
