PSCNAVIS-PROMPEG Card

FCC NOTICETHIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION:(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION . This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. - Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipm ent. Such modifications could void the user ’ s authority to operate the equipment.

C:\windows\TEMP\probonholdemail.doc TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: tei@t imcoengr.com 20 July 2001 SUBJECT: PENTAMEDIA CO., LTD. FCC ID: PSCNAVIS-PRO To Whom it May Concern; The EUT in this application is both a computer peripheral and a TV receiver. The TV receiver was verified according to the test laboratory. Sincerely, Sid Sanders

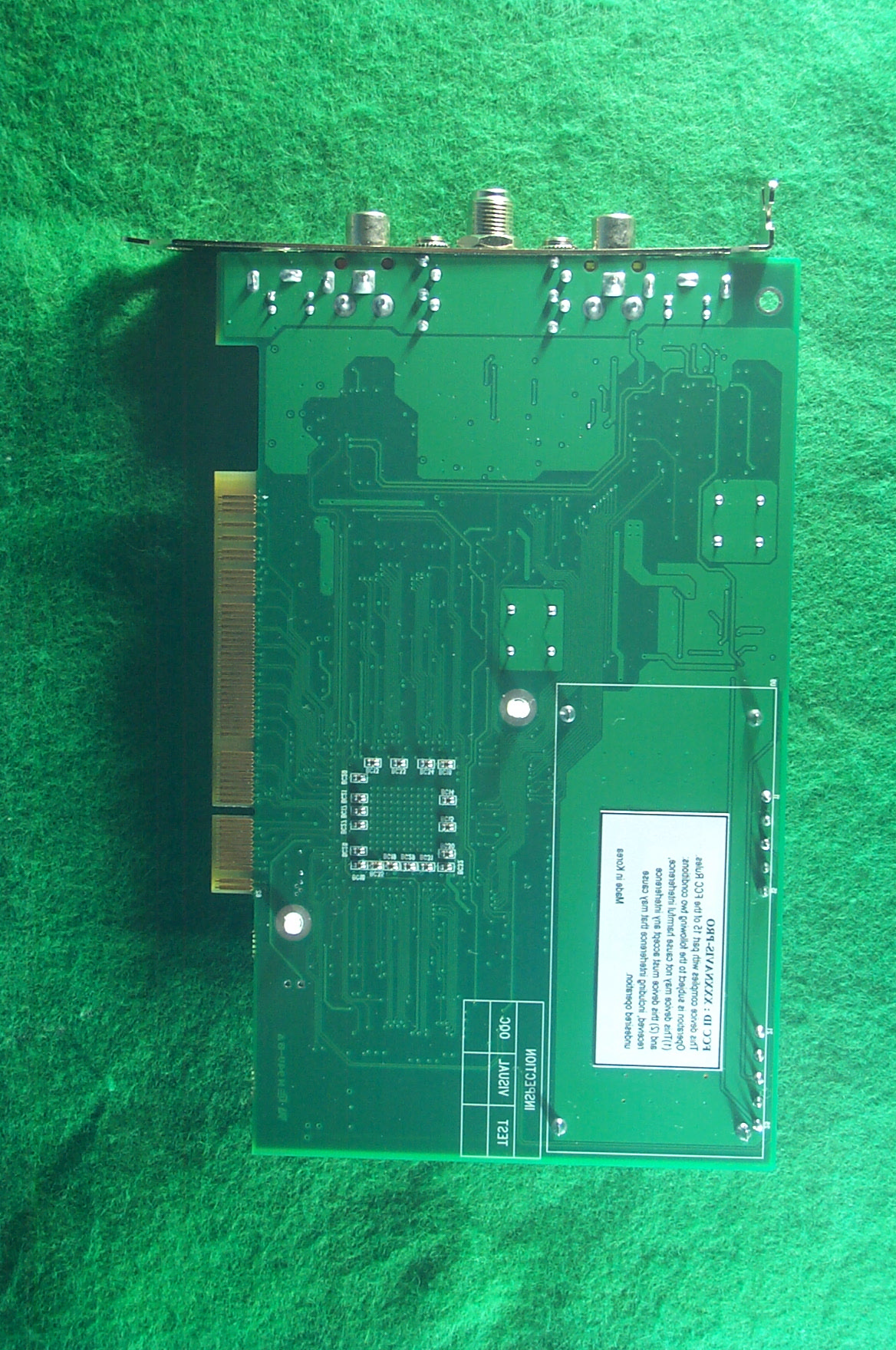

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PSCNAVIS-PRO This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO Internal Photographs of EUT

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO Certificate of Compliance Test Report No.: SKTOS-01092 NVLAP CODE : 200220-0 Applicant: PentaMedia Co., Ltd. Applicant Address: 4Fl., Sooam Building 66-1, Yangjae-Dong, Seocho-Ku, Seoul, Korea Product: MPEG CARD FCC ID: PSCNAVIS-PRO Model No.: NAVIS-PRO Receipt No.: SKE20010703-539 Date of receipt: July 03, 2001 Date of Issue: July 12, 2001 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:E.K. Seong Tested by:K.W.Song/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. EMISSION Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS 10 862970/019 02.2002 Artificial Mains Network ESH2-Z5 834549/001 10.2001 EMI Receiver ESHS10 835871/002 10.2001 Artificial Mains Network ESH3-Z5 836679/018 10.2001 Conducted Cable N/A N/A 11.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2002 EMI Receiver ESVS 10 834468/008 11.2001 Spectrum Analyzer R3361A 11730187 06.2001 Amplifier 8447F 3113A05153 05.2002 Log Periodic Antenna UHALP9107 91071238 02.2002 Biconical Antenna BBA9106 N/A 02.2002 Open Site Cable N/A N/A N/A Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A N/A Amp & Spectrum connection cable N/A N/A N/A 50Ω Switcher MP59B M93083 N/A 2.3 Test Date Date of Application : July 03, 2001 Date of Test : July 06, 2001 ~ July 10, 2001 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO 3. Description of the tested samples The EUT is the MPEG CARD. 3.1 Rating and Physical Characteristics z PC Bus Type : PCI 2.1 z Video Input : 1 Composite z Video Output : 1 Composite, 1S-VHS z Video Input : type(format) : NTSC, PAL z Audio Input : Analog stereo line input z Audio Output : Analog stereo line output z Compression : CBR (constant Bit Rate), VBR(Variable Bit Rate) z High Quality Time GOP Structure : I, B, P Frames z Frames : 30 Frames/sec z Output Stream - VCD (MPEG1, 352 x 240, Video 1.15Mbps, Audio 224Kbps) - MPEG1-2M (MPEG1, 352 x 240, Video 2Mbps, Audio 224Kbps) - SVDC (MPEG2, 480 x 480, Video 2.5Mbps, Audio 224Kbps) - MPGE2-4M (MPEG2, 720 x 480, Video 4 Mbps, Audio 384Kbps) - MPEG2 -6M (MPGE2, 720 x 480, Video 6Mbps, Audio 384Kbps) - MPEG2-8M (MPEG2, 720 x 480, Video 8Mbps, Audio 384Kbps) - MPEG2-10M (MPEG2, 720 x 480, Video 10Mbps, Audio 384Kbps) z Environment - Operating Temperature : 0 ~ 60°C - Storing Temperature : -55 ~ 85°C - Humidity : 10% ~ 90% z Dimension : 170 x 105mm 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO 4. Measurement Conditions The operating voltage of EUT is supplied by the PC. ( The PC input voltage is AC 120V, 60Hz) 4.1 Modes of Operation The EUT was in the following operation mode during all testing; The EUT was installed on the PC and connected with the camera. Test was made on the mode of displaying picture on the screen and saving AV file. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Monitor View Tech VT-141 N/A N/A Keyboard Jing Mold LKB-0107 10209670 N/A Mouse Logitech M-S48 LZH04608022 N/A Printer H.P. 2225C 3245512493 DSI6XU2225 Camera LG LC-AH40D 60800972 N/A Adaptor 1 (Monitor) L.S.E. LSE9802131240 2K1711039 …

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01092 FCC ID : XXXNAVIS-PRO Photograph 2: Setup for Radiated Emissions
