PSCPENTAUPLUSDigital Satellite PC Receiver

User’s Guide Digital Satellite Internet PC Receiver ( Exteral USB type ) Pent @@ @@ @ U Pent@U Pent@U © Copyright 1999 Pentamedia Co., Ltd. All right reserved. All other trademarks are the properties of their respective owners. Product specification and product availability are subject to change without notice. PentaMedia Co., LtdPentaMedia Co., Ltd PentaMedia Co., LtdPentaMedia Co., Ltd PentaMedia Co., Ltd. 4Fl. Sooam Bldg. 66-1 Yangjae- Dong, Seocho-Ku, Seoul, Korea 137- 130 Tel: +82-2-3463-3164 Fax: +82-2-3461-9486 Email: [email protected] PentaMedia (Europe) Ltd.PentaMedia (Europe) Ltd. PentaMedia (Europe) Ltd.PentaMedia (Europe) Ltd. PentaMedia (Europe) Ltd. Cedar House, Cedar Lane, Frimley, Camberley, GU16 5HY U.K. Tel : +44 (0) 1276 675858 Fax : +44 (0) 1276 675959 Email : [email protected] http: www.pentamedia.com 3 Warranty This PentaMedia product is warranted for the period of one year from the original date of purchase, against defective materials and workmanship. In the event that warranty service is required, customer should return the prod- uct to PentaMedia, authorized resellers or authorized service center. Warranty Conditions 1. The warranty is valid only if, when warranty service is required, the war- ranty card is fully and properly completed and is presented with the origi- nal invoice or sales slip or confirmation, and the serial number on the prod- uct has not been defaced. 2. PentaMedia’s warranty is limited to the reconditioning or, at its discretion, replacement of the product or the defective part. 3. Authorized parties of PentaMedia must carry out warranty reconditioning. No re-imbursement will be made for repairs carried out by non authorized parties of PentaMedia and, any such repair work and damage to the prod- ucts caused by such repair work will not be covered by the warranty. 4. This product is not considered to be defective in materials nor workman- ship by reason that it requires adaptation in order to conform to national or local technical or safety standards in force in any country other than the one for which the product was originally designed and manufactured. The war- ranty will not cover, and no re-imbursement will be made for such adapta- tion or any damage, which may result. 5. The warranty covers none of the followings: a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear. b) Cost relating to transport, removal or installation of the product. c) Misuse, including the failure to use this product for its normal purposes or incorrect installation. Warranty 4 Pent @@ @@ @ U - User’s Guide d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect main voltage or any other cause beyond the con- trol of PentaMedia. 6. The warranty is valid for any person who legally acquired possession of the product during the warranty period. 7. During the applicable warranty period, the product returned to us or autho- rized parties by PentaMedia must be pre-authorized by us with a return material authorization no. Marked on the outside of package. Replacement or reconditioning for the product may be obtained by delivering the defec- tive product accompanied by a copy of the dated proof of purchase, sent prepaid, insured, and packaged appropriately. ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ Any part of this User’s Guide can be deleted or modified by discretion of manufacturer without prior notice to any users. Preface Thank for choosing Pent@U - high speed External Satellite Receiver with standard USB interface. This newly introduced product will bring a new experience to your PC life. Nowadays, PC is becoming an important part of our daily life and a critical tool for our personal and business purposes. The introduction of Internet has brought inno- vation to satisfy your demands for infor- mation covering most of areas, and intro- duction of Pent@U will satisfy your de- mands for high speed download of big files and contents and it can be used for Internet, Multicasting, WEB casting, etc. Pent@U propuses an easy installation to use not only for PC users, but also for notebook PC users. Content Warranty ............................................. 3 Preface ............................................... 5 Content .............................................. 6 1. Features & System - Parts ................. 7 General Features .................................. 8 System Requirement ............................ 8 Packaged parts ..................................... 8 2. Hardware Installation ........................ 9 How to Install ..................................... 10 3. Software Installation ........................ . 17 How to Install ..................................... 18 4. Program Start .................................... 21 Main Program Screen ......................... 22 Tuner ..................................................22 New ...................................................25 Transponder .......................................27 Exit .................................................... 28 5. Setting-Up Internet ............................ 29 How to Configure Transponder ........... 30 How to Configure Modem Connection .32 How to Setup Modem Connection ....... 33 Chapter 1 Features & System Parts 8 Pent @@ @@ @ U - User’s Guide General Features 1. Ability (To receive satellite broadcast and Internet data) - Controllable satellite local frequency (950 MHz ~ 2150 MHz) - Fine adjustment (0 MHz ~ 1.0 MHz) - Symbol rate (2 MSPS ~ 45 MSPS) - Viterbi rate - 1/2, 2/3, 3/4, 5/6, 7/8, Auto - Band control (C, KU) - LNB control (Hor, Ver) - 22K On/Off - DiSEqC 1.0 System Requirement 1. System requirement (Minimum requirement) - IBM PC or compatible - VGA card - VGA monitor (Screen refresh rate more than 60 Hz is recommended) - Windows 95(OSR2), 98 - Sound card (Optional) - Speaker (Optional) Packaged parts 1. Part 1. Pent@U Box 2. User's Guide 3. Program Install CD or Dis…

Text truncated - open the document above for the full version.

TUNER ANTENA C-CUBE DEMUX SAMSUNG CPU SDRAM FLASH MEMORY EDO DRAM LNB POWER TUNER POWER USB CONTROLLER XILINX GLUE LOGIC Pent@U+ Block Diagram

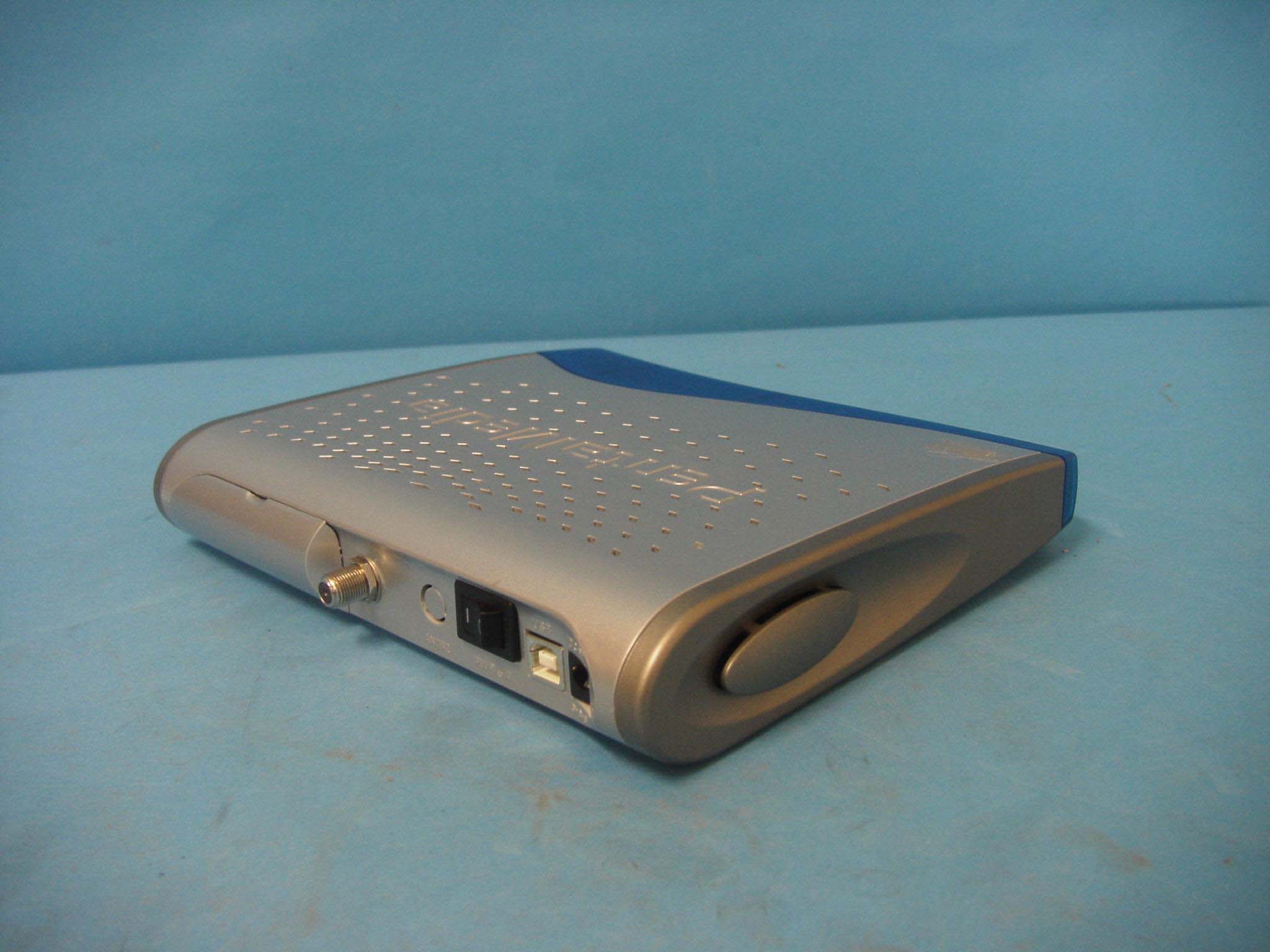

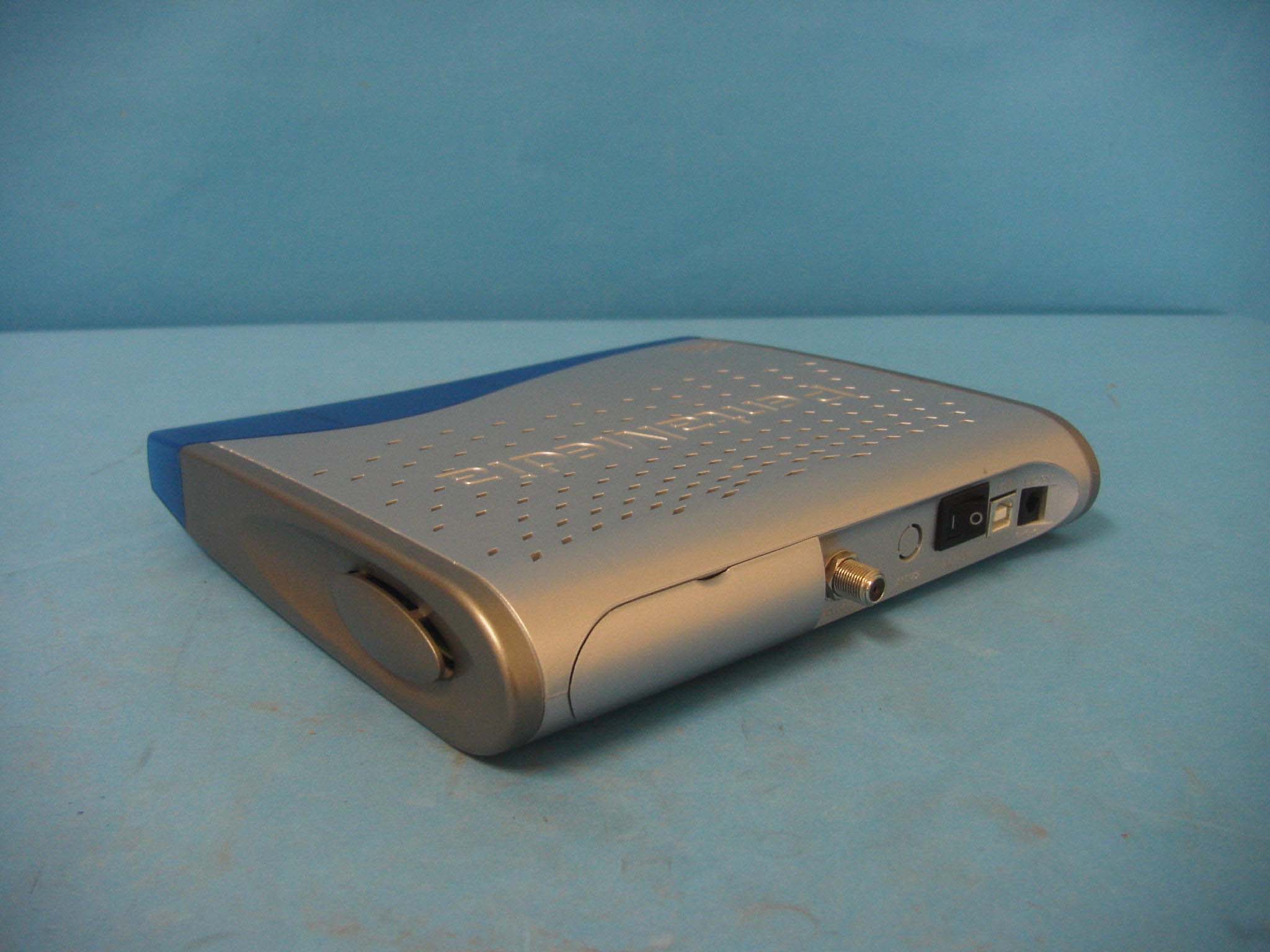

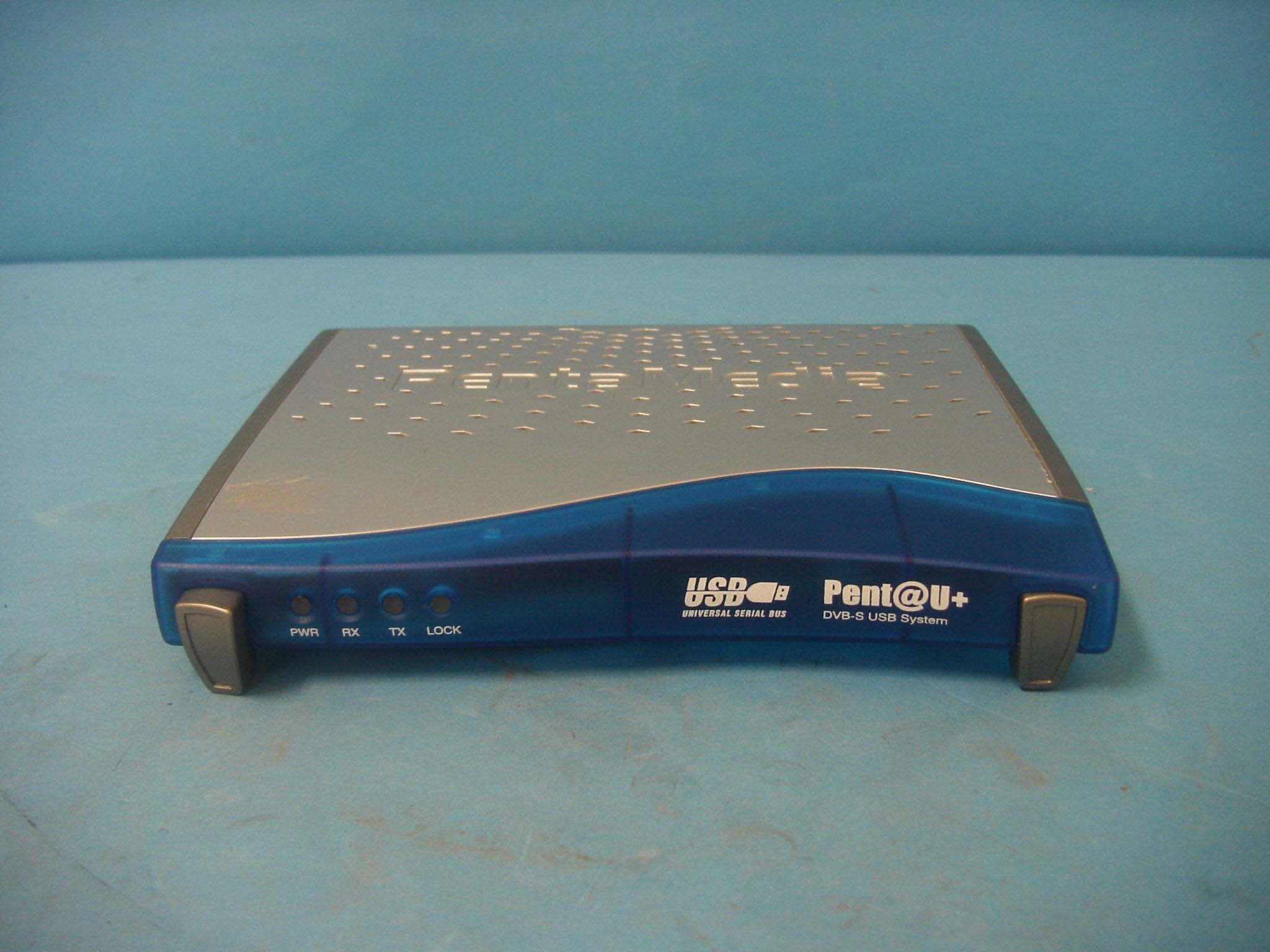

ID Label Sample & Location Information Digital Satellite Receiver Model Name: Pent@U+ This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: PSCPENTAUPLUS Made in Korea

File No. 02-IST-032/FB IST EMC LAB. Page 1 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 02-IST-032/FB Date of issue : Feb. 27, 2002 Model / Type No. : Pent@U+ ■ Basic □ Alternate Kind of product Brand name Applicant Manufacturer License holder Address : Digital Satellite Receiver : PentaMedia : PentaMedia Co.,Ltd. : PentaMedia Co.,Ltd. : PentaMedia Co.,Ltd. : 66-1, Yangjae-dong, Seocho-gu, Seoul, Korea Test result according to the regulation(s) „ Positive † Negative at page 3. This test report with appendix consists of 18 pages. The test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 02-IST-032/FB IST EMC LAB. Page 2 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page(s) Directory Test regulations Information of Test Laboratory Equipment under Test Test Conditions Test Result Test-setup (Photos) Test-setup (Figures) Summary 2 3 3 3 ~ 4 5 ~ 6 7 8 ~ 9 10 18 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 11 GHz 11~13 14~17 C) Appendix File No. 02-IST-032/FB IST EMC LAB. Page 3 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description : Tuner : Input : F-type 75 ohm Input Frequency : 950~2150 MHz Input Level : - 65 ~ -25 dBm LNB control : LNB supply voltage 13 or 18 V Antenna and LNB control 22 kHz tone Max. LNB supply current : 400 mA with short circuit and surge protection USB interface : USB interface: Version 1.1 compliant Maximum USB bus speed: 12 Mbps Demultiplexing : Max. no. section filtering: 32 PIDs Engine : RISC engine Descrambler : DVB descrambler Streams capture: PES or TS Date rate: 60 Mbps with 32 simultaneous PIDs Dimension : 210 x 180 x 40 mm File No. 02-IST-032/FB IST EMC LAB. Page 4 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Combination). Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : Standby. Operational Condition : After the device was connected to the satellite antenna by BNC cable. This device was continuosly connected with the satellite broadcast during the test. The status of connecting with satellite broadcast was investigated. Configuration of the equipment under test : Following peripheral devices and interface cables were connected during the measurement : Equipment Type Brand Serial No PC Brio BA600/550 HP SG01603779 Monitor 529B Daewoo unknown Keyboard SK-2502C HP M000456820 Printer A0302384 Northern Telecom 26633S60168 Mouse1 M-S48A HP LZA01051466 Mouse2 M-M28 Logitech LCA53305547 Connecting Interface Cables : - Unshielded AC power cable : 1.8 m - Shielded monitor’s signal cable : 1.5 m - Shielded printer’s signal cable : 1.8 m - Unshieled BNC cable : about 50 m File No. 02-IST-032/FB IST EMC LAB. Page 5 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jun. 16, 2001 861742/015 3725/2 LISN EMCO Jul. 30, 2001 9101-2068 KNW-407 LISN Hyup-Rip Jul. 26, 2001 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 13, 2001 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 02-IST-032/FB IST EMC LAB. Page 6 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna pol…
