PSCPENTAVALUEDigital Satellite Internet PC Board

PentaMedia Co., Ltd.

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Feb 14, 2002
Application Purpose: Original Equipment
Date of Application: Feb 14, 2002
Equipment Note: Digital Satellite Internet PC Board
Company: PentaMedia Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User’s Guide Digital Satellite Internet PC Receiver Pent @@ @@ @VALUE Pent@VALUE Pent@VALUE © Copyright2001 PentaMedia Co., Ltd. All rights reserved. All other trademarks are the properties of their respective owners. Product specification and product availability are sub- ject to change without notice. PentaMedia Co., LtdPentaMedia Co., Ltd PentaMedia Co., LtdPentaMedia Co., Ltd PentaMedia Co., Ltd. H . Q4Fl. Sooam Bldg. 66-1, Yangjae-dong, Seocho-gu, Seoul, Korea 137-130 Tel : +82-2-3463-3164 Fax : +82-2-3461-9486 Factory407, D-dong, Technopark, 151, Yatap-dong, Bundang-gu, Sungnam-si, Kyunggi-do, Korea 463-070 Tel : +82-31-706-6524,6534 Fax : +82-31-701-6539 Email:[email protected] PentaMedia (Europe) Ltd.PentaMedia (Europe) Ltd. PentaMedia (Europe) Ltd.PentaMedia (Europe) Ltd. PentaMedia (Europe) Ltd. Cedar House, Cedar Lane, Frimley, Camberley, GU16 5HY U.K. Tel: +44 (0) 1276 675858 Fax: +44 (0) 1276 675959 Email: [email protected] http:www.pentamedia.com 3 Warranty This PentaMedia product is warranted for the period of one year from the original date of purchase, against defective materials and workmanship. In the event that warranty service is required, customer should return the prod- uct to PentaMedia, authorized resellers or authorized service center. Warranty Conditions 1. The warranty is valid only if, when warranty service is required, the war- ranty card is fully and properly completed and is presented with the original invoice or sales slip or confirmation, and the serial number on the product has not been defaced. 2. PentaMedia’s warranty is limited to the reconditioning or, at its discretion, replacement of the product or the defective part. 3. Authorized parties of PentaMedia must carry out warranty reconditioning. No re-imbursement will be made for repairs carried out by non authorized parties of PentaMedia and, any such repair work and damage to the products caused by such repair work will not be covered by the warranty. 4. This product is not considered to be defective in materials nor workmanship by reason that it requires adaptation in order to conform to national or local technical or safety standards in force in any country other than the one for which the product was originally designed and manufactured. The warranty will not cover, and no re-imbursement will be made for such adaptation or any damage, which may result. 5. The warranty covers none of the followings: a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear. b) Cost relating to transport, removal or installation of the product. c) Misuse, including the failure to use this product for its normal purposes or incorrect installation. Warranty 4Pent @@ @@ @VALUE- User’s Guide d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect main voltage or any other cause beyond the con- trol of PentaMedia. 6. The warranty is valid for any person who legally acquired possession of the product during the warranty period. 7. During the applicable warranty period, the product returned to us or autho- rized parties by PentaMedia must be pre-authorized by us with a return material authorization no. Marked on the outside of package. Replacement or reconditioning for the product may be obtained by delivering the defective product accompanied by a copy of the dated proof of purchase, sent prepaid, insured, and packaged appropriately. ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ Any part of this User’s Guide can be deleted or modified by discretion of manufacturer without prior notice to any users. Preface Thank for choosing Pent@VALUE - high speed PC satellite data receiving card. This newly introduced product will bring a new experience to your PC life. Nowadays, PC is becoming an important part of our daily life and a critical tool for our personal and business purposes. The introduction of Internet has brought innovation to satisfy your demands for information covering most of areas, and introduction of Pent@VALUE will satisfy your demands for high speed download of big files and contents and it can be used for Internet, Multicasting, WEB casting, etc. Content Warranty .....................................................3 Preface ........................................................5 Content .......................................................6 1. Features & System - Parts.........................7 General Features ..........................................8 System Requirement ....................................8 Packaged parts ..............................................8 2. Hardware Installation .............................. 9 Preparation for Driver Installation .............10 Windows 98/SE/ME ....................................11 Window 2000 .............................................18 3. Software Installation ...............................27 How to Install ............................................28 4. Program Start ...........................................31 Main Program Screen .................................32 About .........................................................32 Tuner Information ......................................32 Tuner ..........................................................33 Transponder ...............................................35 Tray Icon ....................................................38 Exit .............................................................38 5. Setting-Up Internet .................................39 How to Set up Modem Connection ...........40 Transponder Setting for Multicast............ .44 Transponder Setting for Satellite Internet ..46 Windows 2000 Note ..................................48 Chapter 1 Features & System Parts 8Pent @@ @@ @VALUE- User’s Guide General Features 1. Ability (To receive satellite broadcast and Internet data) - Controllable satellite local frequency (950 MHz ~ 2150 MHz) - Fine adjustment (0 MHz ~ 1.0 MHz) - Symbol rate (2 MSPS ~ 45 MSPS)…

Text truncated - open the document above for the full version.

Block Diagram

{|uly hu{luh sui wv~ly {|uly wv~ly wg}hs|lGiGk wjpGi|z m wjp j ZZto¡ [to¡ Y_U]Z]Zto¡

ID Label/Location Info

ID Label Sample & Location Information Digital Satellite Internet PC card Model Name: Pent@VALUE FCC ID: PSCPENTAVALUE Made in Korea

Operational Description

vkz ywg}hs|l OwS P XU n wg}hs|l k}iTz wjp _W pw twlnTpp {} kth U wg} k}i pw k}i pw S S U wg} {pz S |ksy 흻 U YU wjp j { S m|zpvu_^_ S wjp S S sui U t wjp wjp i|zU { wj wpkU ZU {|uly { S ¡ zhtz|un o|ukhp xwzr S _ U { _ wjp wjU z U [U sui w { S sui S U { X_} XZ} kj U { suirYWkY wjp U h ZW}U { s{X]XZ U

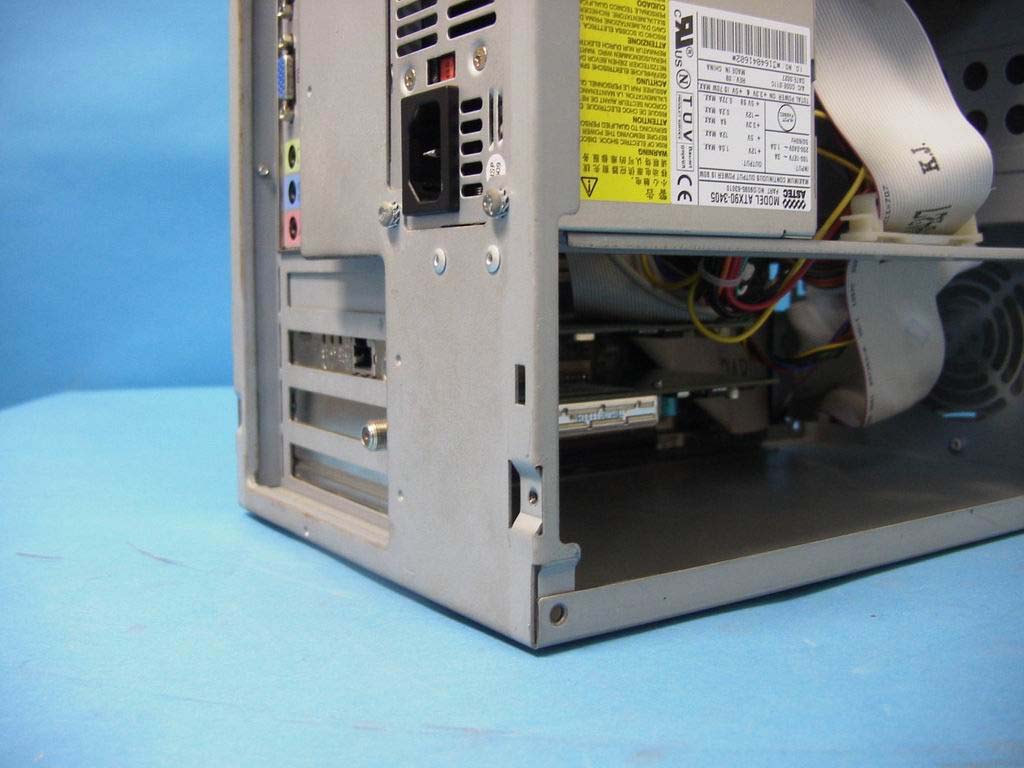

Test Report

File No. 01-IST-153/FB IST EMC LAB. Page 1 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 01-IST-153/FB Date of issue : Jan. 30, 2002 Model / Type No. : Pent@VALUE ■ Basic □ Alternate Kind of product Brand name Applicant Manufacturer License holder Address : Digital Satellite Internet PC Board : PentaMedia : PentaMedia Co.,Ltd. : PentaMedia Co.,Ltd. : PentaMedia Co.,Ltd. : 66-1, Yangjae-dong, Seocho-gu, Seoul, Korea Test result according to the regulation(s) Positive Negative at page 3. This test report with appendix consists of 18 pages. The test result only responds to the tested sample (EUT No : IST-011017260). It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 01-IST-153/FB IST EMC LAB. Page 2 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page(s) Directory Test regulations Information of Test Laboratory Equipment under Test Test Conditions Test Result Test-setup (Photos) Test-setup (Figures) Summary 2 3 3 3 ~ 4 5 ~ 6 7 8 ~ 9 10 18 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 11 GHz 11~13 14~17 C) Appendix File No. 01-IST-153/FB IST EMC LAB. Page 3 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description : Tuner : Input : F-type 75 ohm Input Frequency : 950~2150 MHz Input Level : - 65 ~ -25 dBm LNB control : LNB supply voltage 13 or 18 V Antenna and LNB control 22 kHz tone Max. LNB supply current : 400 mA with short circuit and surge protection PCI interface : Host bus burst rate 132 MB/s, Host bus width 32 bit BUS master DMA : up to 80 Mbps between PCI card to host memory Demultiplexing : Max. no. section filtering 32 PIDs Engine : Software transfer Demultiplexing Descrambler : Software DVB descrambler Streams capture PES or TS Date rate Up to 80 Mbps Board Size : 140 x 95 mm File No. 01-IST-153/FB IST EMC LAB. Page 4 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Combination). Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : Standby. Operational Condition : After the device was built in the reference PC and connected to the satellite antenna by BNC cable. This device was continuosly connected with Internet through the satellite during the test. The status of connecting with Internet was investigated. Configuration of the equipment under test : Following peripheral devices and interface cables were connected during the measurement : Equipment Type Brand Serial No PC Brio BA600/550 HP SG01603779 Monitor 721B Daewoo unknown Keyboard SK-2502C HP M000456820 Printer A0302384 Northern Telecom 26633S60168 Mouse1 M-S48A HP LZA01051466 Mouse2 M-M28 Logitech LCA53305547 Connecting Interface Cables : - Unshielded AC power cable : 1.8 m - Shielded monitor’s signal cable : 1.5 m - Shielded printer’s signal cable : 1.8 m - Unshieled BNC cable : about 50 m File No. 01-IST-153/FB IST EMC LAB. Page 5 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jun. 16, 2001 861742/015 3725/2 LISN EMCO Jul. 30, 2001 9101-2068 KNW-407 LISN Hyup-Rip Jul. 26, 2001 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 13, 2001 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 01-IST-153/FB IST EMC LAB. Page 6 of 18 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions …
