page 1 INSTRUCTION MANUAL AND COOKING GUIDE MICROWAVE OVEN MODEL: E8017X-Y TABLE OF CONTENTS SAFETY INSTALLATION COOKING GUIDE MAINTENANCE ! Precautions to Avoid Possible Ex posure to Excessive Microwave Energy ! Important Safety Instructions ! Proper and Safe Use of Your Oven ! Grounding Instructions ! Materials you can use in microwave oven ! Materials to be avoided in microwave oven ! Countertop Installation ! Turntable Installation ! Microwave Cooking Techniques ! Troubleshooting ! Cleaning and Care ! Specifications page 2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged .It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyo ne except properl y qualified service personnel. IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including following: WARNING – To reduce the risk of burns, electric shock, injury to persons, or exposure to excessive microwave energy when using your appliance, following: 1. Read all instruction before using the appliance. 2. Read and follow the specific “ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” as referenced above. 3. As with most cooking appliances, close supervision is the oven cavity. If a f ire should start: ! Keep the oven door closed ! Turn the oven off ! Disconnect the power cord or shut off power at the fuse or circuit breaker panel. To reduce the risk of fire in the oven cavity, Keep in mind the following rules at all times : a. Do not overcook food . Carefully attend the appliance if paper ,plastic ,or other combustible materials are placed inside the oven to facilitate cooking . b. Do not use the oven cavity for storage purposes .Do not store combustible items such as bread, cookies, paper products, cooking utensils, etc. inside the oven. c. Remove wire twist-ties and metal handles from paper or plastic containers, or bags before placing t hem i n the oven. 4. This oven must be grounded, Connect only to properly grounded outlet. See “ GROUNDING INSTRUCTIONS ” found on page 3. 5. Install or locate this oven only in accordance with the installation instruction provided on page 6. 6. Some products such as whole eggs, water with oil or fat, sealed containers and closed glass jars may explode and therefore should not be heated in this oven. 7. Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapor in t his appliance " This oven is not specifically designed for industrial or laboratory use. 8. As with any appliance, close supervision is necessary when used by page 3 children. 9. Do not operate this oven if it has a damaged cord or plug, if it is not working properl y or if it has been damaged or dropped. 10. This appliance should be serviced only by qualified service technicians " Contact the nearest SANTO authorized service facility for examination, repair or adjustment. 11. Do not cover or block any vents on the oven. 12. Do not store or use this appliance outdoors. 13. Do not use this oven near water, near a kitchen si nk, in a wet basement or near a swimming pool. 14. Do not immerse cord or plug in water. 15. Keep cord away from heated surfaces. 16. Do not let cord hang oven edge of table or counter. 17.When cleaning door and oven surfaces that meet when door is closed, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. (See “Cleaning instructions”). SAVE THESE INSTRUCTIONS. PROPER AND SAFE USE OF YOUR OVEN ! The oven must be level. ! The turntabl e and turntable roller rest must be in t he oven during cooking. ! Place the cookware gently on the turntable and handle it carefully to avoid possible breakage. ! The oven has several built-in safety switches to ensure that the power remains off when the door is open .Do not tamper with these switches. ! Do not operate the microwave oven empty. Operating the microwave oven with no food or food that is extremely low in moisture can cause fire, charring or sparking. ! Do not cook bacon directly on the turntable. Excessive local heating of the turntable may cause the turntable to break. ! Do not heat baby bottles or baby food in the microwave oven. Uneven heating may occur and could cause physical injury. ! Do not heat narrow-necked containers, such as syrup bottles. ! Do not attempt to deep-fry in microwave oven. ! Do not do home canning in this microwave oven as it is impossible to be sure all contents of the j ar have reached boiling temperature. ! Do not use this microwave oven for commercial purposes. This microwave oven is made for household use only. To prevent delayed eruptive boiling of hot liquids and beverages or scalding yourself, stir li quids and beverages, stir liquid before placing the cont ainer i n the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the …

Text truncated - open the document above for the full version.

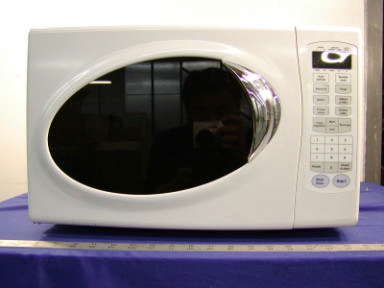

Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report EUT EXTERNAL PHOTOGRAPHS EUT – Chassis Front View EUT – Chassis Rear View

Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report Proposed FCC Label Format Specifications: Text is white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. FCC ID: PU7E8017X-Y

Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report Proposed Label Location on EUT Rear View of EUT Proposed FCC ID Location

Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report EUT INTERNAL PHOTOGRAPHS EUT – Top View EUT – Left View Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report EUT – Right View EUT – Bottom View Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report EUT – Display Panel Component View EUT – Display Panel Solder View

Note: The test report is specially limited to the use of the above client company and the product model. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC ID PER PART 18 EMI MEASUREMENT AND TEST REPORT For Shunde MD Microwave Oven Manufactory Co., Ltd. Penglai Road, Beijiao, Shunde, Guangdong, P.R. China FCC ID: PU7E8017X-Y July 26, 2002 This Report Concerns: Original Report Equipment Type: Microwave Oven – Consumer ISM Equipment Test Engineer:Wayne Chia Report Number:R02021211 Test Date:May 20, 2002 Reviewed By:Jerry Wang Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test ReportPage 2 of 31 TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................4 1.2 OBJECTIVE................................................................................................................................................................................4 1.3 TEST METHODOLOGY.............................................................................................................................................................4 1.4 TEST FACILITY.........................................................................................................................................................................4 1.5 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................................5 1.6 EQUIPMENT UNDER TEST (EUT)...........................................................................................................................................5 2 – OPERATING CONDITION/TEST CONFIGURATION..............................................................................................6 2.1 JUSTIFICATION.........................................................................................................................................................................6 2.2 SCHEMATICS / BLOCK DIAGRAM..........................................................................................................................................6 2.3 EQUIPMENT MODIFICATIONS.................................................................................................................................................6 2.4 CONFIGURATION OF TEST SYSTEM.......................................................................................................................................7 2.5 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................7 3 - CONDUCTED EMISSIONS TEST DATA........................................................................................................................8 3.1 MEASUREMENT UNCERTAINTY.............................................................................................................................................8 3.2 EUT SETUP...............................................................................................................................................................................8 3.3 SPECTRUM ANALYZER SETUP...............................................................................................................................................8 3.4 TEST PROCEDURE....................................................................................................................................................................9 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................................9 3.6 CONDUCTED EMISSIONS TEST DATA....................................................................................................................................9 3.7 PLOT OF CONDUCTED EMISSIONS TEST DATA....................................................................................................................9 4 – RADIATION HAZARD MEASUREMENT...................................................................................................................11 4.1 RADIATION HAZARD MEASUREMENT................................................................................................................................11 4.2 INPUT POWER.........................................................................................................................................................................11 4.3 LOAD FOR MICROWAVE OVENS...........................................................................................................................................11 4.4 RF OUTPUT POWER MEASUREMENT..................................................................................................................................12 4.5 OPERATING FREQUENCY MEASUREMENT.........................................................................................................................13 5 - RADIATED EMISSION DATA..........................................................................................................................................19 5.1 MEASUREMENT UNCERTAINTY...........................................................................................................................................19 5.2 EUT SETUP............................................................................…

Text truncated - open the document above for the full version.

Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report Setup Photographs Conducted Setup Photograph – Front View Conducted Setup Photograph – Rear View Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report Radiated Setup Photograph – Front View Radiated Setup Photograph – Rear View Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report Variation with Voltage Setup – Front View Variation with Voltage Setup – Rear View Shunde MD Microwave Oven Manufactory Co., Ltd. FCC ID: PU7E8017X-Y Report # R02021211 FCC ID Per Part 18 Test Report Variation with Time Setup – Front View Variation with Time Setup – Rear View
