PU9A9PLUSBLUETOOTH MULTIMEDIA PLAYER

STORMBLUE CO., LTD.Rm 1308, World Meridian Venture Center, 60-24, Gasan-dong, Guemchon-Cu, Seoul, 153-801, KoreaTel. 82-2-2113-8745 Fax. 82-2-2113-8723 A9 + User Manual www.stormblue.co.kr [ VER-2.0] Safety instructions 03 STORMBLUE A9 + Safety instructions STORMBLUE 02 A9 + Cautions! Do not shake or apply heavy shocks on the product. It might be the cause of malfunction or damaged. Avoid contacting the product with water. This may cause serious damage to the product. If the player gets wet, wipe with a soft towel or rag as soon as possible. When using your headphones/earphones. Do not wear earphones while driving an automobile, bicycle, or motorcycle. Not only it is dangerous but also it is illegal in some jurisdictions. Listening to the music by earphones at large volume level for extended periods of time may result in damaging your ears. You must not newly make any file to CONFIG folder of the player. To maintain good performance Avoid high or low temperatureand moisture. Do not have otherdifferent things in theproduct.Avoid placing theproduct under highmoisture or dust level Avoid direct sunlight,high temperature fromheating device.Do not drop and impactthe product. Do not use thinner,alcohol, or benzenewhen cleaning theproductDo not place anymagnetic device nearthe product. Never disassemble,repair or rebuild Appearance of player 05 STORMBLUE A9 + Appearance of player STORMBLUE 04 A9 + Accessories Description of each part of the player Reset Mode/EQ LED UpMenu/NavigationForward SD card slot DownMicrophone Rewind USB Conector Hold key Power/Play REC/A-B Line-in Earphones Installation CD, User manual Earphones Bluetooth stereo headset USB Adaptor Arm Band Accessories could be changed without notice in advance to increase the performance or quality of the product. Ne ck strap Encoding cable, USB extension cable Carrying case USB Gender Optional Preparation to use the player 07 STORMBLUE A9 + Preparation to use the player STORMBLUE 06 A9 + Connecting MP3 player to your PC1. You can connect the player to your PC by included USB cable. Pick up the included USB extention cable andconnect it to the USB port of your PC. 2. Plug USB extension cable in the USB port of MP3 player and Plug the other side of the USB Minijack in the Female USB port of the extension cable. 3. Turn on the player by push and hold the power button. Then, a removable disk will appear in your PC when you open windows explorer. 4. Earphone should not be inserted into the Player when the player is connected to PC File upload/DownloadThe player should be turned on in advance before you plug it in the USB porta. Open Windows Explorer and select the removable disk newly created.b. You can just copy/move files from your PC to the removable disk.c. You can create many folders in the removable disk to sort out music files. d. Just copy or move any files including music files from your PC to a certain folder in your removable disk. You must not newly make any files to the CONFIG folder of the removable disk. e. You can delete/rename any files stored in the removable disk in the same way as you do in the PC. Disconnecting the player from your PCa. Before unplugging the player from the PC, make sure to double click the Green Arrow icon on the task bar on the right bottom of the PC screen. b. When the dialogue box is displayed on the monitor, Click the stop button to stop USB Mass Storage Device. c. When a new dialogue box appears, click “OK ” to clearly remove the removable disk from your PC.d. If you use Windows 98 or 98SE, first open windows explorer. Click the removable disk by right button of the mouse and pop-up menu will appear. Then, you can proceed to disconnect the player accordingly. Caution For users whose OS version is Windows 98 or Windows 98SEThe Driver for Window 98 and 98SE must be installed in your PC before you connect this player to your PC if youuse Windows 98 or 98SE OS. Do not install the driver if your OS is Windows ME/2000/XP.- Insert the provided program CD to the CD Rom drive in your PC.- Enter Win98 driver folder and Run the Driver for Win98/SE OS.- You can visit our website www.stormblue.biz to download the driver for Windows 98/SE Caution Fatal error may occur in the PC or the player if you remove the player without completing above procedures. Operation of the Player 09 STORMBLUE A9 + Preparation to use the player STORMBLUE 08 A9 + Format the player Operation in Playback mode Click and hold Mode button and move to Audio play mode by or button. Then, click Menu button to select the mode. To enter the Mode menu, click and hold the mode Mode button. To select the Mode and get out of the Mode menu, clickMenu button.To play music files, select Audio play mode. To play video files, select moive play mode. In the same way, photo viewmode is for image file like JPG and TEXT view mode is for playing TEXT file.Just click Menu button to enter navigation mode. In navigation mode, you can display any file such as music file, videofile, text and image file by click or PLAY button when the cursor is over the file you want to play. Copy or move files from your PC to proper folder of the player. Video files to movie folder, TXT files to document folderand image files to photo folder. a. Open Windows Explorer and click the removable disk by the right button of the mouse. b. Click the format menu by the left button of the mouse. Charging the playerJust connect the player to the USB port when your PC is turned on. Then the charging lamp will be turned on. You don’tneed to turn on the player before connecting to the USB port if you only want to charge the player. When fully charged, thecharging LED will be turned off.When the player is turned off. : The player is fully charged within 1.5 ~ 2 hours.When the player is turned on. : The player is fully charged within 4 to 5 hours. Caution Format function will delete all files in the player. Backup all the important data before formatting the removable disk. Button PLAY FF R…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A NAND FLASH SDRAM AUDIO CODEC Microphone DC/DC CONVERVER DISPLAY Host Computer Block Diagram USB 2.0 Battery Button Matrix BLUETOOTH FM Tuner MAIN MEMORY Universal Serial BusConnector Earphone LDO RF 260K TFT LCD NAND FLASH POWER 12.000MHz crystal TCC767 32.768KHz crystal BUTTONS 32.768KHz crystal <Doc> <RevCode> <Title> A3 11 Tuesday, July 25, 2006 TitleSize Document Number Rev Date: Sheet of

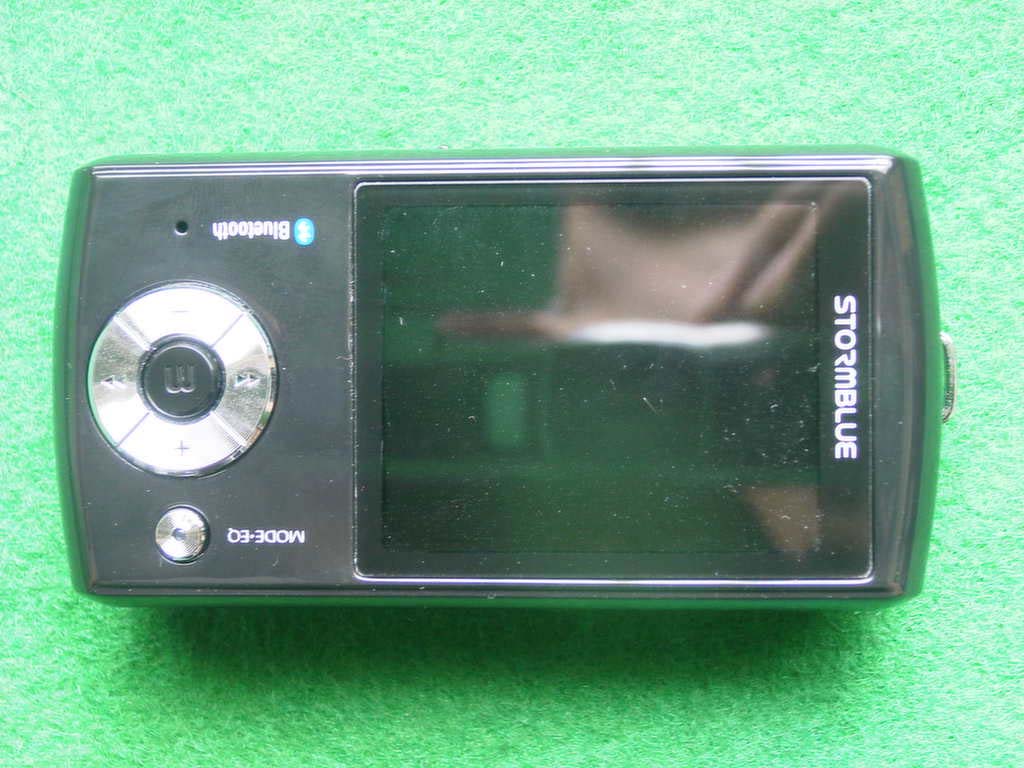

KTI06EF08002 FCC ID:- Korea Technology Institute Co., Ltd. Page 1 of 2 External photo (front) KTI06EF08002 FCC ID:- Korea Technology Institute Co., Ltd. Page 2 of 2 External photo (Rear)

KTI06EF08002 FCC ID : Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC Label Location

KTI06EF08002 FCC ID:- Korea Technology Institute Co., Ltd. Page 1 of 4 Internal photo (Front) KTI06EF08002 FCC ID:- Korea Technology Institute Co., Ltd. Page 2 of 4 Internal photo (Rear) KTI06EF08002 FCC ID:- Korea Technology Institute Co., Ltd. Page 3 of 4 Internal photo (Rear) KTI06EF08002 FCC ID:- Korea Technology Institute Co., Ltd. Page 4 of 4 Internal photo (Rear)

BM620 Bluetooth Class 2 Stereo Audio Module 1. Module Features - Bluetooth™ V1.2 Compliant - Dual UART Port - 16-bit Stereo Audio CODEC 2. Specification -Operating Conditions Supply Voltage: VDD: 2.4V ~3.6V Temperature Range: -20~+70°C -Radio Characteristics Receiver Sensitivity: -80dBm (Typical) Transmitter Power: +2dBm (Typical) 3. Applications -Stereo Headphones -Echo cancellation -Automotive hands free kits -High Performance Telephony Personal -Enhanced Audio Applications 4. Features -Size(12 x 14 x 2.5 mm) -Surface Mountable -Support PCM interface for SCO -16bit stereo Audio Codec BM620 5. Descriptions The BM620 is Class 2 Bluetooth Stereo Audio Module for PHONE, PDA, PC and MP3 Player, Home Theater applications. It is designed to be used as a universal Bluetooth Module of Bluetooth specification version 1.2 which can be deployed to implement versatile wireless applications such as voice communications. V1.0 2/10 BM620 Bluetooth Stereo Audio Module 6. Block Diagram 7. Electrical Characteristics Absolute Maximum Ratings Parameter Min Max Unit Temperature -40 +85 °C Supply Voltage(V_PA) 3.2 3.4 DCV Supply Voltage (VDD,V_DIG,V_FL,V_IN,V_OUT) 2.4 3.6 DCV Recommended Operating Conditions Parameter Min Max Unit Temperature -20 +70 °C Supply Voltage(V_PA) 3.3 DCV Supply Voltage (VDD,V_DIG,V_FL,V_IN,V_OUT) 2.6 3.3 DCV V1.0 3/10 BM620 Bluetooth Stereo Audio Module 8. RF Specification Transmitter Performance Parameter Condition Min Typ. Max Unit Output Power Normal/extreme test - 3 - dBm Power Density Normal/extreme test - - 4 dBm Power Control Normal/extreme test 2dB ≤ Step size ≥ 8dB Frequency Range Normal/extreme test 2400 - 2483.5 MHz 20dB Bandwidth Normal/extreme test - 850 1000 KHz ±2MHz - - -20 dBm ±3MHz - - -40 dBm Adjacent Characteristics ±4MHz - - -40 dBm ∆F1avg 140 175 KHz ∆F2 max 115 KHz Modulation Characteristics ∆F2 avg / ∆F1max 80 % Initial Carrier Frequency Tolerance -75 75 KHz One slot packet(DH1) -25 25 KHz Three slot packet(DH3) -40 40 KHz Carrier Frequency Drift Five slot packet(DH5) -40 40 KHz Transceiver Performance Parameter Condition Min Typ. Max Unit 30MHz ~ 1MHz - - -36 dBm 1GHz ~ 12.75GHz - - -30 dBm 1.8GHz ~ 5.3GHz - - -47 dBm Out-of-Band Spurious Emissions 5.1GHz ~ 5.3GHz - - -47 dBm Receiver Performance Parameter Condition Min Typ. Max Unit Single slot packets - -80 - dBm Sensitivity level Multi slot packets - -79 - dBm C/I co-channel - - 11 dB C/I 1MHz(Adjacent channel selectivity) - - 0 dB C/I 2MHz(Adjacent channel selectivity) - - -30 dB C/I performance C/I ≥3MHz(Adjacent channel selectivity) - - -40 dB 30MHz ~ 2000MHz -10 dBm 2000MHz ~ 2400MHz -27 dBm 2500MHz ~ 3000MHz -27 dBm Blocking performance 3000MHz ~ 12.75MHz -10 dBm Inter-modulation Performance N=5 -39 - dBm Maximum Input Level -20 -10 dBm V1.0 4/10 BM620 Bluetooth Stereo Audio Module 9. Pin Description & Package Outline Pin No. Pin Name Description 1 GND Common Ground 2 ANT Connect to Antenna (RF Signal) 3 GND Common Ground 4 AUDIO_OUT_P_R Speaker output positive (Right channel) 5 AUDIO_OUT_N_R Speaker output negative (Right channel) 6 AUDIO_OUT_P_L Speaker output positive (Left channel) 7 AUDIO_OUT_N_L Speaker output negative (Left channel) 8 AUDIO_IN_N_L Microphone & Audio Signal input negative (Left channel) 9 AUDIO_IN_P_L Microphone & Audio Signal input positive (Left channel) 10 AUDIO_IN_P_R Microphone & Audio Signal input positive (Right channel) 11 AUDIO_IN_N_R Microphone & Audio Signal input negative (Right channel) 12 AIO_0 Programmable input/output line 13 GND Common Ground 14 AIO_1 Programmable input/output line 15 AIO_3 Programmable input/output line 16 PIO_6 Programmable input/output line 17 PIO_7 Programmable input/output line 18 PIO_5 Programmable input/output line 19 PIO_4 Programmable input/output line 20 USB_DN USB data minus 21 USB_DP USB data plus 22 VDD_IN VDD_IN 23 GND Common Ground 24 UART_RTS UART request to send active low 25 UART_CTS UART clear to send active low 26 UART_TX UART TX Data 27 UART_RX UART RX Data 28 PCM_IN Pulse Code Modulation Synchronous data input 29 PCM_CLK Pulse Code Modulation Synchronous data clock 30 PCM_SYNC Pulse Code Modulation Synchronous data sync 31 PCM_OUT Pulse Code Modulation Synchronous data output 32 RESET Reset if high. must be high for >5ms to cause a reset 33 SPI_MOSI Serial Peripheral Interface data input 34 SPI_CLK Serial Peripheral Interface data clock 35 SPI_MISO Serial Peripheral Interface data output 36 SPI_CSB Chip select for Synchronous Serial Interface active low 37 PIO_0 Programmable input/output line 38 PIO_1 Programmable input/output line 39 PIO_11 Programmable input/output line 40 PIO_9 Programmable input/output line 41 PIO_10 Programmable input/output line 42 PIO_8 Programmable input/output line 43 PIO_2 Programmable input/output line 44 PIO_3 Programmable input/output line 45 AUX_DAC Voltage DAC Output 46 GND Common Ground V1.0 5/10 BM620 Bluetooth Stereo Audio Module 10. UART Interface BM620 is Universal Asynchronous Receiver Transmitter(UART) interface provides a simple mechanism for communicating with other serial device using the RS232 standard. When BM620 is connected to another digital device, UART_RX and UART_TX transfer data between the two device. The remaining two signal, UART_CTS, UART_RTS, can be used to implement RS232 hardware flow control where both are active low indicators. All UART connections are implemented using CMOS technology and have signaling levels of 0V and VDD. VDD VDD UART_TX UART_RTS UART_RX UART_CTS UART_RX UART_CTS UART_TX RS232C_RTS < BM620> < MCU OR MSM > <UART connected to MCU> VDD VDD <UART connected to Host PC > VDD UART_TX UART_RTS UART_RX UART_CTS RS232C_RX RS232C_CTS RS232C_TX RS232C_RTS < BM620 > < Host PC > RS-232C V1.0 6/10 BM620 Bluetooth Stereo Audio Module 11. USB Interface BM620 USB devices contain a full speed(12Mbit/s) USB interface that is capable of driving of a USB cable directly. No external USB transceiver is required. The device operates as a USB peripheral, responding t…

Text truncated - open the document above for the full version.

NO PART NAME DESCRIPTION Q'TY REFERENCE NO 1 MAIN PCB ASS'Y 2 PCB A9PLUS P0074,MAIN PCB(4L//0.8t) 1 FR4 금도금 6 Layer T=1.0 FA3 MICOM MLC3591 (272FBGA) 1U1 PA 4 VOLTAGE DETECTOR XC6209F282MR 1 U10,U9(NC) PA 5 RTC IC DS1337U+T&R 1 U11 PA 6 BATTERY CHAGER RT9501BPF 1 U12 PA 7 FLASH K9K8G08UOM 2 U2[BANK1],U3[BANK2] PA 8 WHITE LED DRIVER CAT3604HV4-TE13 1U4 PA 9 CODEC WM8731LSEFL/R 1U5 PA 10 FM TUNER GNT600 1 U6 PA 11 DC/DC DRIVER RT9201PQV 2 U8,U13 PA 12 POWER INDUCTOR VLCF4018T-4R7N1R0-2[4.7uH] 1 L3 PA 13 POWER INDUCTOR VLCF4018T-100MR74-2[10uH] 1 L4 PA 14 POWER FET IRLML6401TRPBF 4 Q1,Q6,Q7,Q5 PA 15 FET Si1012R-T1-E3 1Q2 PA 16 DIODE KDS160-RTK/P USC 2 D2,D4 PA 17 SCHOTTKY DIODE XBOASB03A1BR 1 D3 PA 18 CHIP LED [ RED ] SML-210VT(RD) 1 D5 PA 19 CHIP BEAD HB-1M1608-301 4 BD1,BD2,BD3,BD4 PA 20 B TO B CONNECTOR BMB5S-105WA(10PIN) 1 CON2 PA 21 SD CARD SLOT 67955-0001SD 1 CON3 PA 22 FPC CONNECTOR 08-6210-030-010-800A 1 CON4 PA 23 MIC OB-27L44-C33(WIRE) 1 J1 PM 24 LINE IN JACK AJ422A-4-SMT 1 J2 PA 25 EAR PHONE JACK AJ390A-66-K0-C 1 J3 PA 26 USB PORT 8P 3169-500001 1 J4 PA 27 X-TAL 5 * 3.2 SMD 12MHZ(18p) 1X2 PA 28 X-TAL CFS-206 32.768KHZ(6PF) 2 X3,X1 PM 1 PAGE NO PART NAME DESCRIPTION Q'TY REFERENCE NO 1 SLIDE S/W SS-1290 1 SW1 PA 2 TACT S/W ST-1185S(H:2.0m/m) 1 SW2 PA 3 TACT S/W ST-1114A 3 S1,S2,SW3 PA 4 TFT LCD MODULE VG-17H29G-CLD 1 2인치 262K 176 * 220 dots PM5 BATTERY PL483461(1A,with PCM & WIRE)sd card용 1J5 PM 6 CHIP TANTALUM[P SIZE] P 105(TMCPOJ105MTR 1UF/6.3V) 4 CT7,CT9,CT13,CT14 PA 7 CHIP TANTALUM[P SIZE] TMCP0J106MTR 10uF/6.3V 11 CT1,CT2,CT3,CT4 ,CT5 PA 8 CT6,CT8,CT11, 9 CT19,CT21,CT22 10 CHIP TANTALUM[B SIZE] TMCMB0G227MTR 220uF/4V 2 CT10,CT12 PA 11 CHIP TANTALUM[A SIZE] A 47UF/6.3V 2 CT18,CT20 PA 12 MLCC 1005 SIZE 6.8pF 1 C30 PA 13 10pF 2 C67,C31 PA 14 15pF 2 C62,C55 PA 15 22pF 4 C2,C3,C4,C5 PA 16 33pF 1 C65 PA 17 100pF 1 C36 PA 18 220pF 5 C43,C47,C49,C50,C52 PA 19 330pF 1 C66 PA 20 680pF 1 C73 PA 21 1.8nF 2 C21,C22 PA 2223 100nF 37 C1,C7,C8,C9,C10 PA 24 C11,C12,C13,C14,C15,C16 25 C17,C18,C19,C20,C23,C24,C25, 26 C26,C27,C28,C29,C32,C33,C34 27 C35,C41,C44,C45,C46,C48,C51 28 C68,C69,C70,C71,C72 29 추가 1pF 1 C60 PA 30 1uF 6 C6,C37,C38,C39,C40,C42 PA 2 PAGE NO PART NAME DESCRIPTION Q'TY REFERENCE NO 1 CHIP RESISTOR 5% 0Ω 1 R19, R22(NC) PA 2 1005 SIZE 0Ω(NC) FLASH MEMORY 1G 일때 0 R35,R36,R38,R393 R201,R202,R203,R206,R207, 4 R208,R209 5 100Ω 1 R60 PA 6 330Ω 1 R104 PA 7 1KΩ 13 R41,R52,R54,R56,R58,R68,R69 PA8 R70,R71,R94,R95,R100,R101 9 3KΩ 1 R37 PA 10 3.4KΩ 1 R27 PA 11 3.9KΩ 1 R6 PA 12 5.1KΩ 2 R9,R10 PA 13 5.6KΩ 4 R61,R62,R63,R64 PA 14 10KΩ 21 R5,R7,R8,R12,R13,R84,R88 PA15 R14,R20,R23,R24,R26,R90 16 R29,R31,R32,R34,R82,R97 17 R204,R205 1819 20KΩ 2 R85,R98 PA 20 30KΩ 2 R16,21 PA 21 47KΩ 11 R25,R28,R55,R57,R107 PA 22 R59,R65,R66,R67,R89,R91 23 R1(NC),R3(NC),R108(NC) 24 56KΩ 1 R50 PA 25 100KΩ 20 R2,R11,R15,R17,R18,R53,R86 PA26 R30,R40,R42,R43,R44,R92 27 R45,R46,R47,R48,R51,R93,R99 28 R210(NC) 2930 1MΩ 1 R49, R4(NC) PA 3 PAGE NO PART NAME DESCRIPTION Q'TY REFERENCE NO 1 CHIP RESISTOR 1% 150KΩ F급 1 R103 PA 2 1005 SIZE 220KΩ F급 1 R83 PA 3 300KΩ F급 1 R106 PA 4 390KΩ F급 2 R87,R118 PA 5 470KΩ F급 2 R102,R105 PA 6 976KΩ F급 1 R117 PA 7 CHIP RESISTOR 1% 0.5Ω F급 1 R96 PA 8 1608 SIZE 1Ω F급 2 R116,R119 PA 9 101112131415161718192021222324252627282930 4 PAGE NO PART NAME DESCRIPTION Q'TY REFERENCE NO 1 SUB PCB ASS'Y 2 SUB PCB A9 공용 1 FR4 GOLD PLATE 2 Layer FA 3 SWITCH DOME ASSY A9,SUS,EMS SHEET 1 FA 4 B TO B CONNECTOR BMB5H-105WA(10PIN) 1 PA 56789 101112131415161718192021222324252627282930 5 PAGE NO PART NAME DESCRIPTION Q'TY REFERENCE NO 1 BLUETOOTH PART 2 BLUETOOTH MODULE 33-A9 PLUS 1 U7 PA 3 CHIP ANTENNA IMABC05 1 ANT1 PA 4 POWER FET IRLML6401TRPBF 1Q3 PA 5 TRANSISTOR SMD KTC4075E 1 Q4 PA 6 INDUCTOR [1005 SIZE] 15nH(MLK1005S15NJT) 2 L2,L1 PA 7 CHIP LED [ BLUE ] SLSNNBS102TS 1 D1 PA 89 CHIP TANTALUM[P SIZE] P 105(TMCPOJ105MTR 1UF/6.3V) 2 CT15,CT17 PA 10 CHIP TANTALUM[P SIZE] TMCP0J106MTR 10uF/6.3V 1 CT16 PA 1112 MLCC 1005 SIZE 5pF(NC) 0 C60,C6113 15pF 2 C55,C62 PA 14 100pF 1 C58 PA 15 47nF 5 C53,C54,C57,C59,C64 PA 16 100nF 2 C56,C63 PA 1718 CHIP RESISTOR 5% 330Ω 1 R78 PA 19 1005 SIZE 1KΩ 1 R74 PA 20 2.2KΩ 2 R72,R75 PA 21 4.7KΩ 1 R79 PA 22 100KΩ 1 R80 PA 23 220KΩ 1 R81 PA 24 390KΩ 1 R73 PA 2526 CHIP RESISTOR 1% 160KΩ F급 1 R77 PA 27 1005 SIZE 240KΩ F급 1 R76 PA 282930 6 PAGE

55 44 33 22 11 D D C C B B A A Under JTAG NTRST setting JTAG R131NC0 Stand alone B TO B CONNECTOR PCB 외곽으로 뺄것 HX8309 settingHX8306 setting 47K에서 30K로 변경 NAND CSN2/3 추가 펌웨어를 다시업로드시 R22를SHORT 한다. A0MICOM & JTAG & KEY A2 27 Tuesday, July 25, 2006 TitleSize Document Number Rev Date: Sheet of DGND DGND UXI EAD19 DGND ADO DGND DGND PREXT DGND PTEST0VDD PAIN7 DGND X16ENB/EAD20 DGND PXIXISEL VDDVDD PXTO VDDVDD I2C_SCKI2C_SDA DGNDDGND FILTER1FILTER2 DGND ABCLK VDD ALRCK DGND J_TCKJ_TDOJ_RTCKJ_NTRSTJ_TMSRESETJ_TDI VDD VDD VDD HOLD KEY2 VDD DGNDDGND FILTER1 EAD19 MD11 SDCKEVDDDGND USB_DET AMCLK PTEST1 MAD6 DGND VDDVDD SDCKE DGNDVDD SD_CLK BT_PWR_CTRL ALRCK RESETL UXO VDD PXI MAD0 DGNDVDD MD13 MD5 SDRASN MAD7MAD6BA0 DGNDVDD PWR_ON ABCLK NAND_CSN0VDDJ_NTRST BA0 ECSN0 VDD12 DGNDVDDDGND DGND PLAY X16ENB/EAD20 MD10 VDD MAD10MAD2SDCSN VDD SD_WP J_RTCK VDD DGND MAD5 SDWEN URX0 FILTER2 PTEST0 EWEN VDD12 VDD12DGND MD4 DGND MAD1 NAND_WEB PXTIJ_TCKJ_TDO MAD3 VDD12 MD15 VDD12SDCSN MAD5BA1 LCD_DIM PXTO KEY2 MAD11 MD9 DGNDVDD nWAKEUP DGNDUXI MAD4 DGND DGNDSDWEN MAD9UDQMSDCASN VDD UTX0 SPDI SD_PWR_CTRL I2C_SDA PAIN7 PREXT MAD8 MD3 MD2 MD1 VDD12VDD KEY1 UXO DGND SD_nCS SD_DO NAND_CLENAND_ALENAND_REB DGNDDGNDDGNDJ_TMS MAD2 DGND MD14 MD7 MD0 DGND MAD0SDRASN DGND DGND LCD_CSB NAND_BUSY0 INT_B KEY1 DGND UDQM BA1 MAD10 VDD12 MD8 SDCLKDGND VDD12 VBUSIN DGND USB_DPUSB_DMRESET DGND XISEL MD12 DGND SD_DET SPDO VDD12I2C_SCK BATT_CHK MAD7 DGND DGND DGNDDGNDSDCASN MAD8LDQMSDCLK VDD VDD DGND ECSN3 SD_CMD ADI ADO SHDNL VDD12VDD J_TDI VDD MAD1 VDD12 MD6 VDDDGNDDGNDVDD LCD_DIM BT_WAKEUP_CTRL NAND_CSN1VDD12 ECSN1 VDD LDQM MAD9 EOEN DGND DGND VDD MAD11MAD4MAD3 VDD PXTI HOLD VDD VDDRESET PTEST1 PTEST1 PLAY NAND_CSN2 NAND_CSN3 VDD VDD DGND DGND DGND DGND RTC_VDD DGND DGND DGND DGND VDDDGND C21 1.8nF R17 100K R8 10K C15104 C20104 C16104 R5 10K C28104 R20 10K SW3 REC/A-B 1 2 R26 10K R10747K R3 47K(NC) 272-FBGA-1515 MLC3591/MLC3592 MLC3591 : All GNDMLC3592 : CODEC IF U1 MLC3591 A1B1B3A4A5A6A7A9B9A2A3B2 C2 B4B5B6B7 C3C5C7D4 G4 E4 F5 E6 D6 E3 F10 F9 G9 F8F7F6 G7G6 H6 J7J6 K6 C4C6C8D5H4 F4 C1D1D2D3 E1E2 F1F2 G1G2 F3 D13 E13 C13 C12 C11 D10 E12 C10 E9 E10 D9 D12 D11 E11 C9 C14 H12 M6 N12 P14 G12 M7 N11N14 F11F12 M8 P10 G3 M14 M15 B11 L7 N10 N15 P15 R15 A10 B10 R10 G11 J12 J11 K12 L12 L11 M12 M11 M10 M9 L9 L6 R9 P9 R8 G5 E5 T14 U13 J14 R12 M13 A11 E15 H15 L14 A16 B16 A15 E16 F16 A17 B17 G16 D16 C16 H16 C17 R2N8R14K14R13P13T6R6U15B15B13B14F15A14A13D15C15F14A12D14E14F13B12K17J17L16L15L17F17J15J16H17G17D17E17N7N6P2N2N1N13M2M1L2L1K1K2K3K4K5J1J2J3J4J5H1H5H3H2D7E7E8G14H13D8G15G13K16 L3 L4 R5 T5 P5 L5 N4 M4 N3 M5 R3 P3 R4 U5 N5 P1 T1 U1 U4 R1 U2 U3 P4 K15 M16 M17 N16 N17 P17 R17 T17 P16 T15 U17 U14 R16 U16 T16 H14 U6 P12 L13 P6 T13 U12 T12 U11 R11 K13 P11 J13 T11 U10 T10 U9 T9 U8 T8 U7 R7 P8 T4 M3 P7 N9 T7 T3 T2 A8B8 SD_VDD1SD_VDD2SD_VDD3SD_VDDQ1SD_VDDQ2SD_VDDQ3SD_VDDQ4SD_VDD4SD_VDD5SD_VSS1SD_VSS2SD_VSS3SD_VSS4SD_VSSQ1SD_VSSQ2SD_VSSQ3SD_VSSQ4SD_CLKSD_CKESD_CSBSD_CASBSD_RASBSD_WEBSD_LDQMSD_UDQMSD_BA0SD_BA1SD_A0SD_A1SD_A2SD_A3SD_A4SD_A5SD_A6SD_A7SD_A8SD_A9SD_A10SD_A11PSDCLKPSDCKEPSDCSNPSDCASNPSDRASNPSDWENVDD33_1VDD33_2VDD33_3VDD33_4VSS33_1VSS33_2VSS33_3VSS33_4VDD12_1VDD12_2 VSS12_1 PD00 PD01 PD02 PD03 PD04 PD05 PD06 PD07 PD08 PD09 PD10 PD11 PD12 PD13 PD14 PD15 VDD33_5VDD33_6VDD33_7VDD33_8VSS33_5VSS33_6VSS33_7VSS33_8VDD12_3VDD12_4VDD12_5 VDD12_6 VSS12_2 VDD12_7 VDD12_8 VSS12_3 VSS12_4 VSS12_5 VSS12_6 VSS12_7 VSS12_8 PECSN0 PEOEN PEWEN PAD00 PAD01 PAD02 PAD03 PAD04 PAD05 PAD06 PAD07 PAD08 PAD09 PAD10 PAD11 PAD12 PAD13/BA0 PAD14/BA1 PAD15/LDQM PAD16/UDQM PAD17 PAD18 PAD19/HIVENB PAD20/X16ENB PATEST PXISEL PREXT PTEST0 PTEST1 PVREF PAGND ADC_VDD33 ADC_VSS33 PAIN0 PAIN1 PAIN2 PAIN3 PAIN4 PAIN5 PAIN6 PAIN7 PGPA01/ECSN1PGPA00/NTRST PTDO PTDI PTCK PTMS PSDA PSCL PRESETN PFILTER2PFILTER1 P2VSS12P1VSS12 P2VDD12P1VDD12 PXTO PXTI RVSS30 RVDD30 PXO PXI XVSS33 XVDD33 DM DP PUXO PUXI UVSSA33C UVSSA2_33TUVSSA1_33T UVDDA33C UVDDA2_33TUVDDA1_33T UVSS12 UVDD12 PGPC31/IDE_DMARQ PGPC30/IDE_DMACKB PGPC29/IDE_IORDY PGPC28/IDE_DIOWB PGPC27/IDE_DIORB PGPC26/IDE_CSB1PGPC25/IDE_CSB0 PGPC24/IDE_DA2PGPC23/IDE_DA1PGPC22/IDE_DA0 PGPC21/IDE_D15PGPC20/IDE_D14PGPC19/IDE_D13PGPC18/IDE_D12PGPC17/IDE_D11PGPC16/IDE_D10PGPC15/IDE_D09PGPC14/IDE_D08PGPC13/IDE_D07PGPC12/IDE_D06PGPC11/IDE_D05PGPC10/IDE_D04PGPC09/IDE_D03PGPC08/IDE_D02PGPC07/IDE_D01PGPC06/IDE_D00 PGPC05/ND_CEB1PGPC04/ND_CEB0 PGPC03/ND_WEB PGPC02/ND_REB PGPC01/ND_ALE PGPC00/ND_CLE UVSSA3_33T C_CSB/VSS_A C_MODE/VSS_A C_SCLK/VSS_A C_SDIN/VSS_A C_MCLK/VSS_A C_MICIN/VSS_A C_MICBIAS/VSS_A C_LLINEIN/VSS_A C_RLINEIN/VSS_A C_LHPOUT/VSS_A C_RHPOUT/VSS_A C_LOUT/VSS_A C_ROUT/VSS_A C_ADCDAT/VSS_A C_CLKOUT/VSS_A C_DCVDD/VSS_A C_DBVDD/VSS_A C_HPVDD/VSS_A C_AVDD/VSS_A C_DGND/VSS_A C_HPGND/VSS_A C_AGND/VSS_A C_VMID/VSS_A PGPB14/RTCK PGPB13/XIOUT PGPB12/nWAKEUP PGPB11/VBUSIN PGPB10/U11_OCI PGPB09/U11_PSW PGPB08/CD_MCLK PGPB07/CD_DATA PGPB06/CD_BCLK PGPB05/CD_LRCK PGPB04/CD_SCOR PGPB03/nBE1 PGPB02/nBE0 PGPB01/SPDI PGPB00/SPDO PGPA31/ADO/BM3 PGPA30/ADI PGPA29/ALRCK/BM2 PGPA28/ABCLK/BM1 PGPA27/AMCLK PGPA26/CURXD1 PGPA25/CUTXD1 PGPA24/CURXD0 PGPA23/CUTXD0 PGPA22/EXINT3 PGPA21/EXINT2 PGPA20/EXINT1 PGPA19/EXINT0 PGPA18/TCLK3/UCLK PGPA17/TCLK2 PGPA16/TCLK1 PGPA15/TCLK0 PGPA14/TOUT3 PGPA13/TOUT2 PGPA12/TOUT1 PGPA11/TOUT0 PGPA10/SCI1SCK PGPA09/SCI1RXD PGPA08/SCI1TXD PGPA07/SCI0SCK PGPA06/SCI0RXD PGPA05/SCI0TXD PGPA04/ENWAIT PGPA03/ECSN3 PGPA02/ECSN2 SD_VSS5SD_VSS6 C26104 C2 22pF R7 10K C14104 SW1 SS-1290 1 2 3 R1310K SW2 MODE/EQ 1 2 C3 22pF R1 47K(NC) X132.768KHz R95.1K C8104 R19 0 R15 100K R23 10K CON1 13579 1113151719 2468101214161820 R14 10K X212MHz R10847K(NC) CON2 BMB5S- 105WA 12345 678910 123456 789 10 C9104 C23104 C1 104 R220(NC) R6 3.9K R24 10K R18 100K R28 47K C4 22pF R30 100K C17104 C10104 R25 47K C11104 C25104 C5 22pF R105.1KR1210K R27 3.4K R1630K C61uF C7104 C29104 C18104 C12104 C24104 R21 30K R4 1M(NC) C22 1.8nF R2 100K R11 100K C27104 R29 10K C19104 C13104 REW MINUSPLUS FFMENU MENU PLUS MINUS FF REW 55 44 33 22 11 D D C C B B A A NAND SD CA…

Text truncated - open the document above for the full version.

KTI06EF08006 FCC ID:PU9A9PLUS Korea Technology Institute Co., Ltd. Page 1 of 34 Test Report Test Report No.: KTI06EF08006 Registration No.: 99058 Applicant: STORMBLUE CO., LTD. Applicant Address: #1308, World Meridian Venture Center, Gasan-dong 60-24, Geumcheon-gu, Seoul, Korea 153-801 Product: Bluetooth Multimedia Player FCC ID: PU9A9PLUS Model No. A9+ Receipt No.: 06-0726 Date of receipt:July 30, 2006 Date of Issue: August 28, 2006 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: FCC/ANSI. C63.4: 2003 Rule Parts: FCC Part 15, Class B Equipment Class: Computing Device Peripheral Test Result: The above-mentioned product has been tested with compliance. Tested by: T. W. Lee / Engineer Approved by: G. C. Min /President Signature Date Signature Date Other Aspects: Abbreviations: * OK, Pass=passed * Fail=failed * N/A=not applicable ☞ - This test report is not permitted to copy partly without our permission. - This test result is dependent on only equipment to be used. - This test result is based on a single evaluation of one sample of the above mentioned. - This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. - We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI06EF08006 FCC ID:PU9A9PLUS Korea Technology Institute Co., Ltd. Page 2 of 34 ≫≫ Contents ≪≪ 1. 2. 3. 4. 5. 6. 7. Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 List of peripherals 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Information about test item Test Report 2 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 7 8 8 12 17 18 16 KTI06EF08006 FCC ID:PU9A9PLUS Korea Technology Institute Co., Ltd. Page 3 of 34 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. Korea Technology Institute Co., Ltd. performed all measurements reported herein. And were made under Chief Engineer’s supervisor. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., Ltd. 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/2001 for measurement of radio Interference. KTI06EF08006 FCC ID:PU9A9PLUS Korea Technology Institute Co., Ltd. Page 4 of 34 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment - Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 02.2007 Field Strength Meter ESIB40 100093 05.2007 LISN KNW407 8-1157-2 01.2007 LISN EM-7823 115019 05.2007 Conducted Cable N/A N/A 11.2006 - Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESIB40 100093 05.2007 Spectrum Analyzer R3261C 61720417 02.2007 Pre Amplifier 8447D 2944A06874 11.2006 Biconical Antenna VHA9103 1111 01.2007 LogPeriodic Antenna UHALP9107 1568 01.2007 Horn Antenna 3115 6443 06.2006 Open Site Cable N/A N/A 11.2006 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A 2.3 Test Date Date of Application: July 30, 2006 Date of Test: August 01, 2006 2.4 Test Environment See each test item’s description. KTI06EF08006 FCC ID:PU9A9PLUS Korea Technology Institute Co., Ltd. Page 5 of 34 3. Description of the tested samples The EUT is a MP3 Player. 3.1. Rating and Physical Characteristics Audio Format MPEG1,2,2.5 Layer3(8~320Kbps, VBR), WMA Version 9 (32~320Kbps) Ogg Vorbis (Q1 –Q10) ID3 Tag Ver1.0/1.1/2.0 Support Video Format Support MPEG4 Simple Profile Support AVI file format with mp4 extension Support 220 x 176, 20 frames Support Windows Tool program, which is released transdcoder Image Te x t Vi e w JPEG (ISO/IEC 10918-1, Annex F – Sequential DCT- based mode of operation.) Display 2.0” TFT LCD (220 x 176) Sound 23mW + 23mW sound output / S/ N ratio : 90dB File System FAT12, FAT16, FAT32 Capacity 1GB ~ 4GB Extendable For SD card PC Interface USB 2.0 : Mass Storage Class Speed : UP Load 5 Mbps / Down Load 4Mbps Support OS Windows98 / 989SE / ME / 2000 / XP / 2003 Audio Headphone Out, Line-In, Bluetooth TX (Option) EQ POP, Rock, Classic, Vocal, Live, D-bass, Flat, 5 Band User EQ FM Radio FM Tuner (20Preset) / World wide channel support Audio post processing Equalizer (Normal, Pop, Rock, Live, Classic, Vocal, Dbass, User) Dimension 84 x 43 x 19mm (70g) 3.2 Submitted Documents - User’s Guide - Block Diagram KTI06EF08006 FCC ID:PU9A9PLUS Korea Technology Institute Co., Ltd. Page 6 of 34 4. Measurement Conditions Testing Input Voltage: AC 220V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 1) File transfer each disk. 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID PC JOOYONTECH JT4334 N / A DOC Monitor HEWLETT PACKARD Pavilion vf17 CNC5040351 DOC Keyboard COMPAQ COMPUTER CORPORATION SDM4700P B58A20CLPNLOLZ DOC Mouse logitech M-S69 3892D101 DOC Mouse SEJIN ELECTRON INC.SMB-400 0CIM004047 GJJS965M3 Printer HEWLETT PACKARD C4569A SG6A7160PJ DOC 4.3 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = ± 1.8dB Expanded uncertainty U=KUc K = 2 ∴ U = ± 3.6dB 2) Conducted disturbance Uc = ± 0.88dB U = KUc=2 x Uc = ± 1.8dB KTI06EF08006 FCC ID:PU9A9PLUS Korea Technology Institute Co., Ltd. Page 7 of 34 4.4 Test Setup MONITOR PC PRINTER MOUSE KEYBOARDMOUSE VGA PARALLEL PS/2SERIAL PS/2 SIGN…

Text truncated - open the document above for the full version.

KTI06EF08002 FCC ID:- Korea Technology Institute Co., Ltd. Page 1 of 2 Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions KTI06EF08002 FCC ID:- Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
