PU9USD3500USB MASS STORAGE DEVICE

Please read precautions before using U U s s e e r r ’ ’ s s M M a a n n u u a a l l USD 3x00 Series (MD 3100) 2 - Contents - 1. Introduction 2. Features 3. Specifications 4. Precautions for Using Device 5. How to use? 6. CD Auto-run program 7. Driver Installation for Windows 98/98SE 8. Installation of X-Series Utilities 9. Warranty Disclosure 10. Safety Notes 11. Tech. Support 3 1. Introduction The USB DISK is a compact, lightweight and portable storage device. It is one of the smallest USB flash drives on the market, which literally fits right into the palm of your hand! USB ports allow for fast data transfer and you do not need a separate power device or cable. Just plug the USB DISK into the USB port of your computer and the drivers install immediately on their own. It is truly a Plug and Play device. No more hassles of downloading software. You can also cross platform your data from PC to Mac and vice versa. On your desktop or notebook, the USB DISK looks and functions just like another hard drive. Carry it on a strap around your neck, slip it into your pocket, or just hold it in the palm of your hand. Now you can carry and secure your favorite movie, music, graphics library, valuable data or that very important business presentation with you wherever you go!! 2. Features No drivers required* Possible to divide the drive to two partitions Plug-N-Play via USB port on PC and Mac Convenient, Easy X-Series Application Software ① X-Format : USB DISK Format program ② X-Key : USB DISK Device Lock ③ X-Mailer : Portable E-mailer ④ X-File security : File Encryption program ⑤ X-PC Lock : PC Locking program ⑥ X-Autorun : USB DISK File Auto-run program Bootable function: Use as booting disk (support USB-HDD, USB-ZIP) Various memory capacities Ideal for transferring large data files between computers Fantastic for backing-up critical files Able to cross platform from PC to Mac and vice versa Great for taking data from office to home and back to office Excellent for storing data, music files, pictures and important business presentations * Installation program is required for Windows 98/SE. This program is supplied with the USB DISK accessories or can be downloaded from our website http://www.stormblue.co.kr 4 3. Specifications Supported OS Windows 98/SE, Windows ME, Windows 2000, Windows XP and Mac 8.6 or higher, Linux 2.4X or higher System Requirements IBM PC/AT or compatible Desktop / Notebook / Sub-Notebook / Laptop computers / Mac (Pentium ® @ 100MHz or better) with USB ports Power Supply USB Bus-powered (4.5V to 5.5V) Memory Drive 16MB/32MB/64MB/128MB/256MB/512MB/1GB/2GB Universal Smart Drive 16MB/32MB/64MB/128MB/256MB/512MB/1GB Upgradeable Main unit 16MB/32MB/64MB/128MB/256MB/512MB/1GB Capacities Upgradeable Memory chip 64MB/128MB/256MB/512MB/1GB Illumination LED Lighting: Device connected LED Blinking: Data receiving or transmitting Data Reading/Writing Speed Max 1Mbyte/sec (depending on PC system) Operating Temperature 0°C ~ +50°C Storage Temperature -30°C ~ +80°C Memory Drive 63x21x11.6mm(32~512MB), 91x25x15.5mm(1GB, 2GB) Universal Smart Drive 86 x 25 x 11mm Dimension (L x W x H) Upgradeable Universal Smart Drive 77.2 x 28 x 17.6mm (main unit) 36.2 x 19.5 x 10.2mm (upgradeable memory chip) 97.5 x 28 x 17.6mm (with upgrade memory chip) Memory Drive 15g(16~512MB), 30g(1GB, 2GB) Universal Smart Drive 16g Weight Upgradeable Universal Smart Drive 18g (main unit) 23g (with upgrade memory chip) Package Accessory USB Extension cable, CD-ROM, Neck Strap, User Manual Provided Software X-Format / X-Key / X-Mailer / X- Lock / X-File Security / X-Autorun Certification FCC, CE, MIC Warranty 1 year limited liability warranty 5 4. Precautions for Using Device 4.1. For using the bootable function of the USB DISK your computer must support “USB-ZIP” or “USB- HDD” in the bootable section of CMOS (ROM-BIOS). Do not use the USB DISK by setting up the bootable function of a PC which does not support “USB-ZIP” or “USB-HDD” in CMOS because it may possibly cause some troubles in your PC. 4.2. The data in the USB DISK might be damaged for several reasons such as: ‘user’s carelessness’, ‘system down’, ‘Abnormal stop of electric current’, etc. So, please backup your data on another storage device as a precaution. 4.3. When disconnecting the USB DISK in Windows Me, Windows 2000 and Windows XP you must double click the icon "Unplug or Eject Hardware" which is located at the bottom right corner of your screen and follow the instructions before removing. If you are using a Macintosh OS, we suggest that you use the “Eject” or “Put Away” option before unplugging the USB DISK. In LINUX you should un-mount the USB DISK before unplugging. 4.4. When removing the USB DISK from the USB port, please ensure that the Green light on the USB DISK is not flashing and that the light is in fact solid blue. This will ensure that your data on the device is not lost. It is very important that you check the USB DISK light even if the dialog box on your computer shows that the data transfer is finished. 4.5. Please disconnect the USB DISK from the USB port before turning your computer on/off. It is also important to ensure your computer has finished booting before connecting the USB DISK. 4.6. Please ensure that you follow the instructions manual for proper driver installation if your operating system is Windows 98/SE. It is required that you install the Windows 98/SE drivers, which are included on the provided CD-ROM (see section:7. Driver Installation for Windows 98/SE). Note : If your operating system is Windows ME, Windows 2000, Windows XP, Macintosh Version 8.6 or higher or Linux Kernel Version 2.4.x or higher, DO NOT install the Windows 98/SE driver. 6 5. How to use? The USB DISK functions as a removable disk drive on your computer. When you insert the USB DISK to the USB port of your PC or Mac, then the "removable disk" icon will appear in the "My Computer Folder". You can use the USB DISK the same way as a Floppy disk or a Hard dri…

Text truncated - open the document above for the full version.

USD3X51 Block Diagram MICOM FLASH Memory USB Port A PC X-TAL 12 Mhz

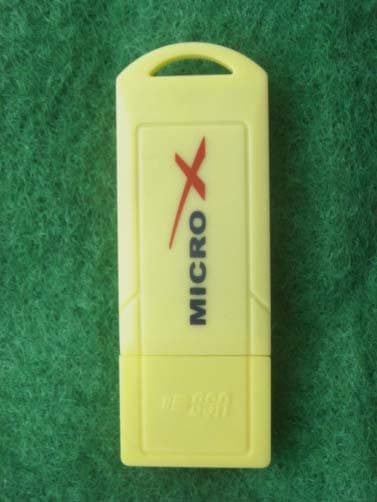

KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 1 of 2 External photo (front) KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 2 of 2 External photo (Rear)

KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC Label Location

KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: USD3500 FCC ID: PU9USD3500 S/N: STORMBLUE CO., LTD. Made in Korea

KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 1 of 2 Internal photo (Front) KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 2 of 2 Internal photo (Rear)

KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 1 of 13 Test Report Test Report No.: KTI03EF11001 Registration No.: 99058 Applicant: STORMBLUE CO., LTD. Applicant Address: 3 rd Floor 144-9 Doksan-Dong Kumchun-Gu Seoul 153-011 Korea Product: USB Mass Storage Device FCC ID: PU9USD3500 Model No. USD3500 Receipt No.: 03-1009 Date of receipt:October 6, 2003 Date of Issue: November 5, 2003 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: FCC/ANSI. C63.4: 2001 Rule Parts: FCC Part 15, Class B Equipment Class: Computing Device Test Result: The above-mentioned product has been tested with compliance. Tested by: E.S.Park / Engineer Approved by: G. C. Min /President Signature Date Signature Date Other Aspects: Abbreviations: OK, Pass=passed Fail=failed N/A=not applicable - This test report is not permitted to copy partly without our permission. - This test result is dependent on only equipment to be used. - This test result is based on a single evaluation of one sample of the above mentioned. - This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. - We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 2 of 13 Contents 1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 List of peripherals 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 7 8 8 12 14 16 18~20 List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Conducted Emissions Table 3 Test Data. Radiated Emissions List of Figures Figure 1 Spectral Diagram, LINE-PE Figure 2 Spectral Diagram, Neutral-PE List of Photographs Photograph 1 Setup for Radiated Emissions Photograph 2 Setup for Conducted Emissions 4 11 13 9 10 14 15 KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 3 of 13 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. Korea Technology Institute Co., Ltd. performed all measurements reported herein. And were made under Chief Engineer’s supervisor. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., Ltd. 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/2001 for measurement of radio Interference. KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 4 of 13 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 11.2004 Field Strength Meter ESPC 832827/011 9.2004 LISN KNW407 8-1157-2 10.2004 LISN EM-7823 115019 1.2004 Conducted Cable N/A N/A 11.2004 - Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 9.2004 Spectrum Analyzer R3261C 61720417 11.2004 Pre Amplifier 8447D 2944A06874 11.2004 BiconiLog Antenna 3142B 1705 12.2003 Bilog Antenna CBL6140A 1217 5.2004 Open Site Cable N/A N/A 11.2004 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A 2.3 Test Date Date of Application: October 6, 2003 Date of Test: October 30, 2003 2.4 Test Environment See each test item’s description. KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 5 of 13 3. Description of the tested samples The EUT is USB Mass Storage Device. 3.1. Rating and Physical Characteristics - Supported OS : Windows 98/SE, Windows ME, Windows 2000, Windows XP and Mac 8.6 or higher, Linux 2.4X or higher - System Requirements : IBM PC/AT or compatible Desktop / Notebook / Sub-Notebook / Laptop computers / Mac (Pentium 133MHz or better) with USB ports - Power Supply : USB Bus-powered(4.5V to 5.5V) - Capacities : Micro X – 32MB/64MB/128MB/256MB/512MB Memory Drive - 32MB/64MB/128MB/256MB/512MB/1GB/2GB Upgradeable Memory Drive(Main unit) - 32MB/64MB/128MB/256MB/512MB Upgradeable Memory Drive(Upgrade pack) - 32MB/64MB/128MB/256MB/512MB - Illumination : LED Lighting – Device connected LED Blinking – Data receiving or transmitting - Data Transferring Speed : Read – Max 8Mbytes/sec depending on PC/MAC system Write - Max 6Mbytes/sec depending on PC/MAC system - Operating Temperature : 0 +50 - Storage Temperature : -30 - Dimension(LxWxH) : Micro X – 50.5 x 18 x 4.4mm Memory Drive – 63 x 21 x 11.6mm 91 x 25 x 15.5mm(1GB, 2GB) Upgradeable Memory Drive – 77.2 x 28 x 17.6mm(Main unit) 97.5 x 28 x 17.6mm(with Upgrade pack) - Weight : Micro X – 5g Memory Drive – 15g, 32g(1GB, 2GB) Upgradeable Memory Drive – 18g(Main unit) 5g(Upgrade pack) - Package Accessory : USB Extension cable, CD-ROM Neck Strap(Micro X – Key Hold), User Manual - Provided Software : X-Manager / X-File / X-Lock / X-Mailer / X-Autorun 3.2. Submitted Documents - User’s Guide - Block Diagram KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 6 of 13 4. Measurement Conditions Testing Input Voltage: AC 220V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 1) File transfer each disk. 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID PC …

Text truncated - open the document above for the full version.

KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 1 of 2 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions KTI03EF11001 FCC ID:PU9USD3500 Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
