PU9USD3300Upgradeable Universal Smart Drive

 °° °°  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. GB 0020MASB

USD3300 Block Diagram MICOM FLASH Memory USB Port A PC X-TAL 12 Mhz Connector FLASH Memory Pack

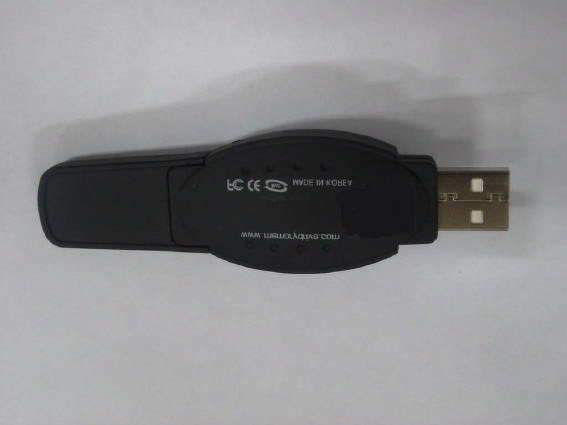

KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 1 of 2 External photo (front) KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 2 of 3 External photo (Rear)

KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: USD3300 FCC ID: PU9USD3300 S/N: STORMBLUE CO., LTD. Made in Korea

KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC Label Location

KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 1 of 2 Internal photo (Front) KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 2 of 2 Internal photo (Rear)

KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 1 of 13 Test Report Test Report No.: KTI03EF01002 Registration No.: 99058 Applicant: STORMBLUE CO., LTD. Applicant Address: 2nd Floor 170-13 Guro-Dong Guro-Gu Seoul 152-050 Korea Product: Universal Smart Drive FCC ID: PU9USD3300 Model No. USD3300 Receipt No.: 03-0119 Date of receipt: January 23, 2003 Date of Issue: January 24, 2003 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: FCC/ANSI. C63.4: 2001 Rule Parts: FCC Part 15, Class B Equipment Class: Computing Device Test Result: The above-mentioned product has been tested with compliance. Tested by: M.H.Jang / Engineer Approved by: G. C. Min /President Signature Date Signature Date Other Aspects: Abbreviations: OK, Pass=passed Fail=failed N/A=not applicable - This test report is not permitted to copy partly without our permission. - This test result is dependent on only equipment to be used. - This test result is based on a single evaluation of one sample of the above mentioned. - This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. - We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 2 of 13 Contents 1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 List of peripherals 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 7 8 8 12 14 16 18~20 List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Conducted Emissions Table 3 Test Data. Radiated Emissions List of Figures Figure 1 Spectral Diagram, LINE-PE Figure 2 Spectral Diagram, Neutral-PE List of Photographs Photograph 1 Setup for Radiated Emissions Photograph 2 Setup for Conducted Emissions 4 11 13 9 10 14 15 KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 3 of 13 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. Korea Technology Institute Co., Ltd. performed all measurements reported herein. And were made under Chief Engineer’s supervisor. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., Ltd. 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/2001 for measurement of radio Interference. KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 4 of 13 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 1.2004 Field Strength Meter ESPC 832827/011 5.2003 LISN KNW407 8-1157-2 10.2003 LISN EM-7823 115019 3.2003 Conducted Cable N/A N/A N/A - Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 5.2003 Spectrum Analyzer R3261C 61720417 1.2004 Pre Amplifier 8447D 2944A06874 N/A BiconiLog Antenna 3142B 1705 1.2004 Bilog Antenna CBL6140A 1217 N/A Open Site Cable N/A N/A N/A Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A 2.3 Test Date Date of Application: January 23, 2002 Date of Test: January 23, 2002 2.4 Test Environment See each test item’s description. KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 5 of 13 3. Description of the tested samples The EUT is Universal Smart Drive. 3.1. Rating and Physical Characteristics Plug-N-Play via USB port on PC and Mac Powerful Application Software - X-Key : Device Lock - X-File : File Encryption program - X-mailer : portable e-mailer Bootable function : Use as booting disk (support USB-HDD, USB-ZIP) Various memory capacities ranging - Main unit : 32 MB to 512 MB - Upgrade pack : 64 MB to 512 MB Submitted Documents - User’s Guide - Block Diagram KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 6 of 13 4. Measurement Conditions Testing Input Voltage: AC 230V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 1) File transfer each disk. 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID PC Compaq computer Corp. EVO 6F2AJYHZ3009 - Monitor Samsung Electronics 750S P223HVAR502035 - Keyboard COMPAQ COMPUTER CORPORATION SDM4700P 3912A442 - Mouse COMPAQ COMPUTER CORPORATION M-S69 2892D101 - Mouse SEJIN ELECTRON INC. SMB-400 0CIM004047 GJJS965M3 Printer HEWLETT PACKARD C4569A SG6A7160PJ - 4.3 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = 1.8dB Expanded uncertainty U=KUc K = 2 U = 3.6dB 2) Conducted disturbance Uc = 0.88dB U = KUc=2 x Uc = 1.8dB KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 7 of 13 4.4 Test Setup Signal Line Power Line Monitor PC Printer MOUSE Keyboard MOUSE KTI03EF01002 FCC ID:PU9USD3300 Korea Technology Institute Co., Ltd. Page 8 of 13 5. EMISSION Test 5.1.Conducted Emissions Result: Pass The line-conducted facility is located inside a 2.3M x 3.5M x 5.5M shielded closure. The shielding effectiveness of the shielded room is in accordance with MIL-Std-285 or NSA 605- 05. A 1m x 1.5m wooden table 80cm high is placed 80cm away from the c…

Text truncated - open the document above for the full version.

KTI03EF01002 FCC ID:PU9 USD3300 Korea Technology Institute Co., Ltd. Page 1 of 2 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions KTI03EF01002 FCC ID:PU9 USD3300 Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
