PUDTRANHZ001Curtain Remote Control Transmitter

Front View Rear View

FCC ID: PUDTRANHZ001 This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2.1 FCC ID Label Figure 2.2 Location of the Label

Component Side View Foil Side View

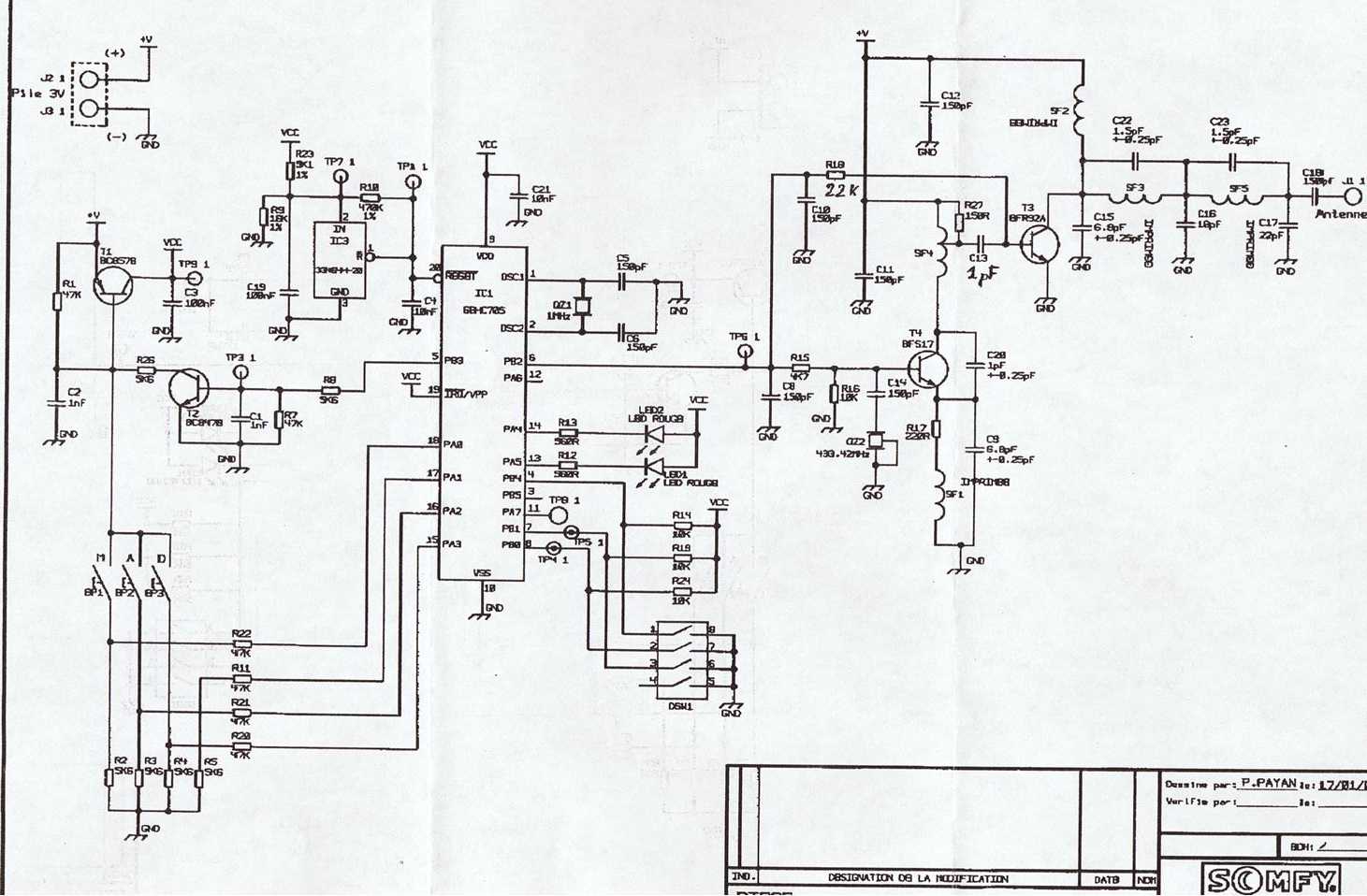

. . . . . . . . . SIMU U.S. INC.*6100 BROKEN SOUND PKWY. N.W., SUITE 14 *BOCA RATON, FLORIDA 33487 TEL:(561) 274-0111 (800) 822-SIMU(7468) FAX:(561) 274-0306 WWW.SIMU-US.COM Reference: TRANHz001 FCC ID: PUDTRANHZ001 OPERATIONAL CIRCUIT DESCRIPTION The TranHz001 is a hand held transmitter control device. When the user presses on of the input control buttons the MCU-68HC08 lights the indicator LED ’s and produces a control signal. The control signal is modulated to a higher frequency signal by the transmitter oscillator and amplified by the transmitter amplifier . The signal is then transmitted from the antenna. All circuit blocks listed in bol d are shown on the block diagram. POWER SUPPLY The only power supply for the transmitter is a 3V lithium battery

ADVANCED COMPLIANCE LABORATORY 6 Randolph Way Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of HTz TRANSMITTER MODEL: Tran-HTz-001 FCC ID: PUDTRANHZ001 August 15, 2001 This report concerns (check one): Original grant x Class II change Equipment type: LOW POWER TRANSMITTER ( remote Controller) Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for:SIMU U.S. Inc. Report prepared by:Advanced Compliance Lab Report number:0048-010719-01 The test result in this report IS supported and covered by the NVLAP accreditation FCC ID: PUDTRANHZ001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 2 Table of Contents Report Cover Page.........................................................................................................1 Table of Contents............................................................................................................2 Figures.............................................................................................................................3 1. GENERAL INFORMATION....................................................................................4 1.1 Verification of Compliance...........................................................................4 1.2 Equipment Modifications..............................................................................5 1.3 Product Information......................................................................................6 1.4 Test Methodology.........................................................................................6 1.5 Test Facility...................................................................................................6 1.6 Test Equipment.............................................................................................6 1.7 Statement of the Document Use...................................................................7 2. PRODUCT LABELING.............................................................................................8 3. SYSTEM TEST CONFIGURATION........................................................................9 3.1 Justification...................................................................................................9 3.2 Special Accessories.......................................................................................9 3.3 Configuration of Tested System...................................................................9 4. SYSTEM SCHEMATICS..........................................................................................12 5. RADIATED EMISSION DATA................................................................................13 5.1 Field Strength Calculation............................................................................13 5.2 Test Methods and Conditions......................................................................13 5.3 Test Data.......................................................................................................13 5.4 Occupied Bandwidth......................................................................................15 6. PHOTOS OF TESTED EUT......................................................................................18 FCC ID: PUDTRANHZ001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 3 Figures Figure 2.1 FCC ID Label................................................................................................8 Figure 2.2 Location of Label on Back of the EUT.........................................................8 Figure 3.1 Radiated Test Setup, Position 1...................................................................10 Figure 3.2 Radiated Test Setup, Position 2...................................................................10 Figure 3.3 Radiated Test Setup, Position 3...................................................................11 Figure 4.1 EUT Schematics............................................................................................12 Figure 5.1 Pulse Train Timing........................................................................................16 Figure 5.2 Occupied Bandwidth......................................................................................17 Figure 6.1 Front View......................................................................................................19 Figure 6.2 Rear View......................................................................................................20 Figure 6.3 Component Side.............................................................................................21 Figure 6.4 Foil Side.........................................................................................................22 FCC ID: PUDTRANHZ001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT:HTz TRANSMITTER Model:Tran-HTz-001 Applicant:SIMU U.S. Inc. Test Type:FCC Part 15C CERTIFICATION Result:PASS Tested by:ADVANCED COMPLIANCE LAB Test Date:August 15, 2001 Report Number:0048-010719-01 The above equipment was tested by Advanced Compliance Laboratory for compliance with the requirement set forth in the FCC rules and regulations Part 15, subpart C. This said equipment in the configuration described in the report, shows the maximum emissi…

Text truncated - open the document above for the full version.

Figure 5.1 Pulse Train Timing

Figure 5.2 Occupied Bandwidth

FCC ID: PUDTRANHZ001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 10 Figure 3.1 Radiated Test Setup, Position 1 FCC ID: PUDTRANHZ001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 11 Figure 3.2 Radiated Test Setup, Position 2 FCC ID: PUDTRANHZ001 ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 12 Figure 3.3 Radiated Test Setup, Position 3
