PUNDTT-1900CDMA PCS WLL TERMINAL

CONTENTS About Dowtel FWT 1 Before using 1.1 Checking accessories 1.2 Physical Description 1.3 Sound & Tone 1.4 Precautions 2 Installations 2.1 General installation 2.2 Installation to use Data Service 3 Basic Functions 3.1 Turing on the power 3.2 Turning off the power 3.3 Making a call 3.4 Answering a incoming call 3.5 Using the Analog G3 Fax 3.5.1 Transmitting a document by fax 3.5.2 Receiving a document by fax 3.6 Data Service 3.6.1 Setting Data service receiving mode 4 Supplementary Functions 4.1 Call Functions 4.1.1 Speed Dial 4.1.2 Emergency Call Hold 4.1.3 Hot Line 4.2 Phone Book 4.2.1 Storing phone numbers 4.2.2 Deleting phone numbers 4.3 Additional 4.3.1 Alarm Reminder 4.3.2 Ear-piece Volume Control 4.3.3 Voice Privacy 4.4 Lock 4.4.1 Outgoing Lock 4.4.2 Changing Lock code DTT-800/1900 Operating Manual 4.4.3 Reset as Default 4.5. Maintenance Setup 4.5.1 CLIP setting 4.5.2 Analog G3 Fax standard setting 4.5.3 Default Data rate setting 4.5.4 Ringer Frequency & Cadence Control 4.5.5 Dial Tone Frequency Control 4.5.6 Default Vocoder Selection 4.5.7 Timed Hot Line Dial send waiting time control 4.5.8 Hook-Flash detecting time setting 4.5.9 Serial Baudrate 4.5.10 Network Dial Tone setting 4.6 System Parameter Setup 4.6.1 Phone Number(MIN) Input 4.6.2 A-key Input APPENDIX 1. Summary table for supplementary function 2. Technical Specification 3. Troubleshooting 4. Feature Code Table DTT-800/1900 Operating Manual About Dowtel FWT (1) This is simple and elegant design and is devised very suitable for the office and the house. (2) Its basic purpose is for the use at the desk, but you can install this at any place thanks to the Wall- mount kit. (3) This provides clear and noiseless voice quality. (QCELP, EVRC) (4) A user can control the volume of a handset at one’s choice. (5) A built-in battery secures the phone use even in the blackout. (6) Three tricolor LEDs visually indicate the status of the terminal. (7) A user can control the terminal use of the other part with the Outgoing Lock function. (8) A user can simply transmit the number stored in a phone book by using One-Touch and Two-Touch Dial. (9) Emergency Call Hold function enables a user to notify the emergency situation to the other part. (10)The most frequently used number is automatically connected even when a user picks up a handset, thanks to the Hotline Call function. (11)In case of Battery discharge, wrong operation or Air Link cut-off, this provides various alert functions (by sound & LED) (12)The connection of this terminal with the system supplies DTMF transmission for ARS connection. (13)The connection with the system supports a variety of additional functions such as the three-way calling, call waiting , call transfer and call forwarding. (14)Connected with PC, the packet, circuit and PC fax communication become possible. (15)By the Voice Privacy function, the illegal tapping can be prevented. (16)This terminal has an authentication function preventing a user’s phone number from being used illegally by others. (17)Calling Line Identification is supported. (18)As this is designed with the convenient menu to use, a user can set the terminal function easily and simply. (19)Analog G3 Fax (Optional) service is supported. (20) To support the Pay Phone Interface, this transmits 16KHz, 12KHz, Metering Pulse, Polarity Reversal signal. (Optional) DTT-800/1900 Operating Manual 1. Before Using This manual consists of the terminal introduction, the installation method, the basic directions, feature code and the technical standard, describing ways to resolve some possible problems in using. Please carefully read through contents of this manual before using this product. [Note] When you have any questions or think that you got any product defect in using FWT terminal, please contact a place you bought. 1.1 Accessories check FWT terminal provides following accessories. After purchasing, you are required to open up the box and check out if accessories inside consist of all as below. - - FWT terminal Antenna TEL LINE SMPS User’s Manual Screws DTT-800/1900 Operating Manual 1.2 Name and function of each part l POWER LED LED lights on in red when the external power is supplied. l BATTERY LED Indicates the status of backup battery. The terminal can be operated if the backup battery is connected, even though the external power supply is stopped. Please refer to following table for the LED operation. - From the moment that battery LED blinks, a phone call is possible for about 10 minutes. Battery Power (V) Battery Level Battery LED Power LED Terminal Status 6.6 ~ 5 Green Off Normal 6.1 ~ 6.5 4 Green Off Normal 5.8 ~ 6.0 3 Orange Off Normal 5.6 ~ 5.7 2 Orange & Blink Off Normal Warning Tone ~ 5.5 1 Off Off Power off External power supply Off Red Normal SERIAL PORT ANTENNA RJ-11 JACK DC JACK POWER SWITCH SERVICE LED BATTERY LED POWER LED DTT-800/1900 Operating Manual l SERVICE LED Indicates call service availability. Power intensity (dBm) RSSI Level LED status Terminal status ~ -85 5 Green Service available -86 ~ -91 4 “ “ -92 ~ -97 3 “ “ -98 ~ -103 2 “ “ -104 ~ -110 1 Green & Blink “ -111 ~ 0 Red No Service During a call Orange Indicates during a call LED Red : Indicates the call service is not available as the receiving power intensity is weak. LED Green & Blink : Indicates the call service is available although the receiving power intensity is weak. LED Green : Indicates the receiving power intensity is strong and the call service is available. LED Orange : Indicates the call service is now on, regardless of the receiving power intensity. [Notice] Malfunction Indicator In case of the terminal malfunction, Service LED and Battery LED light in red and blink at the same time. Please contact the service provider for this matter. l DC JACK Through This part, the SMPS supplies the FWT terminal with the power. - AC Input voltage of SMPS ranges 100 ~ 240 V. l POWER SWITCH The power of FWT terminal consists of the external and the internal power. Althou…

Text truncated - open the document above for the full version.

Dowtelecom Inc. 4th F/L, Woosong Bldg., 361-10, Yatap-Dong, Bundang-Gu, Seongnam-Si, Gyunggi-Do, Korea Tel : +82 31 701 8962 , Fax : +82 31 701 8964 Date : August 30,2001 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality FCC ID : PUNDTT-1900 In reference to the application under FCC ID: PUNDTT-1900, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Document titled " Block Diagram" Document titled " Schematics “ Document titled " Circuit Description “ Document titled " Operational Description “ Document titled " Antenna Specification “ Document titled " Part Lists “ Document titled " Tune-up Procedure “ The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name :Seoung Chul, Ju Title : Senior Research Engineer Company : Dowtelecom Inc

Federal Communications Commission 7435 Oakland Mills Road Columbia , MD 21-46 Attention:Application ExaminerDate: 09/04/2001 Reference:Applicant : Dowtelecom Inc. FCC ID:PUNDTT-1900 Confirmation No:EA102252 Subject:FCC Form 731 Corrections Dear Application Examiner: After uploaded the Form 731, we have found two mistakes on the information entered on the following sections: Section 12: Equipment Specifications: Please delete the following entry: 1930-1990 MHz, Power output:0.316W, Emission designator: 1M25F9W. Section 12: Equipment Specifications: Please add the Frequency tolerance information right after the following entry: 1850-1910 MHz, Power output:0.316W, Frequency Tolerance:2.5ppm, Emission Designator:1M25F9W. Section 13(a) : A Composite device subject to an additional equipment authorization? The correct answer to this question should be NO. If you have any question, please feel free to contact me. Best Regards Steve Cheng / EMC Manager Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 Ext:119 e-mail:[email protected]

Dowtelecom Inc. 4th F/L, Woosong Bldg., 361-10, Yatap-Dong, Bundang-Gu, Seongnam-Si, Gyunggi-Do, Korea Tel : +82 31 701 8962 , Fax : +82 31 701 8964 October 27, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re : DOWTELECOM WLL Terminal FCC Part 24 Certification FCC ID: PUNDTT-1900 Correspondence Ref. No. : 21031 Dear FCC Examiner : In accordance with FCC examiner’s instruction, Dow Telecom Inc. hereby confirms that the optional external antenna accessory with 10 dBi directional panel described on the user manual shall not be used and sold as an accessory in the U.S. and will be deleted from the optional accessory item in the user manual. Sincerely, Name :Seoung Chul, Ju Title : Senior Research Engineer Company : Dowtelecom Inc cc: Compliance Certification Services

PROPOSED FCC ID LABEL AND LOCATION FCC ID LABEL DOWTELECOM INC. This device complies with Part 24 of FCC rules. FCC ID: PUNDTT-1900

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for PCS WLL TERMINAL MODEL: DTT1900 FCC ID: PUNDTT-1900 SEPTEMBER 12, 2001 REPORT NO: 01I0934-2 Prepared for DOWTELECOM INC. 4 TH Floor, Woosong Bldg. 361-10, Yatap-Dong Bundang-Gu, Seongnam-Si, Gyunggi-Do, Korea Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 01I0934-2 DATE: SEPT 12, 2001 FCC ID: PUNDTT-1900 EUT: PCS WLL TERMINAL Page 2 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: SEPTEMBER 10, 2001 Report No: 01U0934-2 Test Sample is a: Pre-Production Unit Tx Frequency: 1850MHz to 1910MHz Rx Frequency: 1930MHz to 1990MHz Max. RF Output Power: 25dBm (0.316 Watt) (Conducted) RF Exposure Categories: General Population/Uncontrolled Application Type: Certification FCC Classification: Licensed Base Station for Part 24 (E) FCC Rule Part(s): § 2.1093; ET Docket 93.62 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. CCS certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). APPLICANT: DOWTELECOM INC. 4 TH Floor, Woosong Bldg. 361-10, Yatap-Dong Bundang-Gu, Seongnam-Si, Gyunggi-Do, Korea TRADE NAME: DOWTELECOM INC. MODEL: DTT1900 SERIAL NUMBER: N/A (PRE-PRODUCTION) FCC ID: PUNDTT-1900 CATEGORY: MOBILE DEVICE REPORT NO: 01I0934-2 DATE: SEPT 12, 2001 FCC ID: PUNDTT-1900 EUT: PCS WLL TERMINAL Page 3 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION.............................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC..........5 3. DOSIMETRIC ASSESSMENT SETUP.........................................................................6 3.1. MEASUREMENT SYSTEM DIAGRAM....................................................................................................................7 3.2. SYSTEM COMPONENTS...........................................................................................................................................8 3.3. EUT ARRANGEMENT...............................................................................................................................................12 4. EUT TUNE-UP PROCEDURE......................................................................................14 5. EVALUATION PROCEDURE.......................................................................................15 5.1. SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION........................................................................15 5.2. SYSTEM ACCURACY VERIFICATION..................................................................................................................15 5.3. SAR EVALUATION PROCEDURE.........................................................................................................................17 5.4. EXPOSURE LIMIT.....................................................................................................................................................18 6. RESULTS.........................................................................................................................19 7. REFERENCES................................................................................................................24 8. APPENDIX.......................................................................................................................25 8.1. EUT PHOTOS.............................................................................................................................................................25 8.2. EQUIPMENTS LIST & CALIBRATION INFO.........................................................................................................27 8.3. IEEE SCC-34/SC-2 P1528 RECOMMENDED TISSUE DIELECTRIC PARAMETERS.................................28 8.4. EQUIPMENTS CALIBRATION CERTIFICATE.....................................................................................................29 REPORT NO: 01I0934-2 DATE: SEPT 12, 2001 FCC ID: PUNDTT-1900 EUT: PCS WLL TERMINAL Page 4 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This d…

Text truncated - open the document above for the full version.

PCS WLL Terminal (DTT1900) (Low Channel 1851.25MHz) Generic Twin Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHz Probe: ET3DV6_M - SN1577; ConvF(5.40,5.40,5.40); Crest factor: 1.0; Muscle 1900 MHz: σ = 1.58 mho/m ε r = 51.2 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.16 mW/g, SAR (10g): 0.696 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.01 dB SAR Tot [mW/g] 9.97E-2 2.99E-1 4.99E-1 6.98E-1 8.97E-1 09/10/01 COMPLIANCE CERTIFICATION SERVICES

PCS WLL Terminal (DTT1900) (Mid Channel 1880MHz) Generic Twin Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHz Probe: ET3DV6_M - SN1577; ConvF(5.40,5.40,5.40); Crest factor: 1.0; Muscle 1900 MHz: σ = 1.58 mho/m ε r = 51.2 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.602 mW/g, SAR (10g): 0.362 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.01 dB SAR Tot [mW/g] 4.96E-2 1.49E-1 2.48E-1 3.47E-1 4.46E-1 09/10/01 COMPLIANCE CERTIFICATION SERVICES

PCS WLL Terminal (DTT1900) (High Channel 1908.75MHz) Generic Twin Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHz Probe: ET3DV6_M - SN1577; ConvF(5.40,5.40,5.40); Crest factor: 1.0; Muscle 1900 MHz: σ = 1.58 mho/m ε r = 51.2 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.884 mW/g, SAR (10g): 0.530 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.06 dB SAR Tot [mW/g] 8.17E-2 2.45E-1 4.08E-1 5.72E-1 7.35E-1 09/10/01 COMPLIANCE CERTIFICATION SERVICES

2.3 Regulatory Compliance Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient / Relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. RF Exposure Warning Statement Caution: This device(s) has been tested and comply with FCC RF exposure requirements. A minimum separation distance of 2.8 cm must be maintained between the user/bystander and the back of the unit, including antenna. For more information about RF exposure, please visit the FCC web site at http://www.fcc.gov.

FCC CFR47 PART 24 SUBPART E CERTIFICATION REPORT FOR CDMA PCS WLL TERMINAL MODEL: DTT-1900 FCC ID: PUNDTT-1900 REPORT NUMBER: 01U0934-1 ISSUE DATE: AUGUST 30, 2001 Prepared for DOWTELECOM INC. 4 TH FLOOR, WOOSONG BLDG. 361-10, YATAP-DONG, BUNDANG-GU, SEONGNAM-SI, GYUNGGI-DO, KOREA Prepared by COMPLIANCE CERTIFICATION SERVICES, INC. d.b.a. COMPLIANCE ENGINEERING SERVICES, INC. 561F Monterey Road, Morgan Hill, Ca 95037-9001 U.S.A. TEL: (408) 463-0885 FAX: (408) 463-0888 TABLE OF CONTENT PAGE NO FCC CERTIFICATION INFORMATION....................................................................3 TEST RESULT CERTIFICATION................................................................................6 EUT DESCRIPTION........................................................................................................7 TEST FACILITY..............................................................................................................7 ACCREDITATION AND LISTING...............................................................................7 MEASURING INSTRUMENT CALIBRATION..........................................................7 TEST EQUIPMENT LIST...............................................................................................8 FCC PART 15 TEST RESULTS.....................................................................................9 TESTED SYSTEMS DETAILS.....................................................................................9 CONFIGURATION BLOCK DIAGRAM...................................................................10 EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION..................................11 RADIATED EMISSION..............................................................................................12 LINE CONDUCTION PLOT.......................................................................................14 SETUP PHOTOS..........................................................................................................15 FCC PART 2 CERTIFICATION TEST RESULTS:..................................................19 SECTION 2.1046: RF POWER OUTPUT...................................................................20 SECTION 2.1047: MODULATION CHARACTERISTICS.......................................22 SECTION 2.1049: OCCUPIED BANDWIDTH..........................................................23 SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINAL................25 SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION.....................30 SECTION 2.1055: FREQUENCY STABILITY..........................................................33 SECTION 24.235: FREQUENCY STABILITY..........................................................33 SETUP PHOTOS..........................................................................................................34 ATTACHMENTS EUT PHOTOGRAPHS PROPOSED FCC ID LABEL FORMAT TECHNICAL DESCRIPTION & TUNE UP PROCDURE REQUEST OF CONFIDENTIALITY LETTER INSTALLATION & SERVICE MANUAL BLOCK DIAGRAM, SCHEMATIC DIAGRAM & PART LIST Project No# 01I0934-1 Date: AUGUST 30, 2001 EUT: CDMA PCS WLL TERMINAL FCC ID: PUNDTT-1900 Page 3 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 2.1033(c)(1): Applicant: DOWTELECOM INC. 4 TH Floor, Woosong Bldg. 361-10, Yatap-Dong Bundang-Gu, Seongnam-Si, Gyunggi-Do, Korea Contact person: Mr. Seoung Chul Ju/Senior Engineer Telephone number: 482-031-701-8962 2.1033(c)(2) FCC ID: PUNDTT-1900 2.1033(c)(3) Instructions/Installation Manual Refer to Attachment: Installation and Service manual. 2.1033(c)(4) Type of emissions 1M25F9W 2.1033(c)(5) Frequency Range Transmit: 1850MHz to 1910MHz Receive: 1930MHz to 1990MHz 2.1033(c)(6) Range of Operation Power < -50dBm, 0.00001WATTS. 25dBm (0.316WATTS) See Attachment: Technical Description section 2.983(d)(3) Means for variation of operating power. 2.1033(c)(7) Maximum Power Rating 25dBm, 0.316WATTS. Project No# 01I0934-1 Date: AUGUST 30, 2001 EUT: CDMA PCS WLL TERMINAL FCC ID: PUNDTT-1900 Page 4 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2.1033(c)(8) Applied voltage and currents into the final transistor elements See Attachment: Technical Description section 2.983(d)(5) DC voltage and current of final amplifying device. 2.1033(c)(9) Tune-up/Optimizations Procedure See Attachment: Technical Description section 2.983(d)(9) Tune-up procedure over the power range. 2.1033(c)(10) Complete Circuit Diagrams and Functional Diagram Functional diagram: See Attachment: Technical Description section 2.983(d)(12) Description of modulation system used. Complete circuit diagrams: See Attachment: Schematics and parts list. 2.1033(c)(10a) Means for Frequency Stabilization See Attachment: Technical Description section 2.983(d)(10) Description of frequency determining and stabilizing circuitry.. 2.1033(c)(10b) Means for Suppressing of Spurious radiation. See Attachment: Technical Description section 2.983(d)(11) Description of circuit emulated for suppression of spurious radiations. 2.1033(c)(10c) Means for Limiting Modulation. See Attachment: Technical Description section 2.983(d)(12) Description of modulation system used. 2.1033(c)(10d) Means for Limiting Power. Se…

Text truncated - open the document above for the full version.

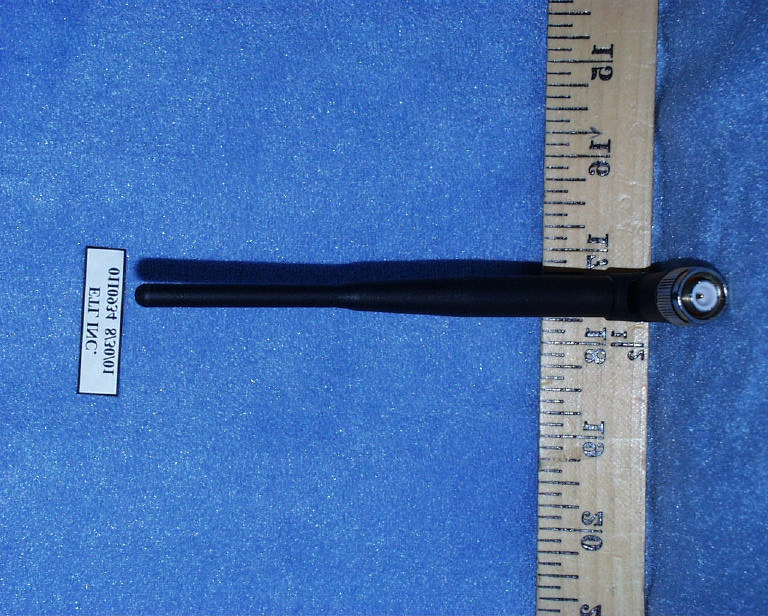

Project No# 01I0934-1 Date: AUGUST 30, 2001 EUT: CDMA PCS WLL TERMINAL FCC ID: PUNDTT-1900 Page 34 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. SETUP PHOTOS ANTENNA CONDUCTED & FREQUENCY STABILITY Project No# 01I0934-1 Date: AUGUST 30, 2001 EUT: CDMA PCS WLL TERMINAL FCC ID: PUNDTT-1900 Page 35 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. EIRP RADIATED Project No# 01I0934-1 Date: AUGUST 30, 2001 EUT: CDMA PCS WLL TERMINAL FCC ID: PUNDTT-1900 Page 36 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. ANTENNA CONDUCTED & FREQUENCY STABILITY Project No# 01I0934-1 Date: AUGUST 30, 2001 EUT: CDMA PCS WLL TERMINAL FCC ID: PUNDTT-1900 Page 37 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. SPURIOUS RADIATED Project No# 01I0934-1 Date: AUGUST 30, 2001 EUT: CDMA PCS WLL TERMINAL FCC ID: PUNDTT-1900 Page 38 of 62 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. SUBSTITUTION
