PUNDTT-800CDMA Wireless Local Loop Transceiver

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this device complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. All persons must be at least 20 cm from the antenna when the transmitter is operating to comply with FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov Please read this information before use DTT-&00/1900 Operating Manual 2. Technical Specification 2.1 800MHz bandwidth AIR INTERFACE Battery Back-up Connectors for various Service support Physical Environmental Power Supply Accessories Common air interface standard - IS-95A, IS-95B FREQUENCY ----’ TX: 824 - 849MHz RX: 869 - 894MHz TX Max. Output Power + 307mW ERP RX Sensitivity -+ - 104dBm below Vocoder + 8W13K QCELP, 8K EVRC Channel Bandwidth -+ CDMA 1.25Mhz RX Conducted Spurious -+ TX BAND : -61dBm below RX BAND :-81dBm below MOD/DEMOD 4 0 QPSWQPSK Frequency Accuracy --+ Fo+300Hz Type --+ Ni-Cd Capacity - 6V @ 1.7A Talk Time ---* 2 Hours Standby Time --+ 20Hours ( at slot cycle index 1 ) RJ-1 1 - Standard wire-line telephone Analog G3 Fax (Optional) Serial port -+ Maintenance Purpose Data Service Purpose (Internet, PC Fax) Dimension (DxWxH) + 19Oxl70x55mm Weight (including Backup battery) -+ 750g Operating temperature - 0 “C - +50 “C Input Power ---+ 100 - 24OV, 50/60Hz Output Power - DC 12V @ 1.3A Internal Antenna --+ Di-Pole Antenna Power supply (SMPS) Power Cord Tel-line Cord O

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this device complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. All persons must be at least 20 cm from the antenna wh en the transmitter is operating and must not be co-located or operating in conjunction with any other antenna or transmitter in order to comply with FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov Please read this information before use DTT-&00/1900 Operating Manual 2. Technical Specification 2.1 800MHz bandwidth AIR INTERFACE Battery Back-up Connectors for various Service support Physical Environmental Power Supply Accessories Common air interface standard - IS-95A, IS-95B FREQUENCY ----’ TX: 824 - 849MHz RX: 869 - 894MHz TX Max. Output Power + 307mW ERP RX Sensitivity -+ - 104dBm below Vocoder + 8W13K QCELP, 8K EVRC Channel Bandwidth -+ CDMA 1.25Mhz RX Conducted Spurious -+ TX BAND : -61dBm below RX BAND :-81dBm below MOD/DEMOD 4 0 QPSWQPSK Frequency Accuracy --+ Fo+300Hz Type --+ Ni-Cd Capacity - 6V @ 1.7A Talk Time ---* 2 Hours Standby Time --+ 20Hours ( at slot cycle index 1 ) RJ-1 1 - Standard wire-line telephone Analog G3 Fax (Optional) Serial port -+ Maintenance Purpose Data Service Purpose (Internet, PC Fax) Dimension (DxWxH) + 19Oxl70x55mm Weight (including Backup battery) -+ 750g Operating temperature - 0 “C - +50 “C Input Power ---+ 100 - 24OV, 50/60Hz Output Power - DC 12V @ 1.3A Internal Antenna --+ Di-Pole Antenna Power supply (SMPS) Power Cord Tel-line Cord O

Dowtelecom Inc. 4th F/L, Woosong Bldg., 361-10, Yatap-Dong, Bundang-Gu, Seongnam-Si, Gyunggi-Do, Korea Tel : +82 31 701 8962 , Fax : +82 31 701 8964 November 5, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To whom it may concern: We hereby certify that the fixed wireless local loop terminal FCC ID: PUNDTT-800 is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a). The transmitter in service has a unique ESN. b). The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c). The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Name : Seoung Chul, Ju Title : Senior Research Engineer Company : Dowtelecom Inc

Dowtelecom Inc. 4th F/L, Woosong Bldg., 361-10, Yatap-Dong, Bundang-Gu, Seongnam-Si, Gyunggi-Do, Korea Tel : +82 31 701 8962 , Fax : +82 31 701 8964 November 5, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To whom it may concern: We, the undersigned, hereby authorize Celltech Research Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Celltech Research Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 853(a). Sincerely, Name : Seoung Chul, Ju Title : Senior Research Engineer Company : Dowtelecom Inc

Dowtelecom Inc. 4th F/L, Woosong Bldg., 361-10, Yatap-Dong, Bundang-Gu, Seongnam-Si, Gyunggi-Do, Korea Tel : +82 31 701 8962 , Fax : +82 31 701 8964 November 5, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Re: Dow Telecom Inc. FCC ID: PUNDTT-800 FCC Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Dowtelecom Inc. hereby requests confidentiality of the block diagrams, circuit diagrams, circuit description, operational description, antenna specifications, parts list, and tune-up procedure attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Dowtelecom Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Dowtelecom Inc. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name : Seoung Chul, Ju Title : Senior Research Engineer Company : Dowtelecom Inc

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 •• Fax. 250-860-3110 •• e-mail: [email protected] www.celltechlabs.com November 5, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 SUBJECT: Dowtelecom Inc. FCC ID: PUNDTT-800 Part 22 Certification Gentlemen: On behalf of Dowtelecom Inc. is an application for Part 22 Certification of DTT-800 Cellular CDMA Fixed Wireless Local Loop Terminal as follows: FCC ID: PUNDTT-800 Model(s): DTT-800 Equipment Class: Licensed Non-Broadcast Station Transmitter (TNB) Equipment Type: Cellular CDMA Fixed Wireless Local Loop Terminal Tx Freq. Range: 824.70 – 848.31 MHz Max. RF Output Power: 0.307 Watts (ERP) Emission Designator: 1M25F9W Attached is the Authorization Letter, Confidentiality Request, ESN Affidavit, Part 22 measurement report test data and photographs, MPE measurement report test data and photographs, FCC ID label and location, internal and external photographs, block diagrams (confidential), circuit diagrams (confidential), circuit description (confidential), operational description (confidential), antenna specifications (confidential), parts list (confidential), tune-up procedure (confidential), and the user's manual. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Dowtelecom Inc.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 •• Fax. 250-860-3110 •• e-mail: [email protected] www.celltechlabs.com November 16, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Attn: Bill Graff SUBJECT: Dowtelecom Inc. FCC ID: PUNDTT-800 Part 22 Certification Request for Additional Info Dear Bill: On behalf of Dowtelecom Inc. is our response to your request for additional information dated November 14, 2001. 1. Justification for requested emission designator per FCC rule part 2.202: 2M + 2DK CDMA BW = 1.25 MHz F = Frequency Modulation 9 = Composite Digital Info W = Combination (Audio/Data) Emission Designator = 1M25F9W 2. The bandwidth settings listed in Section 3.3 of the test report were inadvertently submitted. Please note that both the resolution bandwidth and the video bandwidth were set to 3MHz for the test. 3. Please include the test setup photos and block diagrams in the application. 4. Please find attached the revised RF exposure warning statement for the users manual. 5. Please find attached MPE calculation data to replace the submitted MPE measurement report. 6. Please find attached the receiver emission test plot showing compliance with 22.917(f) of the FCC rules. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Dowtelecom Inc. FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this device complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. All persons must be at least 20 cm from the antenna wh en the transmitter is operating and must not be co-located or operating in conjunction with any other antenna or transmitter in order to comply with FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov Please read this information before use CELLTECH RESEARCH INC. Test Report S/N: 082001-156PUN 1955 Moss Court, Kelowna Dates of Tests: October 31, 2001 B.C. Canada V1Y 9L3 FCC MPE Calculation ________________________________________________________________________________________________________ © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal TEST DATA EFFECTIVE RADIATED POWER OUTPUT MEASUREMENTS Freq. Tuned EUT Conducted Power Max. Field Strength of EUT (Vert. Pol.) Dipole Gain Dipole Forward Conducted Power Max. ERP Max. EIRP (MHz) (dBm) (dBm) (dBd) (dBm) (dBm) Watts (dBm) Watts 824.70 25.0 - 18.39 - 1.44 26.19 24.75 0.299 26.89 0.489 835.89 25.0 - 18.17 - 1.34 26.21 24.87 0.307 27.01 0.502 848.31 25.0 - 18.87 - 1.24 25.97 24.73 0.297 26.87 0.486 MPE CALCULATION Maximum power density limit (S): S = f/1500 = 824.04/1500 = 0.55 mW/cm 2 Max. EIRP = 27.01 dBm = 502 mW R = √ EIRP/(4)(π)(S) = √ 502mW/(4)(π)(0.55mW/cm 2 ) = 8.53 cm The manufacturer specifies a 10 cm minimum separation distance for RF exposure compliance.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 14, 2001 RE: Dowtelecom Inc. FCC ID: PUNDTT-800 Please address the following concerns on this Application. Since some of this information is critical, it would be appreciated if you could upload your response within five days. 1.) Please provide justification for your requested emission designator using the Occupied and Necessary Bandwidth rules per Part 2.202. 2.) Please note the bandwidth settings used in Section 3.3 of your report appear to be in error. Bandwidth settings smaller than the transmitter emission bandwidth are incorrect. A bandwidth of 1MHz is acceptable. 3.) FYI: Test Setup Photos and Block Diagrams are not required for Licensed services. Do you still wish to include them in the Application? 4.) Please note the Grant Notes associated with this Application specify the transmitter must be operated “...at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. “ Please add co-location language to manual. 5.) TCBs at this time cannot accept measured MPE results. A calculation based upon measured power output and antenna gain is sufficient. Please submit revised MPE report. 6.) Please show compliance with the emission requirements of 22.917(f) in the frequency range 869 to 894 MHz. William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

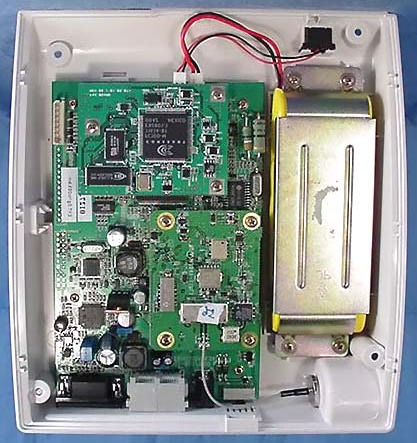

CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) INTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Cellular CDMA Fixed Wireless Terminal MODEL: DTT-800 FCC ID: PUNDTT-800 SERIAL NO.: MADE IN KOREA

CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) EXTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Dates of Tests: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification ____________________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE FCC PART 22.901(d) CERTIFICATION This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information: DOWTELECOM INC. 4 th Floor, Woosong Bldg., 361-10, Yatap-Dong, Buandang-Gu, Seongnam-Si, Gyunggi-Do, Korea 463-828 FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §22.901(d), §2 FCC ID: PUNDTT-800 Model(s): DTT-800 Equipment Type: Cellular CDMA Wireless Local Loop Terminal Tx Frequency Range: 824.70 - 848.31 MHz Rx Frequency Range: 869.70 - 893.31 MHz Max. RF Output Power: 0.307 Watts (ERP) Frequency Tolerance: 0.5 PPM Emission Designator: 1M25F9W CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Dates of Tests: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification ____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.1 GENERAL INFORMATION 1 2.1 MEASUREMENT PROCEDURES 2 Occupied Bandwidth (2.1049) 2 Spurious Emissions at Antenna Terminal (2.1051) 2 Radiated Spurious & Harmonic Emissions (2.1053) 2 Frequency Stability/Temperature Variation (2.1055) 3 3.1 TEST DATA 4 Effective Radiated Power Output 4 Field Strength of Spurious Radiation 5-7 Frequency Stability 8-9 4.1 LIST OF TEST EQUIPMENT 10 5.1 CONCLUSION 11 CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Dates of Tests: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification ____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 1 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) APPLICANT: DOWTELECOM INC. 4 th Floor, Woosong Bldg., 361-10, Yatap-Dong, Buandang-Gu, Seongnam-Si, Gyunggi-Do, Korea 463-828 MEASUREMENT REPORT - FCC PART 22.901(d) 1.1 SCOPE Measurement and determination of electromagnetic emissions (EME) from radio frequency devices for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033(a) General Information FCC ID PUNDTT-800 Model(s) DTT-800 EUT Type Cellular CDMA Wireless Local Loop Terminal FCC Classification Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s) §22.901(d), §2 Max. RF Output Power 0.307 Watts (ERP) Tx Freq. Range 824.70 - 848.31 MHz Rx Freq. Range 869.70 - 893.31 MHz Emission Designator 1M25F9W Modulation CDMA Power Supply 1.9VDC 1.3A AC/DC Power Adapter (DOWTEL Model: SIH-1309WN) 2. Internal Battery Backup CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Dates of Tests: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification ____________________________________________________________________________________________________________ © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 2 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) 2.1 MEASUREMENT PROCEDURES 2.2 OCCUPIED BANDWIDTH - §2.1049 The antenna output terminal of the EUT was connected to the input of a 50Ω spectrum analyzer through a matched 30dB attenuator. The radio transmitter was operating at maximum output power with and without internal data modulation. 100% of the in-band modulation was below the specified mask per §22.917. Specified Limits: (a) On any frequency removed from the assigned carrier frequency by more than 20kHz, up to and including 45kHz, the sideband was at least 26dB below the carrier. (b) On any frequency removed from the assigned carrier frequency by more than 45kHz, up to and including 90kHz, the sideband was at least 45dB below the carrier. (c) On any frequency removed from the assigned carrier frequency by more than 90kHz, up to the first multiple of the carrier frequency, the sideband was at least 60dB below the carrier of 40 + log 10 (mean power output in Watts) dB, whichever was the smaller attenuation. 2.3 SPURIOUS EMISSIONS AT ANTENNA TERMINAL - §2.1051 The level of the carrier and the various conducted spurious frequencies was measured by means of a calibrated spectrum analyzer. The antenna output terminal of the EUT was connected to the input of a 50Ω spectrum analyzer through a matched 30dB attenuator and coaxial cable. The transmitter was operating at maximum power with internal data modulation. 2.4 RADIATED SPURIOUS AND HARMONIC EMISSIONS - §2.1053 Radiated and harmonic emissions above 1 GHz were measured at our 3-meter outdoor site. The EUT was placed on the turntable with the transmitter transmitting into a non-radiating load. A receiving antenna located 3 meters from the turntable received any signal radiated from the transmitter and its operating accessories. The receiving ant…

Text truncated - open the document above for the full version.

CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) RADIATED TEST SETUP PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 082001-155PUN 1955 Moss Court, Kelowna Test Dates: October 22-24, 2001 B.C. Canada V1Y 9L3 FCC Part 22 Certification © 2001 Celltech Research Inc. DOWTELECOM INC. FCC ID: PUNDTT-800 Cellular CDMA Wireless Local Loop Terminal (824-849MHz) RADIATED TEST SETUP PHOTOGRAPHS
