PV5MSD033019891:64 Scale R/C Nascar Car

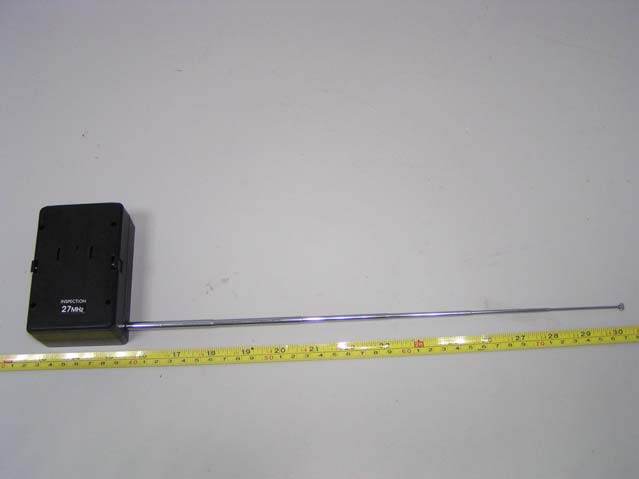

External Photos FIGURE 1 EUT - Front View FIGURE 2 EUT- Back View

ID Label Label FCC ID: PV5MSD03301989 This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos FIGURE 1 EUT – Cover off with Battery Pack View FIGURE 2 EUT – Battery Pack View FIGURE 3 EUT – PWB – Component View FIGURE 4 EUT –PWB – Circuit View

Circuit Description FCC ID: PV5MSD03301989 The 27.145MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC (TX2C). The output of Q1 has the matching network consisting of L1 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 47 cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (F22 size battery X 1) primary battery.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Meisida Electronic Toys Co., Ltd. Anping Indsutry Park (Anhai) Jinjiang Fujian China FCC ID: PV5MSD03301989 May 15, 2003 This Report Concerns: Original Report Equipment Type: 1:64 scale R/C Nascar car Test Engineer: Philo Zhong Report No.: RSZ03042503(T) Test Date: April 25, 2003 Reviewed By: Zhang Ling Prepared By: Bay Area Compliance Lab Corp. Suite C, 41-D Electronics Science & Technology Building, No. 2070 Shennanzhong Rd ShenZhen, Guandong 518031, P.R. China Tel: (755) 83296449 Fax: (755) 83273756 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD03301989 Report # RSZ03042503(T).doc Page 2 of 9 FCC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) ......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST...........................................................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 DESCRIPTION OF TEST CONFIGURATION................................................................................................................5 2.2 CONFIGURATION OF TEST SYSTEM.........................................................................................................................5 2.3 TEST SETUP BLOCK DIAGRAM...............................................................................................................................5 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................5 3 - SUMMARY OF TEST RESULTS..........................................................................................................................6 4 - CONDUCTED EMISSIONS TEST DATA............................................................................................................7 5 - RADIATED EMISSION DATA .............................................................................................................................8 5.1 MEASUREMENT UNCERTAINTY..............................................................................................................................8 5.2 EUT SETUP............................................................................................................................................................8 5.3 SPECTRUM ANALYZER SETUP................................................................................................................................8 5.4 TEST PROCEDURE..................................................................................................................................................8 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION.............................................................................................9 5.6 SUMMARY OF TEST RESULTS.................................................................................................................................9 5.7 RADIATED EMISSIONS TEST RESULT DATA...........................................................................................................9 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD03301989 Report # RSZ03042503(T).doc Page 3 of 9 FCC Part 15 Subpart C Test Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Meisida Electronic Toys Co., Ltd.’s product, model name: MSD0330 or the "EUT" as referred to in this report is a 1:64 scale R/C Nascar car. The EUT is a Transmitter, which measures approximately 10cmL x 6.5cm W x 4cm H, with permanent antenna 48.5cm. The EUT power: DC3V battery, we use a new DC battery to test. * The test data was good for test sample only. It may have deviation for other product samples. 1.2 Objective This document is a test report based on the Electromagnetic Interference (EMI) tests performed on the EUT. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by FCC Title 47, Part 15, Subpart C, section 15.209, and 15.227. 1.3 Related Submittal(s)/Grant(s) No Related Submittals 1.4 Test Methodology All measurements contained in this report were conducted with ANSI C63.4 - 1992, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory, Corp. The radia…

Text truncated - open the document above for the full version.

5.7 Radiated Emissions Test Result Data (Additional Data) Indicated Table Antenna Correction Factor FCC 15 Subpart C Freqency MHz Ampl. dBμV/m Direction Degree Height Meter Polar H/V Antenna dBμV/m Cable Loss dBμV/m Amp. dB Corr. Ampl. dBμV/m Limit dBμV/m Margin dB Mode 27.145 70.7 0 1.1 v 15.3 7.8 25 68.8 80 -11.2 Average 27.145 50.45 270 1.8 h 15.3 7.8 25 48.6 80 -31.5 Average 27.145 72.1 0 1.1 v 15.3 7.8 25 70.2 100 -29.8 Peak 27.145 55.2 270 1.8 h 15.3 7.8 25 53.3 100 -46.7 Peak

Test Setup Photos Test Setup Photos Radiated Emission – Front View Radiated Emission – Back View
