PV5MSD033219891:18 Scale R/C Nascar Car - Reomte Toy Controller

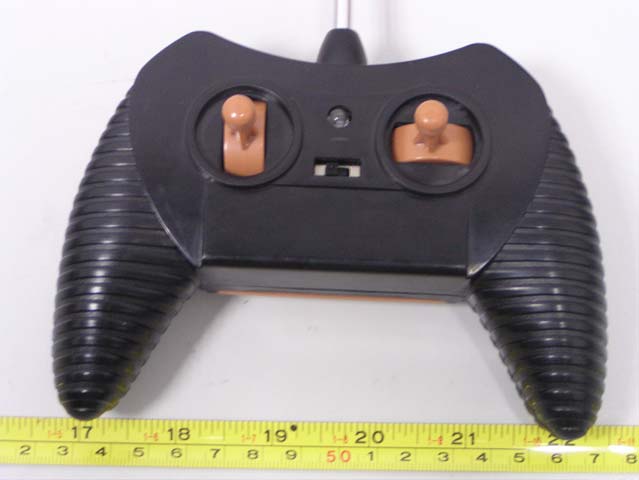

External Photos FIGURE 1 EUT - Front View (1) FIGURE 2 EUT- Back View (1) FIGURE 3 EUT - Front View (2) FIGURE 4 EUT- Back View (2)

ID Label Label FCC ID: PV5MSD03321989 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos FIGURE 1 EUT – Uncovered Component View FIGURE 2 EUT – Uncovered Solder View

Circuit Description FCC ID: PV5MSD03321989 The power is offered by 9V DC battery. The control signal is indicated by switch 1-4, and coding by IC1 PT8A977. The coding signal is out put via pin 8. The oscillator X1 and Q2 and C7 and controller Frequency and the control signal is modulated on carrier via Q1. The output of Q1 is connected to antenna. The radio signal is emission via the antenna.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Meisida Electronic Toys Co., Ltd. Anping Indsutry Park (Anhai) Jinjiang Fujian China FCC ID: PV5MSD03321989 June 25, 2003 This Report Concerns: Original Report Equipment Type: 1:18 scale R/C Nascar car- Remote Toy Controller Test Engineer: Jandy Su Report No.: RSZ03062002(T) Test Date: June 20, 2003 Reviewed By: Prepared By: Bay Area Compliance Lab Corp. Suite C, 41-D Electronics Science & Technology Building, No. 2070 Shennanzhong Rd ShenZhen, Guandong 518031, P.R. China Tel: (755) 83296449 Fax: (755) 83273756 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD03321989 Report # RSZ03062002(T).doc Page 2 of 12 FCC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) ......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST...........................................................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 DESCRIPTION OF TEST CONFIGURATION................................................................................................................5 2.2 CONFIGURATION OF TEST SYSTEM.........................................................................................................................5 2.3 TEST SETUP BLOCK DIAGRAM...............................................................................................................................5 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................5 3 - SUMMARY OF TEST RESULTS..........................................................................................................................6 4 - CONDUCTED EMISSIONS TEST DATA............................................................................................................7 5 - RADIATED EMISSION DATA .............................................................................................................................8 5.1 MEASUREMENT UNCERTAINTY..............................................................................................................................8 5.2 EUT SETUP............................................................................................................................................................8 5.3 SPECTRUM ANALYZER SETUP................................................................................................................................8 5.4 TEST PROCEDURE..................................................................................................................................................8 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION.............................................................................................9 5.6 SUMMARY OF TEST RESULTS.................................................................................................................................9 5.7 RADIATED EMISSIONS TEST RESULT DATA...........................................................................................................9 6 – BAND EDGES TESTING.....................................................................................................................................10 6.1 SPECTRUM ANALYZER SETUP..............................................................................................................................10 6.2 TEST RESULTS.....................................................................................................................................................10 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD03321989 Report # RSZ03062002(T).doc Page 3 of 12 FCC Part 15 Subpart C Test Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Meisida Electronic Toys Co., Ltd.’s product, model name: MSD0332 or the "EUT" as referred to in this report is a Remote Toy Controller. The EUT is a Transmitter, which measures approximately 14cmL x 6cmW x 41cmH, with permanent antenna 31cm. The EUT power: DC 9V battery, we use a new DC battery to test. * The test data was good for test sample only. It may have deviation for other product samples. 1.2 Objective This document is a test report based on the Electromagnetic Interference (EMI) tests performed on the EUT. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4 - 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by FCC Title 47…

Text truncated - open the document above for the full version.

Test Setup Photos Test Setup Photos Radiated Emission – Front View Radiated Emission – Rear View
