PV5MSD03881990Transmitter, Toy RF Remote Controller

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:8-Sep-2000 Sheet of File:E:\protel99\B5068.DDBDrawn By: POWER SUPPLY CONTROLLER CRYSTAL OSCILATRO MODULATOR & RF AMPLIFILER 49.860mHz BT? BATTERY ANT 49.860mHz LED MSD0388 TX BLOCK DIAGRAM(49.860mHz) T X 2 MSD0388 TX 49mHz MEISIDA TOYS FUNCTIONAL CODE PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.com.cn

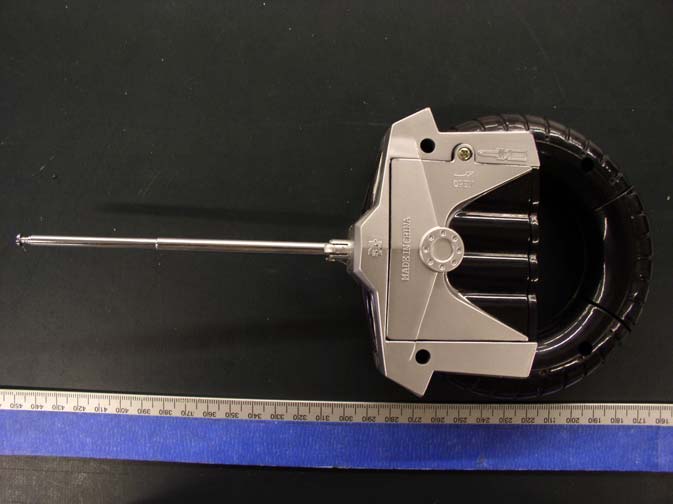

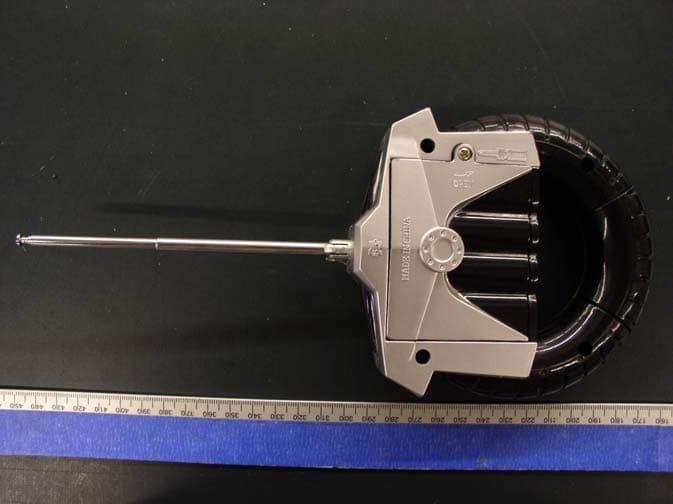

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS EUT –Top View EUT - Bottom View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing and shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom View of EUT, FCC ID Label Proposed Location FCC ID: PV5MSD03881990 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT - Component View EUT - Solder View

MEISIDA ELECTRONIC TOYS CO., LTD Circuit Description Battery power supply current from pin 9 to TX2C via R7, when press the key, pin 10 output high level to IC TX2C normal work voltage and supply for Q3, Q4,. Then through Q1, D1, R21, DZ1 output isobarically, and Q2, Q1 conducted. When press the key, oscillations (e.g. Q4, C4, crystal etc.) start working, and output 49MHz carrier wave, at the same time pin 8 of TX2C output coding, via Q3 modulated and then transmit through C1, L1

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 20-Aug-2004 Sheet of File: D:\protel99\0388R-1.DDB Drawn By: C9 104P C45P C6104P C3*36PC236P C1 47P C5103P X1 49.860M C8100u L3 1.5u L11.5u L21.5u LED1 LED2 Q4 1815 Q3 1815 Q7 5609 Q68050 Q1 A1015 R21K R8220 R12220 R610K R468K R1522K R13300 R5100 R162.2K R11.5K R3200K R910K R1010K R1110KR14 470K 1 78 14 IC1 TX2C D21N4148 ANT _ Q58550 BT6.0V MSD0388 TX-49M + R17* 0.22/2W C10*5P _ * Q2 1815 R715K DZ1 3.9V R21100 C7104 D14148 * MEISIDA TOYS MEISIDA ELECTRONIC TOYS CO., LTD BOM No. ： YK0388 - 49 Product name ： Mini QuadraGio NAME ： TRANSMIT49MHz No . Reference No component name Model quan tity technical date remark 1 D.R.T100RB resistance 100Ω 2 1/4W±5% 2 D.R.T1KB resistance 1K 1 1/4W±5% 3 D.R.T1KB resistance 10K 4 1/4W±5% 4 D.R.T2K2B resistance 2.2K 1 1/4W±5% 5 D.R.T680KB resistance 680K 1 1/4W±5% 6 D.R.T22KB resistance 22K 1 1/4W±5% 7 D.R.T300RB resistance 300Ω 1 1/4W±5% 8 D.R.T220RB resistance 220Ω 2 1/4W±5% 9 D.R.T240KB resistance 240K 1 1/4W±5% 10 D.R.T3R3C resistance 3.3Ω 1 1/2W±5% 11 D.R.T62KB resistance 62K 1 1/4W±5% 12 D.R.T15KB resistance 15K 1 1/4W±5% 13 D.R.T1K5B resistance 1.5K 1 1/4W±5% 14 D.C.C103 lacker capacitance 103PF 1 ±10% 15 D.C.C104 lacker capacitance 104PF 3 ±20% 16 D.C.C47 lacker capacitance 47PF 2 ±5% 17 D.C.C36 lacker capacitance 36PF 1 ±5% 18 D.C.C10 lacker capacitance 10PF 1 ±5% 19 D.C.C5 lacker capacitance 5 PF 1 ±5% 20 D.C.D100P-B electrolyte capacitance 100uF 1 ±10% 21 D.DZ.S03071U5 Colour ring inductance 1.5UH 3 0307±10% 22 D.Q.C1815Y-TOS audion C1815- Y 3 23 D.Q.H5609-RL audion H5609 1 24 D.Q.1015GR-TOS audion 1015GR 1 25 D.Q.8050C-RL audion 8050C 1 26 D.Q.8550C-RL audion 8550C 1 27 D.D.K4148 diode IN4148 2 28 D.D.W3D9 diode 3.9V 1 29 D.F.JCTX2 integration mass PTSTX2 C 1 30 D.X.49-860 crystal frequency genrator 49.860 MHz 1 31 D.PCB.0388T-CB circuitry board MSD038 8T 1 33 D.K.T-TC0606A switch TC0606 A 4

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. FCC PART 15.235 EMI MEASUREMENT AND TEST REPORT For Meisida Electronic Toys Co., Ltd. Anping Indsutry Park(Anhai)Jinjiang Fujian China. 2004 –09-14 This Report Concerns: Original Report Equipment Type: Transmitter, Toy RF Remote Controller Test Engineer: Jerry Wang/ Report No.: R04081113 (T) Test Date: 2004-09-06 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 FCC ID: PV5MSD03881990 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD03881990 Report # R04081113RPT Page 2 of 12 FCC ID15.235 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 SCHEMATICS AND BLOCK DIAGRAM............................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 SUMMARY OF TEST RESULTS ...............................................................................................................................5 §15.203 - ANTENNA REQUIREMENT......................................................................................................................6 STANDARD APPLICABLE..............................................................................................................................................6 §15.205, §15.209 - RADIATED EMISSIONS TEST...................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 SPECTRUM ANALYZER SETUP......................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................8 SUMMARY OF TEST RESULTS.......................................................................................................................................8 RADIATED EMISSIONS TEST RESULT DATA.................................................................................................................9 §15.235 – BAND EDGES TESTING..........................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST RESULT.............................................................................................................................................................10 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD03881990 Report # R04081113RPT Page 3 of 12 FCC ID15.235 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The MEISIDA ELECTRONIC TOYS CO., LTD.’s product, model number: MSD0388(49MHZ) or the "EUT" as referred to in this report is a Transmitter, R/C toy. The EUT is measured approximately 13.0cm L x 11.5cm W x 3.7cm H. * The test data gathered are from production sample, serial number: M03881000321, provided by the manufacturer. Objective This type approval report is prepared on behalf of MEISIDA ELECTRONIC TOYS CO., LTD. in accordance with Part 2, Subpart J, and Part 15, Subparts A, B and C of the Federal Communication Commissions rules. The objective is to determine compliance with FCC rules, sec 15.203, 15.205, 15.209 and sec 15.235. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2001, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Elec…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View Radiated Emission - Rear View
