PV5MSD04601989Street Savage

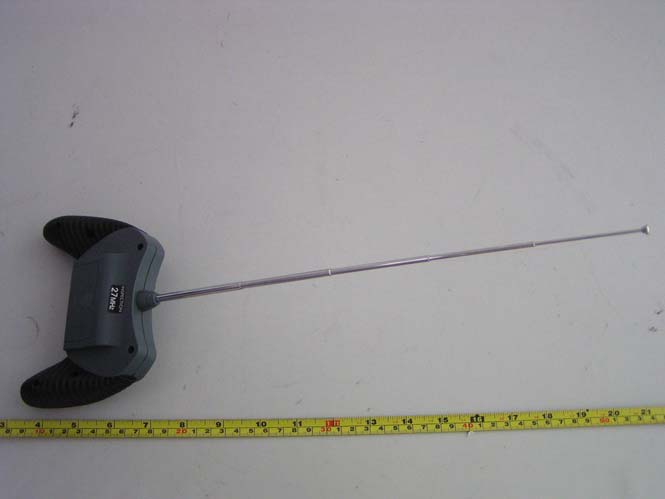

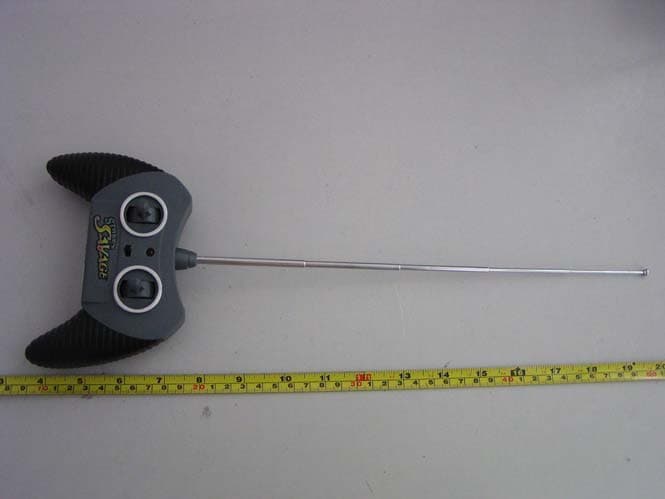

External Photos

ID Label Label

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location

Internal Photos

Part Cross Reference Report For : 0460TFCC.xrf 19-Mar-2005 15:27:03 Designator Component Library Reference Sheet ----------------------------------------------------------------- BT 9.0V 0460TFCC.sch C1 10P* 0460TFCC.sch C2 47P 0460TFCC.sch C3 47 0460TFCC.sch C4 103 0460TFCC.sch C5 47 0460TFCC.sch C6 47 0460TFCC.sch C7 47 0460TFCC.sch C8 104 0460TFCC.sch C9* 100U 0460TFCC.sch D1 3.9V 0460TFCC.sch K1 SS-12F42G5 0460TFCC.sch L1 6.8u 0460TFCC.sch L2 2.7u 0460TFCC.sch L3 2.7u 0460TFCC.sch Q1 1815 0460TFCC.sch Q2 1815 0460TFCC.sch R1 100 0460TFCC.sch R2 33K 0460TFCC.sch R3 100 0460TFCC.sch R4 270K 0460TFCC.sch R5 10K 0460TFCC.sch R6 330 0460TFCC.sch R7 2.2K 0460TFCC.sch R8 200K 0460TFCC.sch U1 PT8A977 0460TFCC.sch X1 27.145MHz 0460TFCC.sch

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:21-Mar-2005Sheet of File:E:\Design Explorer 99 SE\BT0460.ddbDrawn By: 17 8 14 PT8A977 X1 27.145MHz C8 104 C6 47 C5 47 C7 47 L3 2.7u L2 2.7u L1 6.8u Q2 1815 Q1 1815 R8 200K R6 330 R4 270K R2 33K R3 100 R7 2.2K R5 10K LED D1 3.9V K1 SS-12F42G5 BT 9.0V ANT R1 100 C2 47P C3 47 C4 103 0460T-27 C1 10P* C9* 100U Îâ¹úƽ 27.145MHz

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For Meisida Electronic Toys Co., Ltd. Anping Indsutry Park(Anhai)Jinjiang Fujian China FCC ID: PV5MSD04601989 April 12, 2005 This Report Concerns: Original Report Equipment Type: Street Savage Test Engineer: Lisa Zhu Report No.: RSZ05040603 Test Date: April 11, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD04601989 Report # RSZ05040603 Page 2 of 10 FCC PART 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................4 SUMMARY OF TEST RESULTS ...............................................................................................................................5 §15.203 - ANTENNA REQUIREMENT......................................................................................................................6 STANDARD APPLICABLE..............................................................................................................................................6 §15.205, §15.209, §15.227(A) - RADIATED EMISSIONS TEST ..............................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................8 TEST DATA..................................................................................................................................................................9 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................10 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD04601989 Report # RSZ05040603 Page 3 of 10 FCC PART 15.227 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The Meisida Electronic Toys Co., Ltd.’s product, model number: MSD0460 or the "EUT" as referred to in this report is a Street Savage. The EUT is measured approximately 13.80 cm L x 10.0 cm W x 3.5 cm H. rated input voltage: DC 9V battery. * The test data gathered are from production sample, serial number: 0504007, provided by the manufacturer. Objective This Type approval report is prepared on behalf of Meisida Electronic Toys Co., Ltd. in accordance with Part 2, Subpart J, and Part 15, Subparts A , B and C of the Federal Communication Commissions rules. The objective is to determine compliance with FCC rules, sec 15.203, 15.205, 15.209 and sec 15.227. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions measurement was performed at Bay Area Compliance Lab Corp. (ShenZhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. Test Facility The Test site used by Bay Area Compliance Lab Corp. (ShenZhen) to collect radiated and conducted emission measurement data is locate…

Text truncated - open the document above for the full version.

Te s t S e t u p P h o t o s Radiated Emissions-Stand View Radiated Emissions-Side View Radiated Emissions-Lie View (1) Radiated Emissions-Lie View (2)
