PV5MSD20001989Remote Control Toy Transmitter

FCC ID: PV5MSD20001989 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID LABEL

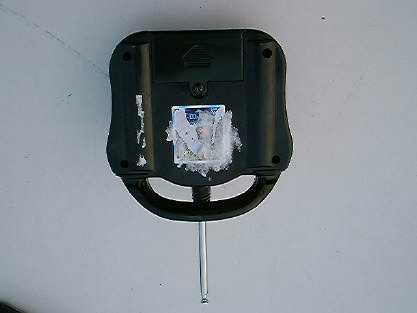

FCC ID: PV5MSD20001989 LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

FCC ID: PV5MSD20001989 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: PV5MSD20001989 Circuit Description The 27.145MHz crystal oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by IC(TX2). The output of Q3 has the matching network consisting of L3 and C9 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 45cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

Date: 2001-10-20 TEST REPORT Page 1 of 21 No.: HM105562 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM105562 Equipment Under Test [EUT]:Rebound R/C Car Model Number:MSD2000 Applicant:Meisida Electronic Toys Co., Ltd. FCC ID :PV5MSD20001989 Date: 2001-10-20 TEST REPORT Page 2 of 21 No.: HM105562 CONTENT: Cover Page 1 of 21 Content Page 2-3 of 21 Conclusion Page 4 of 21 1.0General Details 1.1Test Laboratory Page 5 of 21 1.2Applicant Details Page 5 of 21 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 21 Description of EUT operation 1.4Date of Order Page 6 of 21 1.5Submitted Sample Page 6 of 21 1.6Test Duration Page 6 of 21 1.7Country of Origin Page 6 of 21 1.8 Additional Information of EUT Page 7 of 21 2.0Technical Details 2.1Investigations Requested Page 8 of 21 2.2Test Standards and Results Summary Page 8 of 21 3.0Test Results 3.1Emission Page 9-14 of 21 3.2Bandwidth Measurement Page 15-16 of 21 Date: 2001-10-20 TEST REPORT Page 3 of 21 No.: HM105562 Appendix A List of Measurement Equipment Page 17 of 21 Appendix B Duty Cycle Correction During 100 msec Page 18-19 of 21 Appendix D Photographs Page 20-21 of 21 Date: 2001-10-20 TEST REPORT Page 4 of 21 No.: HM105562 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Law Man KitPatrick Wong Verify byPatrick Wong for Chief Executive Date: 2001-10-20 TEST REPORT Page 5 of 21 No.: HM105562 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant MEISIDA ELECTRONIC TOYS CO., LTD. MSD Bldg., Anping Industrial Park (Anhai) Jinjiang, Fujian, China Telephone:86 595 5789295 Fax:86 595 5789296 HKSTC Code Number for ApplicantMEE007 Manufacturer MEISIDA ELECTRONIC TOYS CO., LTD. MSD Bldg., Anping Industrial Park (Anhai) Jinjiang, Fujian, China Telephone:86 595 5789295 Fax:86 595 5789296 Date: 2001-10-20 TEST REPORT Page 6 of 21 No.: HM105562 1.3Equipment Under Test [EUT] Description of Sample Product:Rebound R/C Car Manufacturer:Meisida Electronic Toys Co., Ltd. Brand Name:MSD Model Number:MSD2000 Input Voltage:9Vd.c (“6F22” size battery x 1) Additional Product Name:Crazy Sting R/C Car Additional Model Number:MSD2001 Additional Product Name:1:16 Beach R/C Car Additional Model Number:MSD2011A-D Additional Product Name:R/C Military Jeep Additional Model Number:MSD2028 Additional Product Name:R/C Motive Trailer Additional Model Number:MSD2029 Additional Product Name:R/C Truck Additional Model Number:MSD2030 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is an Meisida Electronic Toys Co., Ltd., 27.145 MHz Transmitter. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed. It is voice transmission & remote control toy, Modulation by IC and tape is frequency modulation. 1.4Date of Order 2001-08-07 1.5Submitted Sample(s): 1 Sample per model 1.6Test Duration 2001-09-13 Date: 2001-10-20 TEST REPORT Page 7 of 21 No.: HM105562 1.7Country of Origin China 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Rating Label Block diagram FCC ID Label Date: 2001-10-20 TEST REPORT Page 8 of 21 No.: HM105562 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:1992 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227ANSI C63.4:1992N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:1992Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:1992Class B Note: N/A - Not Applicable Date: 2001-10-20 TEST REPORT Page 9 of 21 No.: HM105562 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.227 Test Method:ANSI C63.4:1992 Test Date:2001-09-13 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2001-10-20 TEST REPORT Page 10 of 21 No.: HM105562 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.227]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz][μV/m][μV/m] 26.96-27.28100,00010,000 Results: Field Strength of Fundamental Emissions Peak Value FrequencyLevel @3mCorrection Factor Field Strength Field Strength Limit ** @3m Antenna Polarity MHzdBμVdB/mdBμV/mμV/mμV/m 27.14535.418.553.9495.5100,000Vertical According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for…

Text truncated - open the document above for the full version.

FCC ID: PV5MSD20001989 TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
