PV5MSD20011990Crazy Sting �Remote Toy Controller

MEISIDA ELECTRONIC TOYS CO., LTD Product name: MSD2001 49.86MHZ 49.86mhz Codifi cation Signal modulation launch The part of launching diagram

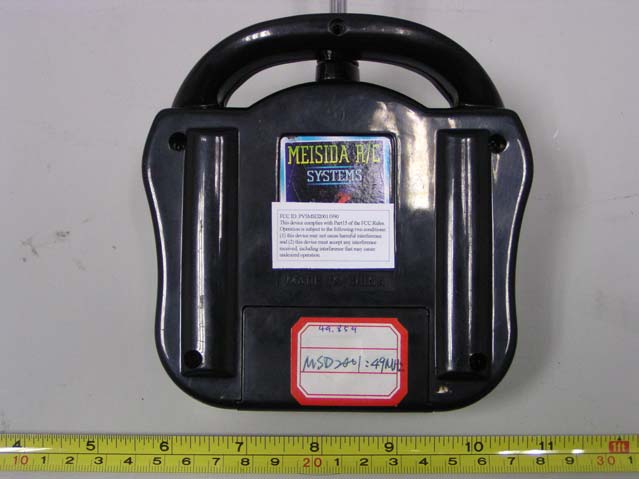

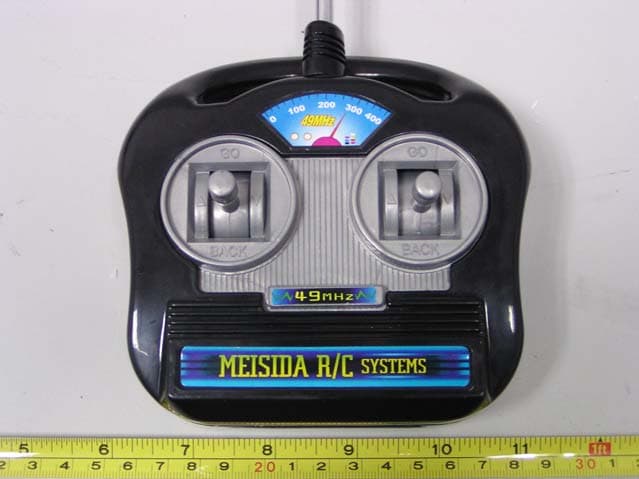

External Photos FIGURE 1 EUT - Front View (1) FIGURE 2 EUT- Back View (1) FIGURE 3 EUT - Front View (2) FIGURE 4 EUT- Back View (2)

ID Label Label FCC ID: PV5MSD20011990 This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos FIGURE 1 EUT – Uncovered Component view FIGURE 2 EUT - Solder view

Circuit Description FCC ID: PV5MSD20011990 The 49.860MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC (TX2C). The output of Q1 has the matching network consisting of L1 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the out put stage. Antenna, Ground and Power Source The antenna consists of a 47 cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (F22 size battery X 1) primary battery.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Meisida Electronic Toys Co., Ltd. Anping Indsutry Park (Anhai) Jinjiang Fujian China FCC ID: PV5MSD20011990 May 15, 2003 This Report Concerns: Original Report Equipment Type: Crazy Sting-Remote Toy Controller Test Engineer: Philo Zhong Report No.: RSZ03041601(T) Test Date: April 16, 2003 Reviewed By: Prepared By: Bay Area Compliance Lab Corp. Suite C, 41-D Electronics Science & Technology Building, No. 2070 Shennanzhong Rd ShenZhen, Guandong 518031, P.R. China Tel: (755) 83296449 Fax: (755) 83273756 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD20011990 Report # RSZ03041601(T).doc Page 2 of 11 FCC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) ......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST...........................................................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 DESCRIPTION OF TEST CONFIGURATION................................................................................................................5 2.2 CONFIGURATION OF TEST SYSTEM.........................................................................................................................5 2.3 TEST SETUP BLOCK DIAGRAM...............................................................................................................................5 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................5 3 - SUMMARY OF TEST RESULTS..........................................................................................................................6 4 - CONDUCTED EMISSIONS TEST DATA............................................................................................................7 5 - RADIATED EMISSION DATA .............................................................................................................................8 5.1 MEASUREMENT UNCERTAINTY..............................................................................................................................8 5.2 EUT SETUP............................................................................................................................................................8 5.3 SPECTRUM ANALYZER SETUP................................................................................................................................8 5.4 TEST PROCEDURE..................................................................................................................................................8 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION.............................................................................................9 5.6 SUMMARY OF TEST RESULTS.................................................................................................................................9 5.7 RADIATED EMISSIONS TEST RESULT DATA...........................................................................................................9 5 – 10K BAND EDGES TESTING.............................................................................................................................10 5.1 TEST RESULTS.....................................................................................................................................................10 Meisida Electronic Toys Co., Ltd. FCC ID: PV5MSD20011990 Report # RSZ03041601(T).doc Page 3 of 11 FCC Part 15 Subpart C Test Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Meisida Electronic Toys Co., Ltd.’s product, model name: MSD2001 or the "EUT" as referred to in this report is a Remote Toy Controller. The EUT is a Transmitter, which measures approximately 20cmL x 15cmW x 7.0cmH, with permanent antenna 48.5cm. The EUT power: DC 9V battery, we use a new DC battery to test. * The test data was good for test sample only. It may have deviation for other product samples. 1.2 Objective This document is a test report based on the Electromagnetic Interference (EMI) tests performed on the EUT. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4 - 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by FCC Title 47, Part 15, Subpart C, section 15.203, 15.209, and 15.235. 1.3 Related Submittal(s)/Grant(s) No Related Submittals 1.4 Test Methodology All measurements contained in thi…

Text truncated - open the document above for the full version.

Test Setup Photos Test Setup Photos Radiated Emission – Front View Radiated Emission – Rear View
