PW2DTXPRO10U10 W DTV TRANSMITTER

PINEAPPLE TECHNOLOGY, INC. TABLE OF CONTENTS DTXPRO-10U OPERATING AND SERVICE MANUAL THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION TABLE OF CONTENTS SECTION I – SAFETY NOTICES....................................................................................... 4 SECTION II – DTXPRO-10U INTRODUCTION............................................................... 4 SECTION III –DTXPRO-10U TECHNICAL SPECIFICATIONS......................................... 6 SECTION IV DTXPRO-10U BLOCK DIAGRAM A. BLOCK DIAGRAM............................................................................................... 10 B. BILL OF MATERIALS.......................................................................................... 11 SECTION V – DXDPRO-10U MANUAL V.1 – DXDPRO-10U INTRODUCTION..................................................................... 12 V.2 – DXDPRO-10U TECHNICAL SPECIFICATIONS.............................................. 14 V.3 – DXDPRO-10U APPLICATIONS AND INSTALATION A. APPLICATIONS.................................................................................. 18 B. TRANSMITTER INSTALATION......................................................... 18 C. DIGITAL UPGRADE NOTES............................................................. 19 D. 8 VDC OPERATIONS......................................................................... 19 E. GPS RECEIVER ACTIVATION........................................................... 19 V.4 DXDPRO-10U FRONT PANEL CONTROL AND MONITORING A. OVERVIEW......................................................................................... 22 B. TRANSMITTER PERFORMANCE MONITORING ............................ 22 C. ALARM SIGNALS............................................................................... 22 D. POWER LEVEL ADJUSTMENT AND ALC......................................... 22 PINEAPPLE TECHNOLOGY, INC. TABLE OF CONTENTS DTXPRO-10U OPERATING AND SERVICE MANUAL THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION TABLE OF CONTENTS V.5 – DXDPRO-10U ETHERNET WEB PAGE CONTROL AND MONITORING A. LOCAL PC INTERNAL MODEM SETTINGS FOR FIXED IP................ 24 B. ETHERNET WEB PAGE SETUP............................................................ 28 C. IP ADRESS CONFIGURATION.............................................................. 28 D. WEB SERVICE OPERATION................................................................. 30 V.6 – DXDPRO-10U ADAPTIVE PRE-CORRECTOR WEB SERVICE OPERATION A. INTRODUCTION...................................................................................... 43 B. ELECTRICAL INTERFACE...................................................................... 43 C. OPERATION OF ADAPTIVE PRE-CORRECTOR................................... 46 D. ECHO CANCELLING AND ADAPTIVE PRE-CORRECTION................. 56 E. APPENDIX-A – CLIPPER OPERATION.................................................. 57 V.7 - DXDPRO-10U BLOCK DIAGRAM................................................................... 61 SECTION VI DTXPRO-10U INSTALLATION PROCEDURE......................................... 63 SECTION VII – DTXPRO-10U SERVICE REQUIREMENTS........................................... 69 SECTION VIII – DTXPRO-10U WARRANY...................................................................... 68 THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION SECTION I SAFETY NOTICES PINEAPPLE TECHNOLOGY, INC. I. SAFETY NOTICES DTXPRO-10U OPERATING AND SERVICE MANUAL THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION 4 l ---SAFETY NOTICES ** READ THIS SECTION BEFORE INSTALLATION ** SEVERE ELECTRICAL SHOCK OR BURNS MAY OCCUR IF THIS EQUIPMENT IS USED IMPROPERLY. NEVER WORK ON THIS EQUIPMENT ALONE. ALWAYS HAVE ANOTHER PERSON PRESENT WHILE WORKING ON ELECTRICAL CIRCUITS OR MOVING EQUIPMENT. COMMUNICATIONS TO EMERGENCY SERVICES SHOULD BE AVAILABLE AT ALL TIMES. BEFORE CONNECTING THIS EQUIPMENT TO ANY AC ELECTRICAL SOURCE READ THE SECTION ON INSTALLATION. ALL ELECTRICAL WIRING FOR THIS EQUIPMENT MUST BE PERFORMED BY QUALIFIED ELECTRICIANS. ALL WIRING MUST BE COMPLIANT WITH LOCAL ELECTRICAL CODES. POWER AMPLIFIERS AND SUPPLIES ARE HEAVY. TO INSTALL THIS EQUIPMENT IN RACKS USE TWO (2) PERSONS TO AVOID POSSIBLE INJURIES. NEVER OPEN THE CABINET ENCLOSURE OR UNPLUG CABLES OR WIRES WHILE THIS EQUIPMENT IS OPERATING. ALL SERVICE WORK MUST BE PERFORMED BY QUALIFIED TECHNICIANS ONLY. IF ONE IS NOT AVAILABLE LOCALLY, CONTACT PINEAPPLE TECHNOLOGY, INC. FOR A LIST IN YOUR AREA. THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION 4 SECTION II DTXPRO-10U INTRODUCTION PINEAPPLE TECHNOLOGY, INC. I. DTXPRO-10U INTRODUCTION DTXPRO-10U OPERATING AND SERVICE MANUAL THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION 5 I. DTXPRO-10U INTRODUCTION The DTXPRO-10U transmitter is an integrated transmission system. Included in a 19 inch 13 RU rack is a modulator, power amplifier, mask filter, and standard accessories. The DTXPRO-10U is tested to FCC specifications. The modulator used in this assembly is the DXDPRO-10U. The DXDPRO-10U is a wide-band UHF modulator with adaptive linear and non-linear correction controllable via an Ethernet IP connection. Many additional features are included in this basic modulator such as transmitter remote control and status monitoring, GPS receiver, ASI or SMPTE 310M, and fault notification via email. The DXDPRO-10U is an all-channel…

Text truncated - open the document above for the full version.

PINEAPPLE TECHNOLOGY, INC. TABLE OF CONTENTS DTXPRO-10U OPERATING AND SERVICE MANUAL THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION TABLE OF CONTENTS SECTION I – SAFETY NOTICES....................................................................................... 4 SECTION II – DTXPRO-10U INTRODUCTION............................................................... 4 SECTION III –DTXPRO-10U TECHNICAL SPECIFICATIONS......................................... 6 SECTION IV DTXPRO-10U BLOCK DIAGRAM A. BLOCK DIAGRAM............................................................................................... 10 B. BILL OF MATERIALS.......................................................................................... 11 SECTION V – DXDPRO-10U MANUAL V.1 – DXDPRO-10U INTRODUCTION..................................................................... 12 V.2 – DXDPRO-10U TECHNICAL SPECIFICATIONS.............................................. 14 V.3 – DXDPRO-10U APPLICATIONS AND INSTALATION A. APPLICATIONS.................................................................................. 18 B. TRANSMITTER INSTALATION......................................................... 18 C. DIGITAL UPGRADE NOTES............................................................. 19 D. 8 VDC OPERATIONS......................................................................... 19 E. GPS RECEIVER ACTIVATION........................................................... 19 V.4 DXDPRO-10U FRONT PANEL CONTROL AND MONITORING A. OVERVIEW......................................................................................... 22 B. TRANSMITTER PERFORMANCE MONITORING ............................ 22 C. ALARM SIGNALS............................................................................... 22 D. POWER LEVEL ADJUSTMENT AND ALC......................................... 22 PINEAPPLE TECHNOLOGY, INC. TABLE OF CONTENTS DTXPRO-10U OPERATING AND SERVICE MANUAL TABLE OF CONTENTS V.5 – DXDPRO-10U ETHERNET WEB PAGE CONTROL AND MONITORING A. LOCAL PC INTERNAL MODEM SETTINGS FOR FIXED IP................ 24 B. ETHERNET WEB PAGE SETUP............................................................ 28 C. IP ADRESS CONFIGURATION.............................................................. 28 D. WEB SERVICE OPERATION................................................................. 30 V.6 – DXDPRO-10U ADAPTIVE PRE-CORRECTOR WEB SERVICE OPERATION A. INTRODUCTION...................................................................................... 43 B. ELECTRICAL INTERFACE...................................................................... 43 C. OPERATION OF ADAPTIVE PRE-CORRECTOR................................... 46 D. ECHO CANCELLING AND ADAPTIVE PRE-CORRECTION................. 56 E. APPENDIX-A – CLIPPER OPERATION.................................................. 57 V.7 - DXDPRO-10U BLOCK DIAGRAM................................................................... 61 SECTION VI DTXPRO-10U INSTALLATION PROCEDURE......................................... 63 SECTION VII – DTXPRO-10U SERVICE REQUIREMENTS........................................... 69 SECTION VIII – DTXPRO-10U WARRANY...................................................................... 68 THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION SECTION I SAFETY NOTICES THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION PINEAPPLE TECHNOLOGY, INC. I. SAFETY NOTICES DTXPRO-10U OPERATING AND SERVICE MANUAL l ---SAFETY NOTICES ** READ THIS SECTION BEFORE INSTALLATION ** SEVERE ELECTRICAL SHOCK OR BURNS MAY OCCUR IF THIS EQUIPMENT IS USED IMPROPERLY. NEVER WORK ON THIS EQUIPMENT ALONE. ALWAYS HAVE ANOTHER PERSON PRESENT WHILE WORKING ON ELECTRICAL CIRCUITS OR MOVING EQUIPMENT. COMMUNICATIONS TO EMERGENCY SERVICES SHOULD BE AVAILABLE AT ALL TIMES. BEFORE CONNECTING THIS EQUIPMENT TO ANY AC ELECTRICAL SOURCE READ THE SECTION ON INSTALLATION. ALL ELECTRICAL WIRING FOR THIS EQUIPMENT MUST BE PERFORMED BY QUALIFIED ELECTRICIANS. ALL WIRING MUST BE COMPLIANT WITH LOCAL ELECTRICAL CODES. POWER AMPLIFIERS AND SUPPLIES ARE HEAVY. TO INSTALL THIS EQUIPMENT IN RACKS USE TWO (2) PERSONS TO AVOID POSSIBLE INJURIES. NEVER OPEN THE CABINET ENCLOSURE OR UNPLUG CABLES OR WIRES WHILE THIS EQUIPMENT IS OPERATING. ALL SERVICE WORK MUST BE PERFORMED BY QUALIFIED TECHNICIANS ONLY. IF ONE IS NOT AVAILABLE LOCALLY, CONTACT PINEAPPLE TECHNOLOGY, INC. FOR A LIST IN YOUR AREA. THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION 4 SECTION II DTXPRO-10U INTRODUCTION THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION 4 PINEAPPLE TECHNOLOGY, INC. I. DTXPRO-10U INTRODUCTION DTXPRO-10U OPERATING AND SERVICE MANUAL 5 THE INFORMATION PROVIDED HEREIN IS PINEAPPLE TECHNOLOGY INCORPORATED PROPRIETARY INFORMATION AND CANNOT BE COPIED OR DISTRIBUTED WITHOUT PRIOR AUTHORIZATION I. DTXPRO-10U INTRODUCTION The DTXPRO-10U transmitter is an integrated transmission system. Included in a 19 inch 13 RU rack is a modulator, power amplifier, mask filter, and standard accessories. The DTXPRO-10U is tested to FCC specifications. The modulator used in this assembly is the DXDPRO-10U. The DXDPRO-10U is a wide-band UHF modulator with adaptive linear and non-linear correction controllable via an Ethernet IP connection. Many additional features are included in this basic modulator such as transmitter remote control and status monitoring, GPS receiver, ASI or SMPTE 310M, and fault notification via email. The DXDPRO-10U is an all-channel…

Text truncated - open the document above for the full version.

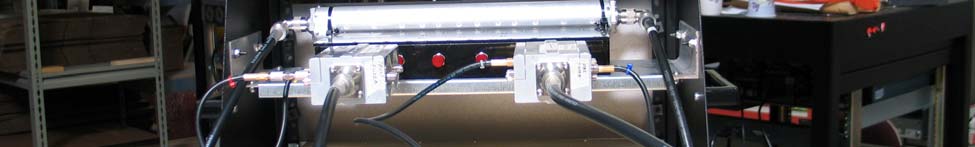

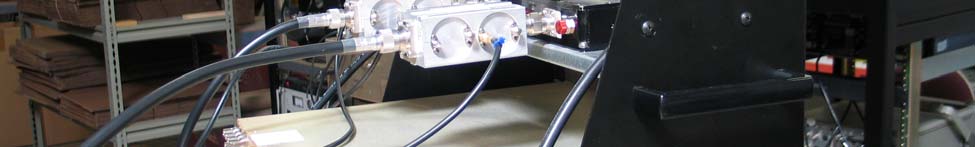

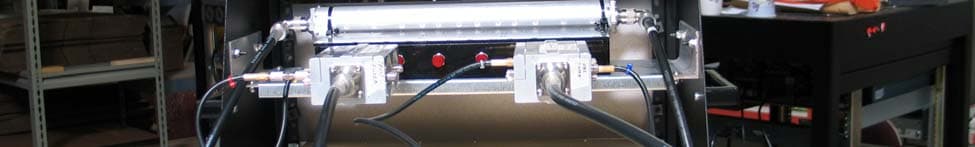

PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS 1 Equipment Model: DTXPRO-10U External Construction Photos Front Full View PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS 2 Equipment Model: DTXPRO-10U External Construction Photos Right Side Full View PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS 3 Equipment Model: DTXPRO-10U External Construction Photos Left Side Full View PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS 4 Equipment Model: DTXPRO-10U External Construction Photos Rear Full View

PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS FCC Label and Location Page 1

PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS 1 Equipment Model: DTXPRO-10U Internal Construction Photos Full View

PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U THEORY OF OPERATION THEORY OF OPERATION A. INTRODUCTION The DTXPRO-10U transmitter was designed to meet or exceed all FCC applicable specifications for TV broadcast equipment. Special attention was given to the selection of sub- assemblies and components to achieve maximum reliability and minimum down time. The construction of the DTXPRO-10U is BASIC and MODULAR. Special emphasis was placed on "KEEPING IT SIMPLE" and returning to more traditional transmitter layouts and instrumentation. Refer to the DTXPRO-10U Block Diagram for an overview of the transmitter architecture. This will give the technician basic information needed to understand the operation of the transmitter and the function of each subassembly. B. DXDPRO-10U EXCITER The heart of any TV Transmitter is the Exciter. This equipment receives the ASI (or SMPTE) digital stream from the source, changes the format to ATSC 8VSB and up converts the IF signal to the specific “on-channel” RF broadcast frequency. The Exciter consists of the following sub-assemblies all built into the 1RU chassis: 1. MPTPRO – ProTV core modulator assembly. This unit accepts the ASI input signal and converts it to ATSC 8VSB RF output. The output channel (frequency) is selectable through the use of appropriate software controls. This assembly can also accept external clock for sync and output accuracy. RF feedback signals from external directional couplers are used to provide both linear and non-linear correction. 2. AC2052 - 48VDC filtered power supply. This unit supplies all the DC power necessary to operate the transmitter. 3. 1A6001 – ALC Controller. This unit manages the exciter output power to keep it within designed parameters. 4. 1A0068-4832 – Converts the 48VDC to 32VDC for certain sub-assemblies 5. 1A0068-4805 – Converts the 48VDC to 5VDC for use with certain sub-assemblies. 6. DDR25U – Power amplifier section of transmitter. This sub-assembly consists of pallet amplifier assemblies 1A0301, 32V amplifier and ALC board, and DX25U-50, 48V 10W amplifier. The DDR25U accepts the RF signal from the MPTPRO modulator and amplifies it to the appropriate final output power. 7. 1A0069 – Power Detector board. This board receives a forward (FWD) output power sample from a post mask filter external directional coupler and converts it to an appropriate DC Voltage for use in the ALC Controller and also relative output power reading on front panel. This board also receives a reflected (RFLD) output power sample from a pre mask filter external directional coupler and converts it to an appropriate DC Voltage for high VSWR shutdown and front panel measurement. 8. 1A0067 – Master Logic, Control and Display. This unit performs the software control and monitoring interface with the modulator and other assemblies in the modulator and displays appropriate exciter and transmitter information on the front panel LCD display and LED’s. 1 PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U THEORY OF OPERATION 2 V -- THEORY OF OPERATION (Continued) C. CT-170X-N CIRCULATOR This circulator is placed in the output of the DXDPRO-10U modulator before the pre mask Directional Coupler. Its purpose is to protect the modulator from reflected spurious signals and to help with impedance matching. Any reflected signals are directed by the circulator into the associated TR500U dump load. D. DC2KC-1 DIRECTIONAL COUPLERS There are two (2) DC2KC-1 Directional Couplers provided with this transmitter. One directional coupler (DC) is placed before (pre) the mask filter and one is placed after (post) the mask filter. 1. The pre directional coupler has four monitor probes of which two are used by the transmitter. One probe monitors the forward power which is sent by the supplied RG- 223 cable to the back of the modulator and used for non-linear correction. The other DC probe monitors the reflected transmitter power and is also sent to the back of the modulator by RG-223 cable. This provides a HIGH ANTENNA VSWR MONITOR in the event of an antenna or transmission line failure. Should the reflected power exceed 25% the transmitter will shutdown. 2. The post directional coupler also has four monitor probes of which two are used by the transmitter. One probe monitors forward power and is sent by supplied RG-223 cable to the back of the modulator and used for linear correction. The other DC probe monitors the transmitter forward output power and is also sent to the back of the modulator by RG-223 cable. This port Monitors FORWARD POWER to the antenna and presents it as a percentage of power rating. The transmitter comes set to 25% Forward Power and the customers engineer turns the power up to 100% for 10W RMS transmitter output power after the mask filter. The remaining spare DC probe positions are available for customer use. L. BPUD100 UHF ATSC COMPLIANT STRINGENT MASK FILTER This mask filter was designed to meet FCC Certification requirements with minimum loss of RF Power. The BPUD100 comes tuned and tested to the operating frequency of the transmitter and should not be adjusted without proper equipment and experience. It is recommended that, should adjustment become necessary, the filter be returned to the factory. M. BLP2KU-CC HARMONIC FILTER Harmonic filters are used to reduce harmonic output signals from the transmitter. At least one harmonic filter is used in the output of all the Pineapple Technology UHF transmitters. In the case were the transmitter channel 2 nd or 3 rd harmonics could fall into the protected GPS band then three (3) harmonic filters are used in order to comply with FCC 74.794.

PINEAPPLE TECHNOLOGY, INC DTXPRO ‐ 10U TEST RESULTS AND MEASUREMENTS DTXPRO ‐ 10U PARTS LIST Part Numbers ‐ Description Qty DTXPRO ‐ 10U ‐ XMTR, DIGITAL, UHF, 1W ‐ 10W 1 , , , CCA139 ‐ COAX CABLE ASSY, RG223, SMA ‐ M/SMA ‐ M, 24" 4 CT ‐ 1705 ‐ N ‐ ISO 100W N CONN UHF 470 ‐ 548 MHz 1 DC2KC ‐ 1 ‐ DC, 2KW RMS, UHF, N M/F 2 BPUD100 ‐ FILTER, UHF, 100W RMS, TYPE N FEMALE 1 , , , BLP2KU ‐ CC ‐ FILTER, UHF, HARMONIC/LOW PASS, 2 KW, N FEMALE BOTH ENDS 1 DXDPRO ‐ 10U ‐ MODULATOR, DIGITAL, UHF, ADAPTIVE, 10W RMS, USED IN 10W & 400W AND HIGHER XMTR'S 1 DDR25U ‐ DRIVER ASSY, DIGITAL, 25W, 50V PA, WITH ALC (SIMULAR TO UDR10C) 1 MPTPRO ‐ MODULATOR EXCITER, ADAPTIVE, PRE BUILT BOARD 1 MPTPROBP ‐ MODULATOR EXCITER, BACKPLANE, FOR MDXPRO BOARD 1 , , MF9579 ‐ HEATSINK, DXDPRO 1 MF9578 ‐ SPREADER, HEATSINK, DXDPRO ‐ 10X 1 MF9367 ‐ FRONT PANEL, DXDPRO 1 MF9756 ‐ CHASSIS, DXDPRO 1 MF9758 ‐ OVERLAY, DXDPRO ‐ 10U, FRONT PANEL 1 , , MF9711A ‐ COVER, CHASSIS, DR50xx 1 1A0067 ‐ MASTER LOGIC CONTROL AND DISPLAY BOARD, DXDPRO 1 CA269 ‐ WIRING KIT, RS232, DXDPRO MODULATOR 1 CA270 ‐ 18 ‐ WIRING KIT, I2C, DXDPRO MODULATOR 1 CA271 ‐ WIRING KIT, PS MODULE, DXDPRO MODULATOR 1 , , CA272 ‐ WIRING KIT, RF POWER DETECTOR, DXDPRO MODULATOR 1 CA273 ‐ WIRING KIT, ALC, DXDPRO ‐ 10 MODULATOR 1 CA275 ‐ WIRING KIT, EXTERNAL PA CURRENT & VOLTAGE, DXDPRO MODULATOR 1 CA276 ‐ WIRING KIT, 50V PA POWER, DXDPRO ‐ 10 1 AC2052 ‐ POWER SUPPLY, 48VDC, 100W, 2.2A, MEANWELL S ‐ 100F ‐ 48 1 AC2052 POWER SUPPLY, 48VDC, 100W, 2.2A, MEANWELL S 100F 48 1 1A0068 ‐ 1 ‐ POWER DISTRIBUTION, 5VDC AND PWR MONITOR (DXDPRO) 1 1A0068 ‐ 4808 ‐ VREG ASSY, SWITCHING, 48V IN, 8V OUT, DXDPRO, DXDMAINFRAME, DR50PRO 1 1A0068 ‐ 4832 ‐ VREG ASSY, SWITCHING, 48V IN, 32V OUT, DXDPRO ‐ 10, DTX MAINFRAME, DR50PRO 1 CA277 ‐ WIRING ASSEMBLY, IDC CABLE, 16 WIRE RIBBON, DIGI ‐ KEY A3DDH ‐ 1606G ‐ ND 1 PINEAPPLE TECHNOLOGY, INC DTXPRO ‐ 10U TEST RESULTS AND MEASUREMENTS PINEAPPLE TECHNOLOGY, INC DTXPRO 10U TEST RESULTS AND MEASUREMENTS 1 DTXPRO ‐ 10U PARTS LIST Part Numbers ‐ Description Qty 460150 ‐ FUSE HOLDER PANEL MTG 1 2 851042 ‐ FAN, MINI, DC, 12V, SCREAMER FOR DXD100, BRAVO ELECTRONICS 4 AC1003 ‐ FILTER, INLET, AC LINE, 10A 1 484001 ‐ SW, ON/OFF ROCKER AC 1 190002 ‐ 10 ‐ ATTENUATOR, 3GHZ, 10DB, 2W, SMA M/F* 2 480476 ‐ CON, COUPLER, RJ45, PANEL MOUN T 1 , , , CCA102 ‐ COAX CABLE ASSY, RG ‐ 316 N ‐ FM/PIG TAIL 21 IN 1 CCA140 ‐ COAX CABLE ASSY, RG ‐ 316, SMA ‐ M ‐ RA/SMA ‐ F ‐ BH, 16", DXDPRO PRE FILTER SAMPLE 4 CA279 ‐ WIRING KIT, TEMP SENSE BOARDS, DXDPRO 1 CCA141 ‐ COAX CABLE ASSY, RG ‐ 316, SMA ‐ M ‐ RA/SMA ‐ M ‐ RA, 12", MODULATOR CORE TO DDR25 1 1A0071 ‐ I/O CONNECTOR BOARD, REAR PANEL, DXDPRO 1 / , , MF9748 ‐ PLENUM, FAN, DXD100, CHASSIS 1 MF9761 ‐ BRACKET, PC BD MOUNTING, 5V CONV BD & 8V FAN BD, DXDPRO 2 1A6001D ‐ ALC CKT BD, DR50XX, REV D1 MF9766 ‐ BRACKET, PC BD MOUNTING, 32V CONV BD, DXDPRO 2 1A0069B ‐ DETECTOR, POWER, FWD & RFLD, USED IN DXDPRO ‐ MB 1 , , , 2

DTXPRO-10U DIGITAL TRANSMITTER 10/29/10 JHC BPUD100 Mask Filter Internally Mounted FWD FWD FWD RFLD FWD DIRECTIONAL COUPLER DIRECTIONAL COUPLER Note 1 Note 1 Note 1 Note 1 Note 1 DC2KC-1 Directional Coupler DC2KC-1 Directional Coupler BLP2KU-CC Harmonic Filter Externally Mounted Low Pass Filter Note 1 Note 2 Note 1 Note 1 DXDPRO-10U Modulator Driver RF Output AC Inlet 48VDC Inlet (Optional) A 8VSB ASI IN B RJ45 ASI IN A ASI OUT C GPS IN 1 PPS OUT 1 PPS IN 10 MHZ OUT 10 MHZ IN Ethernet BNC } POST FILTER RF MON IN PRE FILTER RF MON IN FWD PWR MON IN RFLD PWR MON IN DB9, Remote Alarms and Status Notes:1. N Connector2. Customer provided antenna and transmission line IsolatorCT-1705-N (470-548MHz)CT-1706-N (542-656MHz)CT-1707-N (650-806MHz)See BOM for Details ASI IN B RJ45 DB9 ASI IN A ASI OUT C GPS IN 1 PPS OUT 1 PPS IN 10 MHZ OUT 10 MHZ IN ETHERNET DC FANS 110 VAC { DC Power Supply Power Cont’l & Distrib 1A0068 Pwr Dist &DC-DC Converter Modulator (Adaptive) MPTPRO Master Logic Control AC2052 +48 VDC +48 VDC -48 VDC +5 VDC ALM & CONT ’L RF Out Pre Filter Post Filter AC Inlet Fuse CB / On-Off Sw AC2103 DC-DC CONV +5VDC 1A0068-4808 VREG 8VDC 8VDC +48 VDC +48 VDC +48VOut Display Status Control BACK PLANE MPTPROBP 5VDC DXDPRO-10U DIGITAL MODULATOR (Used in DTXPRO-10U and DTXPRO-400U AND HIGHER TRANSMITTERS) 2 14 1 REV 4 / /1 JHC DC-DC SW External 48VDC Optional POST FILTER RFSAMP IN PRE FILTERRF SAMP IN 8VSB POWER OUT SMA SMA SMA SMA Type N Female -12dB -5 dBm -5 dBm -12dB BNC } 1A0067 Logic, Control & Display ALC Control V oltage ALCController 1A0068 -4832 32V Reg 1A0070 TEMP SENSE 1A0070 TEMP SENSE 1A0069 PWR DET 1A6001 0 -2VDC Linear 0 -2VDC Linear 0 -2VDC Non-Linear 0 -2VDC Non-Linear FWD Power LOW FWD Power High RFLD Power HIGH J1 Local J2 Remote RFLD DET FWD DET 8 VDC FWD PWR MON IN RFLD PWR MON IN +7dBm +7dBm +7dBm +7dBm REMOTE ALARM RJ6 RJ5 DB9 F RJ2 J4 J2 RJ1 RJ10 RJ3 JX603 JX602 JX502 RJ4 RJ8 DB15 + RS-232 (SCPI) +5V Current Monitor (0 - 2V) AC Fail Final Current Monitor (0 - 2V) 48V Voltage Monitor (0 - 2V) Final Voltage Monitor (0 - 2V) P10 P1 P11 P2 P12 P3 P13 P4 P14 P5 P15 P6P7P8P9 DX25U-50 1A0301 Amplifier +48VDC P1P2P3P4P5P6P7P8P9 J2 J3 J1 DB-9 Heat Sink Over TempShutdown TS DDR25U +32 VDC ALC 0.7A 32V 48V P1P2P3P4P5P6P7P8P9 P10 P1 DIGITAL GNDEXT ALARM 1EXT ALARM 2EXT ALARM 3EXT ALARM 4EXT ALARM 5EXT ALARM 6EXT ALARM 7EXT ALARM 8EXT ALARM 9EXT ALARM 10EXT ALARM 11EXT ALARM 12EXT ALARM 13EXT ALARM 14 RJ6 P11 P2 P12 P3 P13 P4 P14 P5 P15 P6P7P8P9 Note: External Alarmsare TTL type levels. 0= fault1= clear 1A0071 Connector Board Additional Sense Boards as needed Always terminate last board. 1A0070 TEMP SENSE I2C I2C P1P2P3P4P5P6P7P8P9 CONNECT TO PIN 1+5V FROM INT REGDC PWR IN (29-32V)GNDALC (0V TO 5V)GNDN/AR1 (TOP OF POT)SHUTDOWN J2 1A0068-1 Current/ Voltage Sense Final Current Mon (0 - 2V) Final Voltage Mon (0 - 2V)

DTXPRO-10U DIGITAL TRANSMITTER 10/29/10 JHC BPUD100 Mask Filter Internally Mounted FWD FWD FWD RFLD FWD DIRECTIONAL COUPLER DIRECTIONAL COUPLER Note 1 Note 1 Note 1 Note 1 Note 1 DC2KC-1 Directional Coupler DC2KC-1 Directional Coupler BLP2KU-CC Harmonic Filter Externally Mounted Low Pass Filter Note 1 Note 2 Note 1 Note 1 DXDPRO-10U Modulator Driver RF Output AC Inlet 48VDC Inlet (Optional) A 8VSB ASI IN B RJ45 ASI IN A ASI OUT C GPS IN 1 PPS OUT 1 PPS IN 10 MHZ OUT 10 MHZ IN Ethernet BNC } POST FILTER RF MON IN PRE FILTER RF MON IN FWD PWR MON IN RFLD PWR MON IN DB9, Remote Alarms and Status Notes:1. N Connector2. Customer provided antenna and transmission line IsolatorCT-1705-N (470-548MHz)CT-1706-N (542-656MHz)CT-1707-N (650-806MHz)See BOM for Details ASI IN B RJ45 DB9 ASI IN A ASI OUT C GPS IN 1 PPS OUT 1 PPS IN 10 MHZ OUT 10 MHZ IN ETHERNET DC FANS 110 VAC { DC Power Supply Power Cont’l & Distrib 1A0068 Pwr Dist &DC-DC Converter Modulator (Adaptive) MPTPRO Master Logic Control AC2052 +48 VDC +48 VDC -48 VDC +5 VDC ALM & CONT ’L RF Out Pre Filter Post Filter AC Inlet Fuse CB / On-Off Sw AC2103 DC-DC CONV +5VDC 1A0068-4808 VREG 8VDC 8VDC +48 VDC +48 VDC +48VOut Display Status Control BACK PLANE MPTPROBP 5VDC DXDPRO-10U DIGITAL MODULATOR (Used in DTXPRO-10U and DTXPRO-400U AND HIGHER TRANSMITTERS) 2 14 1 REV 4 / /1 JHC DC-DC SW External 48VDC Optional POST FILTER RFSAMP IN PRE FILTERRF SAMP IN 8VSB POWER OUT SMA SMA SMA SMA Type N Female -12dB -5 dBm -5 dBm -12dB BNC } 1A0067 Logic, Control & Display ALC Control V oltage ALCController 1A0068 -4832 32V Reg 1A0070 TEMP SENSE 1A0070 TEMP SENSE 1A0069 PWR DET 1A6001 0 -2VDC Linear 0 -2VDC Linear 0 -2VDC Non-Linear 0 -2VDC Non-Linear FWD Power LOW FWD Power High RFLD Power HIGH J1 Local J2 Remote RFLD DET FWD DET 8 VDC FWD PWR MON IN RFLD PWR MON IN +7dBm +7dBm +7dBm +7dBm REMOTE ALARM RJ6 RJ5 DB9 F RJ2 J4 J2 RJ1 RJ10 RJ3 JX603 JX602 JX502 RJ4 RJ8 DB15 + RS-232 (SCPI) +5V Current Monitor (0 - 2V) AC Fail Final Current Monitor (0 - 2V) 48V Voltage Monitor (0 - 2V) Final Voltage Monitor (0 - 2V) P10 P1 P11 P2 P12 P3 P13 P4 P14 P5 P15 P6P7P8P9 DX25U-50 1A0301 Amplifier +48VDC P1P2P3P4P5P6P7P8P9 J2 J3 J1 DB-9 Heat Sink Over TempShutdown TS DDR25U +32 VDC ALC 0.7A 32V 48V P1P2P3P4P5P6P7P8P9 P10 P1 DIGITAL GNDEXT ALARM 1EXT ALARM 2EXT ALARM 3EXT ALARM 4EXT ALARM 5EXT ALARM 6EXT ALARM 7EXT ALARM 8EXT ALARM 9EXT ALARM 10EXT ALARM 11EXT ALARM 12EXT ALARM 13EXT ALARM 14 RJ6 P11 P2 P12 P3 P13 P4 P14 P5 P15 P6P7P8P9 Note: External Alarmsare TTL type levels. 0= fault1= clear 1A0071 Connector Board Additional Sense Boards as needed Always terminate last board. 1A0070 TEMP SENSE I2C I2C P1P2P3P4P5P6P7P8P9 CONNECT TO PIN 1+5V FROM INT REGDC PWR IN (29-32V)GNDALC (0V TO 5V)GNDN/AR1 (TOP OF POT)SHUTDOWN J2 1A0068-1 Current/ Voltage Sense Final Current Mon (0 - 2V) Final Voltage Mon (0 - 2V)

PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS 1 TEST REPORT PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U DIGITAL TV TRANSMITTER TECHNICAL REPORT The following information is provided to support the technical performance of the Pineapple Technology, Inc. DTXPRO-10U transmitter. The information is supplied for broadcast TV service according to applicable portions of FCC Rule Parts 73 and 74. The information in this report is provided in support of verification that the transmitter meets the appropriate requirements. Measurements were recorded of spectrum and other appropriate data to demonstrate compliance. 1. Power Output Measurements 2. Frequency stability tests versus AC input voltage and temperature 3. Harmonic and spurious measurements to demonstrate the transmitter meets the DTV stringent emission mask and FCC Rule 74.794. 4. Measurement of cabinet radiation for spurs and harmonics as specified in FCC Rule 2.1053 and Rule 2.1057. Measurements for these parameters were conducted at power output levels of both 15 watts and 5 watts. Measurements were taken at the center frequency of 575 MHz (TV channel 31) however this transmitter is capable of operation between 470 MHz (TV channel 14) and 608 MHz (TV channel 36) and between 614 MHz (TV channel 38) and 806 MHz (TV channel 69) with the same integral-components/circuitry. The test equipment used for the measurements on these following pages is listed at the end of the test report section. PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS 2 Power Output Measurements The equipment was configured as below shown in Figure 1. The loss through the directional coupler was calibrated at the channel center frequency of 575 MHz. Average power was read on the Agilent E4418B Power Meter. Setup for Output Power and Spurs and Harmonics Measurements The loss of the directional coupler was calibrated to be 33 dB. PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS 3 Measurement Of Nominal Transmitter Power The transmitter was energized in the test configuration above and the power was read on the Agilent E4418B Power Meter. The indicated reading is shown below. Calculation of Output Power: An offset of 33dB, equal to the directional coupler loss, entered into the E4418B allows direct display of output power in watts average power. Measured transmitter final voltage is 48VDC and final current is 1.5 amps. PINEAPPLE TECHNOLOGY, INC. DTXPRO-10U TEST RESULTS AND MEASUREMENTS 4 Low Power Operation The transmitter was energized in the test configuration above and the power was read on the Agilent E4418B power meter. The indicated reading is shown next. Calculation of Output Power: An offset of 33dB, equal to the directional coupler loss, entered into the E4418B allows direct display of output power in watts average power. Measured transmitter final voltage is 48VDC …
