PW9R8061SEMS Portable Unit R8061

1 DRAFT COPY OPERATION AND MAINTENANCE INSTRUCTIONS SCOTT ELECTRONIC MANAGEMENT SYSTEM -- SEMS™ USER ACCOUNTABILITY SYSTEM FOR THE SCOTT AIR-PAK® 2.2 / 3.0 / 4.5 / FIFTY SELF-CONTAINED BREATHING APPARATUS WARNING THE SCOTT SEMS USER ACCOUNTABILITY SYSTEM IS INTENDED FOR USE WITH SCOTT SELF-CONTAINED BREATHING APPARATUS (SCBA) WHICH MAY SUPPORT HUMAN LIFE IN HAZARDOUS ATMOSPHERES. FAILURE TO CAREFULLY READ AND UNDERSTAND THE FOLLOWING INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH TO THE SCBA USER. USE OF A RESPIRATOR INTEGRATED WITH THE SEMS USER ACCOUNTABILITY SYSTEM WILL REQUIRE MODIFICATION OF THE RESPIRATOR "REGULAR OPERATIONAL INSPECTION PROCEDURES" AND WILL REQUIRE TRAINING OF THE RESPIRATOR USER IN THE USE OF SUCH RESPIRATORS. THE FOLLOWING INSTRUCTIONS SUPPLEMENT BUT DO NOT REPLACE THE OPERATING AND MAINTENANCE INSTRUCTIONS SUPPLIED WITH EACH RESPIRATOR. FIGURE 1 BASE STATION PORTABLE UNIT 2 DRAFT COPY WARNING READ AND UNDERSTAND THIS COMPLETE INSTRUCTION MANUAL BEFORE USING A RESPIRATOR EQUIPPED WITH A SEMS ACCOUNTABILITY SYSTEM. FAILURE TO USE THE SEMS ACCOUNTABILITY SYSTEM IN ACCORDANCE WITH THESE INSTRUCTIONS MAY LEAD TO CIRCUMSTANCES WHICH COULD RESULT IN SERIOUS INJURY OR DEATH. DESCRIPTION The SCOTT Electronic Management System (SEMS) provides a method of communication between respirator users in a hazardous area and a designated person outside of the hazardous area. The SEMS equipment consists of individual Portable Units attached to the SCOTT AIR-PAK models 2.2/3.0/4.5/ Fifty self-contained breathing apparatus (SCBA) and a Base Station which transmit and receive specific information between the respirator users and the Base Sta- tion operator. The specific information consists of user identification and status as well as alerts for evacuation. Complete training in the use of the SEMS equipment is required before actual use in a hazard- ous environment. The Portable Unit is integrated into the Scott AIR-PAK SCBA as a part of the remote air pressure gauge which hangs over the right shoulder of the respirator user. The Portable Unit also functions as the Control Console for the PAK-ALERT EMS distress alarm personal alert safety system (PASS) installed on the respirator backframe. The Portable Unit has a set of status lights, a four character digital display, a dial air pressure gauge, and three control buttons which can easily be pressed with gloved hands. Power is supplied by batteries in both the Portable Unit and in the PAK-ALERT EMS distress alarm battery compartment. The Base Station is a compact battery operated device that can be tripod mounted or carried by a strap. A digital display provides infor- mation about status of the respirator users who are logged onto the Base Station. Simple dedicated function buttons control the transmis- sion and receipt of signals with the respirator users. The Base Station can be easily interfaced with a computer for programming and ad- vanced applications. When a respirator user opens the cylinder valve and begins use of an AIR-PAK SCBA equipped with the SEMS Portable Unit, the Portable Unit will automatically begin to operate. If the Base Station is present at time of entry, the Portable Unit must log-in with the Base Station before entry into the hazardous area. Contact between the Portable Unit and the Base Station will continue until the respirator user termi- nates use of the SCBA. Each installation of SEMS equipment operates as a distinct set of Portable Units and Base Station that transmit and receive on a single frequency. If another installation of SEMS equipment is used in the same area, the operation of each group will remain discreet and sepa- rate between Portable Units and Base Stations. The SEMS equipment operates between 453.0375 and 465.6375 MHz on radio channels defined in FCC Title 47 (Telecommunications) Part 90 section 20, Limi- tation (27) and requirement Part 90.238. Programming of the Portable Units and Base Station is essential and must be performed prior to training and use. See SEMS Programming Guide, Scott P/N 89506- 01 for complete details of programming the SEMS equipment. WARNING NO PERSONAL ALERT SAFETY SYSTEM, RES- PIRATOR OR COMBINATION OF PERSONAL ALERT SAFETY SYSTEM AND RESPIRATOR, BY THEMSELVES, CAN PROVIDE COMPLETE PROTECTION IN FIRE SITUATIONS. HOWEVER, USING AN ALARM AND A RESPIRATOR IN ACCORDANCE WITH THE REQUIREMENTS OF AN ORGANIZED RESPIRATORY PROTEC- TION PROGRAM IS ONE OF THE MANY SAFETY PRECAUTIONS WHICH SHOULD BE TAKEN TO AVOID PERSONAL INJURY OR DEATH. 3 DRAFT COPY FCC NOTICE This equipment has been tested and found to comply with the re- quirements of United States Federal Communications Commission, Code of Federal Regulations, FCC title 47, part 90 Section 20, limita- tion (27) and requirement Part 90.238 over frequency range 453.0375 to 465.6375 MHz, as well as FCC Section 1.1310 for Occupational/ Controlled Exposure limits. If the SEMS Base Station or Portable Unit has been damaged, DO NOT use this equipment. Maintenance or repair of this equipment must only be performed by an authorized SCOTT service center. Unauthorized service may void the manufacturers warranty and may cause damage to the equipment. Use only Scott authorized accesso- ries, cables, and power connectors. Consult the operating and service manuals for instructions on battery replacement, battery maintenance, and use of accessory cables. ELECTROMAGNETIC ENERGY (EME) EXPOSURE The SEMS Base Station and Portable Unit are designed to comply with the FCC guidelines regarding exposure of human beings to radio frequency electromagnetic energy. Use only the supplied or an approved replacement antenna on the Base Station. DO NOT touch or hold the Base Station antenna when the POWER is “ON”. Holding the antenna may affect transmission and reception quality or may cause the radio to operate at a higher power level than allowed by the FCC. Maintain a distance from your body to the antenna greater than 1.5mm / 1/16 th inch w…

Text truncated - open the document above for the full version.

E2V Technologies Waterhouse Lane Chelmsford Essex CM1 2QU U K Tel: +44(0)1245 493 493 Fax: +44(0)1245 492 492 Internet: www.e2vtechnologies.com 18 th October 2002 BABT Claremont House 34 Molesey Road Walton on Thames Surrey KT12 4RQ Dear Sirs, FCC Submission PW9R8061 This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. We request that the following documents regarding this submission for FCC ID PW9R8061 be kept confidential: Exhibit 4 - Block Diagram Exhibit 5 - Schematics Exhibit 12 - Technical Description The material above contains technical data, which would customarily be guarded from competitors. Yours faithfully Neil R. Barker Compliance Engineering Manager A Limited Company Registered in London No. 432014 Registered Office: 106 Waterhouse Lane, Chelmsford, Essex, CM1 2QU, UK Holding Company: E2V Holdings Limited

E2V Technologies Waterhouse Lane Chelmsford Essex CM1 2QU U K Tel: +44(0)1245 493 493 Fax: +44(0)1245 492 492 Internet: www.e2vtechnologies.com 14 th October 2002 BABT Claremont House 34 Molesey Road Walton on Thames Surrey KT12 4RQ Dear Sirs, FCC Submission PW9R8060 On 12 July 2002 Marconi Applied Technologies Ltd. changed its name by special resolution, becoming E2V Technologies Ltd. A copy of the Certificate of Incorporation on Change of Name is included in Exhibit 13 of the submission. As the company is still in the process of re-branding, and as much of the development of the SEMS product took place prior to this date, many of the documents included in this submission are in the name of Marconi Applied Technologies, whereas others are in the name of E2V Technologies. The company is the same legal entity, and bears the same Registration number. Consequently, the two names should be treated as synonymous for the purposes of this submission. I can confirm that the FCC Grantee Code and FRN are now in the name of E2V Technologies, having been established originally in the previous name. Yours faithfully, Neil R. Barker Compliance Engineering Manager A Limited Company Registered in London No. 432014 Registered Office: 106 Waterhouse Lane, Chelmsford, Essex, CM1 2QU, UK Holding Company: E2V Holdings Limited

E2V Technologies Waterhouse Lane Chelmsford Essex CM1 2QU U K Tel: +44(0)1245 493 493 Fax: +44(0)1245 492 492 Internet: www.e2vtechnologies.com 18 th October 2002 BABT Claremont House 34 Molesey Road Walton on Thames Surrey KT12 4RQ Dear Sirs, FCC Submission PW9R8061 – Product name This submission is made in respect of the radio apparatus element of this product. The product is referred internally within E2V Technologies as REDS 2, but will ultimately be marketed by Scott Safety Systems as SEMS. Items within this submission may refer to either designation, which should be taken as synonymous for the purposes of this submission. The final product also includes an air gauge manufactured by Wika, and data bearing that name is included in relation to that component. Yours faithfully, Neil R. Barker Compliance Engineering Manager A Limited Company Registered in London No. 432014 Registered Office: 106 Waterhouse Lane, Chelmsford, Essex, CM1 2QU, UK Holding Company: E2V Holdings Limited

Exhibit 10: Tune-up procedure There are no User tuneable parts. All units are set at the time of manufacture.

TEST REPORT In support of the Application for Grant of Equipment Authorisation of the SEMS Portable Unit FCC ID: PW9R8061September 2002 TUV Product Service Ltd. Segensworth Road, Titchfield Fareham, Hampshire, United Kingdom, PO15 5RH Tel: +44(0)1329 443300, Fax: +44(0)1329 443331 www.tuvps.co.uk Report Number WS608900BPage 1 of 31 REPORT ON:Specific Absorption Rate Testing of the SEMS Portable Unit. Report No: WS608900B FCC ID:PW9R8061 PREPARED FOR:E2V Technologies 106 Waterhouse Lane Chelmsford Essex CM1 2QU United Kingdom ATTESTATION:The wireless portable devices described within this report have been shown to be capable of compliance for localised specific absorption rate (SAR) for Occupational/Controlled Exposure Limits as defined in Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01) of 8.0W/kg. The devices were tested in accordance with the measurement procedures specified in Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01) and IEEE1528-200x (Draft April 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements. A. Miller SAR Test Engineer APPROVED BY: M Jenkins Wireless Group Leader DATED:23 rd September 2002 DISTRIBUTION:E2V TechnologiesCopy No: 1 E2V Technologies (CD ROM).Copy No(s): 2 BABT Copy No.: 3 Copy No.: Note: The test results reported herein relate only to the item tested as identified above and on the Status Page. FCC ID: PW9R8061 Report Number WS608900BPage 2 of 31 CONTENTS EXECUTIVE SUMMARY3 1.1Status4 1.2Summary5 TEST DETAILS6 2.1Test Equipment7 2.2Test Software7 2.3Dielectric Properties of Simulant Liquids8 2.4Test Conditions8 2.5Measurement Uncertainty9 2.6SAR Measuring System10 Probe and Amplifier Specification Probe Calibration SAR Measurement Procedure 2.7Test Result Summary19 2.8SAR Distributions (Area Scans – 2D)20 2.9Test Positional Photographs23 2.10Record Photographs24 Annex A1Probe Calibration26 For copyright details see page 31 of 31. FCC ID: PW9R8061 Report Number WS608900BPage 3 of 31 EXECUTIVE SUMMARY Specific Absorption Rate Testing of the SEMS Portable Unit. PROJECT MANAGER : M. OSBORNE FCC ID: PW9R8061 Report Number WS608900BPage 4 of 31 1.1STATUS MANUFACTURING DESCRIPTIONSEMS Portable Unit STATUS OF TESTSpecific Absorption Rate Testing APPLICANTE2V Technologies CLASSLicensed Radio Service Equipment, General Mobile Radio Services (except cellular) MANUFACTURERE2V Technologies TYPE OR MODEL NUMBERR8060 HARDWARE VERSIONDrawing Identity: DAS 548061AA SOFTWARE VERSIONV1_5_2_3_reds2_pack_23_5_02 SERIAL NUMBERB8 TEST SPECIFICATIONS: Federal Communications Commission, Code of Federal Regulations, Title 47 (CFR47), Vol. 1, Chapter 1, Part 2 (§2.1091 and §2.1093). Federal Communications Commission (FCC) OET Bulletin 65c, Edition 01-01, Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields - Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions REFERENCES: IEEE 1528 –200X: DRAFT Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques BABT REGISTRATION NUMBER:WS608900. RECEIPT OF TEST SAMPLES:14 th June 2002. START OF TEST:10 th August 2002. FINISH OF TEST:11 th August 2002. FCC ID: PW9R8061 Report Number WS608900BPage 5 of 31 1.2SUMMARY The SEMS Portable Unit is a wireless device, operating in the frequency range of 453.0375MHz to 465.6375MHz and was supplied for Specific Absortion Rate (SAR) testing to the requirements of Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01). They were found to be compliant with requirements for Occupational/Controlled Exposure for Mobile/Portable devices. The Partial-Body SAR limit of 1g volume averaged SAR is stated as 8.0W/kg. SAR testing was performed using a Flat Phantom dimensions 300mmx300mmx200mm and 5.7mm thickness. The phantom was filled to a depth of 170mm with 450MHz Body simulant liquid. The dielectric properties were in accordance with the requirements for the dielectric properties specified in Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01). SAR testing was performed with the device affixed to the Portable of the unit, with the rear of the device facing toward the flat phantom. Testing was performed with the device being set to transmit at the top, middle and the bottom frequencies. Transmission at maximum power was enabled via the REDS 2 Service centre software provided by the client. The transmission mode selected was "Transmit Pre-amble". In this mode the carrier was frequency modulated with a 1.2 kHz tone that deviated the carrier nominally 1.5 kHz peak. This transmission mode was declared as being frequency modulated, and that the total transmitted power is the same as an un-modulated carrier transmission. A coarse scan of the whole device was performed to obtain the position giving maximum SAR. The scan parameters were redefined to perform a 3D scan to enable a volume averaged SAR reading to be obtained. The SEMS Portable Unit had a stub antenna, so that the requirement for testing with antenna extended and retracted was not applicable. The SEMS Portable Unit was only tested with the rear of the device against the flat phantom, as this was stated to be the simulated worst case normal mode of operation. No accessories were supplied with SEMS Portable Unit. Note: for Body worn operation, the SEMS Portable Unit has been tested and meet FCC RF exposure guidelines when used with an accessory which contains no metal and that the positions these device’s a minimum of 1.5mm from the body. Use of other accessories may not ensure compliance with FCC RF guidelines. Included in this report are descriptions of the te…

Text truncated - open the document above for the full version.

TEST REPORT In support of the Application for Grant of Equipment Authorization of the Marconi SEMS Base Unit and SEMS Portable Unit FCC ID: PW9R8060/PW9R8061August 2002 BABT. Segensworth Road, Titchfield Fareham, Hampshire, United Kingdom, PO15 5RH Tel: +44(0)1329 443300, Fax: +44(0)1329 443331 www.tuvps.co.uk REPORT NUMBER OO608900 FCC Pt90PAGE 1 OF 47 Equipment:Base Unit Portable Unit FCC ID:PW9R8060 - Base Unit PW9R8061 - Portable Unit Specification:47 CFR 2 & 47 CFR 90 Applicant:Marconi Applied Technologies Waterhouse Lane Chelmsford Essex CM1 2QU Manufacturer:Marconi Applied Technologies Waterhouse Lane Chelmsford Essex CM1 2QU Manufacturer’s Representative:Mr Paul Newby Approved by: M JENKINS Wireless Group Leader Dated:2 nd September 2002 Start of Test:31 st January 2002 Completion of Test:1 st July 2002 Report Distribution:Marconi Applied TechnologiesMr P NewbyCopy No. 1 BABTCopy No. 2 Copy No: ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the applicable limits. I assume full responsibility for the accuracy and completeness of these measurements. On the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 2 and Part 90 of the FCC Rules under normal use and maintenance. Ryan Henley Test Engineer BABT. Segensworth Road, Titchfield Fareham, Hampshire, United Kingdom, PO15 5RH Tel: +44(0)1329 443300, Fax: +44(0)1329 443331 www.tuvps.co.uk REPORT NUMBER RG608476PAGE 2 OF 47 CONTENTS:- Page No. Introduction3 Location of Testing3 Test Equipment and Ancillaries Used For Test3 Description of Equipment Under Test Configuration4 List of Performed Measurements4 The list of measured parameters covering SubclauseParameter to be measured 47 CFR2.1053, 90.210 (d)Radiated Emissions5 47 CFR2.1046, 90.205Power Output10 47 CFR2.1047(d), 90.207Modulation Characteristics11 47 CFR2.1049(h), 90.209Occupied Bandwidth13 47 CFR2.1049(h), 90.210Emission Masks14 47 CFR2.1051, 90.210Conducted Emissions18 47 CFR2.1055, 90.213Frequency Stability – Temperature Variations 27 47 CFR2.1055(d)(1), 90.213Frequency Stability – Voltage Variations 28 47 CFR 90.214Transient Frequency Behaviour 29 Photographs of test sample(s) 36 Annex A Measurement Facility Compliance Letter For copyright details see Page 47of 47 FCC ID: PW9R8060/PW9R8061 REPORT NUMBER RG608476PAGE 3 OF 47 Introduction The information contained within this report is intended to show verification of compliance of the Marconi SEMS Base Unit and SEMS Portable Unit against the requirements of 47 CFR 2 and 47 CFR 90. Location Of Testing All testing was performed at TUV Product Service Ltd, Segensworth Road, Fareham, PO15 5RH. Radiated Emissions measurements were performed on a 3 metre open area test site (OATS). A complete site description is on file with the FCC Laboratory Division, Registration Number: 90987. See Annex A. Test Equipment and Ancillaries Used For Test NoInstrument/AncillaryTypeManufacturerSerial No.Cal Due 1Hygromer1 – 1000Rotronic18261526/09/02 2DC Power Supply6267BHewlett Packard2333A08847T/U 3Digital Voltmeter70 IIIFluke723098504/01/03 4Attenuator47-10-34WeinschelAT4937 5Spectrum AnalyserFSEMRohde & Schwarz827285/00628/12/02 6RF Combiner1506AWeinschel Eng.KA84515/01/03 7Signal GeneratorSMY 01Rohde & Schwarz839957-05515/08/02 8Modulation AnalyserFAM 334.20Rohde & Schwarz881247/07031/02/02 9OscilloscopeLC534ALLeCroy114711/02/02 10High Freq Rejection Network3013Emco2174T/U 11Attenuator6534/4Marconi4190111/07/02 12Spectrum Anlayser8568BHewlett Packard1745A00160 -00148 24/02/02 13Quasi-Peak Adaptor85650AHewlett Packard2521A0084924/02/02 14RF Preselector85685AHewlett Packard2648A0044224/02/02 15Biconical Antenna94455-1Ailtech066505/12/02 16Log Periodic AntennaAT1000Amplifier Research 4573/03516/11/02 17Turntable & Controller1060Emco-T/U 18Antenna Mast & Controller1050Emco-T/U 19Computer310Hewlett Packard-T/U 20PrinterThink JetHewlett Packard-T/U 21Low Noise Amplifier (1-8GHz)AMF-3D-001080- 18-13P MiteqUNKT/U 22Spectrum Analyser8562AHewlett Packard3029A0539025/05/02 23Horn3115Emco9701507926/05/02 24Signal Generator8672AHewlett Packard2016A0109722/12/02 25Signal Generator2031Marconi11953006914/09/02 Note(s) 1)All items are calibrated annually , except where labelled T/U (Tracebility Unscheduled). These items are calibrated within the test configurations using calibrated equipment. 2) Throughout the test report the test equipment used for each test is referenced using the number indicated in the table above. FCC ID: PW9R8060/PW9R8061 REPORT NUMBER RG608476PAGE 4 OF 47 Description of Equipment Under Test Configuration The equipment under test consists of two parts – a base unit and a mobile unit. Both units are identical with respect to the RF parameters. The main differences are the power supply and the intended use for each device. Therefore, complete testing has been carried out on the base unit. Limited testing has been carried out on the mobile unit. Thus, radiated emissions have been carried out on both the mobile and base unit along with frequency stability under voltage variation to cover both power supply scenarios. A PC was supplied with the EUT to enable setting of the channels for testing purposes. List of Performed Measurements i)Power Output47 CFR2.1046, 90.205 ii)Modulation Characteristics47 CFR2.1047(d), 90.207 iii)Occupied Bandwidth47 CFR2.1049(h), 90.209 iv)Emission Masks47 CFR2.1049(h), 90.210 v)Frequency Stability –47 CFR2.1055, 90.213 Temperature Variations vi)Frequency Stability –47 CFR2.1055(d)(1), 90.213 Voltage Variations vii)Radiated Emissions47CFR2.1053, 90.210 (d) viii)Transient Frequency Behaviour47CFR 90.214 FCC ID: PW9R8060/PW9R8061 REPORT NUMBER RG608476PAGE 5 OF 47 Test Case:Radiated Emissions Test Date:21 st January 2002 Rule Parts:90.210(d) Measurement Method Transmit mode A preliminary profile of the Rad…

Text truncated - open the document above for the full version.

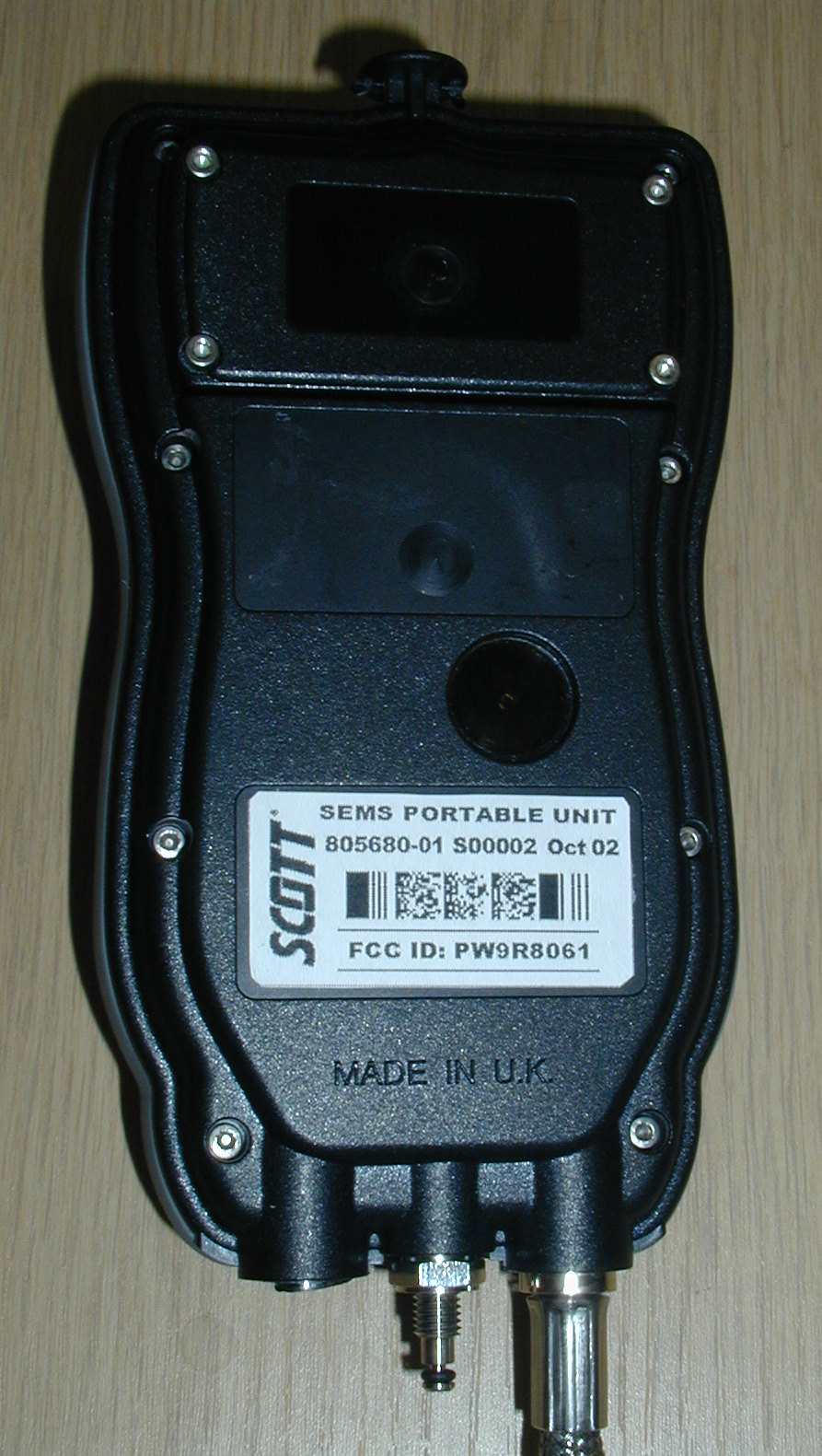

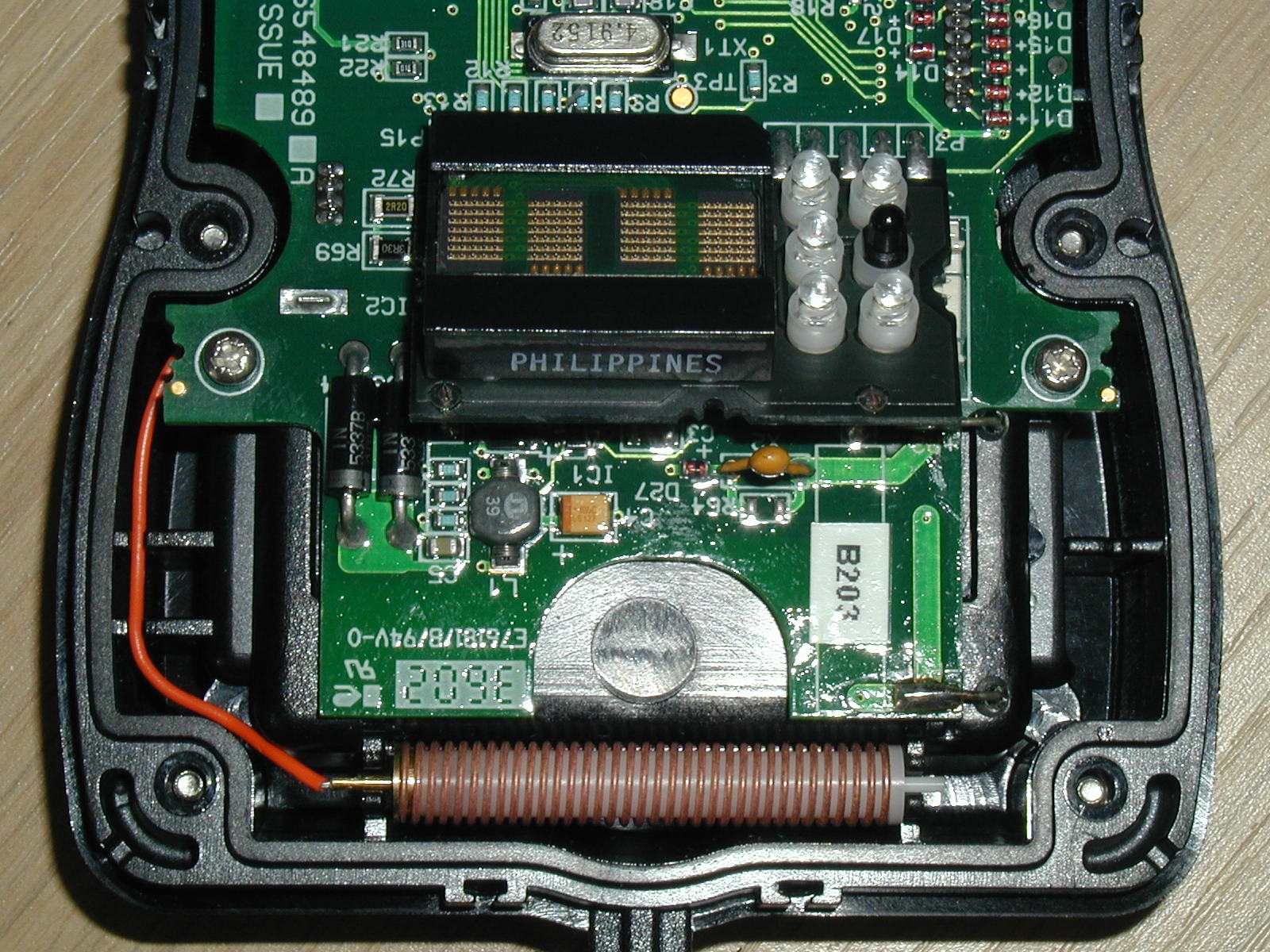

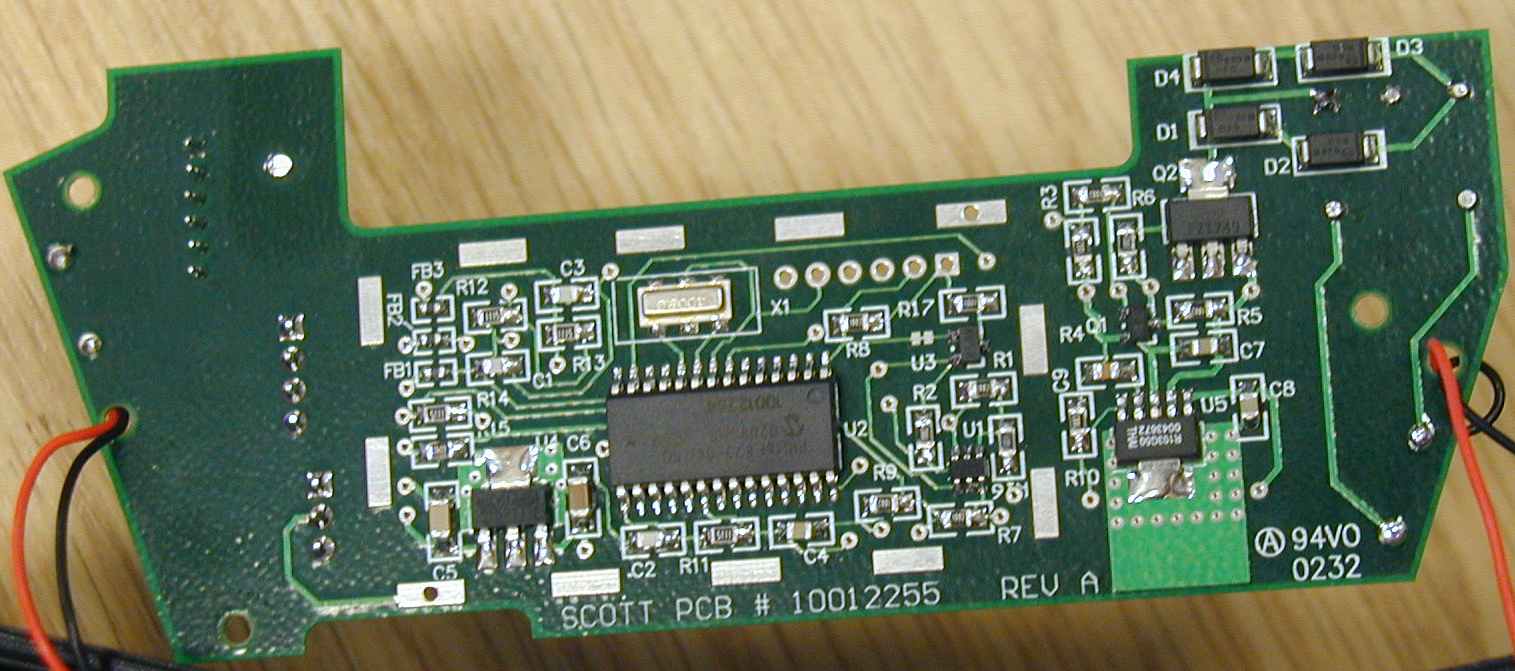

FCC ID: PW9R8060/PW9R8061 REPORT NUMBER OO608900 FCC Pt90PAGE 36 OF 47 PHOTOGRAPHS OF EQUIPMENT SEMS Base Unit - General View SEMS Base Unit - Rear/Side View SEMS Base Unit - Front/Side View 1 SEMS Base Unit - Front/Side View 2, with Antenna SEMS Base Unit - Internal View 1 SEMS Base Unit - Internal View 2 SEMS Portable Unit - Top View SEMS Portable Unit - Bottom View SEMS Portable Unit - Internal View SEMS Portable Unit - Label View 0141 Group UKAS Accreditations do not cover opinions and interpretations and any expressed herein are outside the scope of any UKAS Accreditation. Results of tests not yet included in our UKAS Accreditation Schedule are marked NUA (Not UKAS Accredited).  2002 TÜV Product Service Limited This report must not be reproduced without the written permission of TÜV Product Service Limited FCC ID: PW9R8060/PW9R8061 REPORT NUMBER RG608476 Annex A FCC Measurement Facility Compliance Letter (comprising of 1 page) REPORT NUMBER RG608476

REDS2 Design Proving Test Record DAS548604AM Issue A Page 1 of 4 Approved © E2V Technologies Limited 2003 A Limited Company Registered in London No. 432014 Registered Office: 106 Waterhouse Lane, Chelmsford CM1 2QU Holding Company: E2V Holdings Limited Test No. Title Base Unit Transmit Duty Cycle Associated Specification Paragraph Issue No. FCC Tested By Date Results checked by Paul Newby 27 th Feb 2003 Neil Barker Unit(s) Under Test Serial Number Software Issue Base Unit B2 2A5B Test Equip. Type/Serial No. Calibration No. Calibration Expiry Date Agilent 8564EC Spectrum Analyser 04720116 14/2/04 Test Method 1. Connect the RFoutput of the Base Unit to the spectrum analyser. • Set the spectrum analyser as follows: • RF Frequency 460.6375 MHz • Amplitude +25 dBm • Span 0 Hz • Bandwidth 1 MHz • Sweep Plot 1:200mS, Plot 2 :10 seconds • Trigger Video • Single sweep 2. Switch on the Base Unit in normal mode Results/Observations The plots below show Base Unit B2, which was submitted for Radio Type Approval operating at 460.6375 MHz. The Base Unit is send out a Contact Request, in between Base Unit transmissions, up to ten Portable Units would in turn respond in a pre-determined manner. The first plot shows the length of each transmission, the second plot shows the repetition rate of the Base Unit transmissions. The presence of other Base Units in radio range would cause Base Units to share out the time slots. REDS2 Design Proving Test Record DAS548604AM Issue A Page 2 of 4 Approved © E2V Technologies Limited 2003 A Limited Company Registered in London No. 432014 Registered Office: 106 Waterhouse Lane, Chelmsford CM1 2QU Holding Company: E2V Holdings Limited REDS2 Design Proving Test Record DAS548604AM Issue A Page 3 of 4 Approved © E2V Technologies Limited 2003 A Limited Company Registered in London No. 432014 Registered Office: 106 Waterhouse Lane, Chelmsford CM1 2QU Holding Company: E2V Holdings Limited REDS2 Design Proving Test Record DAS548604AM Issue A Page 4 of 4 Approved © E2V Technologies Limited 2003 A Limited Company Registered in London No. 432014 Registered Office: 106 Waterhouse Lane, Chelmsford CM1 2QU Holding Company: E2V Holdings Limited

E2V Technologies Waterhouse Lane Chelmsford Essex CM1 2QU U K Tel: +44(0)1245 493 493 Fax: +44(0)1245 492 492 Internet: www.e2vtechnologies.com 18 th October 2002 BABT Claremont House 34 Molesey Road Walton on Thames Surrey KT12 4RQ Dear Sirs, Test Set-up Photographs for PW9R8061 The test set-up photographs relating to the submission for FCC ID PW9R8061 are included in Exhibit 6 – Technical Report Yours faithfully Neil R. Barker Compliance Engineering Manager A Limited Company Registered in London No. 432014 Registered Office: 106 Waterhouse Lane, Chelmsford, Essex, CM1 2QU, UK Holding Company: E2V Holdings Limited
