PWR-TK14RFRF Module

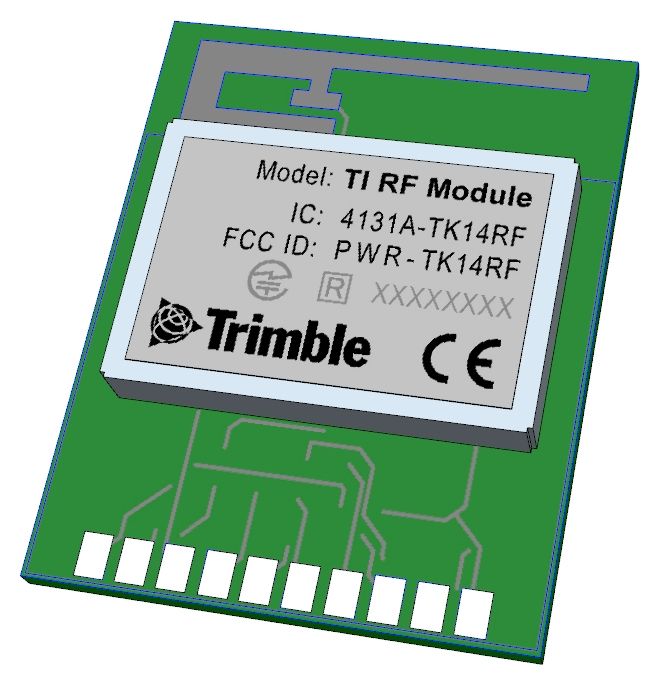

TI RF Module Integration Manual This module will be built in only in Trimble products by Trimble itself. Trimble makes sure that the maximum voltage is 3.8V. The design is based on the CC2520 from Texas Instruments. • P1: Vdd supply voltage 1.8 - 3.8V • P2: GND • P3: SO SPI Interface Serial Out • P4: SI SPI Interface Serial In • P5: SPI_CLK SPI Interface Serial clock 8MHz max • P6: CS_N SPI Interface Chip select active low • P7: External Reset pin active low • P8: Vreg_EN when High, digital voltage regulator is active • P9: GPIO0 general purpose digital I/O • P10: GPIO1 general purpose digital I/O Mounting instruction: The module could be mounted and connected with a plug connector or could be mounted on a plastic holder and connected with cable (P1-P10). Maximum Voltage: 3,8V Connect the SPI Port to a microcontroller and use the instruction of Texas Instruments to start running the module. Pad Function P1 Vdd P2 GND P3 SPI_IN P4 SPI_OUT P5 SPI_CLK P6 CS_N P7 Reset P8 Vreg_EN P9 GPIO0 P10 GPIO1 ID ́s: FCC: PWR-TK14RF IC: 4131A-TK14RF Units with this module have to mark on the label with: Contains FCC ID: PWR-TK14RF Contains IC: 4131A-TK14RF Statements: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device Le présent appareil est conforme aux CNR d ́Industrie Canada applicables aux appareils radio exempts de licence. L ́exploitation est autorisée aux deux conditions suivantes: (1) l ́appareil ne doit pas produire de brouillage, et (2) l ́utilisateur de l ́appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d ́en compromettre le fonctionnement.

i,9'Trimble Engnee,neand constudoi Dvs on . Mr. Julio Lopez . l\rr. Uwe Dollitz PHOENIX TESTLAB GmbH Product Certification Department Königswinkel 10 D 32825 Blomberg To Whom lt May Concern: Please be advised that we (Trimble Kaiserslautern GmbH) authorizes the following persons from PHOENIX TESTLAB GmbH: . Ms. Chvi-Chen Chai to handle the application of Type Approval Services including in-country-testang in the following coutries: USA.Canada.Japan,Europe PHOENIX TESTLÄB GmbH has our permission to use our technical documents for the approvals for the following name device: Produkt description RF Module Brand name Tr]mble Kaisersiautern GmbH irodelname/-number Tl RF Module Unless future correspondence from us, please extend your full cooperation to PHOENIX TESTLAB GmbH regarding matters to the above mentioned products to 12 months after the signatory date of this authorization. Contact person Ulrich Ohler Position in the company F&E engineer Date of signatory 11062014 Signatory (signature of the applicant) -iJr-l ,!J3:-

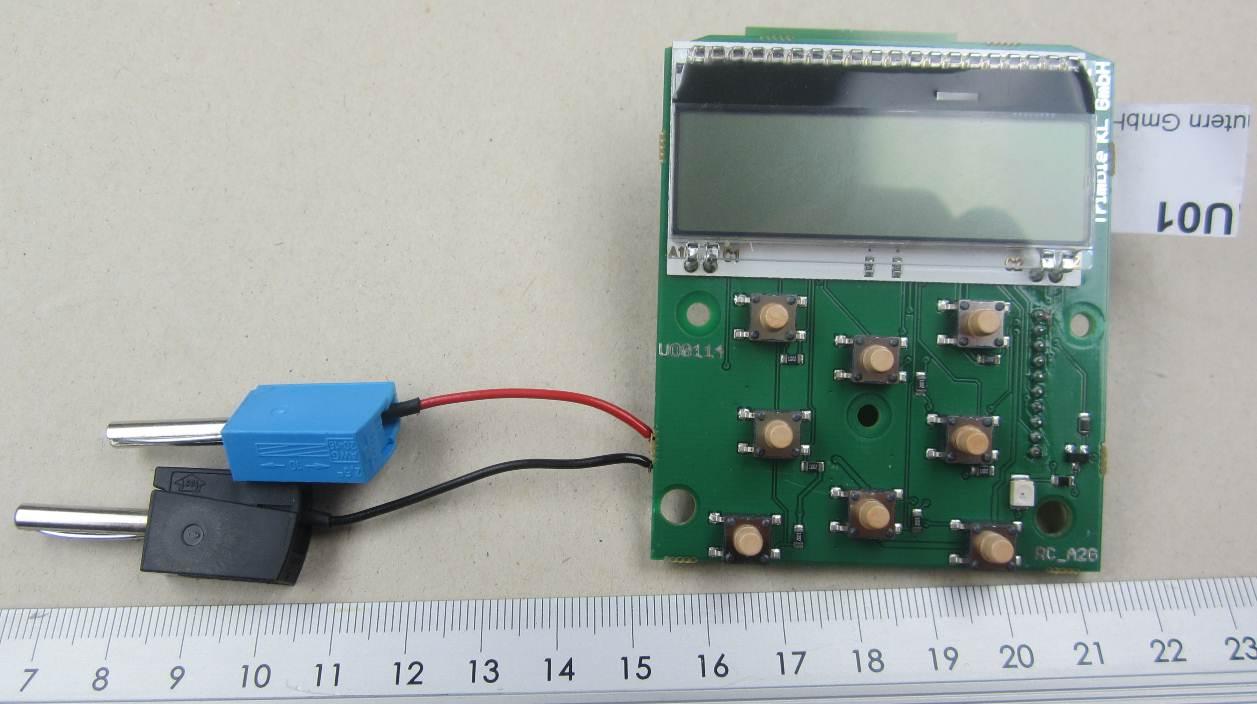

ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F140852E1 Date of issue: 8 September 2014 Order No.: 14-110852 page 1 of 2 140852_05.jpg: Carrier Board + EUT – Top View ANNEX B: EXTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F140852E1 Date of issue: 8 September 2014 Order No.: 14-110852 page 2 of 2 140852_06.JPG: Carrier Board + EUT – Bottom View

ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F140852E1 Date of issue: 8 September 2014 Order No.: 14-110852 page 1 of 3 140852_07.JPG: EUT - top view, with shielding ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F140852E1 Date of issue: 8 September 2014 Order No.: 14-110852 page 2 of 3 140852_08.JPG: EUT - top view, shielding removed ANNEX C: INTERNAL PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F140852E1 Date of issue: 8 September 2014 Order No.: 14-110852 page 3 of 3 140852_09.JPG: EUT – bottom view

Calculation: RF-Exposure for 2.4 GHz ZigBee transmitter Type identification: TI RF Module In accordance to the CFR Part 47, §1.1310 S: Limit for power density according to CFR Part 47, §1.1310: 10 W/m 2 P: 5.5 mW (averaged over 30 min) G: 0 dBi = 1 D: Duty cycle: 100 % = 1 R: Distance in what the limit of S has to be reached: 0.2 m 222 011.0 )2.0(4 110055.0 4m W m W S R DGP S ˜˜ ˜˜ Ÿ ˜˜ ˜˜ SS The value for the “General population / Uncontrolled Exposure” of the power density is below the limit of CFR Part 47, §1.1310.

Königswinkel 10 32825 Blomberg Germany Phone: +49 (0) 52 35 95 00-0 Fax: +49 (0) 52 35 95 00-10 Test Report Report Number: F140852E1 Applicant: Trimble Kaiserslautern GmbH Manufacturer: Trimble Navigation Limited Equipment under Test (EUT): TI RF Module Laboratory accredited by Deutsche Akkreditierungsstelle GmbH (DAkkS) in compliance with DIN EN ISO/IEC 17025 under the Reg. No. D-PL-17186-01-02, FCC Test site registration number 90877 and Industry Canada Test site registration IC3469A-1 Test engineer: Paul NEUFELD Report Number: F140852E1 Date of issue: 8 September 2014 Order Number: 14-110852 page 2 of 41 REFERENCES [1] ANSI C63.4-2009 American National Standard for Methods of Measuring of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. [2] FCC CFR 47 Part 15 (July 2014) Radio Frequency Devices [3] Publication Number 558074 (June 2014) DTS Meas Guidance v03r02 [4] RSS-210 Issue 8 (December 2010) Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment [5] RSS-Gen Issue 3 (December 2010) General Requirements and Bluetooth module Information for the Certification of Radiocommunication Equipment TEST RESULT The requirements of the tests performed as shown in the overview (clause 4) were fulfilled by the equipment under test. The complete test results are presented in the following. RESERVATION This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Test engineer: Paul NEUFELD 15 October 2014 Name Signature Date Authorized reviewer: Bernd STEINER 15 October 2014 Name Signature Date Test engineer: Paul NEUFELD Report Number: F140852E1 Date of issue: 8 September 2014 Order Number: 14-110852 page 3 of 41 Contents: Page 1 IDENTIFICATION ....................................................................................................................................4 1.1 Applicant ..........................................................................................................................................4 1.2 Manufacturer ....................................................................................................................................4 1.3 Test laboratory .................................................................................................................................4 1.4 EUT (Equipment Under Test) ...........................................................................................................5 1.5 Dates ...............................................................................................................................................7 2 OPERATIONAL STATES .........................................................................................................................7 3 ADDITIONAL INFORMATION ..................................................................................................................9 4 OVERVIEW .............................................................................................................................................9 5 TEST RESULTS .................................................................................................................................... 10 5.1 Duty cycle ...................................................................................................................................... 10 5.1.1 Method of measurement .......................................................................................................... 10 5.1.2 Test results ............................................................................................................................. 11 5.2 Maximum peak conducted output power......................................................................................... 13 5.2.1 Method of measurement .......................................................................................................... 13 5.2.2 Test results ............................................................................................................................. 14 5.3 DTS Bandwidth .............................................................................................................................. 15 5.3.1 Method of measurement .......................................................................................................... 15 5.3.2 Test result ............................................................................................................................... 16 5.4 Peak Power Spectral Density ......................................................................................................... 17 5.4.1 Method of measurement .......................................................................................................... 17 5.4.2 Test result ............................................................................................................................... 18 5.5 Band-edge compliance ................................................................................................................... 19 5.5.1 Method of measurement (band edges next to unrestricted bands (radiated))............................ 19 5.5.2 Test result (band edges next to unrestricted bands (radiated)) ................................................. 20 5.5.3 Method of measurement (band edges next to restricted bands (radiated)) ............................... 21 5.5.4 Test result (band edges next to restricted bands (radia…

Text truncated - open the document above for the full version.

ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F140852E1 Date of issue: 8 September 2014 Order No.: 14-110852 page 1 of 4 140852_01: Test setup - Radiated emission (fully anechoic chamber) ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F140852E1 Date of issue: 8 September 2014 Order No.: 14-110852 page 2 of 4 140852_02: Test setup - Radiated emission (fully anechoic chamber) ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F140852E1 Date of issue: 8 September 2014 Order No.: 14-110852 page 3 of 4 140852_03: Test setup - Radiated emission (fully anechoic chamber) ANNEX A: TEST SET-UP PHOTOGRAPHS Examiner: Paul NEUFELD Test Report No.: F140852E1 Date of issue: 8 September 2014 Order No.: 14-110852 page 4 of 4 140852_04: Test setup – conducted emissions on power supply lines
