PWRGL4XXLazer Level System

5 • Use of this product by people other than those trained on this product may result in exposure to hazardous laser light. • Do not remove warning labels from the unit. • The GL422 is Class 3A/3R (< 5mW, 600 ... 680 nm). The GL412 laser is subject to Class 2 (< 3.4 mW, 600 ... 680 nm). • Never look into the laser beam or direct it to the eyes of other people. • Always operate the unit in a way that prevents the beam from getting into people‘s eyes. If initial service is required, which results in the removal of the outer protective cover, removal must only be performed by factory-trained personnel. Caution: Use of other than the described user and calibration tools or other procedures may result in exposure to hazardous laser light. Caution: Unsafe operation may result if the product is used differently than described in this operator‘s manual. TABLE OF CONTENTS FOR YOUR SAFETY 5 COMPONENTS 6 How to Use the Laser System 6 Powering the Laser 6 Laser Setup 7 Turning On/Off the Laser 7 Turning On/Off the Radio Remote Control 8 Matching the Remote Control with the Transmitter 8 Activating/Deactivating Standby Mode 8 Using the Manual Mode 8 Mask Mode 9 Y(
)- or X(y)-Axis Slope Mode 9 APPLICATIONS 10 General Construction 10 Determining the Height of Instrument (HI) 10 Using the Slope Mode 10 Establishing Vertical Alignment 11 CALIBRATION 11 Checking Calibration of the Y- and X-Axes 11 Checking Calibration of the Z-(vertical) Axis 11 PROTECTING THE UNIT 11 CLEANING AND MAINTENANCE 12 PROTECTING THE ENVIRONMENT 12 WARRANTY 12 TECHNICAL DATA 12 Introduction Thank you for choosing one of the Spectra Precision Lasers from the Trimble family of precision grade lasers. The grade laser is an easy-to-use tool that offers accurate horizontal, vertical and sloped laser reference up to 1300 ft (400 m) away using a receiver. FOR YOUR SAFETY For hazardless and safe operation, read all the user guide instructions. GB 061331_01_GL4X2_GB.indd 5061331_01_GL4X2_GB.indd 506.11.2006 9:02:39 Uhr06.11.2006 9:02:39 Uhr 6 COMPONENTS 1 Power Button 2 Battery LED 3 Manual/Standby Button 4 Leveling LED 5 Manual/HI-Warning LED 6 Up and Down Arrow Buttons 7 Left and Right arrow Buttons 8 Liquid Crystal Display (LCD) 9 Rotor 10 Sunshade 11 Sighting Guides 12 Axes-Alignment-Marks 13 Recharge Jack 14 Handle 15 Battery door 16 5/8x 11 Tripod Mounts 17 Rubber feet How to Use the Laser System Powering the Laser Batteries WARNING Ni-MH batteries may contain small amounts of harmful substances. Be sure to charge the battery before using it for the first time, and after not using it for an extended length of time. Charge only with specified chargers according to device manufacturer‘s instructions. Do not open the battery, dispose of in fire or short circuit; it may ignite, explode, leak or get hot causing personal injury. Dispose in accordance with all applicable federal, state, and local regulations. Keep the battery away from children. If swallowed, do not induce vomiting. Seek medical attention immediately. Installing Batteries Remove the battery door by turning the center knob 90° counterclockwise. Insert batteries (or a rechargeable battery pack) into the housing so that the negative poles are on the bigger battery spiral springs. Install the battery door and tighten it by turning the center screw 90° clockwise. A mechanical switch prevents alkaline batteries from being charged. Only the original rechargeable battery pack allows charging within the unit. Any other rechargeable batteries have to be charged externally. Recharging the Batteries The laser is shipped with rechargeable NI-MH batteries. Note: The battery LED shows the approximate charge of the batteries. The LED will flash when battery voltage is between 3.8 and 4.0 volts. The LED will be on continuously when battery voltage is less than 3.8 volts. The charger requires approx. 10 hours to charge empty rechargeable batteries. For charging, connect the plug of the charger to the recharge jack of the unit. New or long-time out-of-use rechargeable batteries reach their best performance after being charged and recharged five times. The batteries should only be charged when the laser is between 50° F and 104° F (10° C to 40° C). Charging at a higher temperature may damage the batteries. Charging at a lower temperature may increase the charge time and decrease the charge capacity, resulting in loss of performance and shortened life expectancy. 061331_01_GL4X2_GB.indd 6061331_01_GL4X2_GB.indd 606.11.2006 9:02:40 Uhr06.11.2006 9:02:40 Uhr 7 Laser Setup Position the laser horizontally (tripod mount and rubber feet downward!) on a stable platform, wall mount or tripod at the desired elevation. The laser recognizes automatically whether it is used horizontally or vertically when switched on. Turning On/Off the Laser Press the power button to turn on the laser. The LEDs (2, 4 and 5) are turned on for 2 seconds. At the LCD, the last used grade values, the mask mode status and the antenna symbol will be displayed. Note: The laser always powers up in the automatic self-leveling mode with 600 rpm and the last- entered grade. The laser is level when the leveling indicator 4 is no longer flashing (once every second) and the grade values at the laser’s and remote control’s LCD are not flashing. For the first five minutes after the laser self levels, the LED 4 lights solid then flashes every four seconds to let you know the laser is still level. Repeatedly pressing and releasing the up and right arrow buttons simultaneously toggles the rotation speed between 300 and 600 rpm. Note: If the temperature changes after the laser has been turned on by more than 5 degrees C (10 degrees F) the laser will compensate for the temperature change by resetting the leveling system. During a temperature compensation reset, the grade display flashes, rotation stops and the laser beam turns off. When the temperature compensation reset has been finished, a new grade value can be dialed into the unit. Note:…

Text truncated - open the document above for the full version.

GL400 Series www.trimble.com Trimble Construction Division5475 Kellenburger RoadDayton, Ohio 45424USA+1-937-245-5600 Phonewww.trimble.com User Guide Bedienungsanleitung Manuel de l ́utilisateur Guida per l ́uso Gúia del usuario Gebruikershandleiding Operatörshandbok Brugermanual Guia do Usuário Bruksanvisning Käyttäjän opas Kullanici Rehberi © 2007, Trimble Navigation Limited. All rights reserved. PN Q103506 (01/07) 1 37 4536 7821 26 15 17 17 16 10 12 11 1314 9

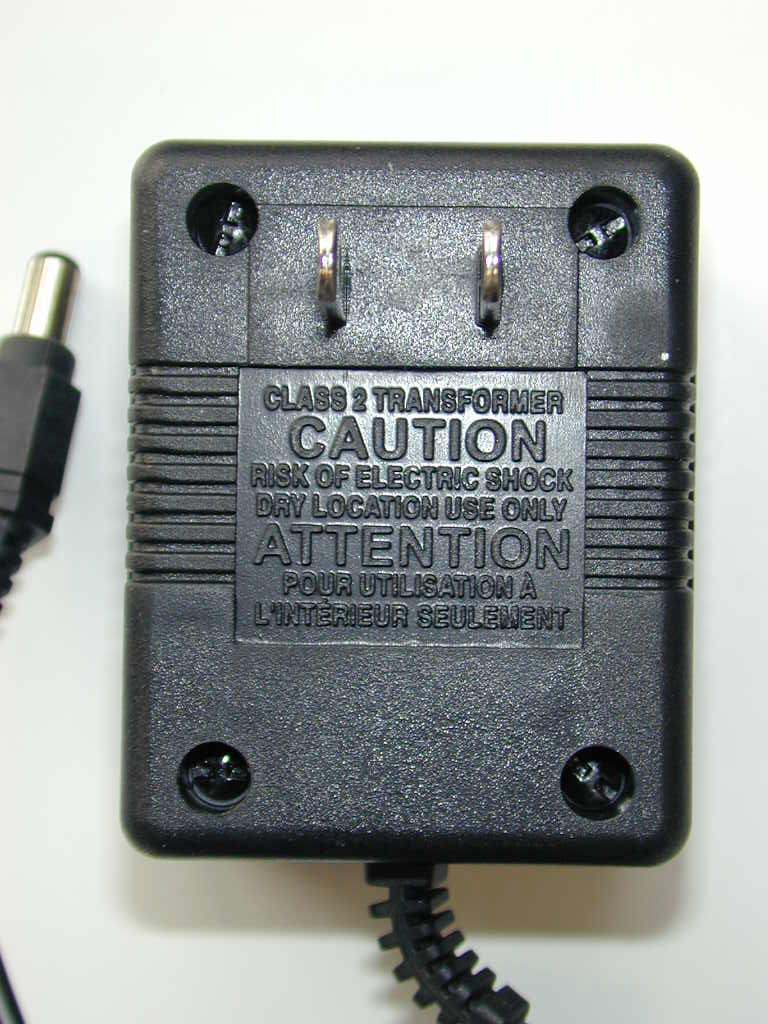

TRPS GmbH Testreport Nr. 21127623_001 Appendix 2 Seite [page] 1 von [of] 6 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_Foto_a.doc Anhang 2 Appendix 2 Fotodokumentation Photo Documentation TRPS GmbH Testreport Nr. 21127623_001 Appendix 2 Seite [page] 2 von [of] 6 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_Foto_a.doc Bild 1. EUT, Außenansicht [EUT, outside] Bild 2. EUT, Außenansicht [EUT, outside] TRPS GmbH Testreport Nr. 21127623_001 Appendix 2 Seite [page] 3 von [of] 6 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_Foto_a.doc Bild 3. EUT, Außenansicht [EUT, outside] Bild 4. EUT, Außenansicht [EUT, outside] TRPS GmbH Testreport Nr. 21127623_001 Appendix 2 Seite [page] 4 von [of] 6 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_Foto_a.doc Bild 5. EUT, Außenansicht [EUT, outside] TRPS GmbH Testreport Nr. 21127623_001 Appendix 2 Seite [page] 5 von [of] 6 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_Foto_a.doc Bild 6. Power supply TRPS GmbH Testreport Nr. 21127623_001 Appendix 2 Seite [page] 6 von [of] 6 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_Foto_a.doc Bild 7. Power supply

FCC_21127623_002.Rev1.doc Produkte Products Prüfbericht - Nr.: Test Report No.: 21127623_002 Seite 1 von 23 Page 1 of 23 Auftraggeber: Client: Trimble Kaiserslautern GmbH D-67661 Kaiserslautern Am Sportplatz 5 Gegenstand der Prüfung: Test item: Intentional Radiator Bezeichnung: Identification: GL-422 RC-402 Serien-Nr.: Serial No.: 06432071 Wareneingangs-Nr.: Receipt No.: 74033 Eingangsdatum: Date of receipt: 2006.10.30 Prüfort: Testing location: TÜV Rheinland Product Safety GmbH, Köln, Germany Prüfgrundlage: Test specification: FCC 47 CFR Ch.1 Part 15 2006-08-14 Emission Section 15.107 (a), limits same as IEC/CISPR 22:1997 (EN 55022:1998) Class B Section 15.109 (a) Class B Section 15.109 (g), i.e. IEC/CISPR 22:1997 (EN 55022:1998) Class B Section 15.209 (Intentional radiator) Section 15.249 (Intentional radiator) Section 15.31 (e) and Section 15.215 (c) Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannten Prüfgrundlagen The test item passed the test specification(s) Prüflaboratorium: Testing Laboratory: TÜV Rheinland Product Safety GmbH, Köln, Germany geprüft / tested by: kontrolliert / reviewed by: 2007-01-23 O.Schaefer, SV 2007-01-23s K. W. Friedrich, LL Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other Aspects: FCC Registration No. 91096, 2004-07-27 Anhang / Annex: Messdiagramme / Measurement Diagrams Fotodokumentation / Photo Documentation Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. TÜV Rheinland Product Safety GmbH ž Am Grauen Stein ž D - 51105 Köln ž Tel.: +49 221 806-1371 ž Fax: +49 221 806-3909 Mail: [email protected] ž Web: www.tuv.com Rev. 3.3emv 2006-11-15 TRPS GmbH Testreport Nr. 21127623_002 Seite [page] 2 von [of] 23 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This testreport may not be published or duplicated in part without permission of the testing body. This testreport by itself does not constitute authorization for the use of any test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the United States Government. FCC_21127623_002.Rev1.doc Verwendete Messgeräte [used testequipment] Störaussendung [emission] Kal. bis Test / Gerät Type Hersteller [manuf.] Ser. / Inv. – Nr. [cal. till] Funkstörspannung und –strom [conducted disturbance] Empfänger [Rx] 9kHz-30MHz FMLK 1518 D Schwarzbeck 14200382 2007-06 Netznachbildung [AMN] ESH 3-Z5 Rohde & Schwarz 14200683 2008-04 Schirmkabine [shielded room] B 83102 S1-X10 Siemens Elektrische Funkstörfeldstärke [radiated disturbance] EMI Test Receiver ESCS 30 Rohde & Schwarz 14201360 2007-01 BiConiLog-Ant. 26-3000MHz 3142B EMCO 14201363 2007-06 EMI Receiver < 26,5GHz ESMI Rohde & Schwarz 14200550 2007-01 Horn-Ant 1-10GHz BBHA 9120B 202 Schwarzbeck 14200694 2006-11 Horn-Ant 1-10GHz BBHA 9120B 204 Schwarzbeck 14200695 2009-10 Horn-Ant 2-18GHz BBHA 9120C 376 Schwarzbeck 30401857 2009-07 Horn-Ant 2-18GHz BBHA 9120C 377 Schwarzbeck 30401858 2008-03 Horn-Ant 15-26,5GHz BBHA 9170 311 Schwarzbeck 30401855 2009-03 Horn-Ant 15-26,5GHz BBHA 9170 312 Schwarzbeck 30401856 2009-03 Absorberkabine [shielded room] ETS 14201372 2007-05 Frequenzablage [frequency error] Frequency counter HP 5351B Hewlett Packard 14200466 2007-12 Temperature chamber 130RB/40-180 DU Weis 94310113 2008-01 Horn-Ant 2-18GHz BBHA 9120C 376 Schwarzbeck 30401857 2009-07 Weitere Messgeräte [other testequipment] Digital-Multimeter Metra Hit 16 ABB 14200346 2008-05 Temperature / Humidity 615 testo 30401660 2007-07 Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basis using in house standards or comparisons. All measurement equipment calibrations are traceable to DKD or where calibration is performed outside Germany, to equivalent nationally recognized standards organizations. The measurement facilities for conducted and for radiated disturbances of TRPS GmbH in Cologne, Am Grauen Stein, has been found to be in compliance with the requirements of Section 2.948 of the FCC Rules. Measurement data will be accepted in conjunction with applications for Certification under Parts 15 and 18 of the Commission ́s Rules. Registration-Number: 91096 Date of Listing: 2004-July-27 TRPS GmbH Testreport Nr. 21127623_002 Seite [page] 3 von [of] 23 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This testreport may not be published or duplicated in part without permission of the testing body. This testreport by itself does not constitute authorization for the use of any test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the United States Government. FCC_21127623_002.Rev1.doc Messunsicherheit [measurement uncertainty] Where relevant, following measurement uncertainty levels have been estimated for tests performed on the apparatus. Expanded Uncertainty U Lab U CISPR Conducted Emission 0,15 to 30 MHz, Power Line 2,70 d…

Text truncated - open the document above for the full version.

TRPS GmbH Testreport Nr. 21127623_001 Appendix 3 Seite [page] 1 von [of] 4 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_setup.doc Anhang 3 Appendix 3 Fotodokumentation Photo Documentation Testaufbau / Testsetup TRPS GmbH Testreport Nr. 21127623_001 Appendix 3 Seite [page] 2 von [of] 4 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_setup.doc Bild 1. Funkstörspannung am Netzanschluss [conducted noise at mains ports] Bild 2. El. Funkstörfeldstärke [emission, radiated disturbance] TRPS GmbH Testreport Nr. 21127623_001 Appendix 3 Seite [page] 3 von [of] 4 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_setup.doc Bild 3. El. Funkstörfeldstärke [emission, radiated disturbance] TRPS GmbH Testreport Nr. 21127623_001 Appendix 3 Seite [page] 4 von [of] 4 Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. FCC_21127623_002_setup.doc Bild 4. Frequenzablage [frequency error] Bild 5. Bild 5. Frequenzablage [frequency error]
