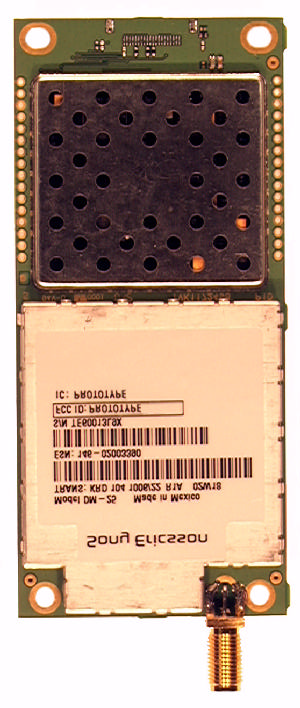

PXITR-505-A2TRANSCEIVER MODULE

DM15/25 Integrator’s Manual1 OF 38 DM-15/25 Integrator’s Manual DM15/25 Integrator’s Manual2 OF 38 DM-15/25..............................................................................................................................................................................1 INTEGRATOR’S MANUAL...............................................................................................................................................1 1INTRODUCTION TO THE INTEGRATOR’S MANUAL.........................................................................................4 1.1OVERVIEW..............................................................................................................................................................4 1.2HOW TO READ THE MANUAL.....................................................................................................................................4 1.3SERVICE AND SUPPORT............................................................................................................................................4 1.3.1Web Pages.......................................................................................................................................................4 1.3.2Component Suppliers.......................................................................................................................................4 1.4RELATED DOCUMENTS.............................................................................................................................................4 1.5ABBREVIATIONS......................................................................................................................................................5 2SAFETY & FCC REQUIREMENTS...........................................................................................................................6 2.1WARNING: FCC RF EXPOSURE REQUIREMENTS.......................................................................................................6 2.2WARNING: ANTENNA INSTALLATION.......................................................................................................................6 2.3MODULE OPERATION...............................................................................................................................................6 2.4OEM LABELING......................................................................................................................................................6 2.5POSTED FACILITIES..................................................................................................................................................6 2.6ELECTRONIC DEVICES..............................................................................................................................................6 2.7BLASTING AREAS....................................................................................................................................................6 2.8POTENTIALLY EXPLOSIVE ATMOSPHERES.................................................................................................................7 2.9VEHICLES................................................................................................................................................................7 2.10FOR VEHICLES EQUIPPED WITH AN AIRBAG..............................................................................................................7 2.11RESPONSIBLE USE....................................................................................................................................................7 2.11.1.1A Guide to Safe and Responsible Wireless Communication Device Use.....................................................7 3OVERVIEW OF THE DM-15/25 MODULES.............................................................................................................7 3.1OVERVIEW..............................................................................................................................................................7 4INTEGRATING THE DM-15/25 MODULE...............................................................................................................9 4.1MECHANICAL DESCRIPTION.....................................................................................................................................9 Connector Overview.....................................................................................................................................................10 4.1.2General Electrical and Logical Characteristics..............................................................................................13 4.1.3Power Interface.............................................................................................................................................13 4.1.3.1Power Consumption...................................................................................................................................14 4.1.3.2Power Supply, Ground and Signal Pins.......................................................................................................14 4.1.3.3MODULE_PWR_EN_B (WAKE).................................................................................................................16 4.1.4Audio interface..............................................................................................................................................16 4.1.4.1Analog Audio.............................................................................................................................................16 4.1.4.2Digital Audio..............................................................................................................................................17 4.1.5Serial Data Interface.....................................................................................................................................20 4.1.6G…

Text truncated - open the document above for the full version.

Sony Ericsson Mobile Communications (USA) Inc. 7001 Development Drive RPT, North Carolina 27709 June 6, 2002 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Subject:Type Acceptance for FCC ID: PXITR-505-A2 Model: DM-25 To Whom It May Concern: This letter is in request of certification for the above mentioned FCC Identifier. This module transceiver is designed for use in AMPS/DAMPS/Cellular/PCS systems. The module operates in the 800 MHz Domestic Public Cellular Radiotelephone Communications Services per Subpart H of Part 22 and in the 1900 MHz Domestic Public Cellular Radiotelephone Communications Services, as per Part 24. Sony Ericsson Inc. requests confidentiality under 47 CFR 0.459 for the following exhibit listed: Exhibit 4Block diagrams Exhibit 5Schematics Exhibit 10Parts list/tune-up procedure Exhibit 12Operational description This request is in order to protect Sony Ericsson’s proprietary techniques. Sincerely, Pierre Chery Manager, Type ApprovalTel No:(919) 472-1697 Research Triangle Park, NCFax No:(919) 472-6382

Sony Ericsson Mobile Communications (USA) Inc. 7001 Development Drive RTP, North Carolina 27709 July 12, 2002 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Attention: Equipment Authorization Branch Reference:FCC ID: PXITR-505-A2 Correspondence #: 23319 Confirmation #:EA226362 Dear Mr. Dayhoff: Please find revised MPE report uploaded to FCC electronic filing server. Sections 3.2.1 and 4.1 were amended as suggested. Also comments indicating the MPE level is well below the limit were removed. Thank you, Pierre Chery Technical Manager, Type ApprovalTel No:(919) 472-1697 Research Triangle Park, NCFax No:(919) 472-6382 [email protected]

APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS, INC.PXITR-505-A2 © 2002 Sony Ericsson Mobile Communications, Inc.

APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS, INC.PXITR-505-A2 © 2002 Sony Ericsson Mobile Communications, Inc.

APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS, INC.PXITR-505-A2 © 2002 Sony Ericsson Mobile Communications, Inc.

Evaluation of RF Exposure for DM25 Module 1/8 ©2001 Sony Ericsson Mobile Communications Inc. Environmental Evaluation of RF Exposure for the DM-25 Module Evaluation of RF Exposure for DM25 Module 2/8 ©2001 Sony Ericsson Mobile Communications Inc. TABLE OF CONTENTS 1.Introduction.........................................................................................................................................3 1.1.Purpose of the Report.......................................................................................................................3 1.2.Description of the DM25 Device........................................................................................................3 2.Classification of Device / Applicability of Rules................................................................................3 2.1.Mobile devices..................................................................................................................................4 2.2.Excludability from routine environmental evaluation..........................................................................4 2.3.Applicable limits for exposure to radio frequency exposure................................................................5 3.Maximum Exposure Analysis..............................................................................................................5 3.1.Maximum exposure...........................................................................................................................5 3.2.Transmission duration.......................................................................................................................6 3.2.1.Class 1 Operation – 3 W AMPS Burst Mode.............................................................................6 3.2.2.Class 2 Operation – 1.5 W AMPS Mode....................................................................................6 4.Typical exposure analysis..................................................................................................................8 4.1.Class 1 Operation – 3 W Burst Mode.................................................................................................8 4.2.Class 2 Operation – 1.5 W AMPS Mode............................................................................................8 5.Conclusions.........................................................................................................................................8 Evaluation of RF Exposure for DM25 Module 3/8 ©2001 Sony Ericsson Mobile Communications Inc. 1. Introduction 1.1.Purpose of the Report This technical report is a detailed environmental evaluation of the radio frequency exposure expected from use of the DM25 transmitter. The following analysis demonstrates that the DM25 device is in compliance with the requirements for maximum permissible exposure (MPE) to radiofrequency exposure as defined in the FCC Rules, 47 CFR 2.1091, as amended. 1.2.Description of the DM25 Device The DM25 Transceiver has been designed as an OEM module for use by various OEM integrators. For all applications, the radiating antenna is not provided with this product and must be supplied by the customer. All calculations related to MPE are made using antenna gain guidelines provided in the customer documentation such as the DM25 OEM Interface Manual. The module has three functional modes of operation: (1) AMPS mode – Burst Modem Transceiver Class I device (2) AMPS & TDMA mode (cellular band) – Class II device (3) TDMA mode (PCS band) – Class IV device 1. The CLASS 1 burst modem transceiver is designed to send a burst of data as a CLASS 1 AMPS cellular mobile, with 3 Watts of RF power at the antenna connector. Typical applications will trigger registrations of less than 120 ms in duration at most every 15 minutes. Once the DM25 determines that data is to be sent, the transceiver initiates a call and then transmits a 4.5-second data burst, which includes a training sequence and V.27 data. The entire transmitter burst duration varies depending on the cellular system network connection time. When the burst modem call is initiated, the DM25 transmits for 1.5 seconds and then powers down for 4 seconds, and then transmits for 1.5 seconds and then powers down for 4 seconds; this process continues until a tone is detected, up to a maximum of eight cycles of 1.5 seconds ON, 4 seconds OFF. The tone is normally detected between two to seven seconds (depending on the cellular system network connection time). Once the tone is detected, the 4.5 second data burst is sent, after which the burst transmitter is disabled by the software for 30 or 50 seconds in order to protect the hardware that has been designed to dissipate heat appropriately for this duty cycle. The disable time is 30 seconds for a sequence of two or less 1.5-second bursts, and 50 seconds for three to eight 1.5-second bursts. 2. The second mode of operation is as a dual mode (AMPS and DAMPS), CLASS 2 terminal operating in the cellular band (824 to 849 MHz) with nominally 1.5 Watts of RF power at the antenna connector. The usage would vary from a low duty cycle with a meter reading application, to a high duty cycle with a fixed telephony application. 3. The third mode of operation is as a CLASS 4 terminal operating in the PCS band (1850 to 1910 MHz) with nominally 0.6 Watts of RF power at the antenna connector. The usage would vary from a low duty cycle with a meter reading application, to a high duty cycle with a fixed telephony application. The DM25 is capable of operating in either of the modes described above, and can “switch” between modes by re-registering with the cellular system (identifying its CLASS type and technology). This transceiver is designed primarily for situations where the DM25 module is located within the application and an external antenna, connected to the module through a length of coaxial cable, is located a short distance away. The operator is always l…

Text truncated - open the document above for the full version.

Evaluation of RF Exposure for DM25 Module 1/7 ©2002 Sony Ericsson Mobile Communications Inc. Environmental Evaluation of RF Exposure for the DM-25 Module Evaluation of RF Exposure for DM25 Module 2/7 ©2002 Sony Ericsson Mobile Communications Inc. TABLE OF CONTENTS 1. Introduction.........................................................................................................................................3 1.1. Purpose of the Report.......................................................................................................................3 1.2. Description of the DM25 Device........................................................................................................3 2. Classification of Device / Applicability of Rules................................................................................3 2.1. Mobile devices..................................................................................................................................4 2.2. Excludability from routine environmental evaluation..........................................................................4 2.3. Applicable limits for exposure to radio frequency exposure...............................................................5 3. Maximum Exposure Analysis.............................................................................................................5 3.1. Maximum exposure...........................................................................................................................5 3.2. Transmission duration.......................................................................................................................6 3.2.1. Class 1 Operation – 3 W AMPS Burst Mode.............................................................................6 3.2.2. Class 2 Operation – 1.5 W AMPS Mode...................................................................................6 4. Typical exposure analysis..................................................................................................................7 4.1. Class 1 Operation – 3 W Burst Mode................................................................................................7 4.2. Class 2 Operation – 1.5 W AMPS Mode............................................................................................7 5. Conclusions........................................................................................................................................7 Evaluation of RF Exposure for DM25 Module 3/7 ©2002 Sony Ericsson Mobile Communications Inc. 1. Introduction 1.1. Purpose of the Report This technical report is a detailed environmental evaluation of the radio frequency exposure expected from use of the DM25 transmitter. The following analysis demonstrates that the DM25 device is in compliance with the requirements for maximum permissible exposure (MPE) to radiofrequency exposure as defined in the FCC Rules, 47 CFR 2.1091, as amended. 1.2. Description of the DM25 Device The DM25 Transceiver has been designed as an OEM module for use by various OEM integrators. For all applications, the radiating antenna is not provided with this product and must be supplied by the customer. All calculations related to MPE are made using antenna gain guidelines provided in the customer documentation such as the DM25 OEM Interface Manual. The module has three functional modes of operation: (1) AMPS mode – Burst Modem Transceiver Class I device (2) AMPS & TDMA mode (cellular band) – Class II device (3) TDMA mode (PCS band) – Class IV device 1. The CLASS 1 burst modem transceiver is designed to send a burst of data as a CLASS 1 AMPS cellular mobile, with 3 Watts of RF power at the antenna connector. Typical applications will trigger registrations of less than 120 ms in duration at most every 15 minutes. Once the DM25 determines that data is to be sent, the transceiver initiates a call and then transmits a 4.5-second data burst, which includes a training sequence and V.27 data. The entire transmitter burst duration varies depending on the cellular system network connection time. When the burst modem call is initiated, the DM25 transmits for 1.5 seconds and then powers down for 4 seconds, and then transmits for 1.5 seconds and then powers down for 4 seconds; this process continues until a tone is detected, up to a maximum of eight cycles of 1.5 seconds ON, 4 seconds OFF. The tone is normally detected between two to seven seconds (depending on the cellular system network connection time). Once the tone is detected, the 4.5 second data burst is sent, after which the burst transmitter is disabled by the software for 30 or 50 seconds in order to protect the hardware that has been designed to dissipate heat appropriately for this duty cycle. The disable time is 30 seconds for a sequence of two or less 1.5-second bursts, and 50 seconds for three to eight 1.5-second bursts. 2. The second mode of operation is as a dual mode (AMPS and DAMPS), CLASS 2 terminal operating in the cellular band (824 to 849 MHz) with nominally 1.5 Watts of RF power at the antenna connector. The usage would vary from a low duty cycle with a meter reading application, to a high duty cycle with a fixed telephony application. 3. The third mode of operation is as a CLASS 4 terminal operating in the PCS band (1850 to 1910 MHz) with nominally 0.6 Watts of RF power at the antenna connector. The usage would vary from a low duty cycle with a meter reading application, to a high duty cycle with a fixed telephony application. The DM25 is capable of operating in either of the modes described above, and can “switch” between modes by re-registering with the cellular system (identifying its CLASS type and technology). This transceiver is designed primarily for situations where the DM25 module is located within the application and an external antenna, connected to the module through a length of coaxial cable, is located a short distance away. The operato…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance © Rhein Tech Laboratories, Inc. Revision: 1 CERTIFICATION APPLICATION REPORT FCC PART 22 & 24 CERTIFICATION & INDUSTRY CANADA CERTIFICATION Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 Applicant Information Sony Ericsson Mobile Communications (USA, Inc.) 7001 Development Drive P.O. Box 13969 Research Triangle Park, NC 27709 USA Phone: 919-472-1697 (Pierre Chery) FCC ID: PXITR-505 A2 GRANTEE FRN NUMBER: 0005-0294-00 PLAT FORM: N/A RTL WORK ORDER NUMBER: 2002107 MODEL(S): DM-25 RTL QUOTE NUMBER: QRTL02-449 DATE OF TEST REPORT: June 6, 2002 American National Standard Institute: ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1 FCC Classification: TBC ñ Licensed Broadcast Station Transmitter FCC Rule Part(s): Part 22: Public Mobile Services Subpart H ñ Cellular Radiotelephone Services Part 24: Personal Communications Services Subpart E ñ Broadband PCS Industry Canada Standard: RSS-128: 800 MHz Dual-Mode TDMA Cellular Telephones RSS-133: 2 GHz Personal Communications Services Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Power (W) Freq. Tolerance Emission Designator 824.04-848.97 1850.04-1909.92 3.162 W AMPS Burst Mode 0.411 W Burst Average TDMA 2.5 ppm 30K0DXW; 40K0F1D; 40K0F8W We, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to or exclusions from the FCC Part 2, FCC Part 15, FCC Part 22, FCC Part 24, Industry Canada RSS-128, RSS-133, ANSI C63.4, ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1. Signature: Date: June 6, 2002 Typed/Printed Name: Desmond Fraser Position: President Signature: Date: June 6, 2002 Typed/Printed Name: Daniel W. Baltzell Position: EMC Test Engineer Note: This report may not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Rhein Tech Laboratories RTL Report Number: 2002107 360 Herndon Parkway Client Reference Number: QRTL02-449 Suite 1400 FCC ID: PXITR-505 A2 Herndon, VA 20170 Model: DM-25 http://www.rheintech.com Date: June 6, 2002 Revision: 1 2 of 2 TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................... 4 1.1 SCOPE .......................................................................................................................................................................... 4 1.2 TEST FACILITY .......................................................................................................................................................... 4 1.3 RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................... 4 2 EQUIPMENT INFORMATION .......................................................................................................................................... 5 2.1 APPLICANT AND EQUIPMENT INFORMATION ................................................................................................... 5 2.2 JUSTIFICATION .......................................................................................................................................................... 5 2.3 EXERCISING THE EUT .............................................................................................................................................. 5 2.4 TEST SYSTEM DETAILS ........................................................................................................................................... 6 2.5 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 6 3 FCC PART 2.1033(C)(8); DC VOLTAGES AND CURRENTS ........................................................................................ 7 4 RF POWER OUTPUT - §2.1046 .......................................................................................................................................... 7 4.1 POWER OUTPUT TEST PROCEDURES ................................................................................................................... 7 4.1.1 ANSI/TIA/EIA-603-1992, SECTION 2.2.1 TEST PROCEDURE................................................................................................. 7 4.1.2 MEASUREMENTS REQUIRED: RF POWER OUTPUT - ß2.1046 ............................................................................................ 7 4.2 RF POWER OUTPUT TEST EQUIPMENT ................................................................................................................ 8 4.3 DUTY CYCLE/CREST FACTOR MEASUREMENT................................................................................................. 8 4.4 POWER OUTPUT TEST DATA- ß2.1046................................................................................................................... 9 5 MODULATION CHARACTERISTICS - §2.1047............................................................................................................ 10 5.1 MODULATION CHARACTERISTICS - ß2.1047 TEST PROCEDURE .................................................................. 10 5.2 MODULATION REQUIREMENTS - ß22.915 TEST PROCEDURE ....................................................................... 10 5.3 MODULATION CHARACTERISTICS TEST EQUIPMENT................................................................................... 10 5.4 MODULATION CHARACTERISTICS TEST DATA....................................................................…
