PXITR-CA0802Dual Band Tri-mode CDMA Cellular Phone

T608 Preliminary T608 T608 Preliminary T608 Preliminary PCS Service www.sprintpcs.com Copyright © 2002 Sprint Spectrum L.P. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Sprint, the diamond logo and all other trademarks listed herein are registered trade marks of Sprint Communications Company, L.P., used under license. Printed in the U.S.A. One Sprint. Many Solutions. SM T608 Preliminary Table of Contents How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i Getting Advanced Phone and Service Information . . . . . . . . . . ii Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Basics of Your PCS Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 1. Your New PCS Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Your Phone’s Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2. Turning Your Phone On and Off . . . . . . . . . . . . . . . . . . . . . . . . 18 Turning Your Phone ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Turning Your Phone OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3. Using the Battery and Charger . . . . . . . . . . . . . . . . . . . . . . . . 19 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 4. Making and Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . 22 Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5. Controlling Your Roaming Experience . . . . . . . . . . . . . . . . . 23 Setting Your Phone’s Roam Mode . . . . . . . . . . . . . . . . . . . . . 23 Call Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Feature Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 6. Internal Phone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Saving Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Making a Call From Your Internal Phonebook . . . . . . . . . . . 25 7. Changing Your Phone’s Settings . . . . . . . . . . . . . . . . . . . . . . . 26 Changing the Greeting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Adjusting the Ringer and Alert Volume . . . . . . . . . . . . . . . . . 26 Adjusting Volume During a Conversation . . . . . . . . . . . . . . . 26 8. Sending and Receiving Messages . . . . . . . . . . . . . . . . . . . . . 27 Setting Up Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 T608 Preliminary Retrieving Voicemail Messages . . . . . . . . . . . . . . . . . . . . . . . 27 Accessing Voicemail From Another Phone . . . . . . . . . . . . . . 27 Displaying Numeric Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 9. PCS Service Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Three-Way Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 PCS Voice Command SM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 10. PCS VisionSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Getting Started With PCS Vision . . . . . . . . . . . . . . . . . . . . . . 31 PCS Vision Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Accessing PCS Vision Features . . . . . . . . . . . . . . . . . . . . . . . 33 PCS Vision Symbols on Your Screen . . . . . . . . . . . . . . . . . . . 34 PCS Vision Billing Information . . . . . . . . . . . . . . . . . . . . . . . . 34 11. Your Phone’s Special Features . . . . . . . . . . . . . . . . . . . . . . . . 35 Downloading Sounds, Screensavers and More . . . . . . . . . . . 35 Assigning Sounds and Screensavers . . . . . . . . . . . . . . . . . . . . 35 12. Accessories for Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 37 How to Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 13. Performance and Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Important Information About Your Phone and Service . . . . 39 Maintaining Safe Use of and Access to Your Phone . . . . . . . 40 Caring for the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Acknowledging Special Precautions and the FCC Notice . . 44 14. Terms and Conditions & Warranty Information . . . . . . . . . . 45 Terms and Conditions of Services . . . . . . . . . . . . . . . . . . . . . 45 Manufacturer’s Limited Warranty . . . . . . . . . . . . . . . . . . . . . 63 i T608 Preliminary How to Use This Guide Welcome — you’ve made the right choice The advantages of Sprint are as clear as each wireless call you make. With PCS Service, we give you what you really want from a wireless service provider – clear calls, easy-to- understand service plans, and self-servicing options for managing your account. All this is designed to make your life easier and worry free. We know you’re eager to start using your phone right away and this guide is divided into two sections that are designed to help you do just that. The first section will guide you through the steps required to set up your PCS Service. It includes blanks so you can write down important information that you’ll want to remember. Things like your new PCS Phone Number, information about …

Text truncated - open the document above for the full version.

T608 Preliminary T608 Start Here.book Page a Friday, January 10, 2003 1:18 PM T608 Preliminary Start Here.book Page b Friday, January 10, 2003 1:18 PM T608 Preliminary PCS Service www.sprintpcs.com Copyright © 2002 Sprint Spectrum L.P. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Sprint, the diamond logo and all other trademarks listed herein are registered trade marks of Sprint Communications Company, L.P., used under license. Printed in the U.S.A. Start Here.book Page c Friday, January 10, 2003 1:18 PM T608 Preliminary Table of Contents How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i Getting Advanced Phone and Service Information . . . . . . . . . . ii Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Basics of Your PCS Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 1. Your New PCS Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Your Phone’s Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2. Turning Your Phone On and Off . . . . . . . . . . . . . . . . . . . . . . . . 18 Turning Your Phone ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Turning Your Phone OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3. Using the Battery and Charger . . . . . . . . . . . . . . . . . . . . . . . . 19 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Removing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 4. Making and Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . 22 Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 5. Controlling Your Roaming Experience . . . . . . . . . . . . . . . . . 23 Setting Your Phone’s Roam Mode . . . . . . . . . . . . . . . . . . . . . 23 Call Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Feature Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 6. Internal Phone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Saving Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Making a Call From Your Internal Phonebook . . . . . . . . . . . 25 7. Changing Your Phone’s Settings . . . . . . . . . . . . . . . . . . . . . . . 26 Changing the Greeting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Adjusting the Ringer and Alert Volume . . . . . . . . . . . . . . . . . 26 Adjusting Volume During a Conversation . . . . . . . . . . . . . . . 27 TTY Use With PCS Service From Sprint . . . . . . . . . . . . . . . . 27 Start Here.book Page d Friday, January 10, 2003 1:18 PM T608 Preliminary 8. Sending and Receiving Messages . . . . . . . . . . . . . . . . . . . . . 29 Setting Up Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Retrieving Voicemail Messages . . . . . . . . . . . . . . . . . . . . . . . 29 Accessing Voicemail From Another Phone . . . . . . . . . . . . . . 29 Displaying Numeric Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 9. PCS Service Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Three-Way Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 PCS Voice Command SM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 10. PCS Vision SM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Getting Started With PCS Vision . . . . . . . . . . . . . . . . . . . . . . 33 PCS Vision Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Accessing PCS Vision Features . . . . . . . . . . . . . . . . . . . . . . . 35 PCS Vision Symbols on Your Screen . . . . . . . . . . . . . . . . . . . 36 PCS Vision Billing Information . . . . . . . . . . . . . . . . . . . . . . . . 36 11. Your Phone’s Special Features . . . . . . . . . . . . . . . . . . . . . . . . 37 Downloading Sounds, Screensavers and More . . . . . . . . . . . 37 Assigning Sounds and Screensavers . . . . . . . . . . . . . . . . . . . . 37 12. Accessories for Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 39 How to Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 13. Performance and Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Important Information About Your Phone and Service . . . . 41 Maintaining Safe Use of and Access to Your Phone . . . . . . . 42 Caring for the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Acknowledging Special Precautions and the FCC Notice . . 46 14. Terms and Conditions & Warranty Information . . . . . . . . . . 47 Terms and Conditions of Services . . . . . . . . . . . . . . . . . . . . . 47 Terms of Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 Manufacturer’s Limited Warranty . . . . . . . . . . . . . . . . . . . . . 83 Start Here.book Page e Friday, January 10, 2003 1:18 PM i T608 Preliminary How to Use This Guide Welcome — you’ve made the right choice The advantages of Sprint are as clear as each wireless call you make. With PCS Service, we give you what you really want from a wireless service provider – clear calls, easy-to- understand service plans, and self-servicing options for managing your account. All this is designed to make your life easier and worry free. …

Text truncated - open the document above for the full version.

Sony Ericsson Mobile Communications (USA) Inc. 7001 Development Drive RTP, North Carolina 27709 November 22, 2002 American TCB, Inc 6731 Whittier Ave McLean, VA 22101 Subject:FCC Certification for FCC ID: PXITR-CA0802 Model: T608 To Whom It May Concern: This letter is in request of certification for the above mentioned FCC Identifier. This mobile is designed for use in Cellular and PCS bands of AMPS & CDMA systems. The transceiver operates in the 800 MHz Domestic Public Cellular Radiotelephone Communications Services per Part 22 and in the 1900 MHz Domestic Public Cellular Radiotelephone Communications Services per Part 24. Sony Ericsson Inc. requests confidentiality under 47 CFR 0.459 for the following exhibits listed: Exhibit 4Block diagrams Exhibit 5Schematics Exhibit 10Parts list/tune-up procedure Exhibit 12Operational description This request is in order to protect Sony Ericsson’s proprietary techniques. Sincerely, Pierre A. Chery Technical Manager Certification & Type ApprovalTel No:(919) 472-1697 Research Triangle Park, NCFax No:(919) 472-6382

Sony Ericsson Mobile Communications (USA) Inc. 7001 Development Drive RTP, North Carolina 27709 February 03, 2003 American Telecommunications Certification Body Inc. 6731 Whittier Ave McLean, VA 22101 Attention: Equipment Authorization Branch Subject: Response to FCC Comments for FCC ID: PXITR-CA0802 Reference: Sony Ericsson Model T608 Dear Mr. Graff: The attached page contains response to FCC comments concerning application for FCC certification of Sony Ericsson model T608 bearing FCC ID: PXITR-CA0802 If you have any questions and/or comments, please don’t hesitate to make contact. Sincerely, Pierre Chery Technical Manager, Type Approval Research Triangle Park, NC Tel No: (919) 472-1697 Fax No:(919) 472-6382 [email protected] Sony Ericsson Mobile Communications (USA) Inc. 7001 Development Drive RTP, North Carolina 27709 Request for additional information – Dated 12/10/2002 from FCC Martin Perrine Please update the user manual body-worn statement. The following statement does not refer to the specific accessories tested. Also, the company Sprint did not approve any accessory. Sony-Ericsson is the responsible applicant here. “use the Sprint approved carrying case, holster or other accessory. Use of non-Sprint approved accessories may violate FCC RF exposure guidelines.” Body-Worn operation section of the user-manual has been updated. Reference to Sprint approved accessory is removed. Statement wording is now consistent with Supplement C of OET Bulletin 65. Revised user-manual was uploaded to ATCB server and a copy attached with this correspondence for your reference.

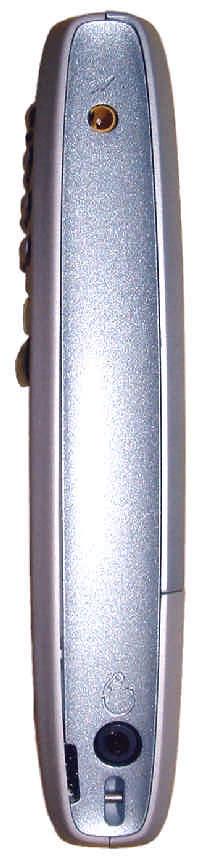

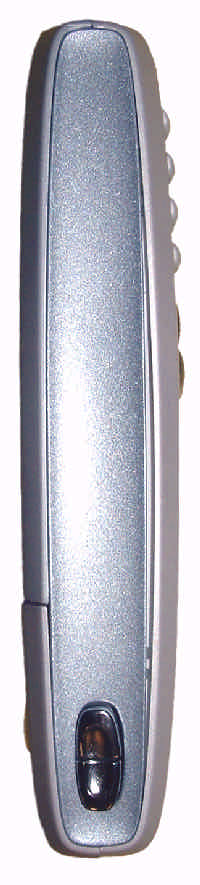

APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS INCPXITR-CA0802 © 2002 Sony Ericsson Mobile Communications Inc. APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS INCPXITR-CA0802 © 2002 Sony Ericsson Mobile Communications Inc.

APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS INCPXITR-CA0802 © 2002 Sony Ericsson Mobile Communications Inc.

APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS INCPXITR-CA0802 © 2002 Sony Ericsson Mobile Communications Inc. APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS INCPXITR-CA0802 © 2002 Sony Ericsson Mobile Communications Inc. APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS INCPXITR-CA0802 © 2002 Sony Ericsson Mobile Communications Inc. APPLICANT:FCC ID: SONY ERICSSON MOBILE COMMUNICATIONS INCPXITR-CA0802 © 2002 Sony Ericsson Mobile Communications Inc.

REPORT 1 (14) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella EUS/CV/R-01:1061/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDA2002-2-07B U:\FCC Submittals\Fcc_G0702 (T306)\XHIBIT11\Source\SAR Meas Spec.doc EN SAR Measurement Specification of Wireless Handsets Contents 1Introduction...........................................................................................................................................................2 2References.............................................................................................................................................................2 3Physical quantities, units and constants................................................................................................................3 4Definitions............................................................................................................................................................4 5Measurement system.............................................................................................................................................4 5.1General............................................................................................................................................................4 5.2Phantom...........................................................................................................................................................4 5.3SAR measurement equipment.........................................................................................................................5 5.4Scanning system..............................................................................................................................................5 5.5Wireless device holder.....................................................................................................................................5 5.6Other equipment..............................................................................................................................................5 6Protocol for SAR assessment................................................................................................................................6 6.1Measurement preparation................................................................................................................................6 6.2Tests to be performed......................................................................................................................................6 6.3Measurement procedure...................................................................................................................................6 6.4Post processing................................................................................................................................................6 7Measurement uncertainty......................................................................................................................................6 Annex A. Tissue simulating material preparation.........................................................................................................8 A.1Preparation of liquid........................................................................................................................................8 A.2Preparation procedure......................................................................................................................................9 A.3Tissue liquid maintenance.............................................................................................................................10 Annex B. Dielectric property measurements..............................................................................................................10 B.1Equipment......................................................................................................................................................10 B.2Procedure for testing brain simulating liquid.................................................................................................10 B.3Dielectric parameters.....................................................................................................................................11 Annex CSAR measurement protocol....................................................................................................................11 C.1Peak spatial-average SAR assessment...........................................................................................................11 C.2SAR measurement procedure........................................................................................................................12 C.2.1Initial setup.........................................................................................................................................12 C.2.2Measurement procedure......................................................................................................................13 C.2.3Post measurement procedure..............................................................................................................13 Annex D. Measurement system validation.................................................................................................................13 REPORT 2 (14) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella EUS/CV/R-01:1061/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDA2002-2-07B U:\FCC Submittals\Fcc_G0702 (T306)\XHIBIT11\Source\SAR Meas Spec.doc EN 1. Introduction and Scope It is our policy that all RF transmitting products shall comply with existing recommendations, standards and regulations on human exposure to electromagnetic fields. In the reference section below, the most important RF safety guidelines are listed [4-11]. If no national standard or regulation is available in a country, the international recommendation from ICNIRP [4] sh…

Text truncated - open the document above for the full version.

APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PXITR-CA0802 REPORT 1(93) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-02:0100/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDAA U:\FCC Submittals\Fcc_CA0802 (T608)\XHIBIT11\CA0802-11 sar report.doc E E E x x h h i i b b i i t t 1 1 1 1 Exhibit 11: SAR Test Report of Portable Cellular Phone FCC ID: PXITR-CA0802 model: T608 Date of test: Date of Report: November 4-14, 2002 November 19, 2002 Laboratory: SAR Testing Laboratory Sony Ericsson Mobile Communications, Inc. 7001 Development Drive, P.O. Box 13969, Research Triangle Park, NC, 27709, USA Tested by: William Stewart Development Engineer, Antenna Development Group Dulce Altabella Staff Engineer, Antenna Development Group Test Responsible: Dulce Altabella Staff Engineer, Antenna Development Group Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following electromagnetic exposure tests: Specific Absorption Rate (SAR) Dielectric parameters RF power measurement On the following types of products: Wireless communications devices. A2LA certificate #1650-01 Statement of Compliance: Sony Ericsson Mobile Communications, Inc declares under its sole responsibility that portable cellular telephone FCC ID PXITR-CA0802 model T608 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) © Sony Ericsson Mobile Communications, Inc. 2002 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson Mobile Communications encourages all feedback, both positive and negative, on this test report. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PXITR-CA0802 REPORT 2(93) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-02:0100/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDAA U:\FCC Submittals\Fcc_CA0802 (T608)\XHIBIT11\CA0802-11 sar report.doc E E E x x h h i i b b i i t t 1 1 1 1 Table of Contents 1. Introduction2 2. Description of the Device Under Test3 2.1 Antenna description3 2.2 Device description3 3. Test Equipment Used3 3.1 Dosimetric System3 3.2 Additional Equipment4 4. Electrical parameters of the tissue simulating liquid4 5. System Accuracy Verification5 6. Test Results6 6.1 Head Adjacent Test Results6 6.2 Body-Worn Test Results9 References13 Appendix 1: SAR distribution comparison for system accuracy verification14 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use28 Appendix 3: SAR distribution plots for Body Worn Configuration48 Appendix 4: Probe Calibration Certificate71 Appendix 5: Measurement Uncertainty Budget79 Appendix 6: Photographs of the device under test83 1. Introduction APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PXITR-CA0802 REPORT 3(93) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-02:0100/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDAA U:\FCC Submittals\Fcc_CA0802 (T608)\XHIBIT11\CA0802-11 sar report.doc E E E x x h h i i b b i i t t 1 1 1 1 The Sony Ericsson SAR Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone FCC ID PXITR-CA0802 model T608. The Specific Absorption Rate (SAR) of this product was measured. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in [1,2,4]. 2. Description of the Device Under Test 2.1 Antenna description Type Internal antenna Location Inside the back cover, near the top Width27.16 mm Dimensions Length41.25 mm Configuration Patch antenna 2.2 Device description FCC ID Number / Device Model PXITR-CA0802 / T608 Serial number UA2020P5RP & UA2020P5QW Mode(s) of Operation AMPS CDMA800CDMA1900 Modulation Mode(s) FDMA CDMACDMA Target Value for Maximum Output Power Setting 26.75 dBm 23.4dBm23.4 dBm Factory Tolerance Window in Power Setting ± 0.25dB ± 0.4 dB± 0.4 dB Duty Cycle 1 11 Transmitting Frequency Rang(s) 824-849 MHz 824-849 MHz1850-1910 MHz Production Unit or Identical Prototype Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetric System The Sony Ericsson SAR Laboratory utilizes a Dosimetric Assessment System (Dasy3™ v3.1d) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. The overall RSS uncertainty of the measurement system is ±10.60% (K=1) with an expanded uncertainty of ±21.20% (K=2). The measurement uncertainty budget is given in Appendix 5. The list of calibrated equipment used for the measurements is shown in the following table. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PXITR-CA0802 REPORT 4(93) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-02:0100/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDAA U:\FCC Submittals\Fcc_CA0802 (T608)\XHIBIT11\CA0802-11 sar report.doc E E E x x h h i i b b i i t t 1 1 1 1 DescriptionSerial NumberCal Due Date DASY3 DAE V141605-Dec-2002 DASY3 DAE V143214-Jun-2003 E-Field Probe ETDV6153926-Jul-2003 E-Field Probe ETDV6158720-Jun-2003 Dipole Validation Kit, DV835V242806-Mar-2003 S.A.M. Phantom used for 835MHz1030/1020 Dipole Validation Kit, DV1900V253706-Mar-2003 S.A.M. Phantom used for 1900MHz1031/1023 3.2 Additional Equipment DescriptionSerial NumberCal Due Date Signal Generator HP8648C3537A0159809-Sep-2003 Power Meter 437B3125U11348121…

Text truncated - open the document above for the full version.

APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PXITR-CA0802 REPORT 51(93) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-02:0100/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDAA U:\FCC Submittals\Fcc_CA0802 (T608)\XHIBIT11\CA0802-11 sar report.doc E E E x x h h i i b b i i t t 1 1 1 1 Distribution of maximum SAR in 835 AMPS band. Measured with back of device facing the body using carry accessory KRY-105-186 and hands free accessory RLF 501 25/05. Bluetooth turned on. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PXITR-CA0802 REPORT 52(93) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-02:0100/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDAA U:\FCC Submittals\Fcc_CA0802 (T608)\XHIBIT11\CA0802-11 sar report.doc E E E x x h h i i b b i i t t 1 1 1 1 Distribution of maximum SAR in 835 AMPS band. Measured with back of device facing the body using carry accessory ICE-25 and hands free accessory RLF 501 25/05. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PXITR-CA0802 REPORT 53(93) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-02:0100/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDAA U:\FCC Submittals\Fcc_CA0802 (T608)\XHIBIT11\CA0802-11 sar report.doc E E E x x h h i i b b i i t t 1 1 1 1 SAR Extrapolation to the phantom inner surface. Measured for maximum SAR in 835 AMPS band, while phone is against the body using carry accessory ICE-25 and hands free accessory RLF 501 25/05. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PXITR-CA0802 REPORT 54(93) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-02:0100/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDAA U:\FCC Submittals\Fcc_CA0802 (T608)\XHIBIT11\CA0802-11 sar report.doc E E E x x h h i i b b i i t t 1 1 1 1 Distribution of maximum SAR in 835 AMPS band. Measured with back of device facing the body using carry accessory ICE-25 and hands free accessory RLF 501 25/05. Bluetooth turned on. APPLICANT: Sony Ericsson Mobile Communications Inc. FCC ID: PXITR-CA0802 REPORT 55(93) Prepared (also subject responsible if other)No. SEM/CV/PF/P Dulce Altabella SEM/CB/Q-02:0100/REP ApprovedChecked SEM/CV/PF/P Dulce AltabellaDAA U:\FCC Submittals\Fcc_CA0802 (T608)\XHIBIT11\CA0802-11 sar report.doc E E E x x h h i i b b i i t t 1 1 1 1 Distribution of maximum SAR in 835 AMPS band. Measured with back of device facing the body us…

Text truncated - open the document above for the full version.
