PXP000002802.11 b/g Wireless Router

User Manual Router with 802.11g 54 Mbps, 108Mbps Wireless LAN and 4-port Switch FCC Compliance NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. No special accessory is required to enable the equipment to comply with the emission limits. In order to comply with FCC RF Exposure requirements, the APRT-2001g(802.11g Wireless Broadband Router) must be installed and operated in such a way so as to maintain a minimum 20 cm separation distance between the antenna and all persons, during normal operations. Contents INTRODUCTION............................................................................................................. 1 T HE PRODUCT..................................................................................................................1 P RODUCT FEATURES........................................................................................................1 B ASIC IP NETWORKING...................................................................................................2 W IRELESS LAN...............................................................................................................3 GETTING STARTED......................................................................................................5 BOX CONTENTS...............................................................................................................5 C ONNECTING THE ROUTER..............................................................................................5 QUICK START CONFIGURATION (FOR DSL MODEMS).....................................................7 WEB CONFIGURATION...............................................................................................8 QUICK CONFIGURATION...................................................................................................9 S TATUS..........................................................................................................................10 S TATISTICS....................................................................................................................11 LAN & DHCP C ONFIGURATION...................................................................................12 WAN C ONFIGURATION.................................................................................................14 PPP C ONFIGURATION....................................................................................................14 B RIDGE..........................................................................................................................16 W IRELESS......................................................................................................................18 NAT.............................................................................................................................. 22 DMZ C ONFIGURATION..................................................................................................23 SNTP C ONFIGURATION.................................................................................................24 P ORT FORWARDING.......................................................................................................25 F ILTER...........................................................................................................................27 W EB SECURITY CONFIGURATION...................................................................................29 A DMIN USERNAME AND PASSWORD..............................................................................30 F IRMWARE UPDATE.......................................................................................................31 S AVE CONFIGURATION..................................................................................................34 PC CONFIGURATION.................................................................................................35 DHCP IP A DDRESS.......................................................................................................35 FACTORY RESET.........................................................................................................37 INTRODUCTION The Product The product is based on the IEEE 802.11g standard, which is the latest 54Mbps Wireless LAN (WLAN) standard. This standard is five times faster than the widely deployed WiFi (802.11b) products that are found in homes, airport and public wireless hotspots. Because 802.11g uses the same 2.4GHz frequency band, the product is fully interoperable with existing WiFi cards and devices. Having two wireless protocols in one product ensure that your investments are protected, while enabling you to enjoy the fastest Wireless LAN speed. The product is a combination of 3 devices: a. Wireless LAN Access Point (AP) compliant to 802.11b and 802.11g st…

Text truncated - open the document above for the full version.

Block diagram of APRT-2001g Ro c A R 21 12 Dipl exer BPF Ant e nna Div e rsity SW Inter n al antenna 3. 3V 2. 5V 1. 25 RF Sh iel d DC- D C Co nv erter MI P Processor + MA C A R 23 12A -01 25M Hz BPF PA LNA BPF 40M Hz 40M Hz SDRAM 4 x 16 MB Flash 2M B Ethernet s w 8 8 E606 0- RCJ External antenna WAN L AN1 LAN2 LAN2 LAN4 DC_ I N 5 ~ 1 2 V d c

RfNet Wireless • Innovation • Networking RFNet Technologies Pte Ltd Unit 106, Innovation Centre, Blk 1, 18 Nanyang Drive, Singapore 637722 Tel: +65-7959301 Fax: +65-7959302 Date : 27 th October 2003 Ref : RFN/RD/03/0002 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: RE: CONFIDENTIALITY REQUEST FOR 802.11g Wireless Broadband Router (APRT-2001g) FCC ID: PXP000002 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams required to be submitted with this application be withheld from public review. reason for request is due to the Schematic submitted contains intellectual property of our company and making it public will hinder the competitiveness of the product. Please contact me if there is any information you may need. Sincerely, Tan Moh Chuan (Mr.) 27 Oct 2003 Assistant Manager R&D Department

Mike Kuo From: Jenny Chen ] Sent: January13 2004 Tuesday 8:52 AM To: Mike Kuo Subject: Re: RFNet Technologies Pte Ltd, FCC ID:PXP000002, AN04T3570 2/4/2004 Dear Mike Please see my remark. Thank you Warmest Regards Jenny Chen Compliance Manager Sibercert Pte Ltd (A Subsidiary of PSB Corporation) 3 Science Park Drive #01-03 PSB Annex Singapore 118223 DID *65 6885 1674 Fax *65 6779 2577 Mobile *65 9753 2510 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ This message contains information from Sibercert Pte Ltd. - Singapore and it is intended for the use of the recipient only. The information is privileged, confidential and proprietary in nature. Any unauthorized use, copying, review or disclosure of this message is strictly prohibited. If you receive this message in error, please notify the sender immediately by telephone at (65) 68851674 or by electronic mail. Thank you. ----- Original Message ----- From: Mike Kuo To: 'Jenny Chen' Sent: Tuesday, January 13, 2004 9:39 AM Subject: RFNet Technologies Pte Ltd, FCC ID:PXP000002, AN04T3570 Hi Jenny : Sorry for the delay. 1) Please provide operational description.Will be provided once received it from the client 2) Since during 802.11g modulation, the upper frequency range only investigated up to 2462MHz, so this device will be granted with frequency range from 2412- 2462MHz. Please confirm. OK 3) Please provide schematic diagram. Attached in the email 4) Please provide FRN for RFNet Technology Will send to you once received from the client Best Regards Mike Kuo -----Original Message----- From: Jenny Chen Sent: Wednesday, December 03, 2003 3:51 AM To: Mike Kuo Subject: New application for FCC Filing - RFNet Technologies Pte Ltd Dear Mike We are pleased to submit the new FCC filing for your kind attention. Client : RFNet Technologies Pte Ltd Address: Unit 106, Innovation Centre, Blk 1, 18 Nanyang Drive, Singapore 637722 Product : Router Model : APRT_2001g Trademark : RFNet FCC ID: PXP000002 Enclosed please find the documents for your kind attention. a) FCC test report b) Internal photo c) External photo d) User manual e) Rating label f) Authorisation letter g) Circuit diagram h) Set up photo i) Antenna declaration letter j) Confidentiality letter k) Block diagram Warmest Regards Jenny Chen Compliance Manager Sibercert Pte Ltd (A Subsidiary of PSB Corporation) 3 Science Park Drive #01-03 PSB Annex Singapore 118223 DID *65 6885 1674 Fax *65 6779 2577 Mobile *65 9753 2510 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ This message contains information from Sibercert Pte Ltd. - Singapore and it is intended for the use of the recipient only. The information is privileged, confidential and proprietary in nature. Any unauthorized use, copying, review or disclosure of this message is strictly prohibited. If you receive this message in error, please notify the sender immediately by telephone at (65) 68851674 or by electronic mail. Thank you. 2/4/2004

RfNet Wireless • Innovation • Networking RFNet Technologies Pte Ltd Unit 106, Innovation Centre, Blk 1, 18 Nanyang Drive, Singapore 637722 Tel: +65-7959301 Fax: +65-7959302 Date : 27 th October 2003 Ref : RFN/RD/03/0003 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION FCC ID: PXP000002 To Whom It May Concern: We, the undersigned, hereby authorize Compliance Certification Services To act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Tan Moh Chuan (Mr.) 27 th October 2003 Assistant Manager R&D Department

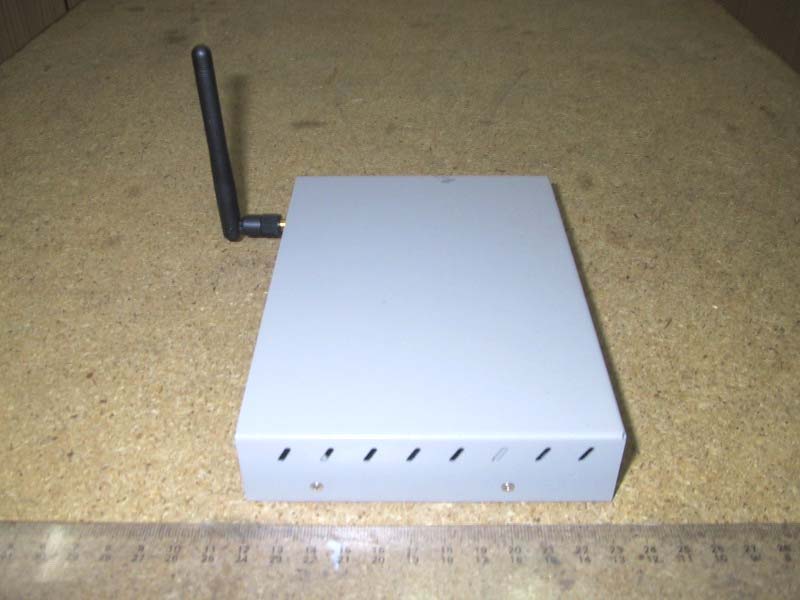

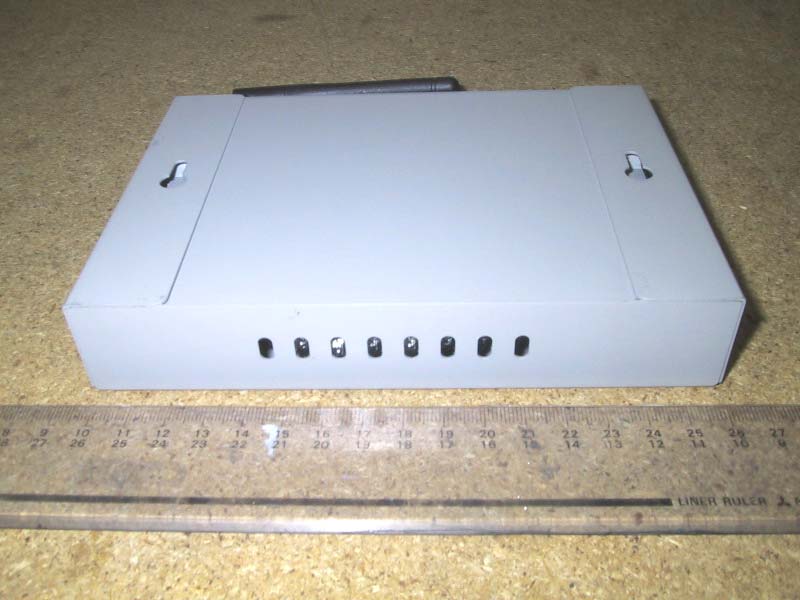

Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 External Photo Rear View Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 Left View Right View Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 Bottom View EUT Antenna Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 EUT Antenna Port EUT Top Housing External View Antenna Port Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 EUT Top Housing Internal View EUT Bottom Housing External View Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 EUT Bottom Housing Internal View EUT Power Adapter Front View Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 EUT Power Adapter Rear View

Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002g Internal Photos EUT Internal View Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002g EUT PCB Component Side RF Module Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002g EUT PCB Trace Side Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002g RF Module Circuit with RF Shield Removed

RfNet Wireless • Innovation • Networking RFNet Technologies Pte Ltd Unit 106, Innovation Centre, Blk 1, 18 Nanyang Drive, Singapore 637722 Tel: +65-7959301 Fax: +65-7959302 Date : 27 th October 2003 Ref : RFN/RD/03/0001 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: DECLARATION OF ANTENNA USED IN 802.11g Wireless Broadband Router (APRT- 2001g) FCC ID: PXP000002 The antenna used in the APRT-2001g (802.11g Wireless Broadband Router) is connected to the main PCB via a reverse SMA connector. The non-standard antenna connector enables the user to used only antenna supply by RFNet Technologies Pte Ltd with following specification. The antenna cannot be replaced by user with other standard antenna. The Dipole antenna used is an Omni antenna, manufactured by Professor. The antenna carries the model number ANT-1001-00 and has gain of 1.5dBi. Sincerely, Tan Moh Chuan (Mr.) 27 Oct 2003 Assistant Manager R&D Department

TEST REPORT Your Ref: Date: 27 Nov 2003 Our Ref: 56S030780/02 Page: 1 of 39 DID: +65-6885 1448 Fax: +65-6777 6409 NOTE: This report is issued subject to PSB Corporation's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme Head Office: PSB Corporation • Testing Group • 1 Science Park Drive Singapore 118221 • Hotline:+65 6885 1333 • Fax:+65 6775 9725 • Email: [email protected] • Website: www.psbcorp. com Regional Offices: Bangkok • Guangzhou • Jakarta • Kuala Lumpur • Shanghai • Taipei FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC Parts 15B & C : 2003 OF A WIRELESS BROADBAND ROUTER [ MODEL : APRT-2001g ] [ FCC ID : PXP000002 ] TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation Pte Ltd 1 Science Park Drive, Singapore 118221 FCC REG. NO. 90937 (3m & 10m OATS) 99142 (10m Anechoic Chamber) 871638 (5m Anechoic Chamber) IND. CANADA REG. NO. IC 4257 (10m Anechoic Chamber) PREPARED FOR Mr Tan Moh Chuan RFNet Technologies Pte Ltd Unit 106, Innovation Centre, Block1 16 Nanyang Drive Singapore 637722 Republic of Singapore Tel : 65 6795 6919Fax : 65 6795 9302 JOB NUMBER 56S030780 TEST PERIOD 15 Oct 2003 – 18 Nov 2003 PREPARED BYAPPROVED BY ____________________ Lim Cher Hwee Engineer ____________________ Deng Junhong Assistant Vice President 56S030780/02 RFNet Technologies Pte LtdPage 2 of 39 Wireless Broadband Router [Model : APRT-2001g] [FCC ID : PXP000002] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT LIST EUT OPERATING CONDITION TEST RESULTS ANNEX A-TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B-EUT PHOTOGRAPHS / DIAGRAMS ANNEX C-USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS ANNEX D-FCC LABEL & POSITION 56S030780/02 RFNet Technologies Pte LtdPage 3 of 39 Wireless Broadband Router [Model : APRT-2001g] [FCC ID : PXP000002] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail FCC Part 15: 2003 15.107, 15.207Conducted EmissionsPass 15.205Radiated Emissions (Restricted Band Requirements)Pass 15.109, 15.209Radiated Emissions (Spurious Emissions)Pass 15.247 (a)(2)Spectrum Bandwidth (6dB Bandwidth Measurement)Pass 15.247 (b)(3)Maximum Peak PowerPass 15.247 (c)RF Conducted Spurious Emissions & Band Edge Compliance at the Transmitter Antenna Terminal Pass 15.247 (d)Peak Power Spectral DensityPass 1.1310Maximum Permissible ExposurePass Notes 1.The channels as listed below, under the different configurations were tested: Transmit Channel Frequency (GHz)Modulation 802.11b Channel 12.412CCK (11Mbps) Channel 72.442CCK (11Mbps) Channel 132.472CCK (11Mbps) 802.11g Channel 12.412OFDM (54Mbps) Channel 72.442OFDM (54Mbps) Channel 112.462OFDM (54Mbps) 802.11g (Turbo) Channel 62.437OFDM (108Mbps) 2.All the measurements in section 15.247 were done based on conducted measurements. 3.The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. Modifications No modifications were done. 56S030780/02 RFNet Technologies Pte LtdPage 4 of 39 Wireless Broadband Router [Model : APRT-2001g] [FCC ID : PXP000002] PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is a Wireless Broadband Router, which has capability to operate both in 802.11b and 802.11g configurations. Manufacturer: RFNet Technologies Pte Ltd Model Number: APRT-2001g FCC ID: PXP000002 Serial Number: Nil Microprocessor: AR2312A (Atheros Communication, Inc.) Operating / Transmitting Frequency : 802.11b 2.412GHz to 2.472GHz with 13 channels. Starting at 2.412MHz with subsequent channel at 5MHz interval from the preceding channel. 802.11g 2.412GHz to 2.472GHz with 11 channels. Starting at 2.412MHz with subsequent channel at 5MHz interval from the preceding channel. 802.11g (Turbo) 2.437GHz (Channel 6). Clock / Oscillator Frequency: 40MHz Modulation: 802.11b CCK 802.11g OFDM 802.11g (Turbo) OFDM Pulse Train Cycle: Continuos signal (in testing) Port / Connectors: 1 x DC port 1 x antenna port 1 x RJ45 port 4 x RJ11 ports Rated Input Power: AC input: 120VAC 60Hz 150mA DC output: 9V 1000mA 56S030780/02 RFNet Technologies Pte LtdPage 5 of 39 Wireless Broadband Router [Model : APRT-2001g] [FCC ID : PXP000002] SUPPORTING EQUIPMENT DESCRIPTION Equipment Description (Including Brand Name) Model, Serial & FCC ID Number Cable Description (List Length, Type & Purpose) M/N : 892 S/N : Nil Ranger Notebook PC FCC ID : DoC 3.0m shielded RJ45 cable M/N : F19603J S/N : Nil Ranger AC/DC Power Adapter FCC ID : Nil 2.0m unshielded AC power cable 2.0m unshielded DC power cable with ferrite 56S030780/02 RFNet Technologies Pte LtdPage 6 of 39 Wireless Broadband Router [Model : APRT-2001g] [FCC ID : PXP000002] EUT OPERATING CONDITIONS The Wireless Broadband Router was powered from 110V, 60Hz mains supply. TestsDescription Of Operation 1. Conducted Emissions 2. Radiated Emissions 3. Spectrum Bandwidth (6dB Bandwidth Measurement) 4. Maximum Peak Power 5. RF Conducted Spurious Emissions at the Transmitter Antenna Terminal 6. Band Edge Compliance at the Transmitter Antenna Terminal 7. Peak Power Spectral Density 8. Maximum Permissible Exposure The EUT was exercised in test mode which enabled the EUT to be in continuous transmission with maximum power in following operating modes: 1. 802.11b - EUT in continuous transmission in Channel 1, Channel 7 and Channel 13 respectively with transmission rate of 11Mbps 2. 802.11g - EUT in continuous transmission in Channel 1, Channel 7 and Channel 11 respectively with transmission rate of 54Mbps 3. 802.11g (Turbo) - EUT in continuous transmission in Channel 6 with transmission r…

Text truncated - open the document above for the full version.

RADIATED SPURIOUS EMISSIONS PLOTS Channel 1 @ 802.11b 11Mbps (1GHz-3GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 1 @ 802.11b 11Mbps (3GHz-6GHz) Channel 1 @ 802.11b 11Mbps (6GHz-12GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 1 @ 802.11b 11Mbps (12GHz-18GHz) Channel 1 @ 802.11b 11Mbps (18GHz-25GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 7 @ 802.11b 11Mbps (1GHz-3GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 7 @ 802.11b 11Mbps (3GHz-6GHz) Channel 7 @ 802.11b 11Mbps (6GHz-12GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 7 @ 802.11b 11Mbps (12GHz-18GHz) Channel 7 @ 802.11b 11Mbps (18GHz-25GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 13 @ 802.11b 11Mbps (1GHz-3GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 13 @ 802.11b 11Mbps (3GHz-6GHz) Channel 13 @ 802.11b 11Mbps (6GHz-12GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 13 @ 802.11b 11Mbps (12GHz-18GHz) Channel 13 @ 802.11b 11Mbps (18GHz-25GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 1 @ 802.11g 54Mbps (1GHz-3GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 1 @ 802.11g 54Mbps (3GHz-6GHz) Channel 1 @ 802.11g 54Mbps (6GHz-12GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 1 @ 802.11g 54Mbps (12GHz-18GHz) Channel 1 @ 802.11g 54Mbps (18GHz-25GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 7 @ 802.11g 54Mbps (1GHz-3GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 7 @ 802.11g 54Mbps (3GHz-6GHz) Channel 7 @ 802.11g 54Mbps (6GHz-12GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 7 @ 802.11g 54Mbps (12GHz-18GHz) Channel 7 @ 802.11g 54Mbps (18GHz-25GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 11 @ 802.11g 54Mbps (1GHz-3GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 11 @ 802.11g 54Mbps (3GHz-6GHz) Channel 11 @ 802.11g 54Mbps (6GHz-12GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 11 @ 802.11g 54Mbps (12GHz-18GHz) Channel 11 @ 802.11g 54Mbps (18GHz-25GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 6 @ 802.11g (Turbo) 108Mbps (1GHz-3GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 6 @ 802.11g (Turbo) 108Mbps (3GHz-6GHz) Channel 6 @ 802.11g (Turbo) 108Mbps (6GHz-12GHz) RADIATED SPURIOUS EMISSIONS PLOTS Channel 6 @ 802.11g (Turbo) 108Mbps (12GHz-18GHz) Channel 6 @ 802.11g (Turbo) 108Mbps (18GHz-25GHz)

RESTRICTED BAND 2310MHz TO 2390MHz SPURIOUS EMISSIONS PLOTS Channel 1 @ 802.11b 11Mbps (Average Plot) Channel 1 @ 802.11b 11Mbps (Peak Plot) RESTRICTED BAND 2483.5MHz TO 2500MHz SPURIOUS EMISSIONS PLOTS Channel 13 @ 802.11b 11Mbps (Average Plot) Channel 13 @ 802.11b 11Mbps (Peak Plot) RESTRICTED BAND 2310MHz TO 2390MHz SPURIOUS EMISSIONS PLOTS Channel 1 @ 802.11g 54Mbps (Average Plot) Channel 1 @ 802.11g 54Mbps (Peak Plot) RESTRICTED BAND 2483.5MHz TO 2500MHz SPURIOUS EMISSIONS PLOTS Channel 11 @ 802.11g 54Mbps (Average Plot) Channel 11 @ 802.11g 54Mbps (Peak Plot)

Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 Set Up Photo Conducted Emission Setup (Front View) Conducted Emission Setup (Rear View) Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 Radiated Emissions Setup (Front View) Radiated Emissions Setup (Rear View) Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 Spectrum Bandwidth Measurement Test Setup Maximum Peak Power Measurement Test Setup Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 RF Conducted Spurious & Band Edge Measurement Test Setup Peak Power Spectral Density Measurement Test Setup Equipment: Wireless Broadband Router Model: APRT_2001g FCC ID: PXP000002 Maximum Permissible Exposure Measurement Test Setup
